NSP170G-MNXNB (2018)
Toyota Sienta

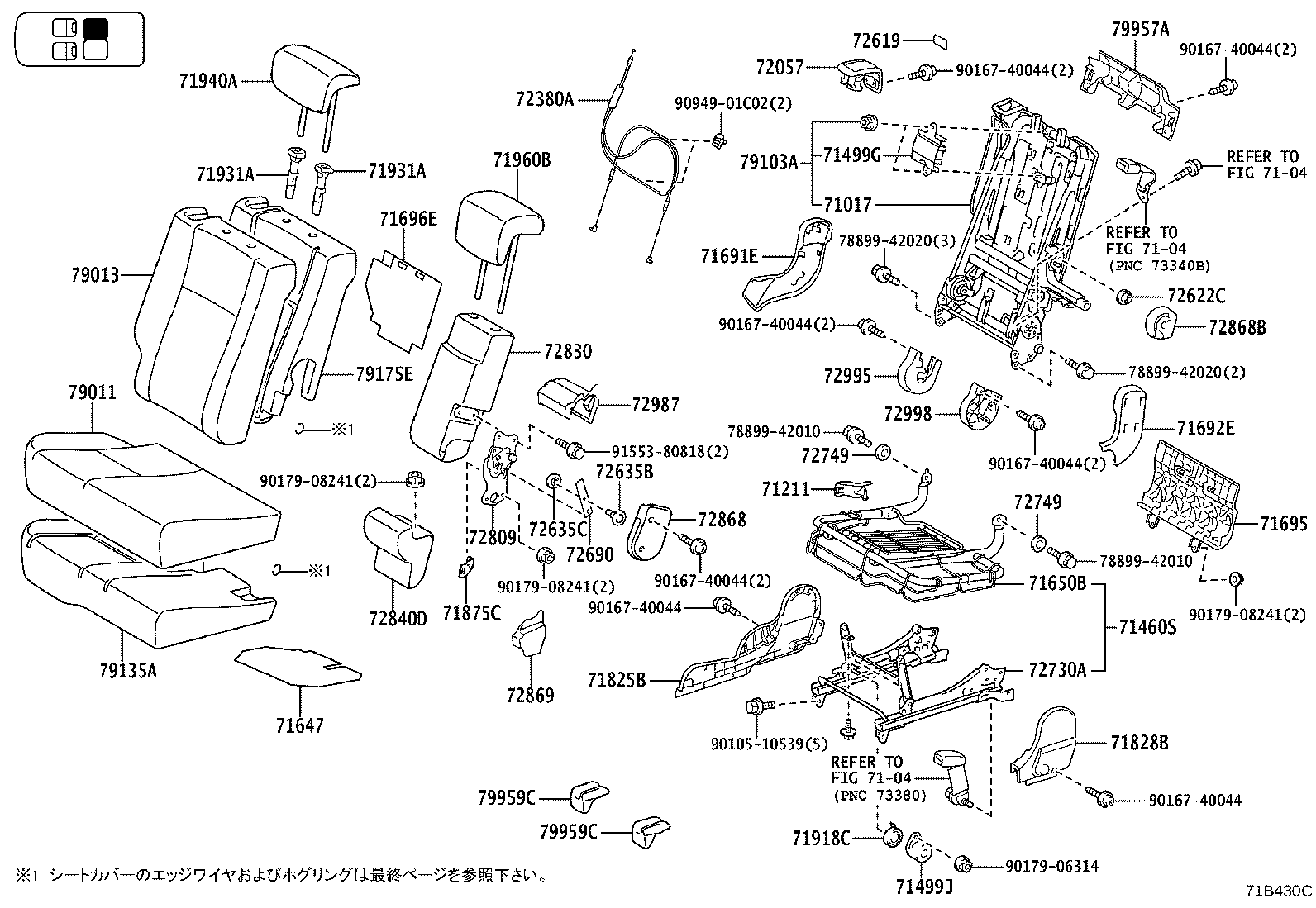

ILLUST NO. 1 OF 2(1809- )NHP170,NSP170..05S
ﾘﾔNO.1ｼｰﾄ(ﾐｷﾞｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52770 |
NHP170,NSP170..05S |
1 | ||
| 71211 - PANEL, REAR SEAT CUSHION, RH | ||||
| 71211-42020 |
NHP170,NSP170..05S |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-52Z60 |
NHP170,NSP170..05S |
1 | ||
| 71499G - DAMPER, REAR SEAT BACK SPRING, RH | ||||
| 71499-72010 |
NHP170,NSP170..05S |
1 | ||
| 71499J - DAMPER, REAR SEAT CUSHION SPRING, RH | ||||
| 71499-42020 |
NHP170,NSP170..05S |
1 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-52050 |
NHP170,NSP170..05S |
1 | ||
| 71650B - SPRING ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-52010 |
NHP170,NSP170..05S |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-42010C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-42020C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-42030 |
NHP170,NSP170..05S |
2 | ||
| 71696E - PROTECTOR, REAR SEAT, NO.2 RH | ||||
| 71696-52050 |
NHP170,NSP170..05S |
1 | ||
| 71825B - MOULDING, REAR SEAT CUSHION, RH | ||||
| 71825-42010C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 71828B - MOULDING, REAR SEAT CUSHION, REAR RH | ||||
| 71828-42020C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-42060C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 71918C - SPRING, CENTER SEAT CUSHION CATCH | ||||
| 71918-42040 |
NHP170,NSP170..05S |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-4402021 |
NHP170,NSP17#..WKG,WKX,X ﾛｯｸ付,BLACK,TRIM0#,2# |
3 | ||
| 71930-4402021 |
NCP175,NHP170,NSP170..(05S,06S)..(FNBSX,FNGCR,GCERO) ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170..G ﾛｯｸ付,BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NHP170,NSP17#..WKG,WKX,X ﾛｯｸ無,BLACK,TRIM0#,2# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170..G ﾛｯｸ無,BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170..G ﾛｯｸ無,“GLAMPER”*(Z),BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NCP175,NHP170,NSP170..(05S,06S)..(FNBSX,FNGCR,GCERO) ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170..G ﾛｯｸ付,“GLAMPER”*(Z),BLACK,TRIM0#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-4402021 |
NHP170,NSP17#..WKG,WKX,X ﾛｯｸ付,BLACK,TRIM0#,2# |
3 | ||
| 71930-4402021 |
NCP175,NHP170,NSP170..(05S,06S)..(FNBSX,FNGCR,GCERO) ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170..G ﾛｯｸ付,BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NHP170,NSP17#..WKG,WKX,X ﾛｯｸ無,BLACK,TRIM0#,2# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170..G ﾛｯｸ無,BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170..G ﾛｯｸ無,“GLAMPER”*(Z),BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NCP175,NHP170,NSP170..(05S,06S)..(FNBSX,FNGCR,GCERO) ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170..G ﾛｯｸ付,“GLAMPER”*(Z),BLACK,TRIM0#,2#,4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52G30B2 |
NCP175,NHP170,NSP17#..WKX,X DK.GRAY,TRIM2# |
2 | ||
| 71940-52G90B0 |
NHP170,NSP170..FNBSX DK.GRAY,TRIM2# |
2 | ||
| 71940-52G80C0 |
NCP175,NHP170,NSP17#..G,WKG BLACK/DK.GRAY,TRIM2# |
2 | ||
| 71940-52G80E1 |
NCP175,NHP170,NSP170..G “GLAMPER”*(Z),KOHAKU/DK.GRAY,TRIM4# |
2 | ||
| 71940-52G30A0 |
NHP170,NSP17#..WKX,X FROMAGE/DK.BROWN,TRIM0# |
2 | ||
| 71940-52G80E0 |
NCP175,NHP170,NSP17#..G,WKG DK.BROWN,TRIM0# |
2 | ||
| 71940-52G80E2 |
NCP175,NHP170,NSP170..G “GLAMPER”*(Z),KOHAKU/BLACK,TRIM4# |
2 | ||
| 71940-52G90C0 |
NHP170,NSP170..FNBSX BLACK,TRIM2# |
2 | ||
| 71940-52G80C1 |
NCP175,NHP170,NSP17#..G,WKG BLACK/BLACK,TRIM2# |
2 | ||
| 71940-52G30C0 |
NCP175,NHP170,NSP17#..WKX,X BLACK,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52A70E0 |
NHP170,NSP170..G DK.BROWN,TRIM0# |
1 | ||
| 71960-52A20B2 |
NHP170,NSP170..X DK.GRAY,TRIM2# |
1 | ||
| 71960-52A70C0 |
NHP170,NSP170..G BLACK/DK.GRAY,TRIM2# |
1 | ||
| 71960-52A70E1 |
NHP170,NSP170..G “GLAMPER”*(Z),KOHAKU/DK.GRAY,TRIM4# |
1 | ||
| 71960-52A70E2 |
NSP170..G KOHAKU/BLACK,TRIM4# |
1 | ||
| 71960-52C20B0 |
NHP170,NSP170..FNBSX DK.GRAY,TRIM2# |
1 | ||
| 71960-52A20A0 |
NHP170,NSP170..X FROMAGE/DK.BROWN,TRIM0# |
1 | ||
| 71960-52A20C0 |
NHP170,NSP170..X BLACK,TRIM2# |
1 | ||
| 71960-52A70C1 |
NHP170,NSP170..G BLACK/BLACK,TRIM2# |
1 | ||
| 71960-52C20C0 |
NHP170,NSP170..FNBSX BLACK,TRIM2# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-52040C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 72380A - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-52020 |
NHP170,NSP170..05S |
2 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-52100C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
2 | ||
| 72622C - BUSH, REAR SEAT BACK PROTECTOR SHAFT | ||||
| 72622-42010 |
NHP170,NSP170..05S |
1 | ||
| 72635B - HOOK, REAR SEAT BACK LOCK(MALE) | ||||
| 72635-13010C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 72635C - HOOK, REAR SEAT BACK LOCK(FEMALE) | ||||
| 72635-13020C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 72690 - LEVER ASSY, SEAT CUSHION LOCK RELEASE | ||||
| 72690-52040C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-52010 |
NHP170,NSP170..05S |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NHP170,NSP170..05S |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NHP170,NSP170..05S |
4 | ||
| 72809 - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-42020 |
NHP170,NSP170..05S |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-52190C1 |
NHP170,NSP170..FNBSX BLACK,TRIM2# |
1 | ||
| 72830-52190C2 |
NHP170,NSP170..FNBSX BLACK/BLACK,TRIM2# |
1 | ||
| 72840D - ARMREST ASSY, REAR SEAT, LH | ||||
| 72840-52010C1 |
NHP170,NSP170..FNBSX BLACK,TRIM2# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-42020C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-52070 |
NHP170,NSP170..05S |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-42020C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 72987 - COVER, REAR SEAT CENTER ARMREST | ||||
| 72987-42020C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-42090C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
2 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-42010C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
2 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-52120B1 |
NHP170,NSP170..G DK.GRAY,TRIM2# |
1 | ||
| 79011-52190B0 |
NHP170,NSP170..FNBSX DK.GRAY/BLACK,TRIM2# |
1 | ||
| 79011-52120E1 |
NHP170,NSP170..G DK.BROWN/DK.GRAY,TRIM0# |
1 | ||
| 79011-52240C1 |
NHP170,NSP170..G “GLAMPER”*(Z),BLACK/BLACK,TRIM4# |
1 | ||
| 79011-52210C0 |
NHP170,NSP170..X BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79011-52240C0 |
NHP170,NSP170..G “GLAMPER”*(Z),BLACK,TRIM4# |
1 | ||
| 79011-52120B2 |
NHP170,NSP170..G DK.GRAY/BLACK,TRIM2# |
1 | ||
| 79011-52210C1 |
NHP170,NSP170..X BLACK/BLACK,TRIM2# |
1 | ||
| 79011-52210A0 |
NHP170,NSP170..X FROMAGE/DK.GRAY,TRIM0# |
1 | ||
| 79011-52190C0 |
NHP170,NSP170..FNBSX BLACK/BLACK,TRIM2# |
1 | ||
| 79011-52210A1 |
NHP170,NSP170..X FROMAGE/BLACK,TRIM0# |
1 | ||
| 79011-52120E2 |
NHP170,NSP170..G DK.BROWN/BLACK,TRIM0# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-52280C0 |
NHP170,NSP170..FNBSX BLACK,TRIM2# |
1 | ||
| 79013-52300B0 |
NHP170,NSP170..X DK.GRAY/BLACK,TRIM2# |
1 | ||
| 79013-52330C0 |
NHP170,NSP170..G “GLAMPER”*(Z),BLACK,TRIM4# |
1 | ||
| 79013-52180B0 |
NHP170,NSP170..G DK.GRAY/BLACK,TRIM2# |
1 | ||
| 79013-52330B0 |
NHP170,NSP170..G “GLAMPER”*(Z),DK.GRAY,TRIM4# |
1 | ||
| 79013-52180C0 |
NHP170,NSP170..G BLACK/BLACK,TRIM2# |
1 | ||
| 79013-52180E0 |
NHP170,NSP170..G DK.BROWN,TRIM0# |
1 | ||
| 79013-52280C1 |
NHP170,NSP170..FNBSX BLACK/BLACK,TRIM2# |
1 | ||
| 79013-52300E0 |
NHP170,NSP170..X DK.BROWN/FROMAGE,TRIM0# |
1 | ||
| 79013-52300C0 |
NHP170,NSP170..X BLACK/BLACK,TRIM2# |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-52090 |
NHP170,NSP170..05S |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-52020 |
NHP170,NSP170..G,X |
1 | ||
| 79135-52070 |
NHP170,NSP170..05S |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-52040 |
NHP170,NSP170..G,X |
1 | ||
| 79175-52090 |
NHP170,NSP170..05S |
1 | ||
| 79957A - COVER, REAR SEAT REAR BRACKET, RH | ||||
| 79957-42040C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 79959C - COVER, REAR SEAT LEG | ||||
| 79959-52270C0 |
NCP175,NHP170,NSP170..G BLACK,TRIM0#,2#,4# |
1 | ||
| 79959-52270C0 |
NCP175,NHP170,NSP170..X BLACK,TRIM0#,2# |
1 | ||
| 79959-52290C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
4 | ||
| 79959C - COVER, REAR SEAT LEG | ||||
| 79959-52270C0 |
NCP175,NHP170,NSP170..G BLACK,TRIM0#,2#,4# |
1 | ||
| 79959-52270C0 |
NCP175,NHP170,NSP170..X BLACK,TRIM0#,2# |
1 | ||
| 79959-52290C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
4 | ||
| Common parts | ||||
| 78899-42010 | ||||
| 78899-42020 | ||||
| 90105-10539 | ||||
| 90167-40044 | ||||
| 90179-06314 | ||||
| 90179-08241 | ||||
| 90949-01C02 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 7104 | ||||

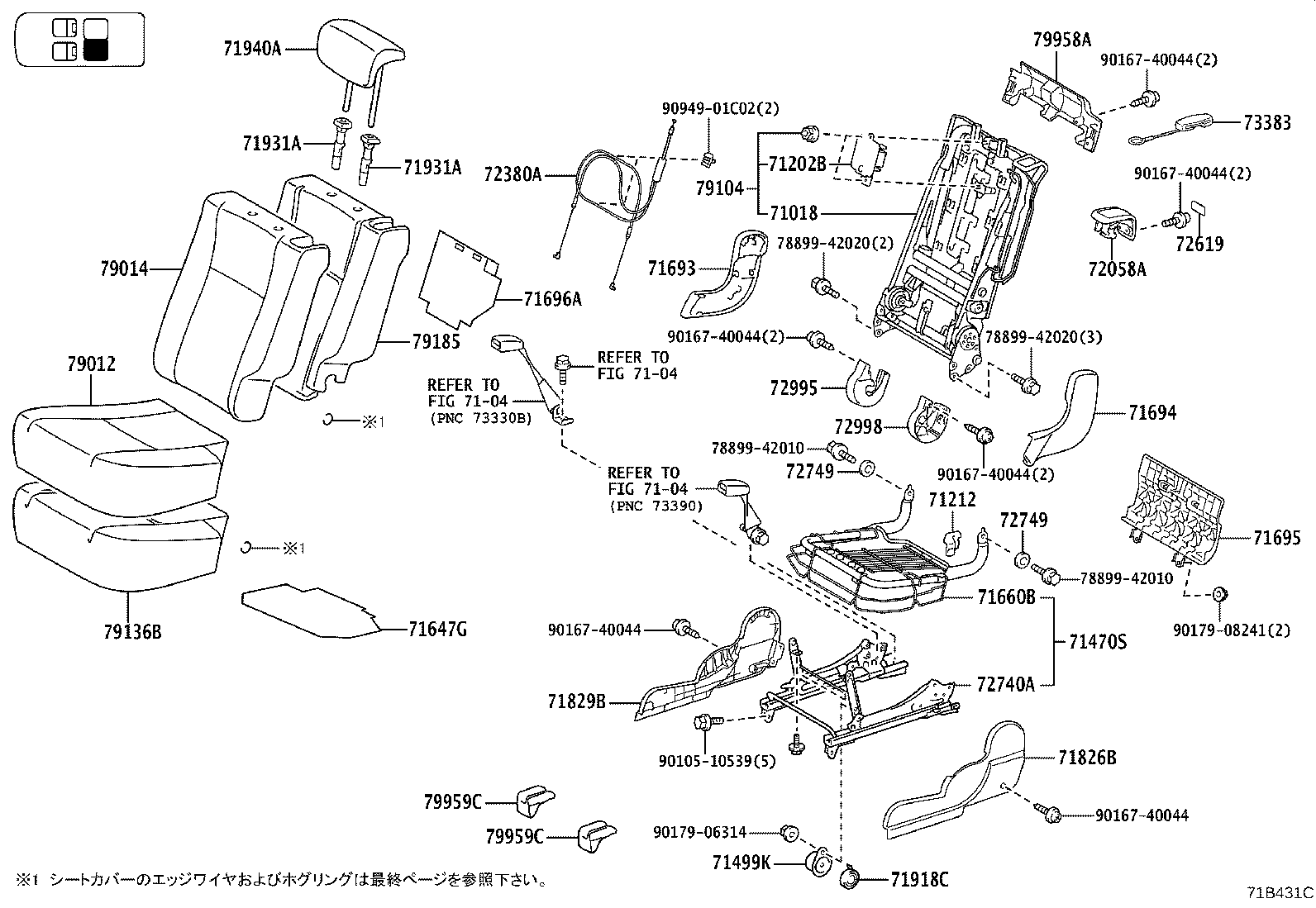

ILLUST NO. 2 OF 2(1809- )NHP170,NSP170..05S
ﾘﾔNO.1ｼｰﾄ(ﾋﾀﾞﾘｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52550 |
NHP170,NSP170..05S |
1 | ||
| 71202B - PANEL, REAR SEAT BACK | ||||
| 71202-52020 |
NHP170,NSP170..05S |
1 | ||
| 71212 - PANEL, REAR SEAT CUSHION, LH | ||||
| 71212-42020 |
NHP170,NSP170..05S |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-52760 |
NHP170,NSP170..05S |
1 | ||
| 71499K - DAMPER, REAR SEAT CUSHION SPRING, LH | ||||
| 71499-42030 |
NHP170,NSP170..05S |
1 | ||
| 71647G - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-52060 |
NHP170,NSP170..05S |
1 | ||
| 71660B - SPRING ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-52010 |
NHP170,NSP170..05S |
1 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-42020C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-42010C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 71695 - PROTECTOR, REAR SEAT BACK | ||||
| 71695-42030 |
NHP170,NSP170..05S |
2 | ||
| 71696A - PROTECTOR, REAR SEAT, NO.2 LH | ||||
| 71696-52060 |
NHP170,NSP170..05S |
1 | ||
| 71826B - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71826-42010C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 71829B - MOULDING, REAR SEAT CUSHION, REAR LH | ||||
| 71829-42020C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 71918C - SPRING, CENTER SEAT CUSHION CATCH | ||||
| 71918-42040 |
NHP170,NSP170..05S |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-4402021 |
NHP170,NSP17#..WKG,WKX,X ﾛｯｸ付,BLACK,TRIM0#,2# |
3 | ||
| 71930-4402021 |
NCP175,NHP170,NSP170..(05S,06S)..(FNBSX,FNGCR,GCERO) ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170..G ﾛｯｸ付,BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NHP170,NSP17#..WKG,WKX,X ﾛｯｸ無,BLACK,TRIM0#,2# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170..G ﾛｯｸ無,BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170..G ﾛｯｸ無,“GLAMPER”*(Z),BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NCP175,NHP170,NSP170..(05S,06S)..(FNBSX,FNGCR,GCERO) ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170..G ﾛｯｸ付,“GLAMPER”*(Z),BLACK,TRIM0#,2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-4402021 |
NHP170,NSP17#..WKG,WKX,X ﾛｯｸ付,BLACK,TRIM0#,2# |
3 | ||
| 71930-4402021 |
NCP175,NHP170,NSP170..(05S,06S)..(FNBSX,FNGCR,GCERO) ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170..G ﾛｯｸ付,BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NHP170,NSP17#..WKG,WKX,X ﾛｯｸ無,BLACK,TRIM0#,2# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170..G ﾛｯｸ無,BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NHP170,NSP170..G ﾛｯｸ無,“GLAMPER”*(Z),BLACK,TRIM0#,2#,4# |
3 | ||
| 71931-47010C8 |
NCP175,NHP170,NSP170..(05S,06S)..(FNBSX,FNGCR,GCERO) ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-4402021 |
NHP170,NSP170..G ﾛｯｸ付,“GLAMPER”*(Z),BLACK,TRIM0#,2#,4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52G30B2 |
NCP175,NHP170,NSP17#..WKX,X DK.GRAY,TRIM2# |
2 | ||
| 71940-52G90B0 |
NHP170,NSP170..FNBSX DK.GRAY,TRIM2# |
2 | ||
| 71940-52G80C0 |
NCP175,NHP170,NSP17#..G,WKG BLACK/DK.GRAY,TRIM2# |
2 | ||
| 71940-52G80E1 |
NCP175,NHP170,NSP170..G “GLAMPER”*(Z),KOHAKU/DK.GRAY,TRIM4# |
2 | ||
| 71940-52G30A0 |
NHP170,NSP17#..WKX,X FROMAGE/DK.BROWN,TRIM0# |
2 | ||
| 71940-52G80E0 |
NCP175,NHP170,NSP17#..G,WKG DK.BROWN,TRIM0# |
2 | ||
| 71940-52G80E2 |
NCP175,NHP170,NSP170..G “GLAMPER”*(Z),KOHAKU/BLACK,TRIM4# |
2 | ||
| 71940-52G90C0 |
NHP170,NSP170..FNBSX BLACK,TRIM2# |
2 | ||
| 71940-52G80C1 |
NCP175,NHP170,NSP17#..G,WKG BLACK/BLACK,TRIM2# |
2 | ||
| 71940-52G30C0 |
NCP175,NHP170,NSP17#..WKX,X BLACK,TRIM2# |
2 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72057-52040C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 72380A - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-52020 |
NHP170,NSP170..05S |
2 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72615-52100C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
2 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-52010 |
NHP170,NSP170..05S |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NHP170,NSP170..05S |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48010 |
NHP170,NSP170..05S |
4 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-42090C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
2 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-42010C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
2 | ||
| 73383 - HOOK, RR SEAT BELT | ||||
| 73383-52020 |
NHP170,NSP17# ﾘﾔ NO.1 ｼｰﾄﾍﾞﾙﾄ−有り(ﾌﾟﾘﾃﾝｼｮﾅ & ﾌｫｰｽﾘﾐｯﾀ機構付き& ﾘﾙｰﾀ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 73383-52020 |
NHP170,NSP17# ﾘﾔ NO.1 ｼｰﾄﾍﾞﾙﾄ−有り(ﾘﾙｰﾀ) |
1 | ||
| 73383-52020 |
NHP170,NSP17#..G,WKG,X ﾘﾔ NO.1 ｼｰﾄﾍﾞﾙﾄ−有り(ﾌﾟﾘﾃﾝｼｮﾅ & ﾌｫｰｽﾘﾐｯﾀ機構付き& ﾘﾙｰﾀ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-52120E1 |
NHP170,NSP170..G DK.BROWN/DK.GRAY,TRIM0# |
1 | ||
| 79012-52120B1 |
NHP170,NSP170..G DK.GRAY,TRIM2# |
1 | ||
| 79012-52190B0 |
NHP170,NSP170..FNBSX DK.GRAY/BLACK,TRIM2# |
1 | ||
| 79012-52210C0 |
NHP170,NSP170..X BLACK/DK.GRAY,TRIM2# |
1 | ||
| 79012-52210A0 |
NHP170,NSP170..X FROMAGE/DK.GRAY,TRIM0# |
1 | ||
| 79012-52240C0 |
NHP170,NSP170..G “GLAMPER”*(Z),BLACK,TRIM4# |
1 | ||
| 79012-52120B2 |
NHP170,NSP170..G DK.GRAY/BLACK,TRIM2# |
1 | ||
| 79012-52240C1 |
NHP170,NSP170..G “GLAMPER”*(Z),BLACK/BLACK,TRIM4# |
1 | ||
| 79012-52120E2 |
NHP170,NSP170..G DK.BROWN/BLACK,TRIM0# |
1 | ||
| 79012-52210A1 |
NHP170,NSP170..X FROMAGE/BLACK,TRIM0# |
1 | ||
| 79012-52210C1 |
NHP170,NSP170..X BLACK/BLACK,TRIM2# |
1 | ||
| 79012-52190C0 |
NHP170,NSP170..FNBSX BLACK/BLACK,TRIM2# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-52120B0 |
NHP170,NSP170..G DK.GRAY/BLACK,TRIM2# |
1 | ||
| 79014-52190B0 |
NHP170,NSP170..X DK.GRAY/BLACK,TRIM2# |
1 | ||
| 79014-52170C0 |
NHP170,NSP170..FNBSX BLACK,TRIM2# |
1 | ||
| 79014-52240C0 |
NHP170,NSP170..G “GLAMPER”*(Z),BLACK,TRIM4# |
1 | ||
| 79014-52120E0 |
NHP170,NSP170..G DK.BROWN,TRIM0# |
1 | ||
| 79014-52240B0 |
NHP170,NSP170..G “GLAMPER”*(Z),DK.GRAY,TRIM4# |
1 | ||
| 79014-52120C0 |
NHP170,NSP170..G BLACK/BLACK,TRIM2# |
1 | ||
| 79014-52170C1 |
NHP170,NSP170..FNBSX BLACK/BLACK,TRIM2# |
1 | ||
| 79014-52190E0 |
NHP170,NSP170..X DK.BROWN/FROMAGE,TRIM0# |
1 | ||
| 79014-52190C0 |
NHP170,NSP170..X BLACK/BLACK,TRIM2# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-52060 |
NHP170,NSP170..05S |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-52050 |
NHP170,NSP170..05S |
1 | ||
| 79136-52020 |
NHP170,NSP170..G,X |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-52020 |
NHP170,NSP170..G,X |
1 | ||
| 79185-52070 |
NHP170,NSP170..05S |
1 | ||
| 79958A - COVER, REAR SEAT REAR BRACKET, LH | ||||
| 79958-42020C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
1 | ||
| 79959C - COVER, REAR SEAT LEG | ||||
| 79959-52270C0 |
NCP175,NHP170,NSP170..G BLACK,TRIM0#,2#,4# |
1 | ||
| 79959-52270C0 |
NCP175,NHP170,NSP170..X BLACK,TRIM0#,2# |
1 | ||
| 79959-52290C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
4 | ||
| 79959C - COVER, REAR SEAT LEG | ||||
| 79959-52270C0 |
NCP175,NHP170,NSP170..G BLACK,TRIM0#,2#,4# |
1 | ||
| 79959-52270C0 |
NCP175,NHP170,NSP170..X BLACK,TRIM0#,2# |
1 | ||
| 79959-52290C0 |
NHP170,NSP170..FNBSX,FNGCR BLACK,TRIM2# |
4 | ||
| Common parts | ||||
| 78899-42010 | ||||
| 78899-42020 | ||||
| 90105-10539 | ||||
| 90167-40044 | ||||
| 90179-06314 | ||||
| 90179-08241 | ||||
| 90949-01C02 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
