NSP170G-MNXNB (2018)
Toyota Sienta

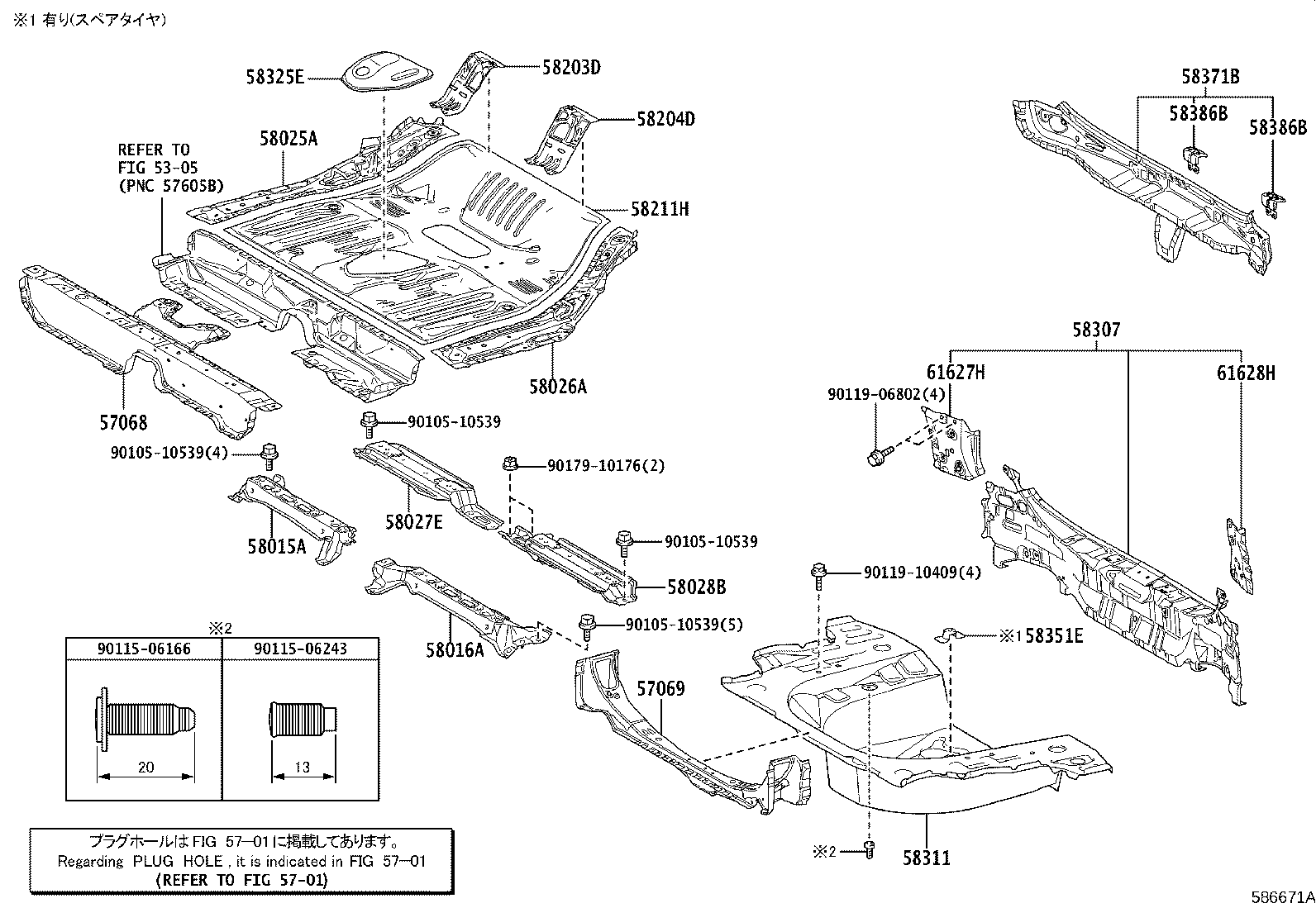

ILLUST NO. 2 OF 2(1809- )NSP17#..05S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-52040 |
NHP170,NSP170 |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-52041 |
NHP170,NSP170 |
1 | ||
| 57069-52041 |
NSP170..G,X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&ｽﾍﾟｱﾀｲﾔ−T105/70D16 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-52070 |
NHP170,NSP170..05S |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-52020 |
NHP170,NSP170..05S |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-52070 |
NHP170,NSP170..05S |
1 | ||
| 58025-52050 |
NCP175,NHP170,NSP17#..G,GCERO,WKG,WKX,X |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58026-52130 |
NHP170,NSP170..05S |
1 | ||
| 58026-52070 |
NCP175,NHP170,NSP17#..G,GCERO,WKG,WKX,X |
1 | ||
| 58027E - REINFORCE SUB-ASSY, SEAT BELT ANCHOR ,RH | ||||
| 58027-52040 |
NHP170,NSP170..05S |
1 | ||
| 58028B - REINFORCE SUB-ASSY, SEAT BELT ANCHOR, LH | ||||
| 58028-52030 |
NHP170,NSP170..05S |
1 | ||
| 58203D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH | ||||
| 58203-52110 |
NCP175,NHP170,NSP170 |
1 | ||
| 58204D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH | ||||
| 58204-52090 |
NCP175,NHP170,NSP170 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-52300 |
NHP170,NSP170 |
1 | ||
| 58211-52370 |
NHP170,NSP170 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58302-52162 |
NCP175,NHP170,NSP170 |
1 | ||
| 58302-52162 |
NSP170..G,X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&ｽﾍﾟｱﾀｲﾔ−T105/70D16 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52911 |
NSP170 |
1 | ||
| 58311-52911 |
NSP170..G,X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&ｽﾍﾟｱﾀｲﾔ−T105/70D16 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52090 |
NHP170,NSP17# |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-33010 |
NSP170 ｽﾍﾟｱﾀｲﾔ−T105/70D16 |
1 | ||
| 58351-33010 |
NSP170..G,X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ) |
1 | ||
| 58371B - PANEL, BODY LOWER BACK, OUTER | ||||
| 58307-52670 |
NHP170,NSP170 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
NCP175,NHP170,NSP170 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
NCP175,NHP170,NSP170 |
2 | ||
| 61627H - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-52030 |
NCP175,NHP170,NSP17# |
1 | ||
| 61627-52030 |
NSP170..G,X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&ｽﾍﾟｱﾀｲﾔ−T105/70D16 |
1 | ||
| 61628H - EXTENSION, QUARTER PANEL, REAR LWR LH | ||||
| 61628-52030 |
NSP170..G,X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&ｽﾍﾟｱﾀｲﾔ−T105/70D16 |
1 | ||
| 61628-52030 |
NCP175,NHP170,NSP17# |
1 | ||
| Common parts | ||||
| 90105-10539 | ||||
| 90115-06166 | ||||
| 90115-06243 | ||||
| 90119-06802 | ||||
| 90119-10409 | ||||
| 90179-10176 | ||||
| Linked diagrams | ||||
| 5305 | ||||
| 5701 | ||||
