NCP85G-KWPGK (2003)

Toyota Sienta

Production Sep 2003 - May 2006
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0309- )

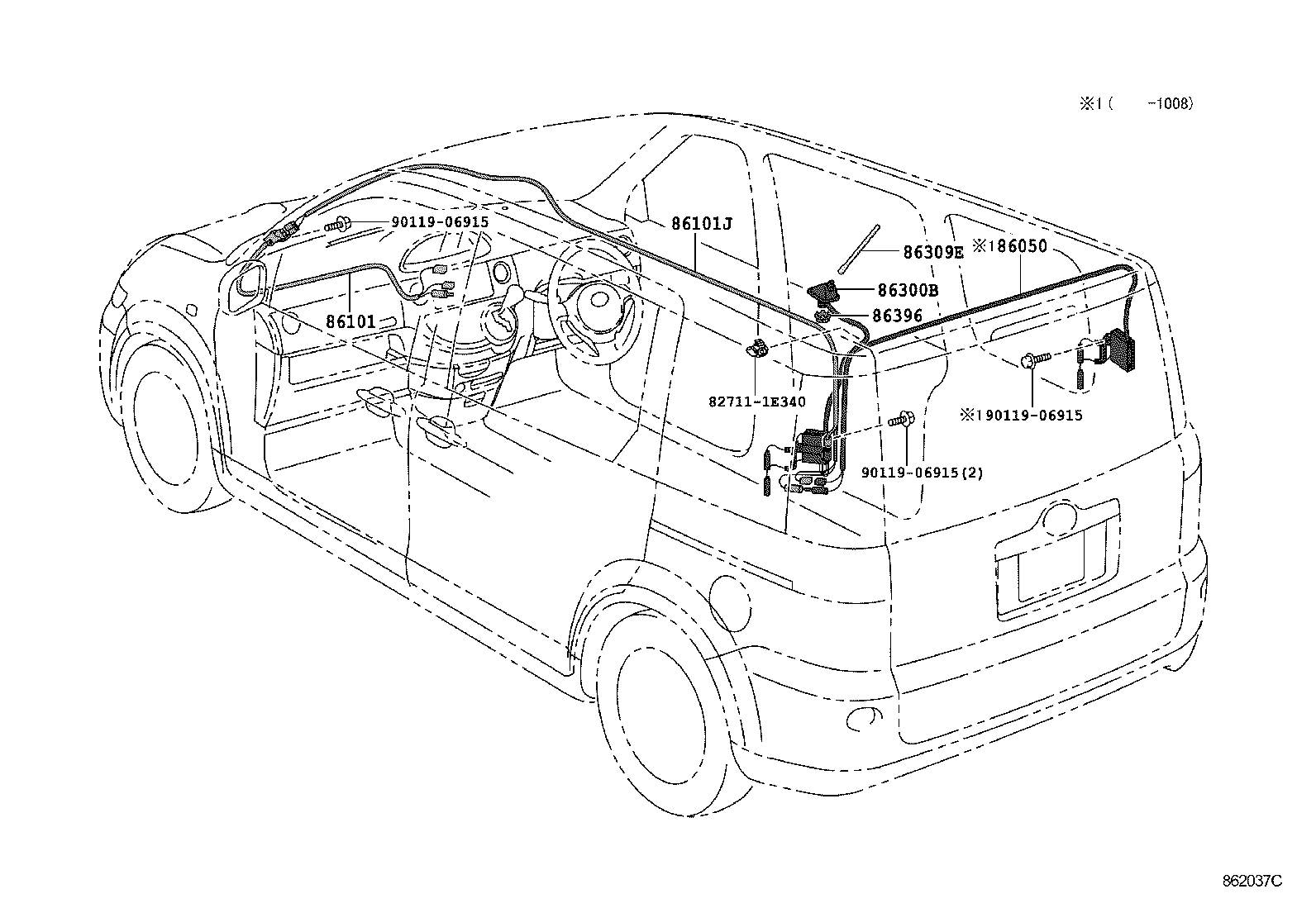

Click highlighted areas on diagram

diagram 827111E340 86050 86101 86101J 86300B 86309E 86396 9011906915 9011906915 9011906915
Part # Description Qty Price
86050 - ANTENNA ASSY, TELEVISION
86050-52120

NCP8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),CD,MD

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-52320

NCP8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),CD,MD

 1
86101-52250

NCP8#

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-52330

NCP8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),CD,MD

 1
86101-52260

NCP8#

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-52130

NCP8#

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-52030

NCP8#

 1
86396 - NUT, ANTENNA
86396-20040

NCP8#

 1
Common parts
82711-1E340
90119-06915
