NCP85G-KWPGK (2003)

Toyota Sienta

Production Sep 2003 - May 2006
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0309- )

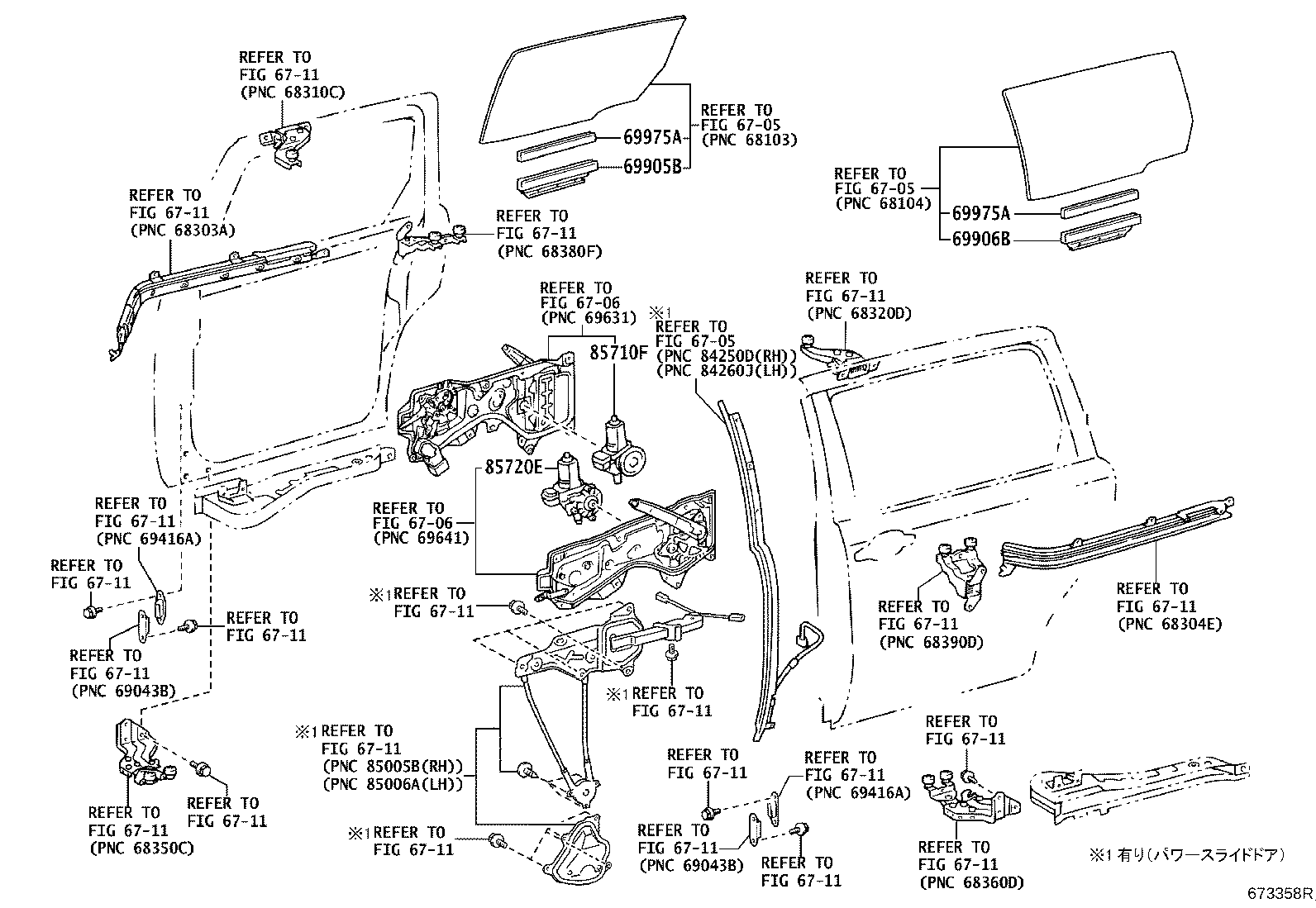

Click highlighted areas on diagram

diagram 6705 6705 6705 6706 6706 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 6711 69905B 69906B 69975A 69975A 85710F 85720E
Part # Description Qty Price
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906-52010

NCP8#

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69905-52020

NCP8#

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-52010

NCP8#

 2
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-52010

NCP8#

 2
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-52120

NCP8#

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-52120

NCP8#

 1
Linked diagrams
6705
6706
6711
