NCP85G-KWPGK (2003)

Toyota Sienta

Production Sep 2003 - May 2006
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0309- )

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33560 33563 35906 35953 35970F 35975 35976 8401 9011908C43 9046710203
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-68010A0

NCP8#

IVORY,TRIM0#

 1
33504-68010B1

NCP8#

GRAY,TRIM9#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11014

NCP8#

14V 1.4W

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-52160

NCP85

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-52060

NCP8#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-52040

NCP8#

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-52030

NCP8#

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-52020B0

NCP85

GRAY,TRIM9#

 1
35970-52020A0

NCP85

IVORY,TRIM0#

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-52100

NCP8#

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-52100

NCP8#

 1
Common parts
90119-08C43
90467-10203
Linked diagrams
8401

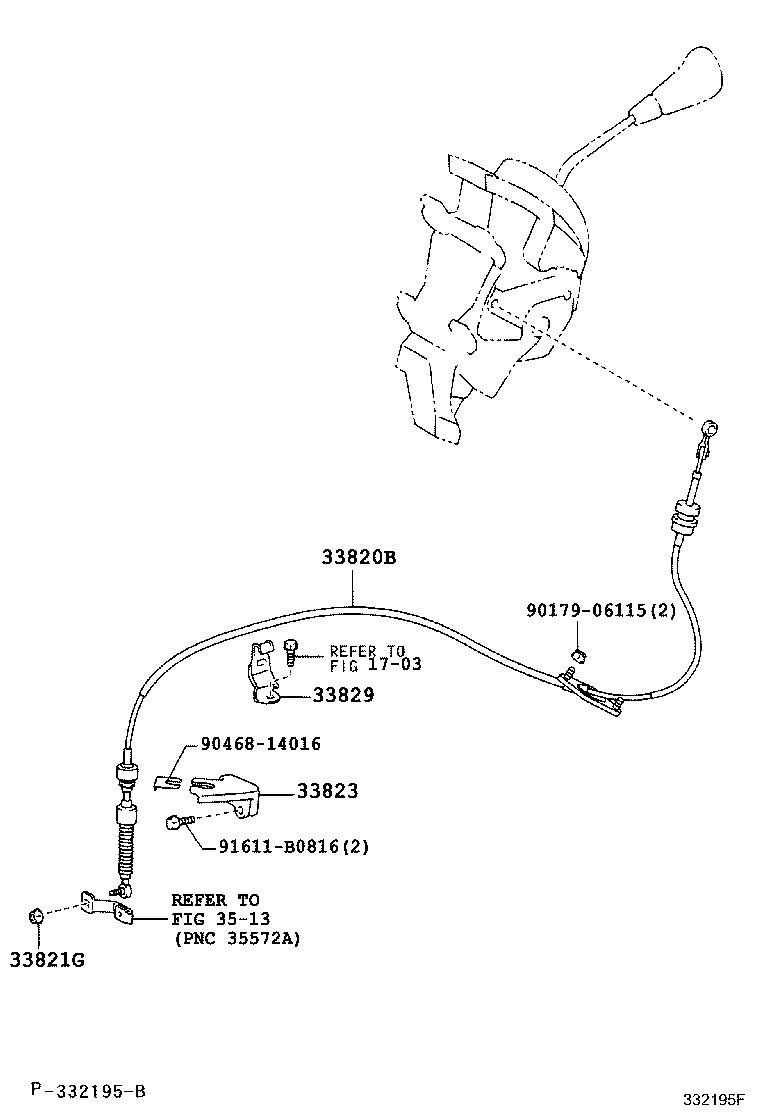

ILLUST NO. 2 OF 2(0309- )NCP85

Click highlighted areas on diagram

diagram 1703 33820B 33821G 33823 33829 3513 9017906115 9046814016 91611B0816
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52330

NCP85

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-08061

NCP8#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52041

NCP85

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-52030

NCP85

 1
Common parts
90179-06115
90468-14016
91611-B0816
Linked diagrams
1703
3513
