NCP85G-KWPEK (2003)
Toyota Sienta
Production
Sep 2003
-
May 2006
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

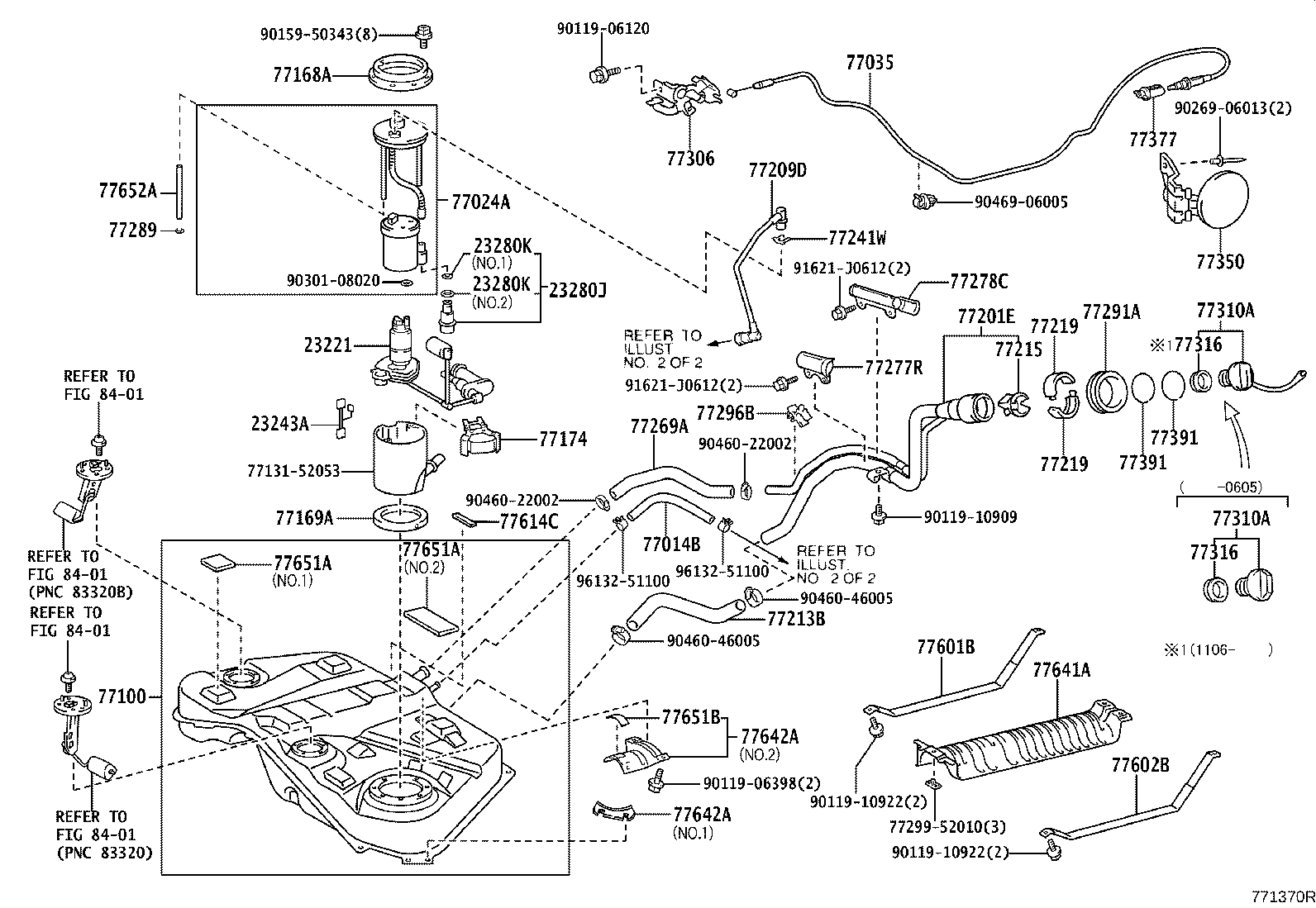

ILLUST NO. 1 OF 2(0309- )NCP85
Click highlighted areas on diagram
ﾌﾕ-ｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-21120 |
1NZFE..NCP85 |
1 | ||
| 23243A - WIRE, FUEL PUMP MOTOR | ||||
| 23243-21010 |
1NZFE..NCP8# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1NZFE..NCP8# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1NZFE..NCP8# NO.2 |
1 | ||
| 90301-04013 |
1NZFE..NCP8# NO.1 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1NZFE..NCP8# NO.2 |
1 | ||
| 90301-04013 |
1NZFE..NCP8# NO.1 |
1 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06030 |
NCP85 *H,L=220 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-52100 |
NCP85 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-52150 |
NCP8# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-52100 |
NCP85 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
NCP8# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
NCP8# |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-52030 |
NCP8# |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-52180 |
NCP85 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-52080 |
NCP85 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52100 |
NCP85 |
1 | ||
| 77215 - PLATE, FUEL TANK FILLER PIPE FLANGE | ||||
| 77215-51010 |
NCP85 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52050 |
NCP85 |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-52050 |
NCP85 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
NCP8# |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-52050 |
NCP85 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-52020 |
NCP85 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-52020 |
NCP85 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
NCP8# |
2 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-52010 |
NCP8# |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-68011 |
NCP85 |
1 | ||
| 77296-68010 |
NCP85 |
1 | ||
| 77296-68012 |
NCP85 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
NCP8# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
NCP8# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
NCP8# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
NCP8# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
NCP8# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-52110 |
NCP8# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-52010 |
NCP8# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NCP8# |
2 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NCP8# |
2 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-52020 |
NCP85 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77601-52020 |
NCP85 |
1 | ||
| 77614C - SEAL, FUEL TANK COVER | ||||
| 77614-52020 |
NCP85 |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-52050 |
NCP85 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-52020 |
NCP85 NO.1 |
1 | ||
| 77642-52040 |
NCP85 NO.2 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-52020 |
NCP85 NO.1 |
1 | ||
| 77642-52040 |
NCP85 NO.2 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26070 |
NCP85 NO.2 |
1 | ||
| 77651-20090 |
NCP85 NO.1 |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26070 |
NCP85 NO.2 |
1 | ||
| 77651-20090 |
NCP85 NO.1 |
6 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-60100 |
NCP85 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-52020 |
NCP85 |
1 | ||
| Common parts | ||||
| 77131-52053 | ||||
| 77299-52010 | ||||
| 90119-06120 | ||||
| 90119-06398 | ||||
| 90119-10909 | ||||
| 90119-10922 | ||||
| 90159-50343 | ||||
| 90269-06013 | ||||
| 90301-08020 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90469-06005 | ||||
| 91621-J0612 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0309- )
Click highlighted areas on diagram
ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77261-52160 |
NCP85 |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77261-52160 |
NCP85 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-52190 |
NCP8# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-52190 |
NCP8# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06020 |
NCP8# *H,L=120 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52010 |
NCP8# |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52010 |
NCP8# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52010 |
NCP8# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52010 |
NCP8# |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52010 |
NCP8# |
4 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-32030 |
NCP85 |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-52041 |
NCP8# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23827-21010 |
NCP85 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-52020 |
NCP8# |
1 | ||
| Common parts | ||||
| 90949-01C82 | ||||
| 91553-80610 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
