NCP85G-KWPEK (2003)

Toyota Sienta

Production Sep 2003 - May 2006
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0309-0605)

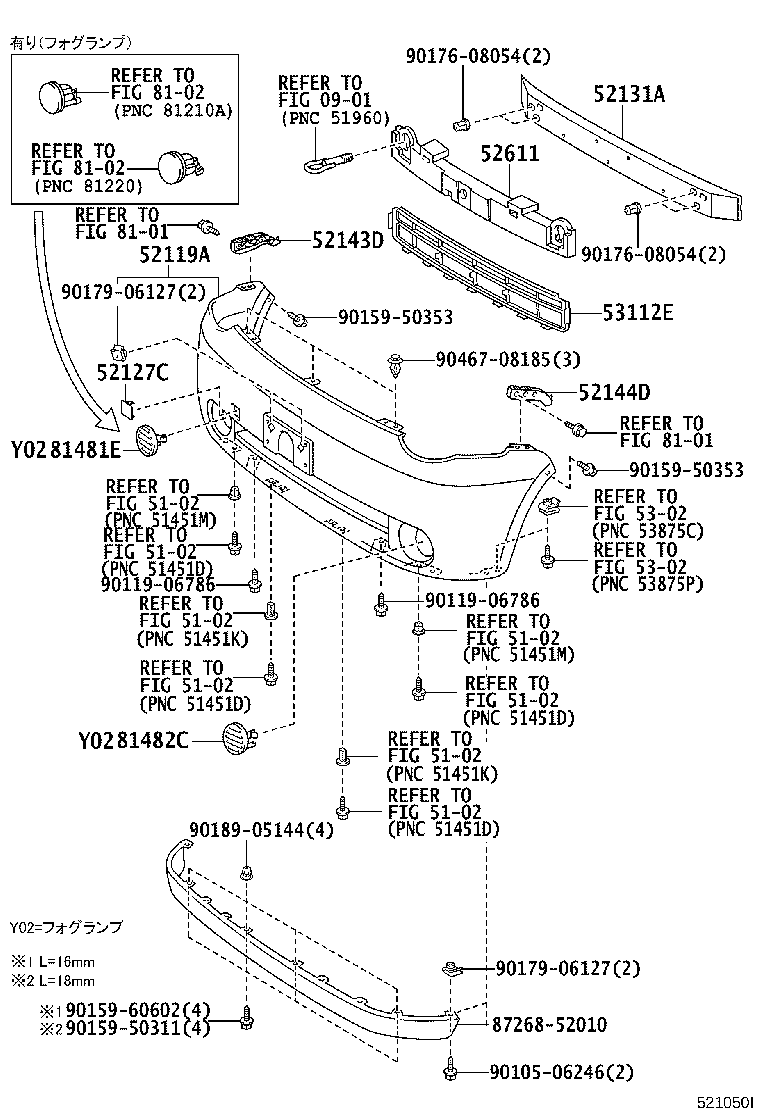

Click highlighted areas on diagram

diagram 0901 5102 5102 5102 5102 5102 5102 5102 5102 52119A 52127C 52131A 52143D 52144D 52611 5302 5302 53112E 8101 8101 8102 8102 81481E 81482C 8726852010 9010506246 9011906786 9011906786 9015950311 9015950353 9015950353 9015960602 9017608054 9017608054 9017906127 9017906127 9018905144 9046708185
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-52300H0

NCP8#

AQUA M.M.,774

 1
52119-52300C1

NCP8#

BLACK MC.,209

 1
52119-52300D0

NCP8#

SUPER RED 5,3P0

 1
52119-52300K0

NCP8#

LAVENDER M.M.,949

 1
52119-52300B0

NCP8#

SILVER M.M.,1E7

 1
52119-52300J0

NCP8#

BLUE MC.,8M6

 1
52119-52300A0

NCP8#

WHITE PEARL CS.,064

 1
52119-52301A1

NCP8#

WHITE,068

 1
52119-52301C1

NCP8#

BLACK MC.,209

 1
52119-52301D0

NCP8#

SUPER RED 5,3P0

 1
52119-52300F0

NCP8#

LT.YELLOW,597

 1
52119-52301A0

NCP8#

WHITE PEARL CS.,064

 1
52119-52300A1

NCP8#

WHITE,068

 1
52119-52301J0

NCP8#

BLUE MC.,8M6

 1
52119-52301F0

NCP8#

LT.YELLOW,597

 1
52119-52301B0

NCP8#

SILVER M.M.,1E7

 1
52119-52301K0

NCP8#

LAVENDER M.M.,949

 1
52119-52301H0

NCP8#

AQUA M.M.,774

 1
52127C - COVER, FRONT BUMPER HOLE
52127-52150D0

NCP8#

SUPER RED 5,3P0

 1
52127-52150C1

NCP8#

BLACK MC.,209

 1
52127-52150A1

NCP8#

WHITE,068

 1
52127-52150K0

NCP8#

LAVENDER M.M.,949

 1
52127-52150F0

NCP8#

LT.YELLOW,597

 1
52127-52150J0

NCP8#

BLUE MC.,8M6

 1
52127-52150B0

NCP8#

SILVER M.M.,1E7

 1
52127-52150A0

NCP8#

WHITE PEARL CS.,064

 1
52127-52150H0

NCP8#

AQUA M.M.,774

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52240

NCP8#

 1
52131-52241

NCP8#

 1
52143D - BRACKET, FRONT BUMPER SIDE, RH
52143-52100

NCP8#

 1
52144D - BRACKET, FRONT BUMPER SIDE, LH
52144-52090

NCP8#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52040

NCP8#

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-52140

NCP8#

塗装不要

 1
81481E - COVER, FOG LAMP, RH
81481-52080

NCP8#

 1
81482C - COVER, FOG LAMP, LH
81482-52050

NCP8#

 1
Common parts
87268-52010
90105-06246
90119-06786
90159-50311
90159-50353
90159-60602
90176-08054
90179-06127
90189-05144
90467-08185
Linked diagrams
0901
5102
5302
8101
8102
