NCP81G-KWXSK (2011)
Toyota Sienta
Production
Jun 2011
-
Jun 2015
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

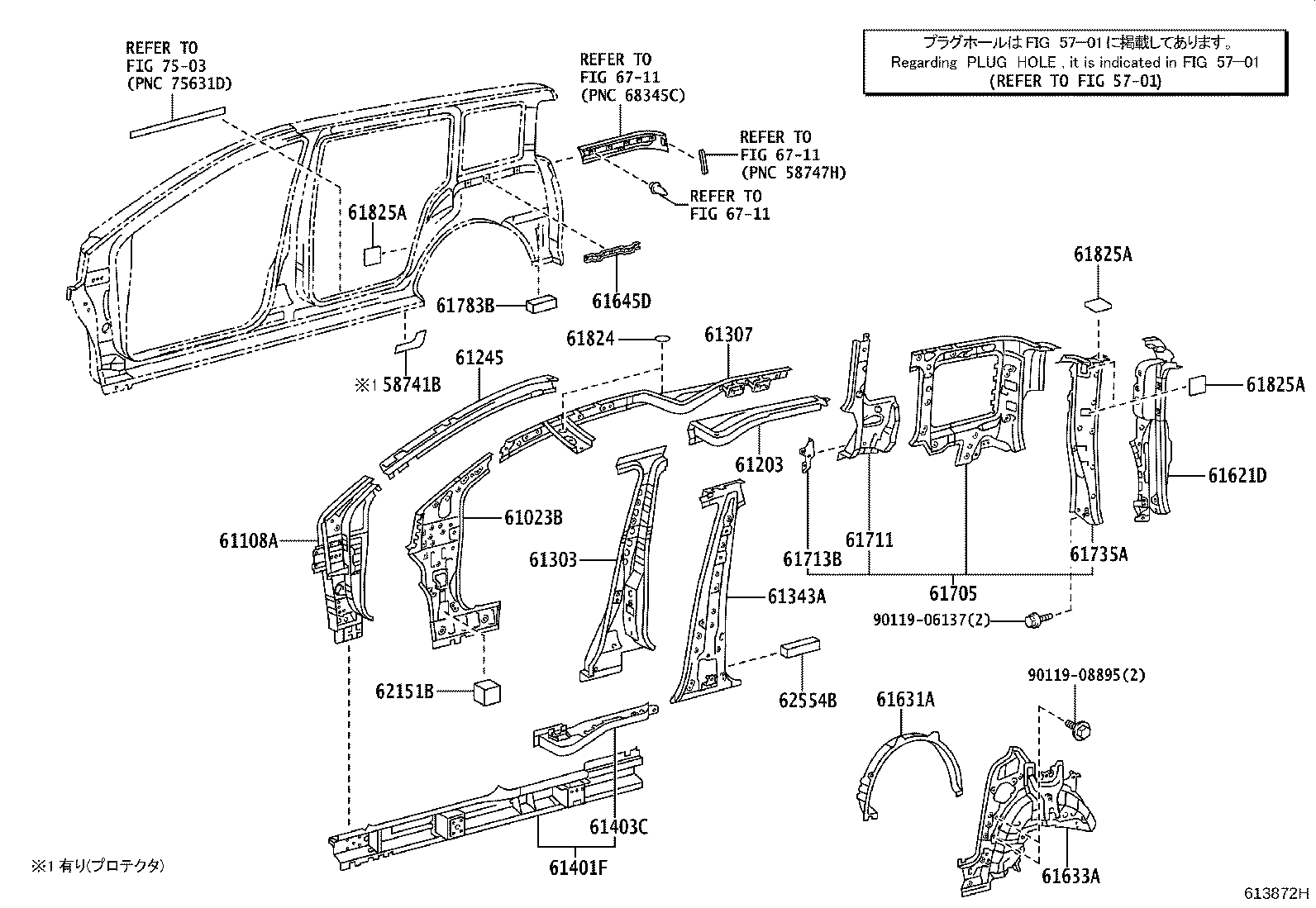

ILLUST NO. 2 OF 2(1106- )
Click highlighted areas on diagram
ｲﾝﾅﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52140 |
NCP8# |
1 | ||
| 58741-52130 |
NCP8# 寒冷地仕様 |
1 | ||
| 58741-52140 |
NCP8# |
1 | ||
| 58741-52130 |
NCP8# 寒冷地仕様 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52090 |
NCP8# |
1 | ||
| 61023-52090 |
NCP8# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52902 |
NCP8# |
1 | ||
| 61108-52902 |
NCP8# |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-52020 |
NCP8# |
1 | ||
| 61203-52020 |
NCP8# |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-52080 |
NCP8# |
1 | ||
| 61245-52080 |
NCP8# |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-52061 |
NCP8# |
1 | ||
| 61303-52061 |
NCP8# |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-52904 |
NCP8# |
1 | ||
| 61307-52904 |
NCP8# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-52905 |
NCP8# |
1 | ||
| 61343-52905 |
NCP8# |
1 | ||
| 61401F - REINFORCEMENT SUB-ASSY, ROCKER PANEL, RH | ||||
| 61401-52011 |
NCP8# |
1 | ||
| 61401-52012 |
NCP8# |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52091 |
NCP8# |
1 | ||
| 61403-52092 |
NCP8# |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-52904 |
NCP8# |
1 | ||
| 61621-52904 |
NCP8# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52100 |
NCP8# |
1 | ||
| 61631-52100 |
NCP8# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52390 |
NCP81 |
1 | ||
| 61607-52300 |
NCP81 |
1 | ||
| 61645D - RETAINER, QUARTER, INNER | ||||
| 61645-52010 |
NCP8# |
1 | ||
| 61645-52011 |
NCP8# |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-52900 |
NCP8# |
1 | ||
| 61701-52180 |
NCP8# |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52120 |
NCP8# |
1 | ||
| 61711-52120 |
NCP8# |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-52070 |
NCP8# |
1 | ||
| 61713-52070 |
NCP8# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-52060 |
NCP8# |
1 | ||
| 61735-52120 |
NCP8# |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52030 |
NCP8# |
2 | ||
| 61783-52030 |
NCP8# |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NCP8# |
4 | ||
| 61824-12060 |
NCP8# |
4 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-52040 |
NCP8# |
8 | ||
| 61825-52040 |
NCP8# |
8 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-52040 |
NCP8# |
8 | ||
| 61825-52040 |
NCP8# |
8 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-52040 |
NCP8# |
8 | ||
| 61825-52040 |
NCP8# |
8 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52010 |
NCP8# |
2 | ||
| 62151-52010 |
NCP8# |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-52010 |
NCP8# |
2 | ||
| 62554-52010 |
NCP8# |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90119-08895 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6711 | ||||
| 7503 | ||||

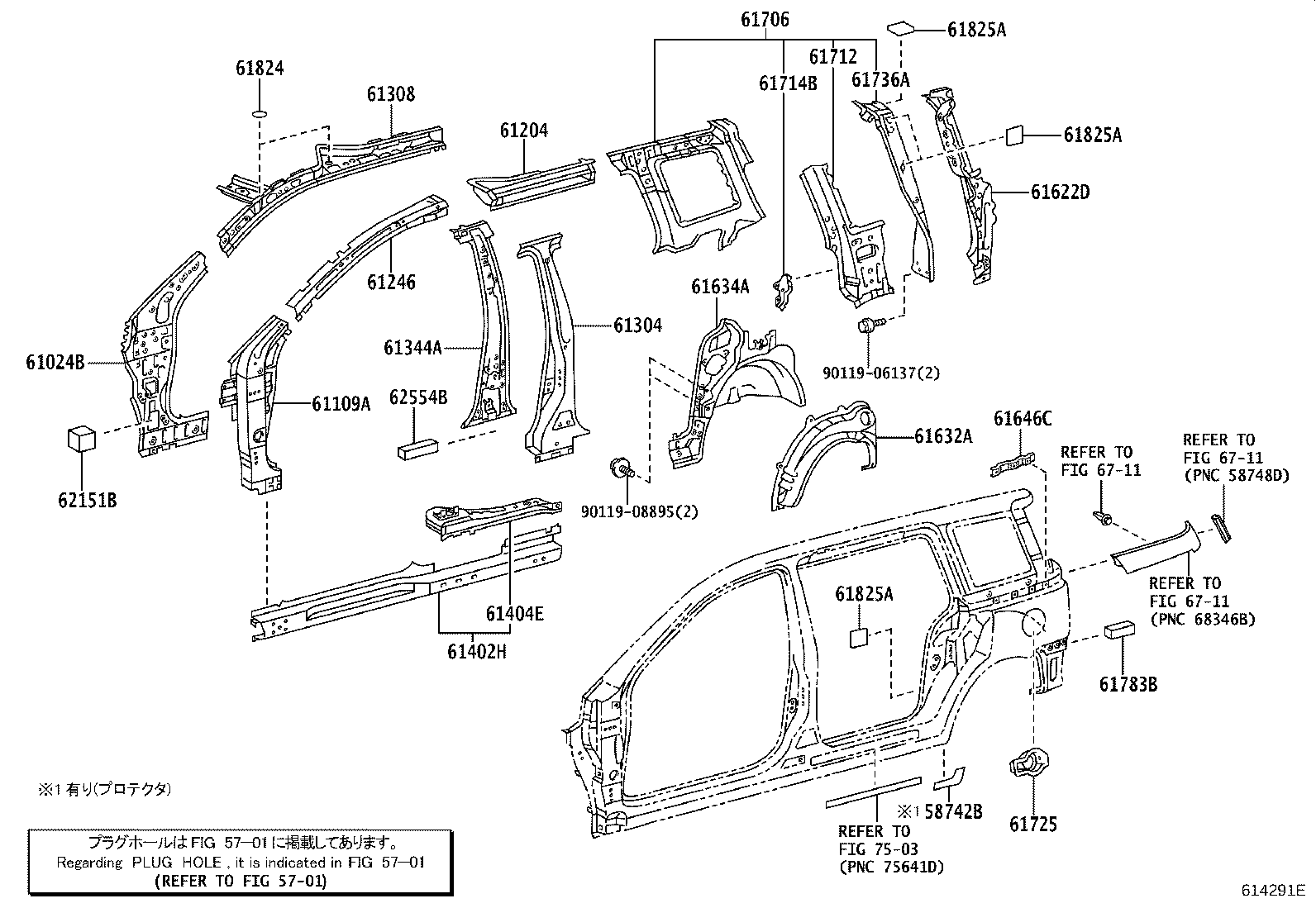

ILLUST NO. 2 OF 2(1106- )
Click highlighted areas on diagram
ｲﾝﾅﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52140 |
NCP8# |
1 | ||
| 58742-52130 |
NCP8# 寒冷地仕様 |
1 | ||
| 58742-52130 |
NCP8# 寒冷地仕様 |
1 | ||
| 58742-52140 |
NCP8# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52100 |
NCP8# |
1 | ||
| 61024-52100 |
NCP8# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52902 |
NCP8# |
1 | ||
| 61109-52902 |
NCP8# |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-52020 |
NCP8# |
1 | ||
| 61204-52020 |
NCP8# |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-52090 |
NCP8# |
1 | ||
| 61246-52090 |
NCP8# |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-52041 |
NCP8# |
1 | ||
| 61304-52041 |
NCP8# |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-52904 |
NCP8# |
1 | ||
| 61308-52904 |
NCP8# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-52905 |
NCP8# |
1 | ||
| 61344-52905 |
NCP8# |
1 | ||
| 61402H - REINFORCEMENT SUB-ASSY, ROCKER PANEL, LH | ||||
| 61402-52011 |
NCP8# |
1 | ||
| 61402-52012 |
NCP8# |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52091 |
NCP8# |
1 | ||
| 61404-52092 |
NCP8# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-52903 |
NCP8# |
1 | ||
| 61622-52903 |
NCP8# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52100 |
NCP8# |
1 | ||
| 61632-52101 |
NCP8# |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52300 |
NCP81 |
1 | ||
| 61608-52430 |
NCP81 |
1 | ||
| 61646C - RETAINER, QUARTER, INNER | ||||
| 61646-52011 |
NCP8# |
1 | ||
| 61646-52010 |
NCP8# |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-52900 |
NCP8# |
1 | ||
| 61702-52190 |
NCP8# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52140 |
NCP8# |
1 | ||
| 61712-52140 |
NCP8# |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-52070 |
NCP8# |
1 | ||
| 61714-52070 |
NCP8# |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-52060 |
NCP8# |
1 | ||
| 61725-52060 |
NCP8# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-52060 |
NCP8# |
1 | ||
| 61736-52060 |
NCP8# |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52030 |
NCP8# |
2 | ||
| 61783-52030 |
NCP8# |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NCP8# |
4 | ||
| 61824-12060 |
NCP8# |
4 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-52040 |
NCP8# |
8 | ||
| 61825-52040 |
NCP8# |
8 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-52040 |
NCP8# |
8 | ||
| 61825-52040 |
NCP8# |
8 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-52040 |
NCP8# |
8 | ||
| 61825-52040 |
NCP8# |
8 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52010 |
NCP8# |
2 | ||
| 62151-52010 |
NCP8# |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-52010 |
NCP8# |
2 | ||
| 62554-52010 |
NCP8# |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90119-08895 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6711 | ||||
| 7503 | ||||
