NCP81G-KWXGK (2003)

Toyota Sienta

Production Sep 2003 - May 2006
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

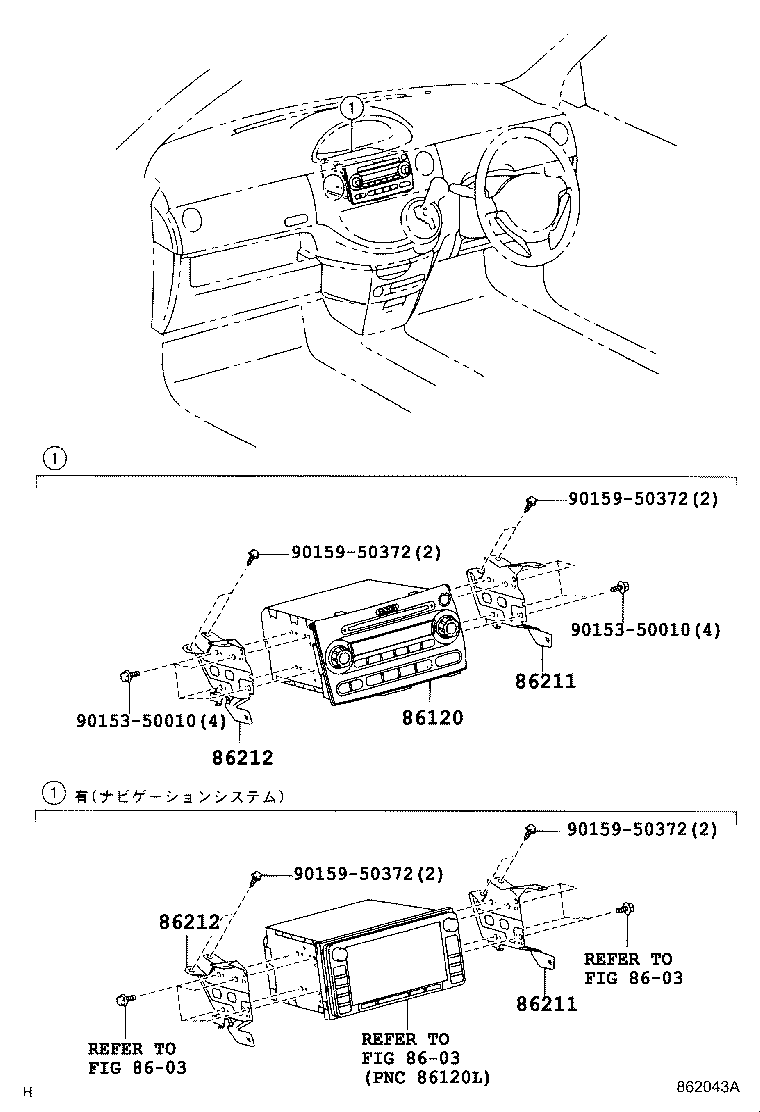

ILLUST NO. 1 OF 2(0309- )

Click highlighted areas on diagram

diagram 8603 8603 8603 86120 86211 86211 86212 86212 9015350010 9015350010 9015950372 9015950372 9015950372 9015950372
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-52280A0

NCP8#

FUJITSU TEN,ID=10803,IVORY,TRIM0#

 1
86120-52280B0

NCP8#

FUJITSU TEN,ID=10803,GRAY,TRIM9#

 1
86120-52280B0

NCP8#

FUJITSU TEN,ID=10803,GRAY,TRIM9#

 1
86120-52280A0

NCP8#

FUJITSU TEN,ID=10803,IVORY,TRIM0#

 1
86211 - BRACKET, RADIO, NO.1
86211-52170

NCP8#

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ

 1
86211-52110

NCP8#

 1
86211-52170

NCP8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),CD,MD

 1
86211-52170

NCP81..X

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ

 1
86211-52170

NCP8#..X

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),CD

 1
86211 - BRACKET, RADIO, NO.1
86211-52170

NCP8#

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ

 1
86211-52110

NCP8#

 1
86211-52170

NCP8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),CD,MD

 1
86211-52170

NCP81..X

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ

 1
86211-52170

NCP8#..X

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),CD

 1
86212 - BRACKET, RADIO, NO.2
86212-52170

NCP8#

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ

 1
86212-52110

NCP8#

 1
86212-52170

NCP8#..X

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),CD

 1
86212-52170

NCP81..X

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ

 1
86212-52170

NCP8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),CD,MD

 1
86212 - BRACKET, RADIO, NO.2
86212-52170

NCP8#

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ

 1
86212-52110

NCP8#

 1
86212-52170

NCP8#..X

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),CD

 1
86212-52170

NCP81..X

ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 2ｽﾋﾟｰｶ

 1
86212-52170

NCP8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),CD,MD

 1
Common parts
90153-50010
90159-50372
Linked diagrams
8603

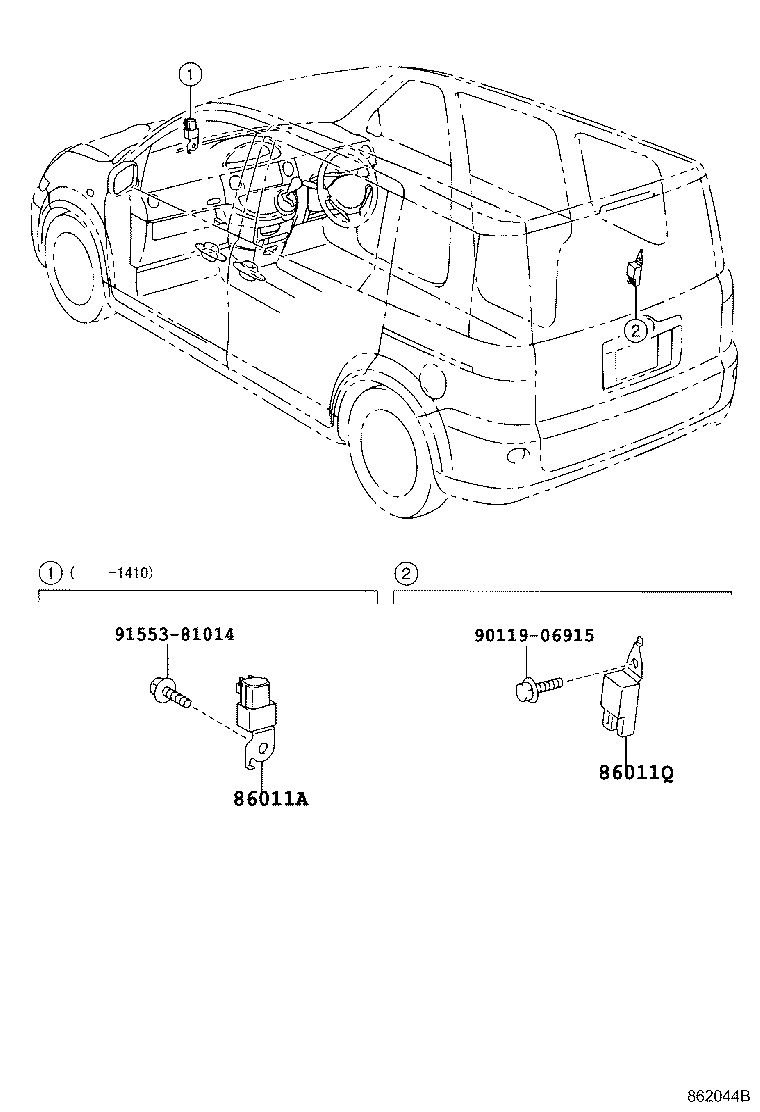

ILLUST NO. 2 OF 2(0309- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ- & ﾉｲｽﾞﾌｲﾙﾀ-

diagram 86011A 86011Q 9011906915 9155381014
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04141

NCP8#

 1
86011Q - CONDENSER, RADIO SETTING
90980-04148

NCP8#

 1
Common parts
90119-06915
91553-81014
