NCP81G-KWXGK (2003)

Toyota Sienta

Production Sep 2003 - May 2006
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0309-0509)

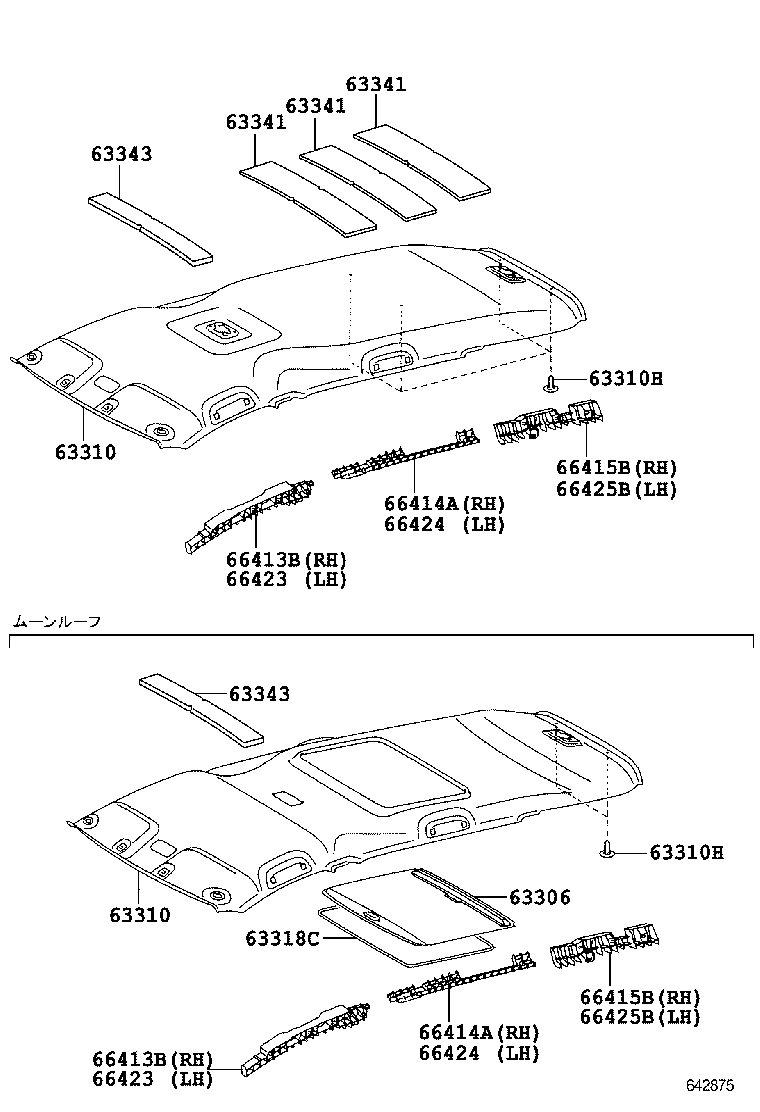

Click highlighted areas on diagram

diagram 63306 63310 63310 63310H 63310H 63318C 63341 63341 63341 63343 63343 66413B 66413B 66414A 66414A 66415B 66415B 66423 66423 66424 66424 66425B 66425B
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-52080A0

NCP8#

ﾑｰﾝﾙｰﾌ有り,IVORY,TRIM0#

 1
63306-52080B0

NCP8#

ﾑｰﾝﾙｰﾌ有り,LT. GRAY,TRIM9#

 1
63310 - HEADLINING ASSY, ROOF
63310-52770A0

NCP8#

IVORY,TRIM0#

 1
63310-52781B0

NCP8#

ﾑｰﾝﾙｰﾌ有り,LT. GRAY,TRIM9#

 1
63310-52771B0

NCP8#

LT. GRAY,TRIM9#

 1
63310-52770B0

NCP8#

LT. GRAY,TRIM9#

 1
63310-52780B0

NCP8#

ﾑｰﾝﾙｰﾌ有り,LT. GRAY,TRIM9#

 1
63310-52780A0

NCP8#

ﾑｰﾝﾙｰﾌ有り,IVORY,TRIM0#

 1
63310-52781A0

NCP8#

ﾑｰﾝﾙｰﾌ有り,IVORY,TRIM0#

 1
63310-52771A0

NCP8#

IVORY,TRIM0#

 1
63310 - HEADLINING ASSY, ROOF
63310-52770A0

NCP8#

IVORY,TRIM0#

 1
63310-52781B0

NCP8#

ﾑｰﾝﾙｰﾌ有り,LT. GRAY,TRIM9#

 1
63310-52771B0

NCP8#

LT. GRAY,TRIM9#

 1
63310-52770B0

NCP8#

LT. GRAY,TRIM9#

 1
63310-52780B0

NCP8#

ﾑｰﾝﾙｰﾌ有り,LT. GRAY,TRIM9#

 1
63310-52780A0

NCP8#

ﾑｰﾝﾙｰﾌ有り,IVORY,TRIM0#

 1
63310-52781A0

NCP8#

ﾑｰﾝﾙｰﾌ有り,IVORY,TRIM0#

 1
63310-52771A0

NCP8#

IVORY,TRIM0#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B0

NCP8#

LT.GRAY,TRIM9#

 4
90467-05164B6

NCP8#

GRAY,TRIM9#

 4
90467-05164A0

NCP8#

ﾑｰﾝﾙｰﾌ有り,IVORY,TRIM0#

 2
90467-05164B6

NCP8#

ﾑｰﾝﾙｰﾌ有り,GRAY,TRIM9#

 2
90467-05164A0

NCP8#

IVORY,TRIM0#

 4
90467-05164B0

NCP8#

ﾑｰﾝﾙｰﾌ有り,LT.GRAY,TRIM9#

 2
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B0

NCP8#

LT.GRAY,TRIM9#

 4
90467-05164B6

NCP8#

GRAY,TRIM9#

 4
90467-05164A0

NCP8#

ﾑｰﾝﾙｰﾌ有り,IVORY,TRIM0#

 2
90467-05164B6

NCP8#

ﾑｰﾝﾙｰﾌ有り,GRAY,TRIM9#

 2
90467-05164A0

NCP8#

IVORY,TRIM0#

 4
90467-05164B0

NCP8#

ﾑｰﾝﾙｰﾌ有り,LT.GRAY,TRIM9#

 2
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-52060B0

NCP8#

長さ=2215,ﾑｰﾝﾙｰﾌ有り,LT.GRAY,TRIM9#

 1
63318-52060A0

NCP8#

長さ=2215,ﾑｰﾝﾙｰﾌ有り,IVORY,TRIM0#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP8#

 3
63341-52180

NCP8#

 3
63341-52180

NCP8#

ﾑｰﾝﾙｰﾌ有り

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP8#

 3
63341-52180

NCP8#

 3
63341-52180

NCP8#

ﾑｰﾝﾙｰﾌ有り

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-12160

NCP8#

 3
63341-52180

NCP8#

 3
63341-52180

NCP8#

ﾑｰﾝﾙｰﾌ有り

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-12050

NCP8#

 1
63343-52060

NCP8#

 2
63343-52060

NCP8#

ﾑｰﾝﾙｰﾌ有り

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-12050

NCP8#

 1
63343-52060

NCP8#

 2
63343-52060

NCP8#

ﾑｰﾝﾙｰﾌ有り

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52120

NCP8#

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52120

NCP8#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52130

NCP8#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52130

NCP8#

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-52020

NCP8#

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-52020

NCP8#

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52110

NCP8#

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52110

NCP8#

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52120

NCP8#

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52120

NCP8#

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-52020

NCP8#

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-52020

NCP8#

 1
