NCP81G-KWXEK (2006)

Toyota Sienta

Production May 2006 - Aug 2010
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605-1008)

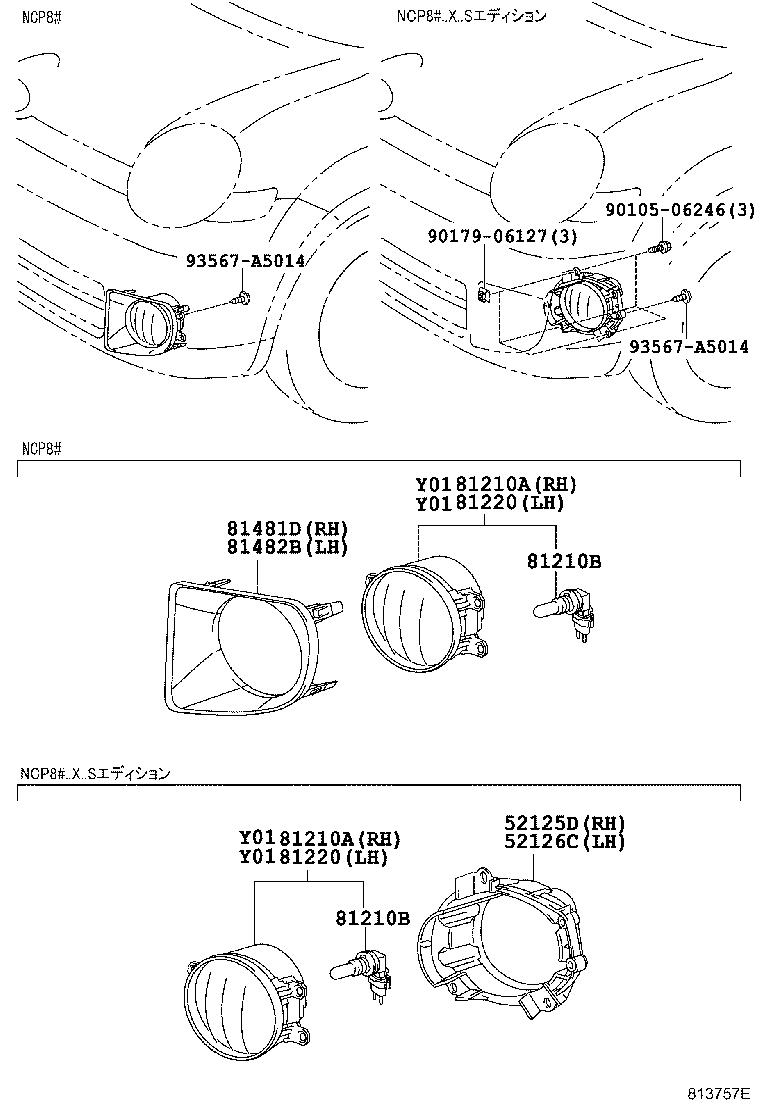

Click highlighted areas on diagram

diagram 52125D 52126C 81210A 81210A 81210B 81210B 81220 81220 81481D 81482B 9010506246 9017906127 93567A5014 93567A5014
Part # Description Qty Price
52125D - BRACKET, FOG LAMP MOUNTING, RH
52125-52030

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
52126C - BRACKET, FOG LAMP MOUNTING, LH
52126-52030

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81210A - LAMP ASSY, FOG, RH
81210-0D040

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81210-0D041

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81210-0D040

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81210-0D042

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81210-52050

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81210-0D041

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81210-0D042

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81210A - LAMP ASSY, FOG, RH
81210-0D040

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81210-0D041

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81210-0D040

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81210-0D042

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81210-52050

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81210-0D041

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81210-0D042

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81210B - BULB, FOG LAMP
90981-13081

NCP8#

12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP,OSRAM

 1
90981-13075

NCP8#

12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP,PHILIPS

 2
90080-81040

NCP8#

12V 51W,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 2
90981-13081

NCP8#..X

12V 55W,ﾊﾛｹﾞﾝ,Sｴﾃﾞｨｼｮﾝ,OSRAM

 1
90981-13075

NCP8#..X

12V 55W,ﾊﾛｹﾞﾝ,Sｴﾃﾞｨｼｮﾝ,PHILIPS

 2
81210B - BULB, FOG LAMP
90981-13081

NCP8#

12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP,OSRAM

 1
90981-13075

NCP8#

12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP,PHILIPS

 2
90080-81040

NCP8#

12V 51W,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 2
90981-13081

NCP8#..X

12V 55W,ﾊﾛｹﾞﾝ,Sｴﾃﾞｨｼｮﾝ,OSRAM

 1
90981-13075

NCP8#..X

12V 55W,ﾊﾛｹﾞﾝ,Sｴﾃﾞｨｼｮﾝ,PHILIPS

 2
81220 - LAMP ASSY, FOG, LH
81220-0D040

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81220-0D040

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81220-0D041

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81220-0D042

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81220-0D041

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81220-0D042

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81220-52050

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81220 - LAMP ASSY, FOG, LH
81220-0D040

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81220-0D040

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81220-0D041

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81220-0D042

NCP8#..X

Sｴﾃﾞｨｼｮﾝ

 1
81220-0D041

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81220-0D042

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81220-52050

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81481D - COVER, FOG LAMP, RH
81481-52240

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
81482B - COVER, FOG LAMP, LH
81482-52180

NCP8#

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−DOP

 1
Common parts
90105-06246
90179-06127
93567-A5014
