NCP81G-KWXEK (2003)
Toyota Sienta
Production
Sep 2003
-
May 2006
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0309- )NCP81

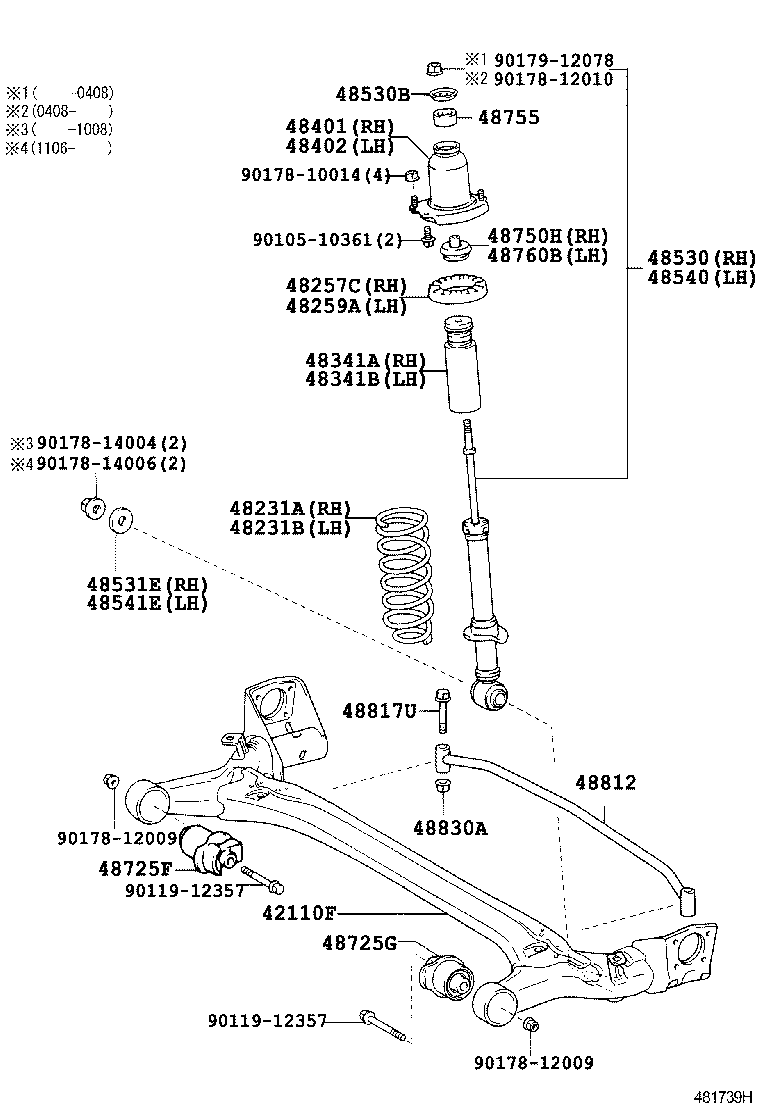

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-12140 |
NCP81 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-52810 |
NCP81 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15 84H 5.5JJ ｱﾙﾐ |
1 | ||
| 48231-52620 |
NCP81 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-52620 |
NCP81 |
1 | ||
| 48231-52810 |
NCP81 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15 84H 5.5JJ ｱﾙﾐ |
1 | ||
| 48231-52620 |
NCP81 ｳｪﾙｷｬﾌﾞ(車ｲｽ仕様) |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-32090 |
NCP81 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-32090 |
NCP81 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-47010 |
NCP81 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-47010 |
NCP81 |
1 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48401-32020 |
NCP81 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48403-32010 |
NCP81 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-59865 |
NCP81 ﾏｰｸ 48530−52610 |
1 | ||
| 48530-80121 |
NCP81 ﾏｰｸ 48530−52A00,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15 84g 5.5JJ ｱﾙﾐ |
1 | ||
| 48530-80262 |
NCP81 ﾏｰｸ 48530−52610 |
1 | ||
| 48530-80263 |
NCP81 ﾏｰｸ 48530−52A00,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15 84g 5.5JJ ｱﾙﾐ |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
NCP8# |
2 | ||
| 48531E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH) | ||||
| 90560-14028 |
NCP81 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80121 |
NCP81 ﾏｰｸ 48530−52A00,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15 84g 5.5JJ ｱﾙﾐ |
1 | ||
| 48530-59865 |
NCP81 ﾏｰｸ 48530−52610 |
1 | ||
| 48530-80262 |
NCP81 ﾏｰｸ 48530−52610 |
1 | ||
| 48530-80263 |
NCP81 ﾏｰｸ 48530−52A00,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−185/60R15 84g 5.5JJ ｱﾙﾐ |
1 | ||
| 48541E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH) | ||||
| 90560-14028 |
NCP81 |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-52080 |
NCP81 |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-52080 |
NCP81 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-47010 |
NCP81 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-63010 |
NCP81 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-47010 |
NCP81 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-32480 |
NCP81 |
1 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 90105-14138 |
NCP81 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-14062 |
NCP81 |
2 | ||
| Common parts | ||||
| 90105-10361 | ||||
| 90119-12357 | ||||
| 90178-10014 | ||||
| 90178-12009 | ||||
| 90178-12010 | ||||
| 90178-14004 | ||||
| 90178-14006 | ||||
| 90179-12078 | ||||
