NCP175G-MRXNK (2015)

Toyota Sienta

Production Jun 2015 - Sep 2018
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

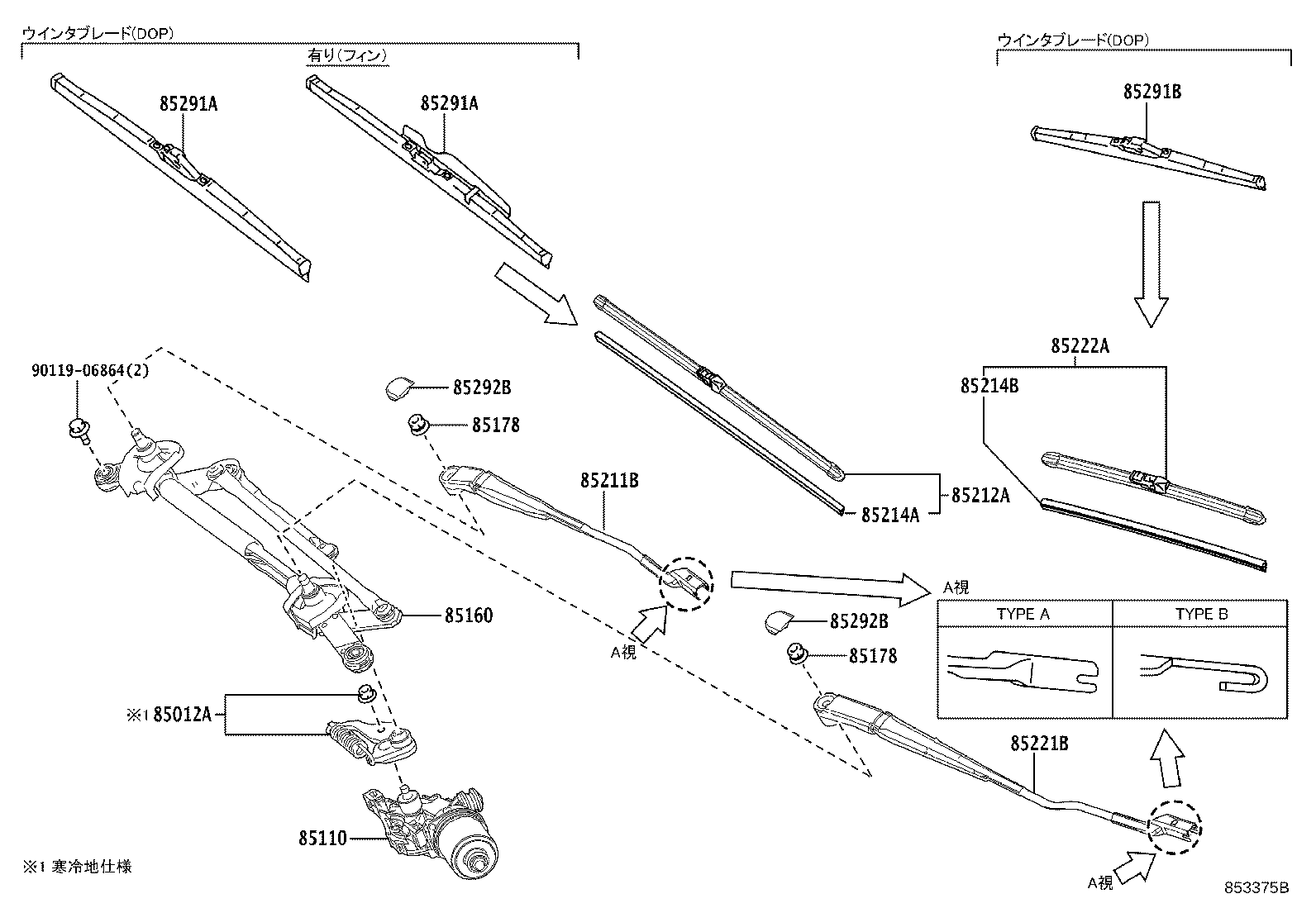

ILLUST NO. 2 OF 2(1506-1809)

Click highlighted areas on diagram

diagram 85012A 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 85292B 85292B 9011906864
Part # Description Qty Price
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-50010

NCP175,NHP170,NSP17#

寒冷地仕様

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-52712

NCP175,NHP170,NSP17#

 1
85110-52730

NCP175,NHP170,NSP17#

寒冷地仕様

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-52400

NCP175,NHP170,NSP17#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

NCP175,NHP170,NSP17#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

NCP175,NHP170,NSP17#

 2
85211B - ARM, FRONT WIPER, RH
85211-52540

NCP175,NHP170,NSP17#

TYPE A:ｲﾗｽﾄ参照

 1
85211-52570

NCP175,NHP170,NSP17#

TYPE B:ｲﾗｽﾄ参照

 1
85211-52541

NCP175,NHP170,NSP17#

TYPE A:ｲﾗｽﾄ参照

 1
85212A - BLADE, FR WIPER, RH
85212-62060

NCP175,NHP170,NSP17#

PNC 85211B=TYPE B

 1
85212-52203

NCP175,NHP170,NSP17#

PNC 85211B=TYPE A

 1
85212-52202

NCP175,NHP170,NSP17#

PNC 85211B=TYPE A

 1
85214A - RUBBER, WIPER, RH
85214-62010

NCP175,NHP170,NSP17#

PNC 85211B=TYPE B

 1
85214-10140

NCP175,NHP170,NSP17#

PNC 85211B=TYPE A

 1
85214B - RUBBER, WIPER, LH
85214-58070

NCP175,NHP170,NSP17#

PNC 85221B=TYPE A

 1
85214-28110

NCP175,NHP170,NSP17#

PNC 85221B=TYPE B

 1
85221B - ARM, FRONT WIPER, LH
85221-52500

NCP175,NHP170,NSP17#

TYPE A:ｲﾗｽﾄ参照

 1
85221-52520

NCP175,NHP170,NSP17#

TYPE B:ｲﾗｽﾄ参照

 1
85222A - BLADE, FR WIPER, LH
85222-52310

NCP175,NHP170,NSP17#

PNC 85221B=TYPE B

 1
85222-52202

NCP175,NHP170,NSP17#

PNC 85221B=TYPE A

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-78011

NCP175,NHP170,NSP17#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85211B=TYPE A

 1
85291-52130

NCP175,NHP170,NSP17#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),*578

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-78011

NCP175,NHP170,NSP17#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85211B=TYPE A

 1
85291-52130

NCP175,NHP170,NSP17#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),*578

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-62011

NCP175,NHP170,NSP17#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),PNC 85221B=TYPE A

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NCP175,NHP170,NSP17#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NCP175,NHP170,NSP17#

 2
Common parts
90119-06864

ILLUST NO. 1 OF 2(1506- )

Click highlighted areas on diagram

diagram 85213B 85213C
Part # Description Qty Price
85213B - RUBBER, WIPER BLADE, RH(FOR GLASS COAT)
85213-78010

NCP175,NHP170,NSP17#

PNC 85212A=TYPE A

 1
85213C - RUBBER, WIPER BLADE, LH(FOR GLASS COAT)
85213-52010

NCP175,NHP170,NSP17#

PNC 85222A=TYPE A

 1
