NCP175G-MRXNK (2015)
Toyota Sienta

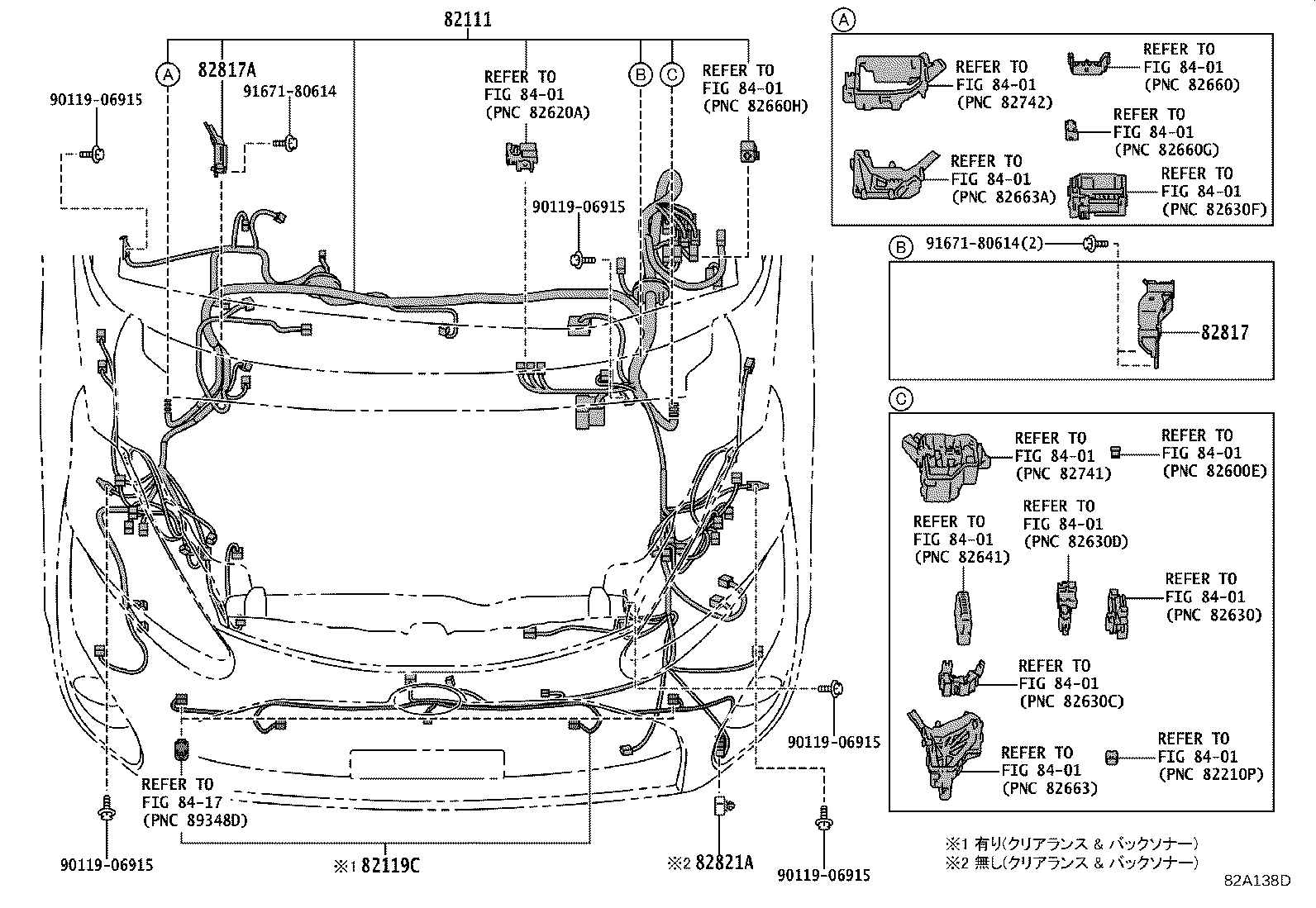

ILLUST NO. 1 OF10(1506- )NCP175,NSP17#
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-5DA00 |
NCP175 |
1 | ||
| 82111-5DA10 |
NCP175 Toyota Safety Sense−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ) |
1 | ||
| 82111-5DA10 |
NCP175 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82111-5DA01 |
NCP175 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-52A20 |
NCP175,NSP17# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52C00 |
NCP175,NSP17# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||

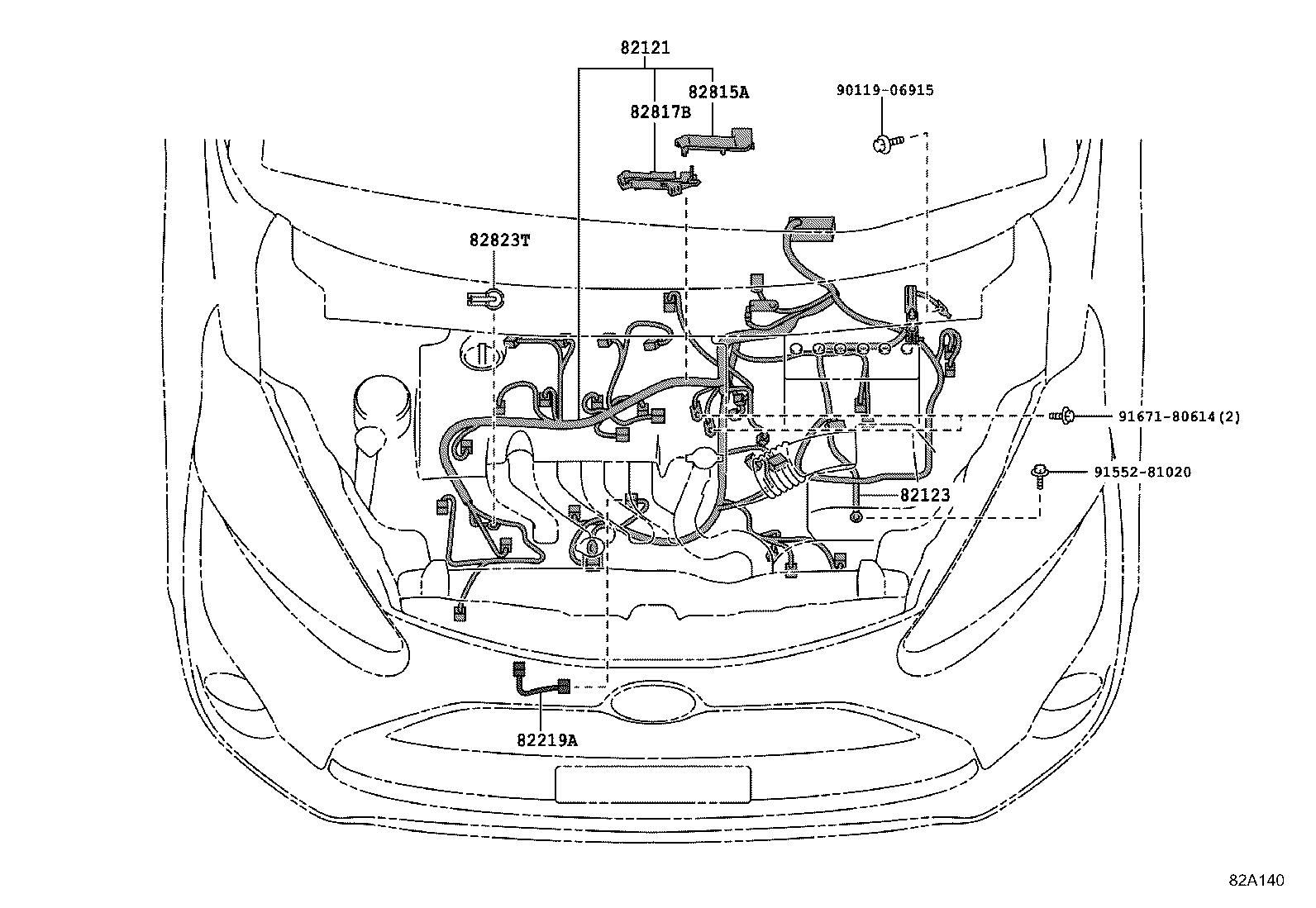

ILLUST NO. 2 OF10(1506- )NCP175
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-52U00 |
NCP175 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52350 |
NCP175 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52040 |
NCP175 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-52050 |
NCP175 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-52610 |
NCP175 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NCP175,NSP17# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91552-81020 | ||||
| 91671-80614 | ||||
ILLUST NO. 3 OF10(1506- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-52030 |
NCP175,NHP170,NSP17# Toyota Safety Sense−有り |
1 | ||
| 82113-52040 |
NCP175,NHP170,NSP17# |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-52W40 |
NCP175..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82145-52X40 |
NCP175..X Toyota Safety Sense−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ) |
1 | ||
| 82145-52X50 |
NCP175..G Toyota Safety Sense−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ) |
1 | ||
| 82145-52X50 |
NCP175..G Toyota Safety Sense−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ) |
1 | ||
| 82145-52X00 |
NCP175..G |
1 | ||
| 82145-52W70 |
NCP175..X |
1 | ||
| 82145-52X30 |
NCP175..X Toyota Safety Sense−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ) |
1 | ||
| 82145-52X30 |
NCP175..X Toyota Safety Sense−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ) |
1 | ||
| 82145-52X40 |
NCP175..X Toyota Safety Sense−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-52570 |
NCP175,NHP170,NSP17# |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-12A60 |
NCP175,NHP170,NSP17# |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-52030 |
NCP175,NHP170,NSP17# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ) |
1 | ||
| 82143-52030 |
NCP175,NHP170,NSP17# ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82143-52040 |
NHP170;NCP175,NSP17#..G |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52150 |
NCP175,NHP170,NSP17# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-52230 |
NCP175,NHP170,NSP17# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-52240 |
NCP175,NHP170,NSP17# |
1 | ||
| 82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER | ||||
| 82669-52010 |
NCP175,NHP170,NSP17# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70004 | ||||
ILLUST NO. 4 OF10(1506- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52W50 |
NCP175,NHP170,NSP17#..X |
1 | ||
| 82151-52W60 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 82151-52W70 |
NCP175,NHP170,NSP170..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82151-52W70 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-52U10 |
NCP175,NHP170,NSP170..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82152-52T90 |
NCP175,NHP170,NSP17#..X |
1 | ||
| 82152-52U10 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 82152-52U00 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-52850 |
NCP175,NHP170,NSP17#..X |
1 | ||
| 82153-52860 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82157-52010 |
NCP175,NHP170,NSP17#..X |
1 | ||
| 82157-52020 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-52530 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 82154-52540 |
NCP175,NHP170,NSP17# |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82158-52020 |
NCP175,NHP170,NSP17# |
1 | ||
| 82158-52010 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 82156 - WIRE, SLIDE DOOR | ||||
| 82156-52020 |
NCP175,NHP170,NSP17# 左側 |
1 | ||
| 82156-52020 |
NCP175,NHP170,NSP17#..G 右側 |
1 | ||
| 82156 - WIRE, SLIDE DOOR | ||||
| 82156-52020 |
NCP175,NHP170,NSP17# 左側 |
1 | ||
| 82156-52020 |
NCP175,NHP170,NSP17#..G 右側 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-52890 |
NCP175,NHP170,NSP17# ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82184-52880 |
NCP175,NHP170,NSP17# |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-52A70 |
NCP175,NHP170,NSP17# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ﾊﾞｯｸﾓﾆﾀ−有り,PmC 84840G参照 |
1 | ||
| 82185-52A80 |
NCP175,NHP170,NSP17# ﾍｯﾄﾞﾗﾝﾌﾟ−LED,PNC 84840G参照 |
1 | ||
| 82185-52A60 |
NCP175,NHP170,NSP17# PNC 84840G参照 |
1 | ||
| 82185-52A70 |
NCP175,NHP170,NSP17# ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾞｯｸﾓﾆﾀ−有り,PNC 84840G参照 |
1 | ||
| 82185-52A71 |
NCP175,NHP170,NSP17# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ)&ﾊﾞｯｸﾓﾆﾀ−有り,PmC 84840G参照 |
1 | ||
| 82185-52A91 |
NCP175,NHP170,NSP17# ﾊﾞｯｸﾓﾆﾀ−有り,PNC 84840G参照 |
1 | ||
| 82185-52A90 |
NCP175,NHP170,NSP17# ﾊﾞｯｸﾓﾆﾀ−有り,PNC 84840G参照 |
1 | ||
| 82185-52A61 |
NCP175,NHP170,NSP17# PNC 84840G参照 |
1 | ||
| 82185-52A71 |
NCP175,NHP170,NSP17# ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾊﾞｯｸﾓﾆﾀ−有り,PNC 84840G参照 |
1 | ||
| 82185-52A80 |
NCP175,NHP170,NSP17# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),PNC 84840G参ﾆ |
1 | ||
| 82185-52A81 |
NCP175,NHP170,NSP17# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),PNC 84840G参ﾆ |
1 | ||
| 82185-52A81 |
NCP175,NHP170,NSP17# ﾍｯﾄﾞﾗﾝﾌﾟ−LED,PNC 84840G参照 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-52J50 |
NCP175,NHP170,NSP17# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-52J60 |
NCP175,NHP170,NSP17# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-52P80 |
NCP175,NHP170,NSP17# |
2 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-52P80 |
NCP175,NHP170,NSP17# |
2 | ||
| Common parts | ||||
| 46431-58010 | ||||
| 90119-06915 | ||||
| 90467-09206 | ||||
| 91651-B0620 | ||||

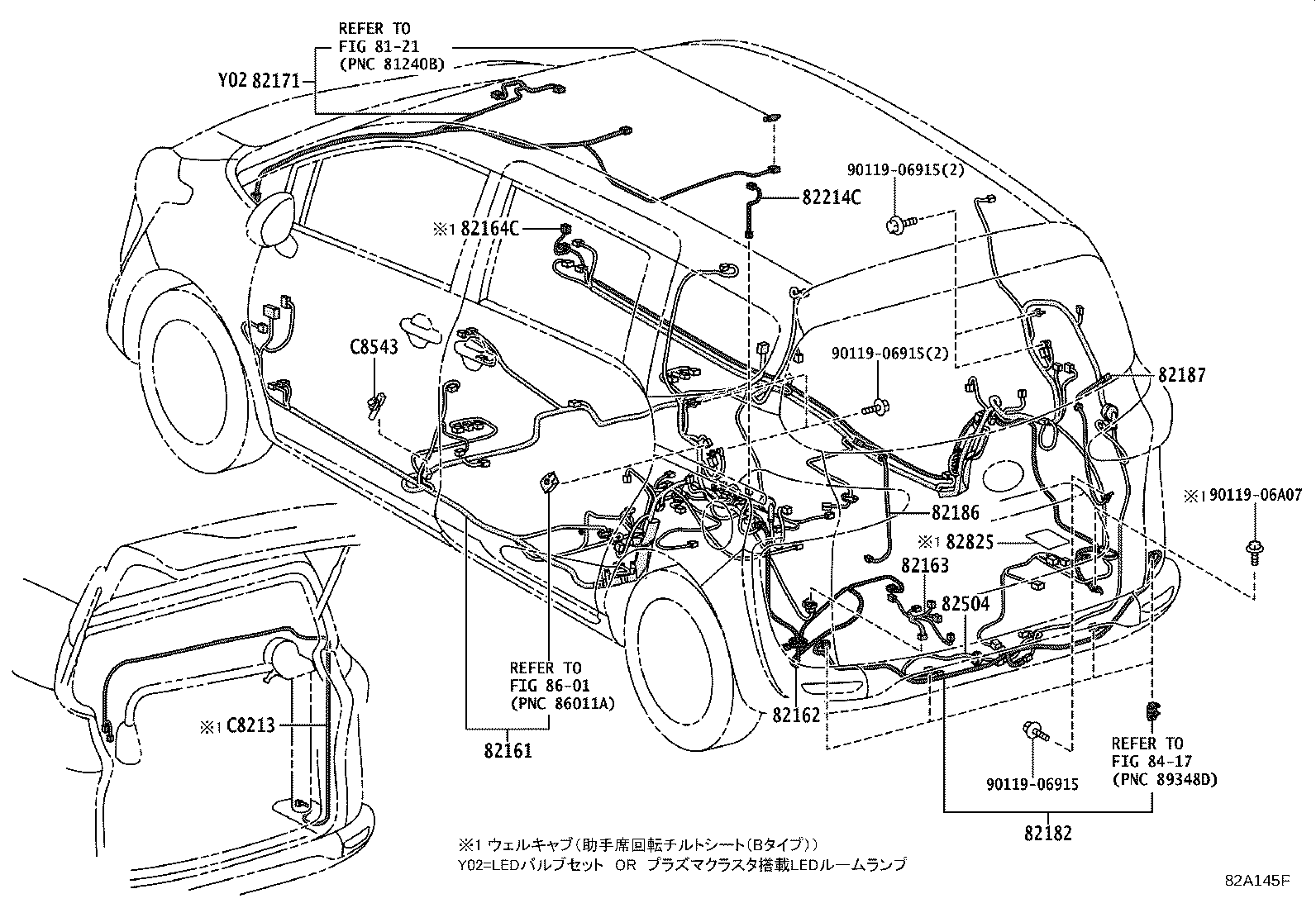

ILLUST NO. 5 OF10(1506- )
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-5CX60 |
NCP175..X 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 82161-5CX50 |
NCP175..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82161-5CY00 |
NCP175..G SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 82161-5CX10 |
NCP175..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 82161-5CX20 |
NCP175..X “Vﾊﾟｯｹｰｼﾞ”*(V)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 82161-5CX10 |
NCP175..X “Vﾊﾟｯｹｰｼﾞ”*(V)&寒冷地仕様 |
1 | ||
| 82161-5CX30 |
NCP175..X |
1 | ||
| 82161-5CX70 |
NCP175..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 82161-5CX50 |
NCP175..X 寒冷地仕様&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82161-5CX20 |
NCP175..X “Vﾊﾟｯｹｰｼﾞ”*(V)&寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 82161-5CX60 |
NCP175..X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 82161-5CX80 |
NCP175..G |
1 | ||
| 82161-5CX70 |
NCP175..X 寒冷地仕様&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 82161-5CX40 |
NCP175..X 寒冷地仕様 |
1 | ||
| 82161-5CY00 |
NCP175..G 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 82161-5CX90 |
NCP175..G 寒冷地仕様 |
1 | ||
| 82161-5CX60 |
NCP175..X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ)&寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82161-5CX70 |
NCP175..X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82161-5CX60 |
NCP175..X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82161-5CX60 |
NCP175..X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82161-5CX60 |
NCP175..X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82161-5CX70 |
NCP175..X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ)&寒冷地仕様&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82161-5CX70 |
NCP175..X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ)&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82161-5CY00 |
NCP175..G ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82161-5CX70 |
NCP175..X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&寒冷地仕様&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82161-5CY00 |
NCP175..G ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82161-5CY00 |
NCP175..G ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ)&寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82161-5CY00 |
NCP175..G ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-52140 |
NCP175 ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 82162-52140 |
NCP175 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ) |
1 | ||
| 82162-52150 |
NCP175 |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-52230 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-52690 |
NCP175,NHP170,NSP17# |
1 | ||
| 82171-52700 |
NCP175,NHP170,NSP17# Toyota Safety Sense−有り |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52190 |
NCP175,NHP170,NSP17# |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-52110 |
NCP175,NHP170,NSP17# |
1 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 61824-52040 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ) |
1 | ||
| C8213 - WIRE, POWER LIFT MOTOR TO BODY | ||||
| C8213-12010 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ) |
1 | ||
| C8543 - RESISTOR, EMERGENCY | ||||
| C8543-12010 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ) |
1 | ||
| C8543-12010 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| C8543-12010 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| C8543-12010 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ)&ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| C8543-12010 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| C8543-12010 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ)&ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ |
1 | ||
| C8543-12010 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ |
1 | ||
| C8543-12010 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8601 | ||||

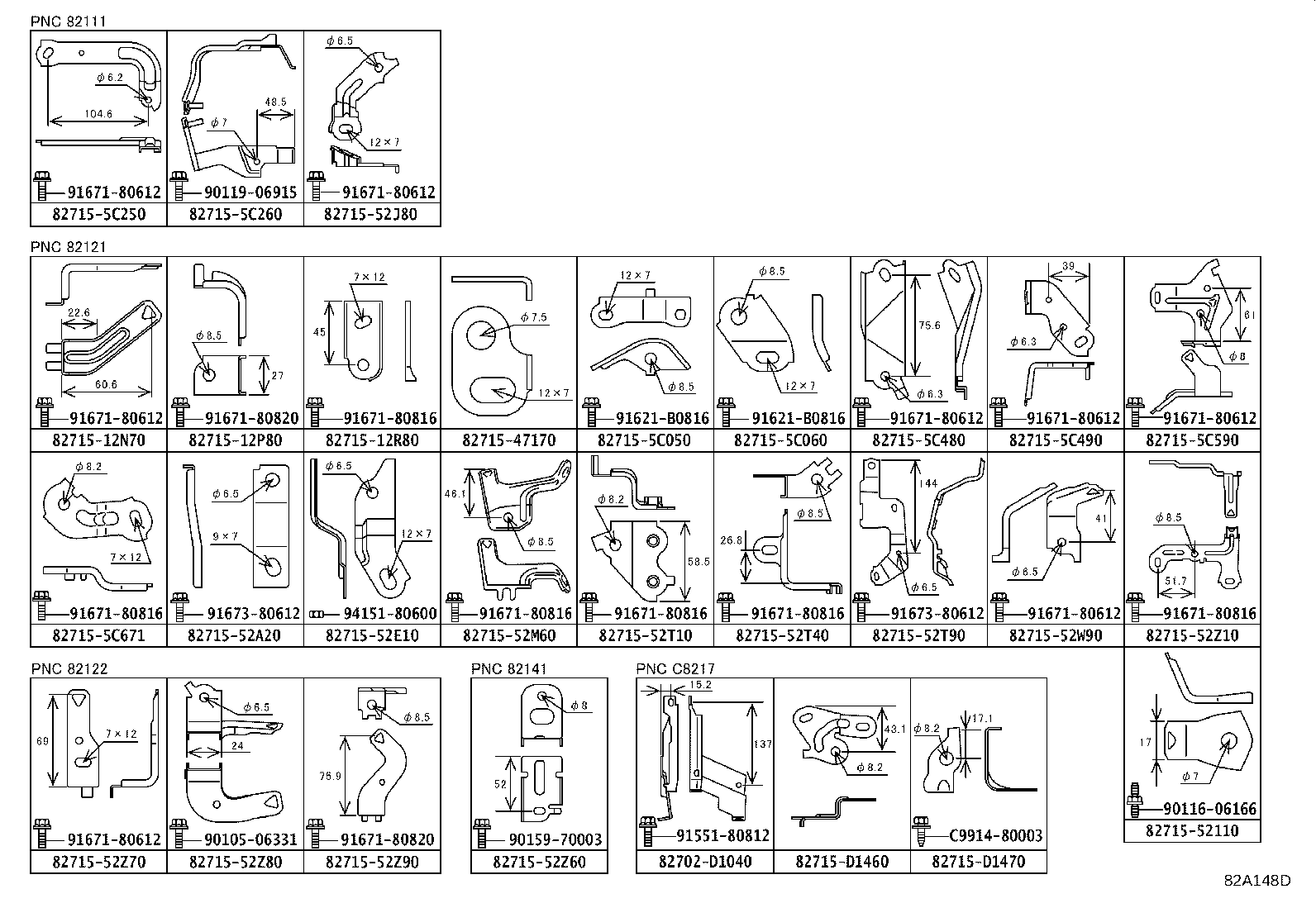

ILLUST NO. 8 OF10(1506- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-D1040 | ||||
| 82715-12N70 | ||||
| 82715-12P80 | ||||
| 82715-12R80 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52A20 | ||||
| 82715-52E10 | ||||
| 82715-52J80 | ||||
| 82715-52M60 | ||||
| 82715-52T10 | ||||
| 82715-52T40 | ||||
| 82715-52T90 | ||||
| 82715-52W90 | ||||
| 82715-52Z10 | ||||
| 82715-52Z60 | ||||
| 82715-52Z70 | ||||
| 82715-52Z80 | ||||
| 82715-52Z90 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-5C250 | ||||
| 82715-5C260 | ||||
| 82715-5C480 | ||||
| 82715-5C490 | ||||
| 82715-5C590 | ||||
| 82715-5C671 | ||||
| 82715-D1460 | ||||
| 82715-D1470 | ||||
| 90105-06331 | ||||
| 90116-06166 | ||||
| 90119-06915 | ||||
| 90159-70003 | ||||
| 91551-80812 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
| C9914-80003 | ||||

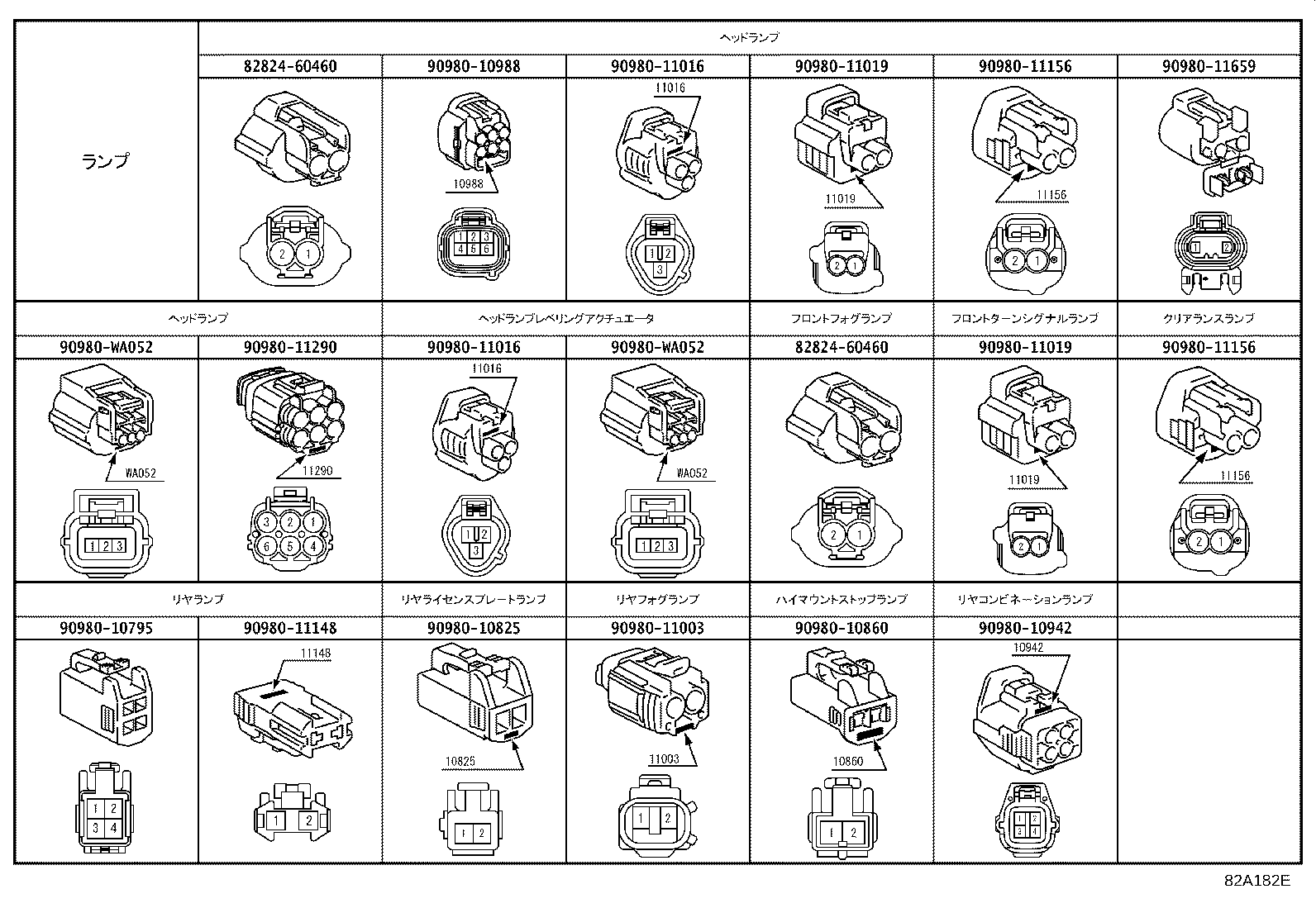

ILLUST NO. 9 OF10(1506- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-10988 | ||||
| 90980-11003 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11290 | ||||
| 90980-11659 | ||||
| 90980-WA052 | ||||

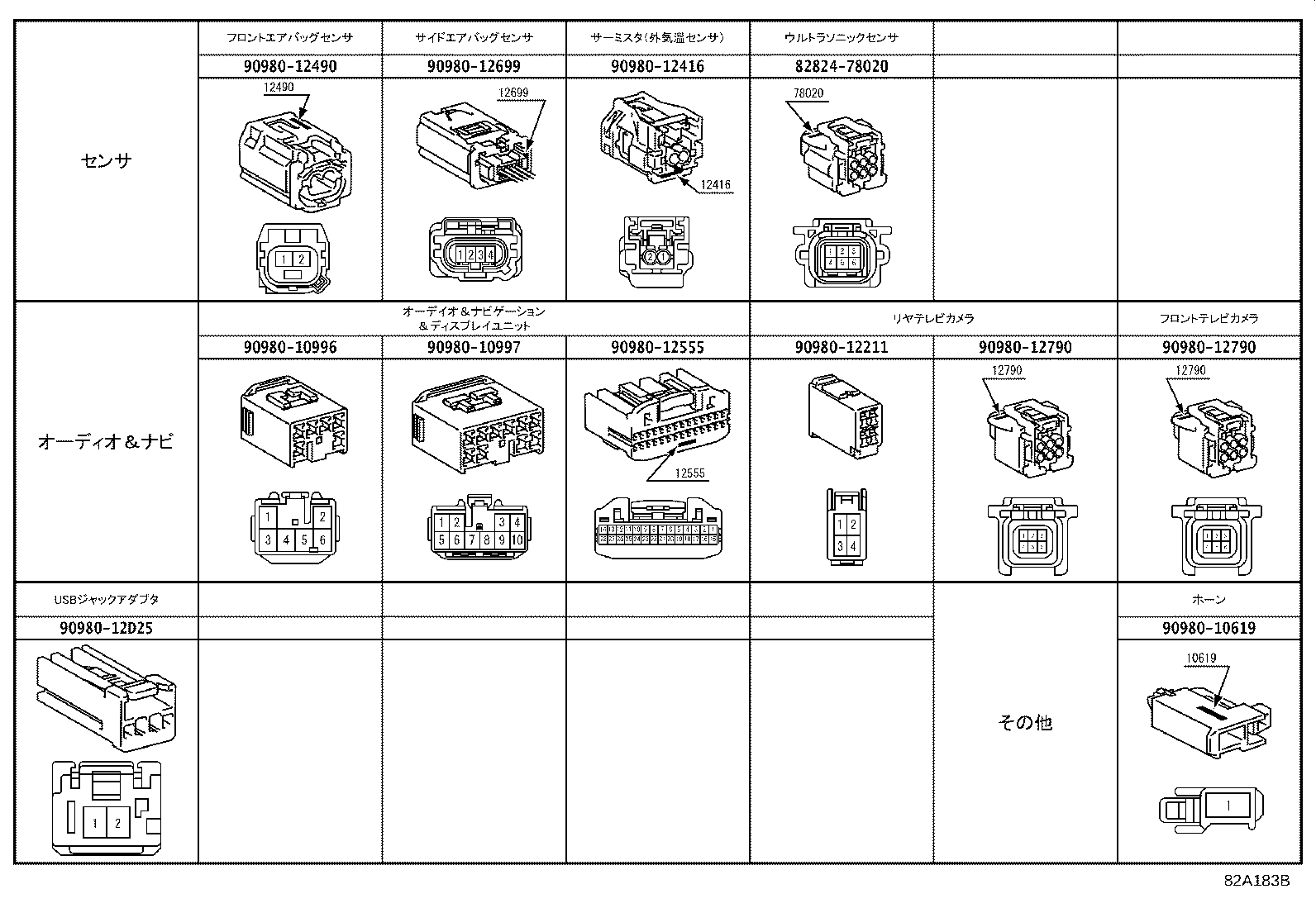

ILLUST NO.10 OF10(1506- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12211 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12D25 | ||||

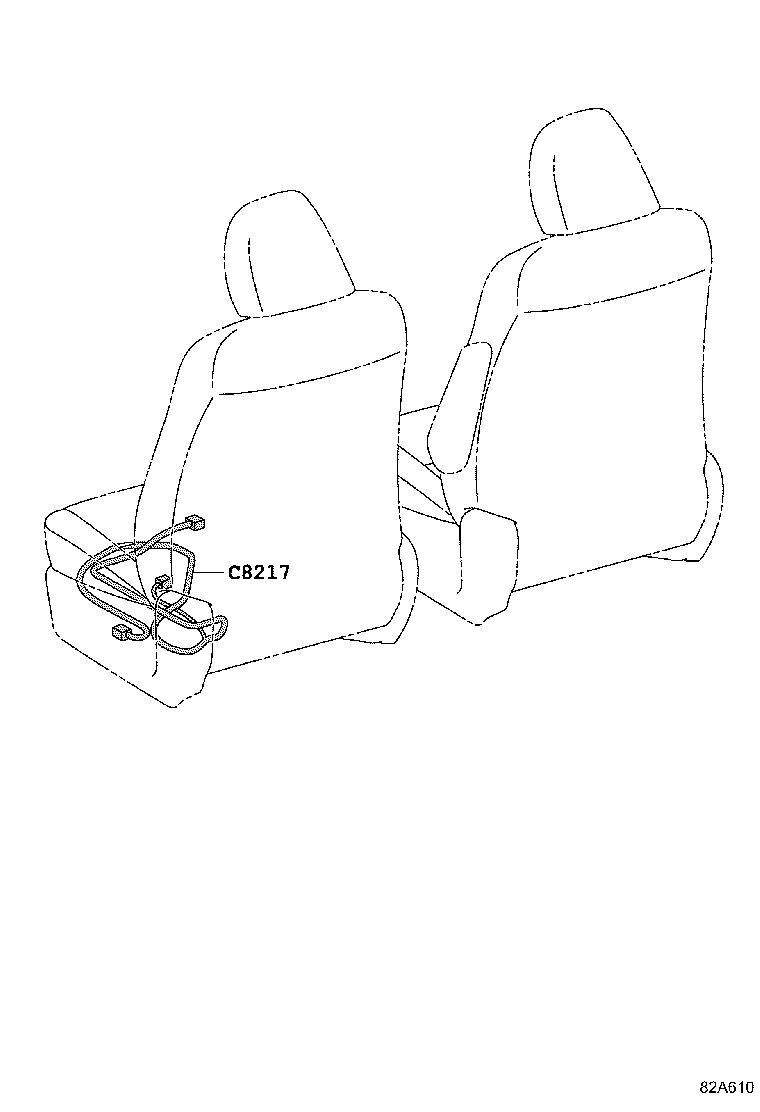

ILLUST NO. 7 OF10(1512- )
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C8217 - WIRE, WELCAB SEAT MAIN | ||||
| C8217-D1500 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ) |
1 | ||
| C8217-D1500 |
NCP175;NHP170,NSP170..07S ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
