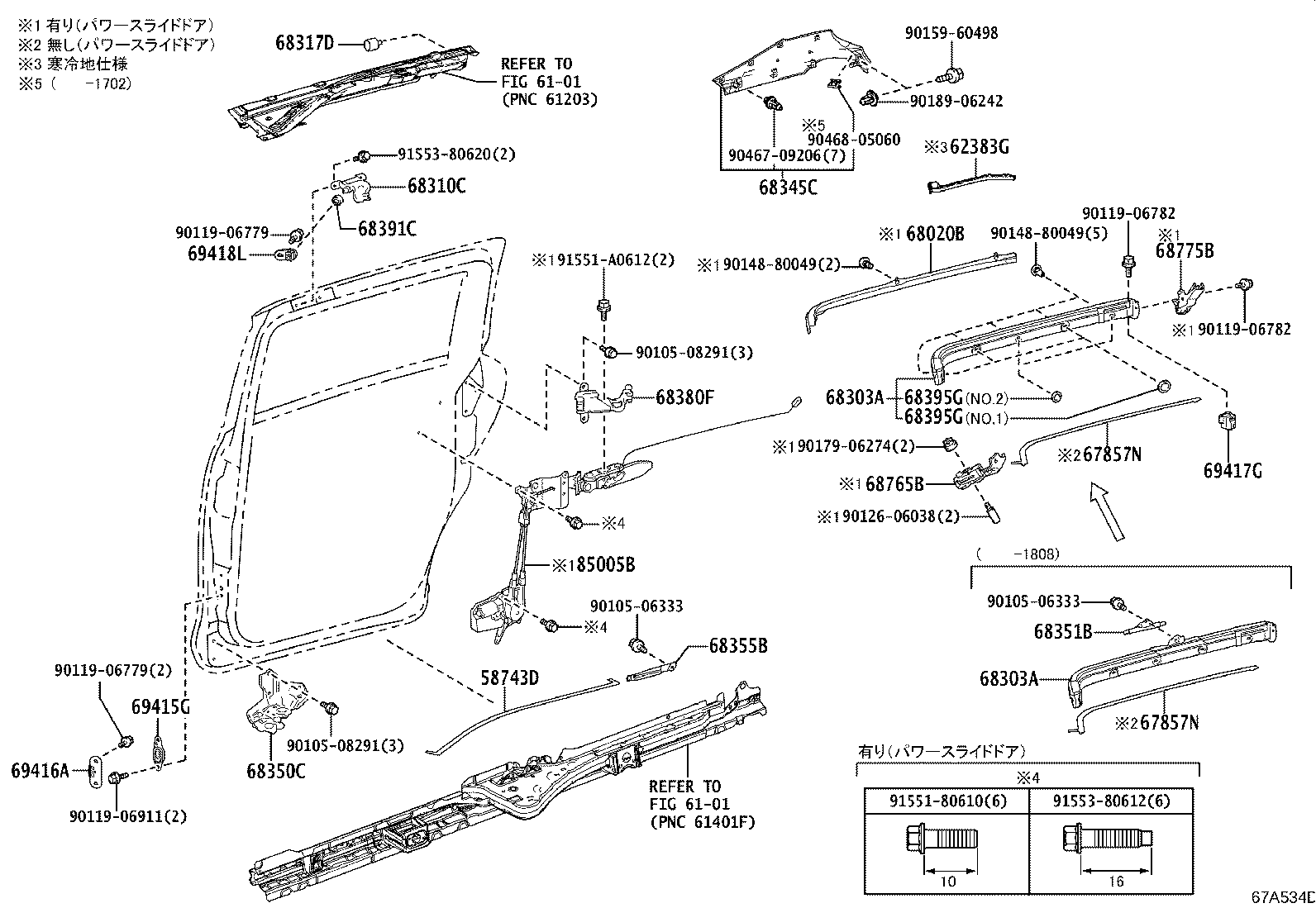

NCP175G-MRXNK (2015)
Toyota Sienta
(1506- )
ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58744F - PROTECTOR, SLIDE DOOR PANEL, LH | ||||
| 58744-52050 |
NCP175,NHP170,NSP17# |
1 | ||
| 62384 - WEATHERSTRIP, ROOF SIDE RAIL, REAR LH | ||||
| 62384-52030 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 62383-52020 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 67858F - PROTECTOR, SLIDE DOOR RAIL, LH | ||||
| 67858-52100 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 68030B - GUIDE ASSY, SLIDE DOOR CABLE | ||||
| 68030-52050 |
NCP175,NHP170,NSP17# |
1 | ||
| 68304E - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-52070 |
NCP175,NHP170,NSP17# |
1 | ||
| 68304-52060 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 68304E - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-52070 |
NCP175,NHP170,NSP17# |
1 | ||
| 68304-52060 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 68317D - STOPPER, SLIDE DOOR UPPER RAIL | ||||
| 68317-52020 |
NCP175,NHP170,NSP17# |
2 | ||
| 68320D - ROLLER ASSY, SLIDE DOOR, UPPER, LH | ||||
| 68320-52040 |
NCP175,NHP170,NSP17# |
1 | ||
| 68320-52041 |
NCP175,NHP170,NSP17# |
1 | ||
| 68346B - COVER, SLIDE DOOR CENTER RAIL, LH | ||||
| 60836-52040B0 |
NCP175,NHP170,NSP17# SILVER ME.,1F7 |
1 | ||
| 60836-52040E1 |
NCP175,NHP170,NSP17# VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 60836-52040F1 |
NCP175,NHP170,NSP170 AIR YELLOW,5B6 |
1 | ||
| 60836-52040C0 |
NCP175,NHP170,NSP17# BLACK MC.,209 |
1 | ||
| 60836-52040D1 |
NCP175,NHP170,NSP170 RED M.M.,3T8 |
1 | ||
| 60836-52040J0 |
NCP175,NHP170,NSP17# BLUE ME.,8T7 |
1 | ||
| 60836-52040G1 |
NCP175,NHP170,NSP170 GREEN M.M.,6W8 |
1 | ||
| 60836-52040A1 |
NCP175,NHP170,NSP17# WHITE PEARL CS.,070 |
1 | ||
| 60836-52040D2 |
NCP175..G;NHP170,NSP170..07S..G COOL BORDEAUX GF.,3T9 |
1 | ||
| 68352B - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 LH | ||||
| 68352-52030 |
NCP175,NHP170,NSP17# |
1 | ||
| 68356B - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 LH | ||||
| 68356-52050 |
NCP175,NHP170,NSP17# |
1 | ||
| 68356-52051 |
NCP175,NHP170,NSP17# |
1 | ||
| 68360D - ROLLER ASSY, SLIDE DOOR, LOWER LH | ||||
| 68360-52070 |
NCP175,NHP170,NSP17# |
1 | ||
| 68390D - HINGE ASSY, SLIDE DOOR, CENTER LH | ||||
| 68390-52060 |
NCP175,NHP170,NSP17# |
1 | ||
| 68390-52061 |
NCP175,NHP170,NSP17# |
1 | ||
| 68391D - CUSHION, SLIDE DOOR UPPER ROLLER, LH | ||||
| 68391-28040 |
NCP175,NHP170,NSP17# |
1 | ||
| 68766C - BRACKET, SLIDE DOOR, CENTER NO.1 LH | ||||
| 68766-52020 |
NCP175,NHP170,NSP17# |
1 | ||
| 68776B - BRACKET, SLIDE DOOR, CENTER NO.2 LH | ||||
| 68776-52020 |
NCP175,NHP170,NSP17# |
1 | ||
| 68776-52021 |
NCP175,NHP170,NSP17# |
1 | ||
| 69415G - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-52010 |
NCP175,NHP170,NSP17# |
2 | ||
| 69416A - STOPPER, SLIDE DOOR DOWN MALE | ||||
| 69046-52010 |
NCP175,NHP170,NSP17# |
2 | ||
| 69418K - CUSHION, SLIDE DOOR OPEN STOPPER, LH | ||||
| 69417-52010 |
NCP175,NHP170,NSP17# |
1 | ||
| 69419D - STOP, SLIDE DOOR OPEN, LH | ||||
| 69419-52010 |
NCP175,NHP170,NSP17# |
1 | ||
| 85006A - MOTOR UNIT, SLIDE DOOR, LH | ||||
| 85006-52060 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V)&寒冷地仕様 |
1 | ||
| 85006-52060 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 85006-52061 |
NCP175,NHP170,NSP17# |
1 | ||
| 85006-52061 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V)&寒冷地仕様 |
1 | ||
| 85006-52061 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 85006-52060 |
NCP175,NHP170,NSP17# |
1 | ||
| 85006-52062 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V)&寒冷地仕様 |
1 | ||
| 85006-52063 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 85006-52062 |
NCP175,NHP170,NSP17# |
1 | ||
| 85006-52062 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 85006-52062 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 85006-52063 |
NCP175,NHP170,NSP17# |
1 | ||
| 85006-52063 |
NCP175,NSP17#..X “Vﾊﾟｯｹｰｼﾞ”*(V)&寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90105-08291 | ||||
| 90119-06779 | ||||
| 90119-06782 | ||||
| 90119-06911 | ||||
| 90126-06038 | ||||
| 90148-80049 | ||||
| 90159-60498 | ||||
| 90179-06274 | ||||
| 90189-06242 | ||||
| 90467-09206 | ||||
| 90468-05060 | ||||
| 91551-80610 | ||||
| 91551-A0612 | ||||
| 91553-80612 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 6101 | ||||
(1506- )
ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58743D - PROTECTOR, SLIDE DOOR PANEL, RH | ||||
| 58743-52020 |
NCP175,NHP170,NSP17# |
1 | ||
| 62383G - WEATHERSTRIP, ROOF SIDE RAIL, REAR RH | ||||
| 62383-52020 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 62383-52030 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 67857N - PROTECTOR, SLIDE DOOR RAIL, RH | ||||
| 67857-52130 |
NCP175,NHP170,NSP17#..X |
1 | ||
| 67857N - PROTECTOR, SLIDE DOOR RAIL, RH | ||||
| 67857-52130 |
NCP175,NHP170,NSP17#..X |
1 | ||
| 68020B - GUIDE ASSY, SLIDE DOOR CABLE, RH | ||||
| 68020-52030 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 68303A - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-52030 |
NCP175,NHP170,NSP17#..X |
1 | ||
| 68303-52040 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 68303A - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-52030 |
NCP175,NHP170,NSP17#..X |
1 | ||
| 68303-52040 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 68310C - ROLLER ASSY, SLIDE DOOR, UPPER RH | ||||
| 68310-52021 |
NCP175,NHP170,NSP17# |
1 | ||
| 68310-52020 |
NCP175,NHP170,NSP17# |
1 | ||
| 68317D - STOPPER, SLIDE DOOR UPPER RAIL | ||||
| 68317-52020 |
NCP175,NHP170,NSP17# |
2 | ||
| 68345C - COVER, SLIDE DOOR CENTER RAIL | ||||
| 60835-52020C0 |
NCP175,NHP170,NSP17# BLACK MC.,209 |
1 | ||
| 60835-52020B0 |
NCP175,NHP170,NSP17# SILVER ME.,1F7 |
1 | ||
| 60835-52020G1 |
NCP175,NHP170,NSP170 GREEN M.M.,6W8 |
1 | ||
| 60835-52020J0 |
NCP175,NHP170,NSP17# BLUE ME.,8T7 |
1 | ||
| 60835-52020D2 |
NCP175..G;NHP170,NSP170..07S..G COOL BORDEAUX GF.,3T9 |
1 | ||
| 60835-52020D1 |
NCP175,NHP170,NSP170 RED M.M.,3T8 |
1 | ||
| 60835-52020A1 |
NCP175,NHP170,NSP17# WHITE PEARL CS.,070 |
1 | ||
| 60835-52020E1 |
NCP175,NHP170,NSP17# VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 60835-52020F1 |
NCP175,NHP170,NSP170 AIR YELLOW,5B6 |
1 | ||
| 68350C - ROLLER ASSY, SLIDE DOOR, LOWER RH | ||||
| 68350-52020 |
NCP175,NHP170,NSP17# |
1 | ||
| 68351B - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 RH | ||||
| 68351-52020 |
NCP175,NHP170,NSP17# |
1 | ||
| 68355B - PLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 RH | ||||
| 68355-52020 |
NCP175,NHP170,NSP17# |
1 | ||
| 68355-52021 |
NCP175,NHP170,NSP17# |
1 | ||
| 68380F - HINGE ASSY, SLIDE DOOR, CENTER RH | ||||
| 68380-52031 |
NCP175,NHP170,NSP17# |
1 | ||
| 68380-52030 |
NCP175,NHP170,NSP17# |
1 | ||
| 68391C - CUSHION, SLIDE DOOR UPPER ROLLER, RH | ||||
| 68391-28040 |
NCP175,NHP170,NSP17# |
1 | ||
| 68765B - BRACKET, SLIDE DOOR, CENTER NO.1 RH | ||||
| 68765-52010 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 68775B - BRACKET, SLIDE DOOR, CENTER NO.2 RH | ||||
| 68775-52010 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 68775-52011 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 69415G - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-52010 |
NCP175,NHP170,NSP17# |
2 | ||
| 69416A - STOPPER, SLIDE DOOR DOWN MALE | ||||
| 69046-52010 |
NCP175,NHP170,NSP17# |
2 | ||
| 69417G - CUSHION, SLIDE DOOR OPEN STOPPER, RH | ||||
| 69417-52020 |
NCP175,NHP170,NSP17# |
1 | ||
| 69418L - STOP, SLIDE DOOR OPEN, RH | ||||
| 69418-52010 |
NCP175,NHP170,NSP17# |
1 | ||
| 85005B - MOTOR UNIT, SLIDE DOOR, RH | ||||
| 85005-52093 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 85005-52092 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 85005-52090 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 85005-52091 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 85005-52092 |
NCP175,NHP170,NSP17#..G 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90105-08291 | ||||
| 90119-06779 | ||||
| 90119-06782 | ||||
| 90119-06911 | ||||
| 90126-06038 | ||||
| 90148-80049 | ||||
| 90159-60498 | ||||
| 90179-06274 | ||||
| 90189-06242 | ||||
| 90467-09206 | ||||
| 90468-05060 | ||||
| 91551-80610 | ||||
| 91551-A0612 | ||||
| 91553-80612 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 6101 | ||||
