NCP175G-MRXNK (2015)

Toyota Sienta

Production Jun 2015 - Sep 2018
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

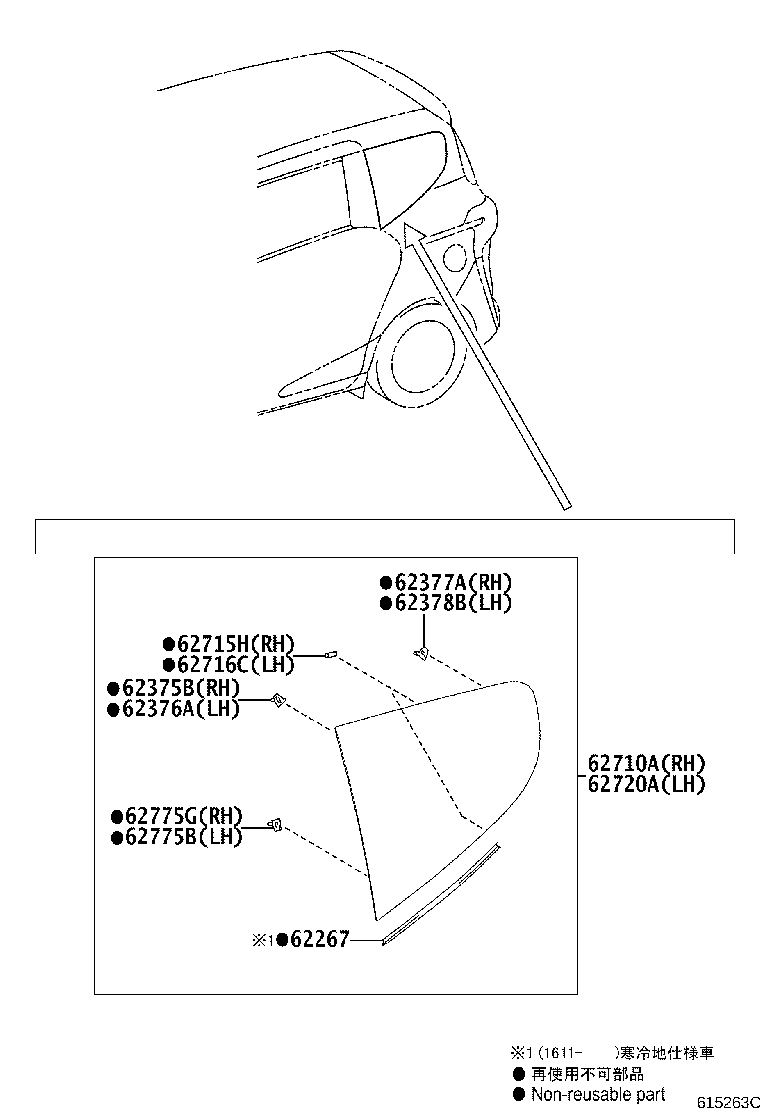

Click highlighted areas on diagram

diagram 62267 62375B 62376A 62377A 62378B 62710A 62715H 62716C 62720A 62775B 62775G
Part # Description Qty Price
62267 - DAM, SIDE WINDOW ADHESIVE
62267-52020

NCP175,NSP170..X

“Vﾊﾟｯｹｰｼﾞ”*(V)&寒冷地仕様

 2
62267-52020

NCP175,NHP170,NSP17#

寒冷地仕様

 2
62375B - CLIP, SIDE WINDOW, NO.1
62775-52160

NCP175,NHP170,NSP17#

 1
62376A - CLIP, SIDE WINDOW, NO.2
62775-52190

NCP175,NHP170,NSP17#

 1
62377A - CLIP, SIDE WINDOW, NO.3
62775-52150

NCP175,NHP170,NSP17#

 1
62378B - CLIP, SIDE WINDOW, NO.4
62775-52180

NCP175,NHP170,NSP17#

 1
62710A - WINDOW ASSY, QUARTER, RH
62710-52260

NCP175,NHP170,NSP17#

 1
62710-52270

NCP175,NSP170..X

“Vﾊﾟｯｹｰｼﾞ”*(V)&寒冷地仕様

 1
62710-52280

NCP175,NHP170,NSP17#

寒冷地仕様

 1
62710-52250

NCP175,NSP170..X

“Vﾊﾟｯｹｰｼﾞ”*(V)

 1
62715H - DAM, QUARTER WINDOW GLASS ADHESIVE, RH
68294-26030

NCP175,NHP170,NSP17#

 2
62716C - DAM, QUARTER WINDOW GLASS ADHESIVE, LH
68294-26030

NCP175,NHP170,NSP17#

 2
62720A - WINDOW ASSY, QUARTER, LH
62720-52250

NCP175,NSP170..X

“Vﾊﾟｯｹｰｼﾞ”*(V)

 1
62720-52270

NCP175,NHP170,NSP17#

 1
62720-52300

NCP175,NSP170..X

“Vﾊﾟｯｹｰｼﾞ”*(V)&寒冷地仕様

 1
62720-52310

NCP175,NHP170,NSP17#

寒冷地仕様

 1
62775B - CLIP, QUARTER WINDOW, LH
62775-52170

NCP175,NHP170,NSP17#

 1
62775G - CLIP, QUARTER WINDOW, RH
62775-52140

NCP175,NHP170,NSP17#

 1
