Toyota Sera EXY10 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
SERA
EXY10-ACPGH (1990)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

EXY10-ACPGH (1990)

Toyota Sera

Production Mar 1990 - Dec 1995

Engine 5EFHE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

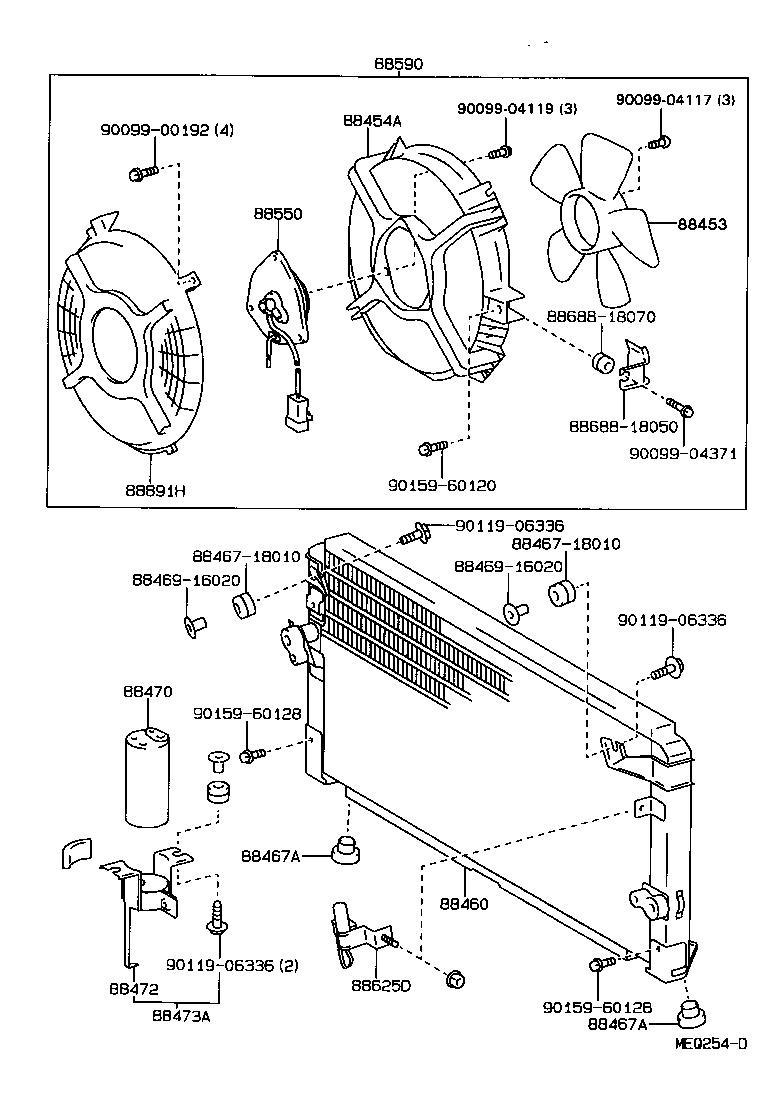

ILLUST NO. 1 OF 2(9003- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-10020	EXY10	03/1990 - 06/1992	1
88453-12080	EXY10	06/1992 - 12/1995	1
88454A - SHROUD, FAN
88454-18011	EXY10	06/1992 - 12/1995	1
88454-18010	EXY10	03/1990 - 06/1992	1
88460 - CONDENSER ASSY, COOLER
88460-18030	EXY10	03/1990 - 06/1992	1
88460-18060	EXY10	12/1993 - 12/1995	1
88460-18050	EXY10	06/1992 - 12/1993	1
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-16090	EXY10	02/1991 - 12/1995	2
88467-10020	EXY10	03/1990 - 02/1991	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-16090	EXY10	02/1991 - 12/1995	2
88467-10020	EXY10	03/1990 - 02/1991	2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040	EXY10	03/1990 - 06/1992	1
88471-30330	EXY10	06/1992 - 12/1993	1
88471-50020	EXY10	12/1993 - 12/1995	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-18010	EXY10	03/1990 - 06/1992	1
88472-18011	EXY10	06/1992 - 12/1995	1
88473A - HOLDER, RECEIVER
88473-18011	EXY10	06/1992 - 12/1995	1
88473-18010	EXY10	03/1990 - 06/1992	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-10050	EXY10	03/1990 - 06/1992	1
88550-18010	EXY10	06/1992 - 12/1995	1
88590 - BLOWER ASSY, W/SHROUD
88590-18011	EXY10	06/1992 - 12/1995	1
88625D - THERMISTOR, COOLER
88625-18031	EXY10	06/1992 - 12/1995	1
88625-18030	EXY10	03/1990 - 06/1992	1
88891H - COVER, COOLER, NO.1
88891-18010	EXY10	03/1990 - 12/1995	1
Common parts
88467-18010
88469-16020
88688-18050
88688-18070
90099-00192
90099-04117
90099-04119
90099-04371
90119-06336
90159-60120
90159-60128

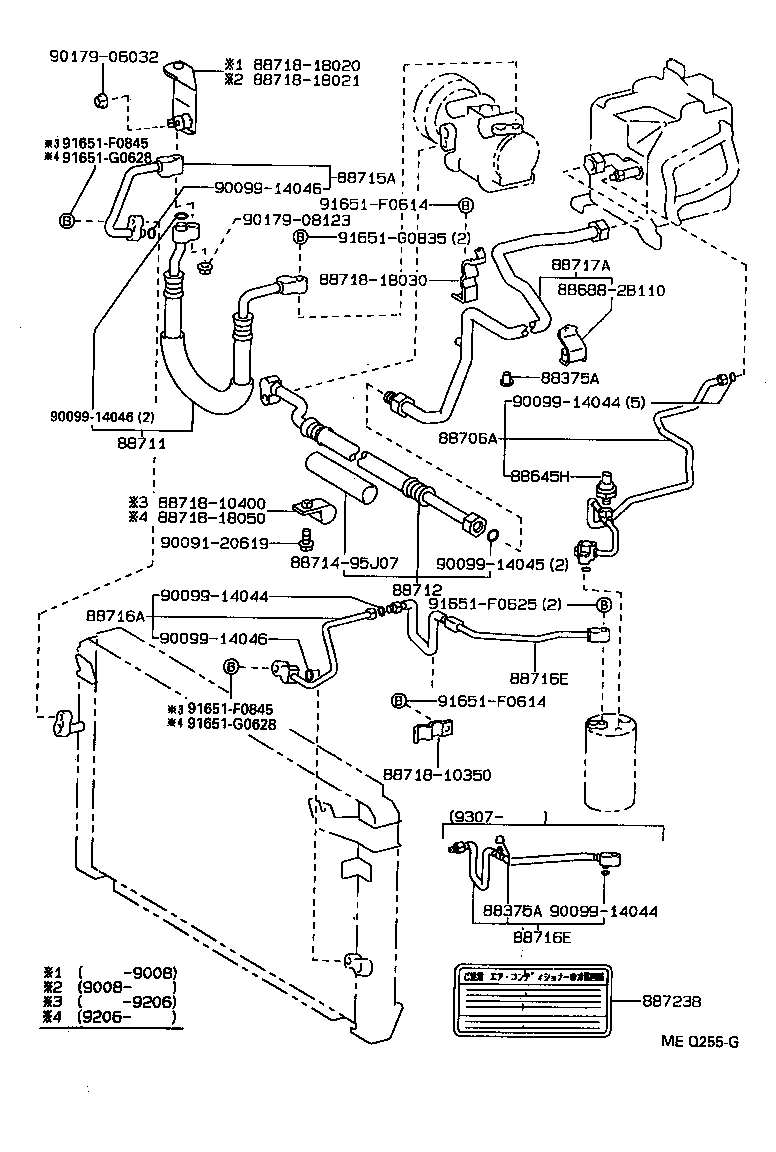

ILLUST NO. 2 OF 2(9003-9312)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	EXY10..ATM	08/1993 - 12/1993	1
88375-20010	EXY10	03/1990 - 08/1993	1
88375-30280	EXY10	12/1993 - 12/1995	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	EXY10..ATM	08/1993 - 12/1993	1
88375-20010	EXY10	03/1990 - 08/1993	1
88375-30280	EXY10	12/1993 - 12/1995	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	EXY10	12/1993 - 12/1995	1
88645-20050	EXY10..ATM	08/1993 - 12/1993	1
88645-10030	EXY10	03/1990 - 08/1993	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-18010	EXY10	03/1990 - 08/1993	1
88716-18050	EXY10	12/1993 - 12/1995	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-18020	EXY10	12/1993 - 12/1995	1
88711-18010	EXY10	03/1990 - 06/1992	1
88711-18011	EXY10	06/1992 - 08/1993	1
88711-18020	EXY10..ATM	08/1993 - 12/1993	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-18010	EXY10..ATM	03/1990 - 06/1992	1
88712-18011	EXY10..ATM	06/1992 - 12/1993	1
88712-18030	EXY10..ATM	12/1993 - 12/1995	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-18010	EXY10	03/1990 - 08/1990	1
88715-18011	EXY10	08/1990 - 06/1992	1
88715-18020	EXY10	12/1993 - 12/1995	1
88715-18012	EXY10	06/1992 - 12/1993	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-18031	EXY10	02/1994 - 12/1995	1
88716-18030	EXY10	12/1993 - 02/1994	1
88716-18010	EXY10	03/1990 - 06/1992	1
88716-18011	EXY10	06/1992 - 12/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-18020	EXY10	03/1990 - 12/1993	1
88716-18040	EXY10	12/1993 - 02/1994	1
88716-18041	EXY10	02/1994 - 12/1995	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-18020	EXY10	03/1990 - 12/1993	1
88716-18040	EXY10	12/1993 - 02/1994	1
88716-18041	EXY10	02/1994 - 12/1995	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-18011	EXY10	06/1992 - 12/1993	1
88717-18030	EXY10	12/1993 - 12/1995	1
88717-18010	EXY10	03/1990 - 06/1992	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20010	EXY10	03/1990 - 06/1992	1
88723-90P80	EXY10	06/1992 - 12/1993	1
88723-16030	EXY10	12/1993 - 12/1995	1
Common parts
88688-2B110
88714-95J07
88718-10350
88718-10400
88718-18020
88718-18021
88718-18030
88718-18050
90091-20619
90099-14044
90099-14045
90099-14046
90179-06032
90179-08123
91651-F0614
91651-F0625
91651-F0845
91651-G0628
91651-G0835

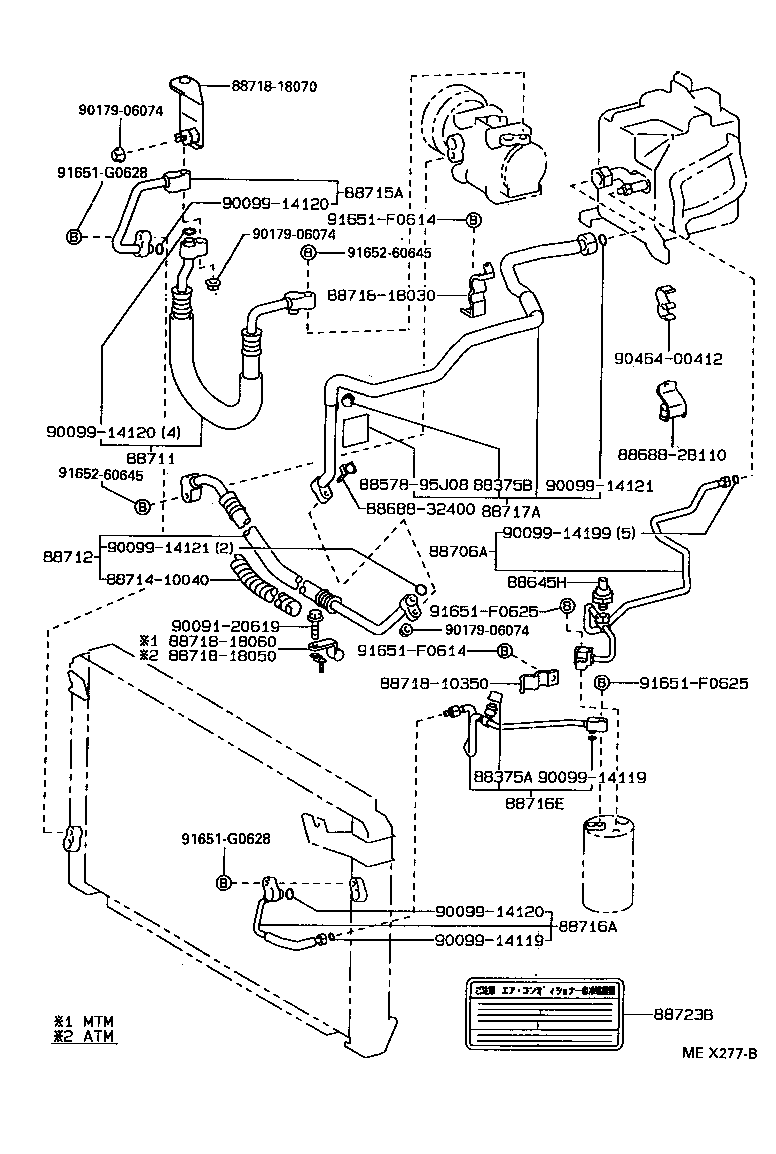

ILLUST NO. 2 OF 2(9312- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	EXY10..ATM	08/1993 - 12/1993	1
88375-20010	EXY10	03/1990 - 08/1993	1
88375-30280	EXY10	12/1993 - 12/1995	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	EXY10	12/1993 - 12/1995	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	EXY10	12/1993 - 12/1995	1
88645-20050	EXY10..ATM	08/1993 - 12/1993	1
88645-10030	EXY10	03/1990 - 08/1993	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-18010	EXY10	03/1990 - 08/1993	1
88716-18050	EXY10	12/1993 - 12/1995	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-18020	EXY10	12/1993 - 12/1995	1
88711-18010	EXY10	03/1990 - 06/1992	1
88711-18011	EXY10	06/1992 - 08/1993	1
88711-18020	EXY10..ATM	08/1993 - 12/1993	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-18010	EXY10..ATM	03/1990 - 06/1992	1
88712-18011	EXY10..ATM	06/1992 - 12/1993	1
88712-18030	EXY10..ATM	12/1993 - 12/1995	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-18010	EXY10	03/1990 - 08/1990	1
88715-18011	EXY10	08/1990 - 06/1992	1
88715-18020	EXY10	12/1993 - 12/1995	1
88715-18012	EXY10	06/1992 - 12/1993	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-18031	EXY10	02/1994 - 12/1995	1
88716-18030	EXY10	12/1993 - 02/1994	1
88716-18010	EXY10	03/1990 - 06/1992	1
88716-18011	EXY10	06/1992 - 12/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-18020	EXY10	03/1990 - 12/1993	1
88716-18040	EXY10	12/1993 - 02/1994	1
88716-18041	EXY10	02/1994 - 12/1995	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-18011	EXY10	06/1992 - 12/1993	1
88717-18030	EXY10	12/1993 - 12/1995	1
88717-18010	EXY10	03/1990 - 06/1992	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20010	EXY10	03/1990 - 06/1992	1
88723-90P80	EXY10	06/1992 - 12/1993	1
88723-16030	EXY10	12/1993 - 12/1995	1
Common parts
88578-95J08
88688-2B110
88688-32400
88714-10040
88718-10350
88718-18030
88718-18050
88718-18060
88718-18070
90091-20619
90099-14119
90099-14120
90099-14121
90099-14199
90179-06074
90464-00412
91651-F0614
91651-F0625
91651-G0628
91652-60645
