EXY10-ACPGH (1990)
Toyota Sera
Production
Mar 1990
-
Dec 1995
Engine
5EFHE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

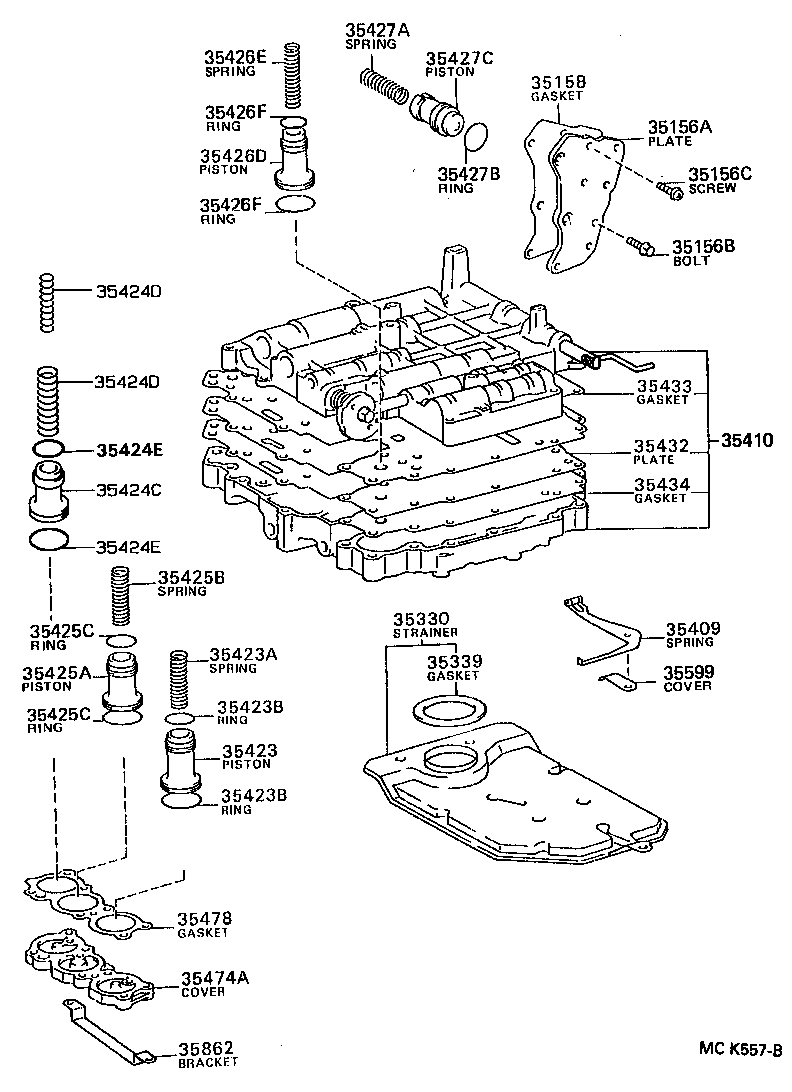

ILLUST NO. 1 OF 5(9003- )ATM
Click highlighted areas on diagram
A242L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35156A - PLATE, TRANSMISSION CASE, NO.2 | ||||
| 35156-20010 |
EXY10..ATM |
1 | ||
| 35156B - BOLT(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90105-06049 |
EXY10..ATM |
6 | ||
| 35156C - SCREW(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90149-60041 |
EXY10..ATM |
3 | ||
| 35158 - GASKET, TRANSMISSION CASE, NO.2 PLATE | ||||
| 35158-20020 |
EXY10..ATM |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-12020 |
EXY10..ATM |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-12010 |
EXY10..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-20010 |
EXY10..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-10080 |
EXY10..ATM |
1 | ||
| 35410-20231 |
EXY10..ATM |
1 | ||
| 35410-18020 |
EXY10..ATM |
1 | ||
| 35410-18021 |
EXY10..ATM |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-32010 |
EXY10..ATM |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25011 |
EXY10..ATM |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
EXY10..ATM 下側 |
1 | ||
| 90301-22185 |
EXY10..ATM 上側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
EXY10..ATM 下側 |
1 | ||
| 90301-22185 |
EXY10..ATM 上側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-20030 |
EXY10..ATM |
1 | ||
| 35424-20010 |
EXY10..ATM |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23058 |
EXY10..ATM 内側 |
2 | ||
| 90501-23065 |
EXY10..ATM 外側 |
1 | ||
| 90501-19024 |
EXY10..ATM 内側 |
1 | ||
| 90501-25044 |
EXY10..ATM 外側 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-23058 |
EXY10..ATM 内側 |
2 | ||
| 90501-23065 |
EXY10..ATM 外側 |
1 | ||
| 90501-19024 |
EXY10..ATM 内側 |
1 | ||
| 90501-25044 |
EXY10..ATM 外側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
EXY10..ATM |
1 | ||
| 90301-23194 |
EXY10..ATM 上側 |
1 | ||
| 90301-29187 |
EXY10..ATM 下側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29187 |
EXY10..ATM |
1 | ||
| 90301-23194 |
EXY10..ATM 上側 |
1 | ||
| 90301-29187 |
EXY10..ATM 下側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-12020 |
EXY10..ATM |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-23063 |
EXY10..ATM |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
EXY10..ATM 上側 |
1 | ||
| 90301-29187 |
EXY10..ATM 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
EXY10..ATM 上側 |
1 | ||
| 90301-29187 |
EXY10..ATM 下側 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-12020 |
EXY10..ATM |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-23050 |
EXY10..ATM |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-20002 |
EXY10..ATM 上側 |
1 | ||
| 90301-29187 |
EXY10..ATM 下側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-20002 |
EXY10..ATM 上側 |
1 | ||
| 90301-29187 |
EXY10..ATM 下側 |
1 | ||
| 35427A - SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90501-26040 |
EXY10..ATM |
1 | ||
| 90501-25012 |
EXY10..ATM |
1 | ||
| 35427B - RING, O (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90301-22185 |
EXY10..ATM |
1 | ||
| 35427C - PISTON, B-4 ACCUMULATOR | ||||
| 35427-12010 |
EXY10..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-20190 |
EXY10..ATM |
1 | ||
| 35432-18010 |
EXY10..ATM |
1 | ||
| 35432-12180 |
EXY10..ATM |
1 | ||
| 35432-18010 |
EXY10..ATM |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-20030 |
EXY10..ATM |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-20010 |
EXY10..ATM |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-12010 |
EXY10..ATM |
1 | ||
| 35478 - GASKET, ACCUMULATOR COVER | ||||
| 35478-32010 |
EXY10..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-12010 |
EXY10..ATM |
1 | ||
| 35862 - BRACKET, ACCUMULATOR APPLY TUBE | ||||
| 35862-12020 |
EXY10..ATM |
1 | ||

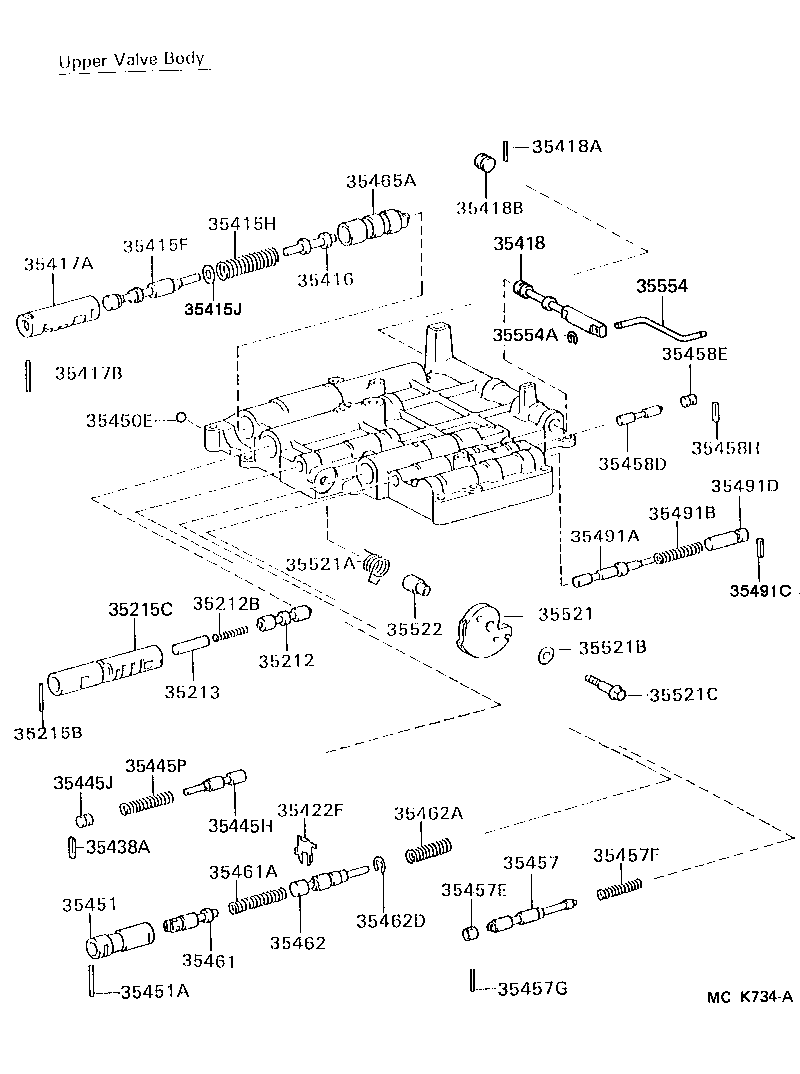

ILLUST NO. 2 OF 5(9003- )ATM
Click highlighted areas on diagram
A242L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-12010 |
EXY10..ATM |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-05010 |
EXY10..ATM |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-12010 |
EXY10..ATM |
1 | ||
| 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) | ||||
| 90250-03038 |
EXY10..ATM |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-12021 |
EXY10..ATM |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-12020 |
EXY10..ATM |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16077 |
EXY10..ATM |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08021 |
EXY10..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-12010 |
EXY10..ATM |
1 | ||
| 35416-17010 |
EXY10..ATM |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-12020 |
EXY10..ATM |
1 | ||
| 35417B - PIN, STRAIGHT (FOR PRIMARY REGULATOR VALVE SLEEVE) | ||||
| 90250-03038 |
EXY10..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-12020 |
EXY10..ATM |
1 | ||
| 35418A - PIN, STRAIGHT (FOR MANUAL VALVE) | ||||
| 90250-02007 |
EXY10..ATM |
1 | ||
| 35418B - PLUG (FOR MANUAL VALVE) | ||||
| 90339-04007 |
EXY10..ATM |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
EXY10..ATM |
1 | ||
| 35438A - SEAT, 2ND COAST MODULATOR VALVE SPRING | ||||
| 35438-22020 |
EXY10..ATM |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-12010 |
EXY10..ATM |
1 | ||
| 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90339-04002 |
EXY10..ATM |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10081 |
EXY10..ATM |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
EXY10..ATM 外径=5.535,ﾗﾊﾞｰ |
7 | ||
| 35451 - SLEEVE, THROTTLE VALVE | ||||
| 35451-32010 |
EXY10..ATM |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03045 |
EXY10..ATM |
1 | ||
| 35457 - VALVE, THROTTLE MODULATOR | ||||
| 35457-12010 |
EXY10..ATM |
1 | ||
| 35457E - PLUG (FOR THROTTLE MODULATOR VALVE) | ||||
| 90339-05006 |
EXY10..ATM |
1 | ||
| 35457F - SPRING, COMPRESSION (FOR THROTTLE MODULATOR VALVE) | ||||
| 90501-09040 |
EXY10..ATM |
1 | ||
| 35457G - PIN, STRAIGHT (FOR THROTTLE MODULATOR VALVE) | ||||
| 90250-02007 |
EXY10..ATM |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-32020 |
EXY10..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04002 |
EXY10..ATM |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03010 |
EXY10..ATM |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-32010 |
EXY10..ATM |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10131 |
EXY10..ATM |
1 | ||
| 90501-10054 |
EXY10..ATM |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-12030 |
EXY10..ATM |
1 | ||
| 35462-12020 |
EXY10..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07027 |
EXY10..ATM 長さ=29.18 |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
EXY10..ATM |
1 | ||
| 35465A - SLEEVE, PRIMARY REGULATOR VALVE PLUNGER | ||||
| 35465-17010 |
EXY10..ATM |
1 | ||
| 35465-12010 |
EXY10..ATM |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-20010 |
EXY10..ATM |
1 | ||
| 35491-12010 |
EXY10..ATM |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-09045 |
EXY10..ATM |
1 | ||
| 90501-09111 |
EXY10..ATM |
1 | ||
| 90501-09041 |
EXY10..ATM |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03003 |
EXY10..ATM |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-05007 |
EXY10..ATM |
1 | ||
| 90339-04042 |
EXY10..ATM |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-32010 |
EXY10..ATM |
1 | ||
| 35521-10010 |
EXY10..ATM |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11003 |
EXY10..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
EXY10..ATM |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90105-06018 |
EXY10..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
EXY10..ATM |
1 | ||
| 35554 - ROD, MANUAL VALVE CONNECTING | ||||
| 35554-12011 |
EXY10..ATM |
1 | ||
| 35554A - RING, E (FOR MANUAL VALVE CONNECTING ROD) | ||||
| 96160-00400 |
EXY10..ATM |
1 | ||

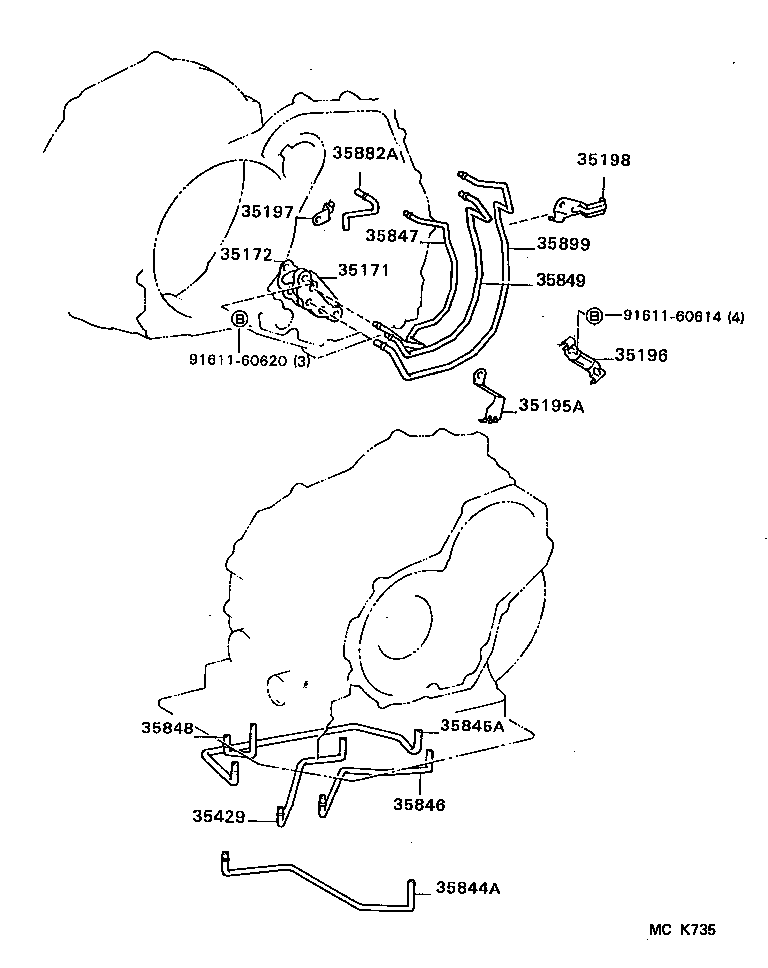

ILLUST NO. 4 OF 5(9003- )ATM
Click highlighted areas on diagram
A242L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35171 - COVER, TRANSAXLE HOUSING | ||||
| 35171-12010 |
EXY10..ATM |
1 | ||
| 35172 - GASKET, TRANSAXLE HOUSING COVER | ||||
| 35172-12010 |
EXY10..ATM |
1 | ||
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12010 |
EXY10..ATM |
1 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-12010 |
EXY10..ATM |
1 | ||
| 35197 - CLAMP, TRANSAXLE APPLY TUBE, NO.3 | ||||
| 35197-12010 |
EXY10..ATM |
1 | ||
| 35198 - CLAMP, TRANSAXLE APPLY TUBE, NO.4 | ||||
| 35198-20010 |
EXY10..ATM |
1 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-12030 |
EXY10..ATM |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-12030 |
EXY10..ATM |
1 | ||
| 35845A - TUBE, DIRECT CLUTCH ACCUMULATOR | ||||
| 35845-12030 |
EXY10..ATM |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-12040 |
EXY10..ATM |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-12010 |
EXY10..ATM |
1 | ||
| 35848 - TUBE, FORWARD CLUTCH ACCUMULATOR | ||||
| 35848-12030 |
EXY10..ATM |
1 | ||
| 35849 - TUBE, GOVERNOR APPLY | ||||
| 35849-20010 |
EXY10..ATM |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-12010 |
EXY10..ATM |
1 | ||
| 35899 - TUBE, GOVERNOR PRESSURE | ||||
| 35899-12010 |
EXY10..ATM |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 91611-60620 | ||||

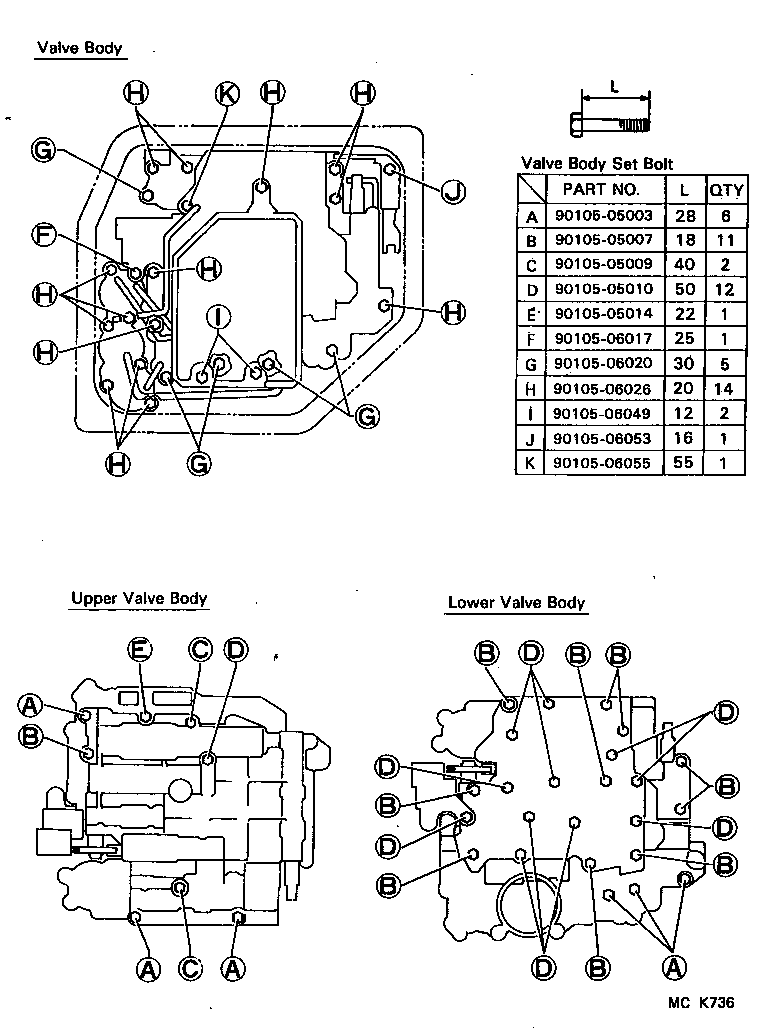

ILLUST NO. 5 OF 5(9003- )ATM
Click highlighted areas on diagram
A242L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05003 | ||||
| 90105-05007 | ||||
| 90105-05009 | ||||
| 90105-05010 | ||||
| 90105-05014 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 90105-06026 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06055 | ||||

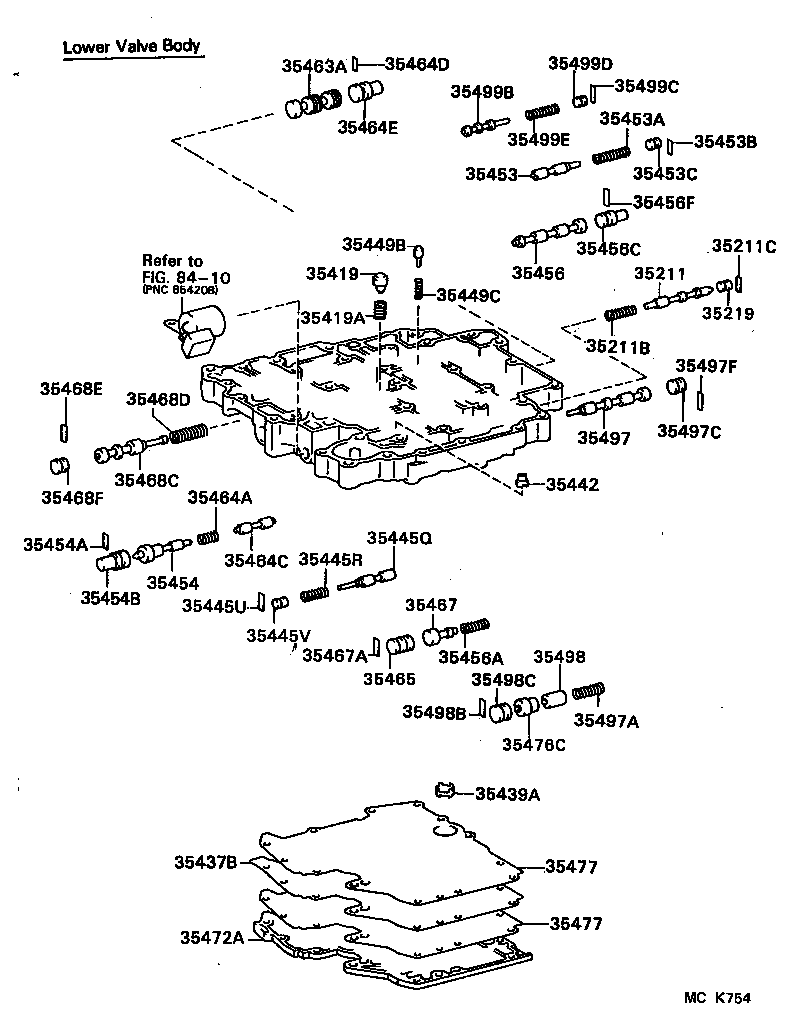

ILLUST NO. 3 OF 5(9003- )ATM
Click highlighted areas on diagram
A242L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211 - VALVE, LOCK UP SIGNAL | ||||
| 35211-12010 |
EXY10..ATM |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-08057 |
EXY10..ATM |
1 | ||
| 35211C - KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90282-03002 |
EXY10..ATM |
1 | ||
| 35219 - PLUG, LOCK UP SIGNAL VALVE | ||||
| 90339-04002 |
EXY10..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-12030 |
EXY10..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10079 |
EXY10..ATM |
1 | ||
| 35437B - PLATE, VALVE BODY COVER | ||||
| 35437-20010 |
EXY10..ATM |
1 | ||
| 35439A - STRAINER, LINE PRESSURE OIL | ||||
| 35439-20010 |
EXY10..ATM |
1 | ||
| 35442 - STRAINER, THROTTLE MODULATOR OIL | ||||
| 35442-32010 |
EXY10..ATM |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-12010 |
EXY10..ATM |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-09046 |
EXY10..ATM |
1 | ||
| 35445U - KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE) | ||||
| 90282-03002 |
EXY10..ATM |
1 | ||
| 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) | ||||
| 90339-04002 |
EXY10..ATM |
1 | ||
| 35449B - VALVE, PRESSURE RELIEF | ||||
| 35449-32010 |
EXY10..ATM |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
EXY10..ATM |
1 | ||
| 35453 - VALVE, DETENT REGULATOR | ||||
| 35453-20010 |
EXY10..ATM |
1 | ||
| 35453A - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-10135 |
EXY10..ATM |
1 | ||
| 35453B - KEY, STRAIGHT (FOR DETENT REGULATOR VALVE) | ||||
| 90282-03002 |
EXY10..ATM |
1 | ||
| 35453C - PLUG (FOR DETENT REGULATOR VALVE) | ||||
| 90339-04002 |
EXY10..ATM |
1 | ||
| 35454 - VALVE, LOW COAST SHIFT | ||||
| 35454-20010 |
EXY10..ATM |
1 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03002 |
EXY10..ATM |
1 | ||
| 35454B - PLUG (FOR LOW COAST SHIFT VALVE) | ||||
| 90339-04008 |
EXY10..ATM |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-32010 |
EXY10..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-06027 |
EXY10..ATM |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-07005 |
EXY10..ATM |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03001 |
EXY10..ATM |
1 | ||
| 35463A - VALVE, 1-2 SHIFT, LOWER | ||||
| 35463-32010 |
EXY10..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06025 |
EXY10..ATM |
1 | ||
| 35464C - VALVE, 1-2 SHIFT, UPPER | ||||
| 35464-32020 |
EXY10..ATM |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03001 |
EXY10..ATM |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-07005 |
EXY10..ATM |
1 | ||
| 35465 - PLUG, INTERMEDIATE SHIFT VALVE | ||||
| 35465-20010 |
EXY10..ATM |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-20010 |
EXY10..ATM |
1 | ||
| 35467A - KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE) | ||||
| 90282-03001 |
EXY10..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-12020 |
EXY10..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-14072 |
EXY10..ATM |
1 | ||
| 90501-14105 |
EXY10..ATM |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03001 |
EXY10..ATM |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-03004 |
EXY10..ATM |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-20020 |
EXY10..ATM |
1 | ||
| 35476C - VALVE, 3RD COAST | ||||
| 35476-20010 |
EXY10..ATM |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-20010 |
EXY10..ATM |
2 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-20010 |
EXY10..ATM |
2 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-20020 |
EXY10..ATM |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-07031 |
EXY10..ATM |
1 | ||
| 90501-08080 |
EXY10..ATM |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-04006 |
EXY10..ATM |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03001 |
EXY10..ATM |
1 | ||
| 35498 - VALVE, 3-4 COAST SHIFT | ||||
| 35498-20020 |
EXY10..ATM |
1 | ||
| 35498B - KEY, STRAIGHT (FOR 3-4 COAST SHIFT VALVE) | ||||
| 90282-03001 |
EXY10..ATM |
1 | ||
| 35498C - PLUG (FOR 3-4 COAST SHIFT VALVE) | ||||
| 90339-04006 |
EXY10..ATM |
1 | ||
| 35499B - VALVE, OVERDRIVE SEQUENCE | ||||
| 35499-20010 |
EXY10..ATM |
1 | ||
| 35499C - KEY, STRAIGHT (FOR OVERDRIVE SEQUENCE VALVE) | ||||
| 90282-03002 |
EXY10..ATM |
1 | ||
| 35499D - PLUG (FOR OVERDRIVE SEQUENCE VALVE) | ||||
| 90339-04002 |
EXY10..ATM |
1 | ||
| 35499E - SPRING, COMPRESSION (FOR OVERDRIVE SEQUENCE VALVE) | ||||
| 90501-08039 |
EXY10..ATM |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
