EXY10-ACPGH (1990)

Toyota Sera

Production Mar 1990 - Dec 1995
Engine 5EFHE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9003- )ATM

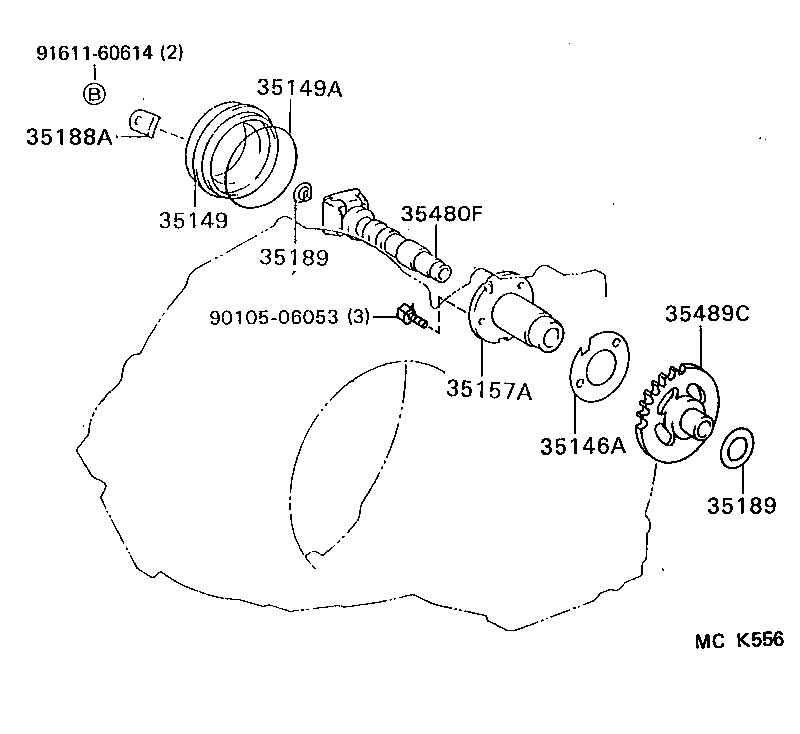

Click highlighted areas on diagram

A242L

diagram 35146A 35149 35149A 35157A 35188A 35189 35189 35480F 35489C 9010506053 9161160614
Part # Description Qty Price
35146A - GASKET, GOVERNOR BODY
35146-20010

EXY10..ATM

 1
35149 - COVER, GOVERNOR
35149-20010

EXY10..ATM

 1
35149A - RING, O (FOR GOVERNOR COVER)
90301-68001

EXY10..ATM

 1
35157A - ADAPTER, GOVERNOR BODY
35157-20031

EXY10..ATM

 1
35188A - BRACKET, GOVERNOR COVER
35188-20010

EXY10..ATM

 2
35189 - WASHER, GOVERNOR THRUST, NO.1
35189-12010

EXY10..ATM

DRIVEN GEAR SIDE

 1
35189-32011

EXY10..ATM

BODY SIDE

 1
35189 - WASHER, GOVERNOR THRUST, NO.1
35189-12010

EXY10..ATM

DRIVEN GEAR SIDE

 1
35189-32011

EXY10..ATM

BODY SIDE

 1
35480F - BODY ASSY, GOVERNOR
35480-12030

EXY10..ATM

 1
35489C - GEAR, GOVERNOR DRIVEN
35489-12010

EXY10..ATM

 1
Common parts
90105-06053
91611-60614
