EXY10-ACMGH (1990)
Toyota Sera

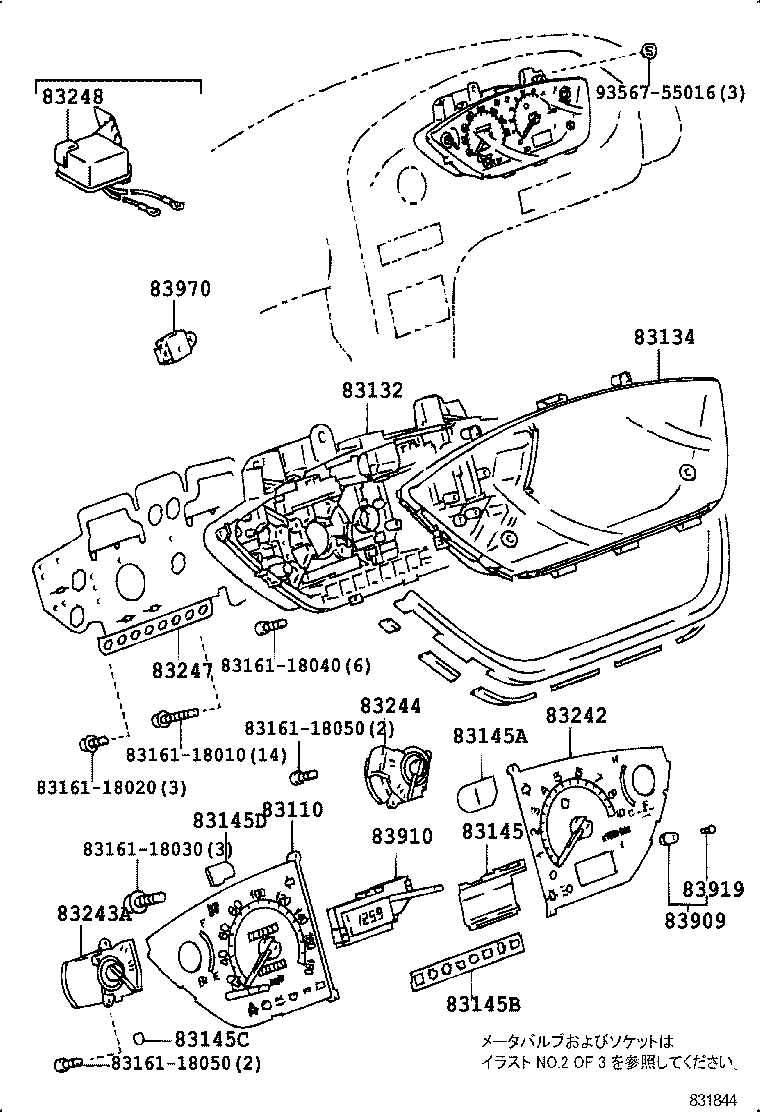

ILLUST NO. 1 OF 3(9003- )
ｽﾋﾟｰﾄﾞﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-18010 |
EXY10..MTM |
1 | ||
| 83110-18011 |
EXY10..MTM |
1 | ||
| 83110-18012 |
EXY10..MTM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-18010 |
EXY10 |
1 | ||
| 83132-18011 |
EXY10 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-18010 |
EXY10 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-18010 |
EXY10 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-18020 |
EXY10 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-18040 |
EXY10..MTM |
1 | ||
| 83145-18031 |
EXY10 |
1 | ||
| 83145-18030 |
EXY10 |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-18050 |
EXY10 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-18011 |
EXY10 |
1 | ||
| 83242-18010 |
EXY10 |
1 | ||
| 83242-18030 |
EXY10 ｱﾘ(*66) |
1 | ||
| 83242-18031 |
EXY10 ｱﾘ(*66) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-18010 |
EXY10 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-18010 |
EXY10 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-18010 |
EXY10..MTM |
1 | ||
| 83247-18011 |
EXY10..MTM |
1 | ||
| 83247-18031 |
EXY10..MTM ｱﾘ(*66) |
1 | ||
| 83247-18030 |
EXY10..MTM ｱﾘ(*66) |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-18010 |
EXY10 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
EXY10 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-18010 |
EXY10 |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
EXY10 |
1 | ||
| Common parts | ||||
| 83161-18010 | ||||
| 83161-18020 | ||||
| 83161-18030 | ||||
| 83161-18040 | ||||
| 83161-18050 | ||||
| 93567-55016 | ||||

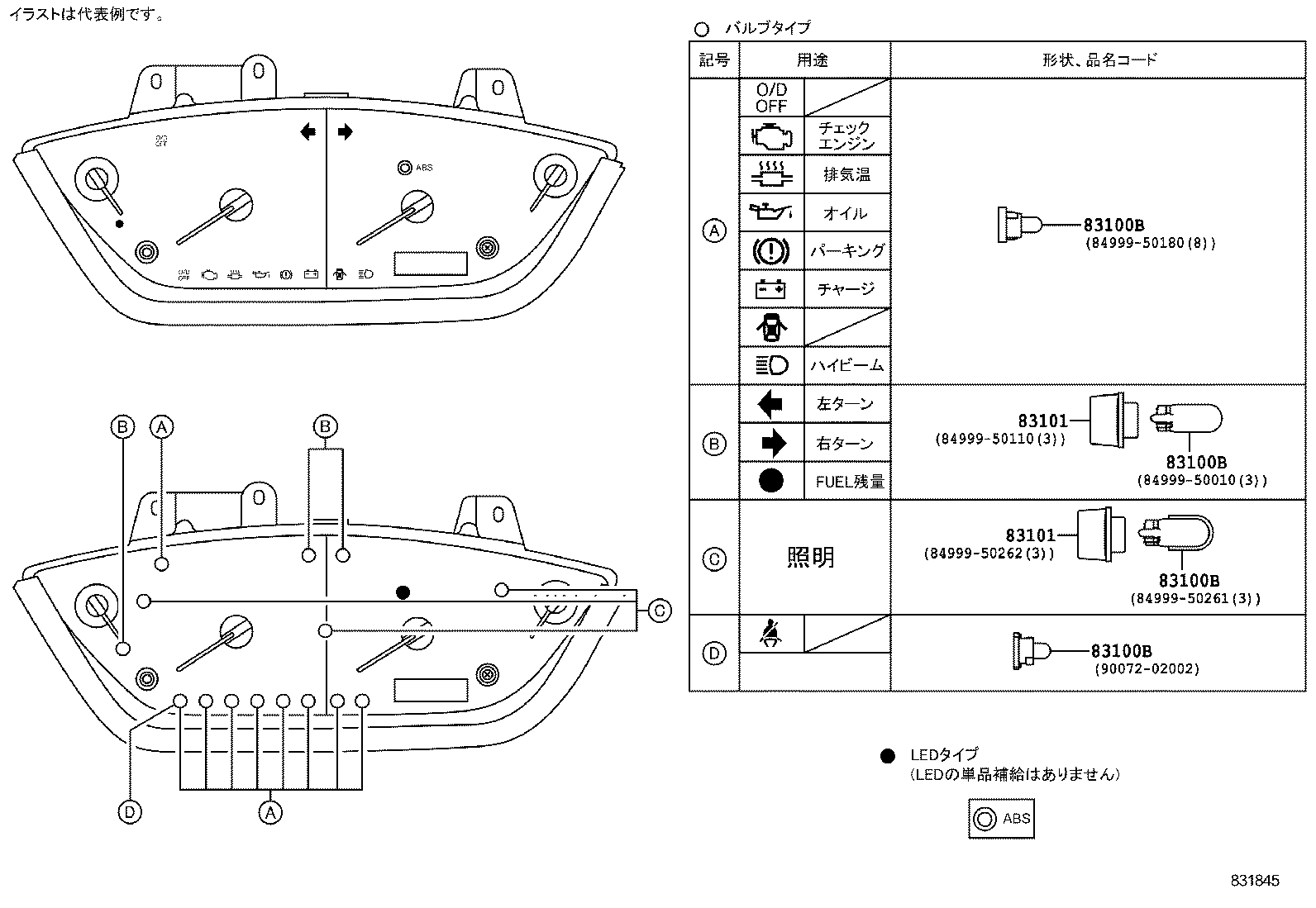

ILLUST NO. 2 OF 3(9003- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-50261 |
EXY10 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
3 | ||
| 90072-02002 |
EXY10 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 84999-50010 |
EXY10 12V 3.4W |
3 | ||
| 84999-50180 |
EXY10..MTM 12V 1.2W |
7 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-50261 |
EXY10 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
3 | ||
| 90072-02002 |
EXY10 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 84999-50010 |
EXY10 12V 3.4W |
3 | ||
| 84999-50180 |
EXY10..MTM 12V 1.2W |
7 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-50261 |
EXY10 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
3 | ||
| 90072-02002 |
EXY10 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 84999-50010 |
EXY10 12V 3.4W |
3 | ||
| 84999-50180 |
EXY10..MTM 12V 1.2W |
7 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 84999-50261 |
EXY10 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
3 | ||
| 90072-02002 |
EXY10 14V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 84999-50010 |
EXY10 12V 3.4W |
3 | ||
| 84999-50180 |
EXY10..MTM 12V 1.2W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 84999-50110 |
EXY10 12V 3.4W |
3 | ||
| 84999-50262 |
EXY10 12V 3.4W,GREEN CAP |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 84999-50110 |
EXY10 12V 3.4W |
3 | ||
| 84999-50262 |
EXY10 12V 3.4W,GREEN CAP |
3 | ||

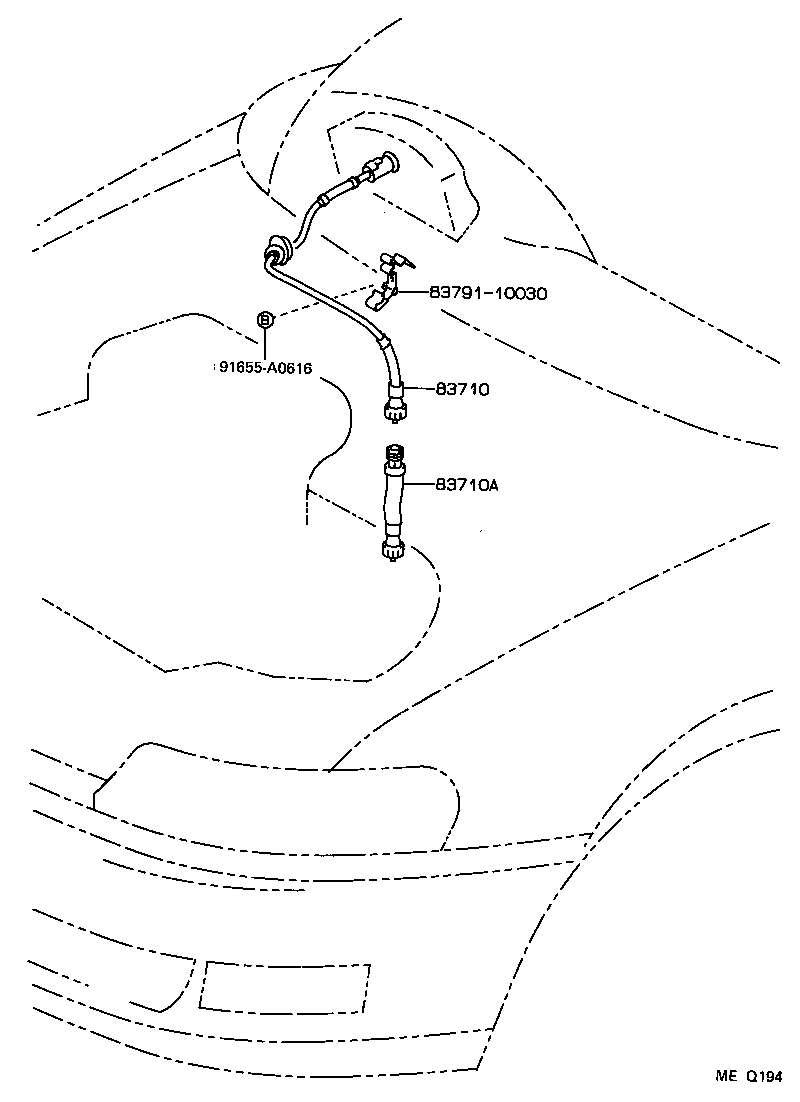

ILLUST NO. 3 OF 3(9003- )
ｹｰﾌﾞﾙ & ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-18010 |
EXY10 |
1 | ||
| 83710-18010 |
EXY10..MTM |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-32130 |
EXY10 |
1 | ||
| Common parts | ||||
| 83791-10030 | ||||
| 91655-A0616 | ||||
