EXY10-ACMGH (1990)

Toyota Sera

Production Mar 1990 - Dec 1995
Engine 5EFHE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9003- )

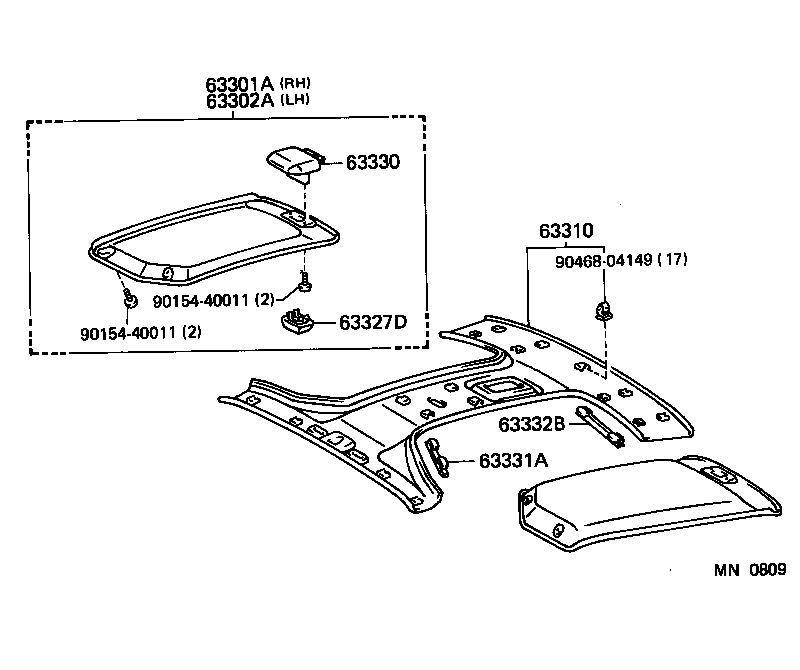

Click highlighted areas on diagram

diagram 63301A 63302A 63310 63327D 63330 63331A 63332B 9015440011 9015440011 9046804149
Part # Description Qty Price
63301A - TRIM SUB-ASSY, SUNSHADE, NO.1 RH
63301-1801003

EXY10

BLUE GRAY,TRIM1#

 1
63301-18010B0

EXY10

LIGHT GRAY,TRIM1#

 1
63301-1801005

EXY10

GREIGE,TRIM4#

 1
63302A - TRIM SUB-ASSY, SUNSHADE, NO.1 LH
63302-1801003

EXY10

BLUE GRAY,TRIM1#

 1
63302-1801005

EXY10

GREIGE,TRIM4#

 1
63302-18010B0

EXY10

LIGHT GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-18010B0

EXY10

LIGHT GRAY,TRIM1#

 1
63310-1801003

EXY10

BLUE GRAY,TRIM1#

 1
63310-1801005

EXY10

GREIGE,TRIM4#

 1
63327D - COVER, SUNSHADE TRIM
63327-1801005

EXY10

GREIGE,TRIM4#

 2
63327-1801003

EXY10

BLUE GRAY,TRIM1#

 2
63327-18010B0

EXY10

LIGHT GRAY,TRIM1#

 2
63330 - LOCK ASSY, SUNSHADE TRIM
63330-1801005

EXY10

GREIGE,TRIM4#

 2
63330-1801003

EXY10

BLUE GRAY,TRIM1#

 2
63330-18010B0

EXY10

LIGHT GRAY,TRIM1#

 2
63331A - BRACKET, SUNSHADE TRIM LOCK, NO.1
63331-18010

EXY10

 2
63332B - BRACKET, SUNSHADE TRIM LOCK, NO.2
63332-18010

EXY10

 2
Common parts
90154-40011
90468-04149
