VCV15W-CWPGK (1992)
Toyota Scepter (Wg,Cp)
Production
Jul 1992
-
Jul 1996
Engine
3VZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9207- )

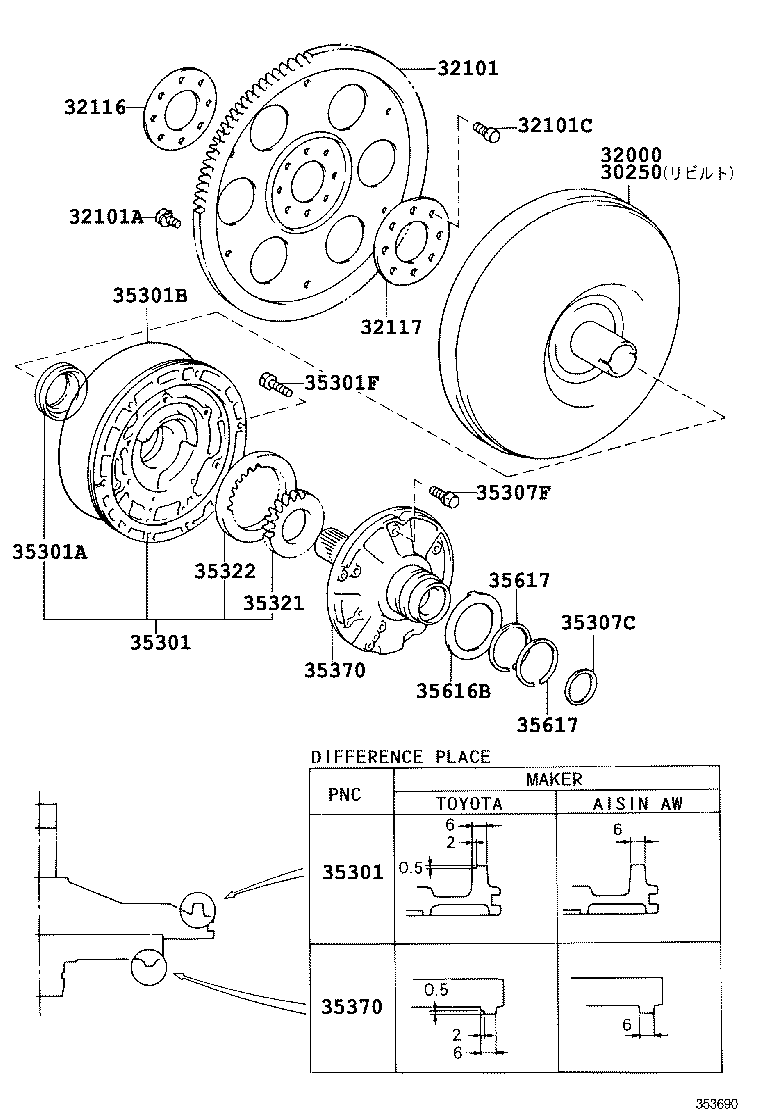

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30250 - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-33010 |
VCV15 |
1 | ||
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-33010 |
VCV15 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-32080 |
VCV15 |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09019 |
VCV15 *9−1.25PX12.4−8.3,OLIVE GREEN |
1 | ||
| 90119-09018 |
VCV15 *9−1.25PX12.4−8.4,ｲｴﾛｰ |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
VCV15 *10−1.25PX18−13 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-32020 |
VCV15 |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-32020 |
VCV15 |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-32030 |
VCV15 |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-32030 |
VCV15 |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38020 |
VCV15 |
1 | ||
| 90311-38020 |
SXV15,VCV15 |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99024 |
SXV15,VCV15 |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08050 |
SXV15,VCV15 *8−1.25PX28−28 |
7 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90119-06180 |
SXV15,VCV15 |
11 | ||
| 90119-06808 |
SXV15,VCV15 |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-12030 |
VCV15 厚さ=10.700−10.709 |
1 | ||
| 35321-12060 |
VCV15 厚さ=10.731−10.740 |
1 | ||
| 35321-12040 |
VCV15 厚さ=10.710−10.720 |
1 | ||
| 35321-12020 |
VCV15 厚さ=10.690−10.699 |
1 | ||
| 35321-12050 |
VCV15 厚さ=10.721−10.730 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-12040 |
VCV15 厚さ=10.721−10.730 |
1 | ||
| 35322-12050 |
VCV15 厚さ=10.731−10.740 |
1 | ||
| 35322-12010 |
VCV15 厚さ=10.690−10.699 |
1 | ||
| 35322-12030 |
VCV15 厚さ=10.710−10.720 |
1 | ||
| 35322-12020 |
VCV15 厚さ=10.700−10.709 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-33010 |
VCV15 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-33010 |
VCV15 |
1 | ||
| 35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT) | ||||
| 35616-32010 |
SXV15,VCV15 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
SXV15,VCV15 |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
SXV15,VCV15 |
2 | ||
