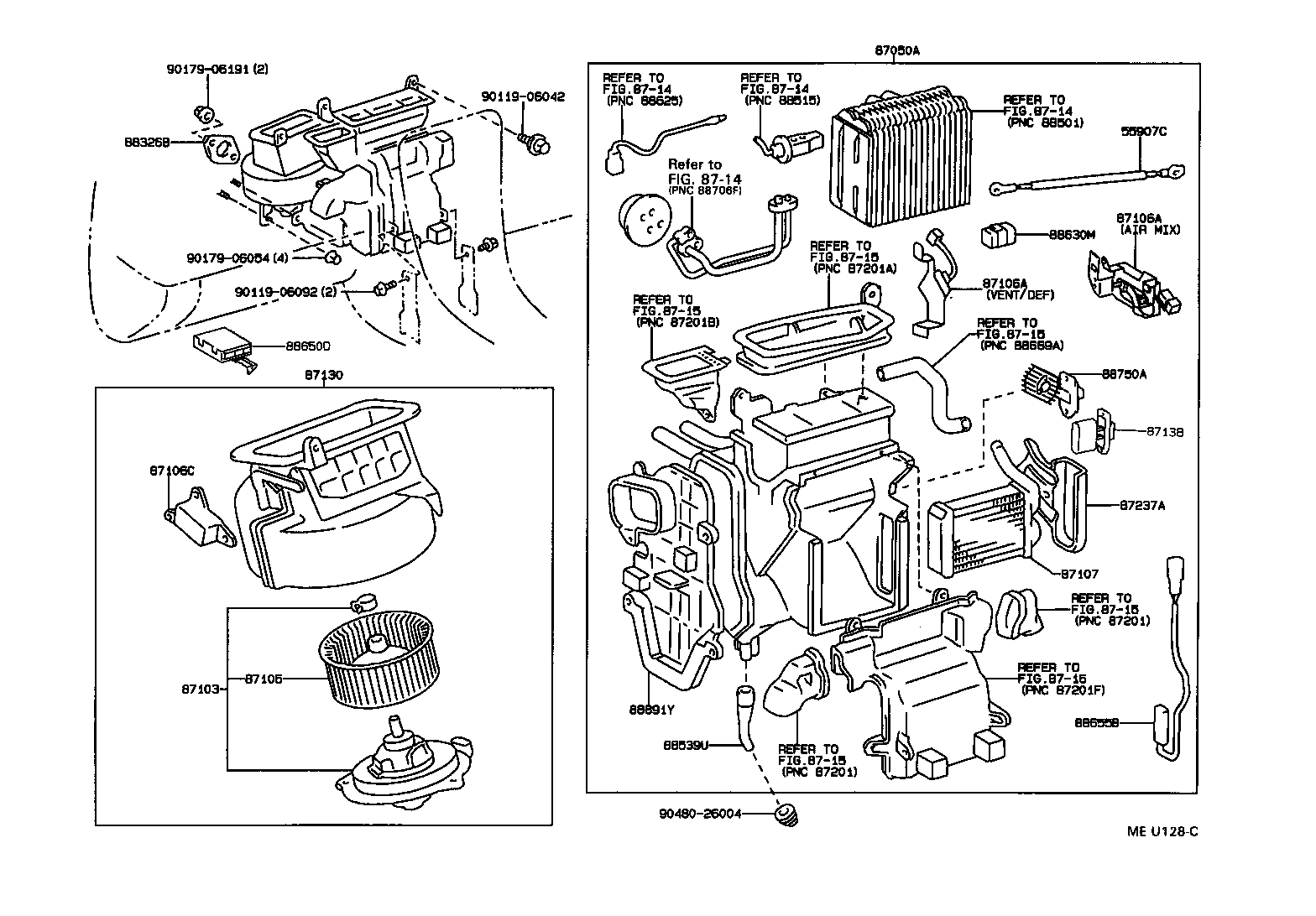

Toyota Scepter (wg,cp) SXV15 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Part #	Description	Period	Qty
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-33020	SXV15,VCV15	07/1992 - 09/1993	1
87286-33020	SXV15..WG	08/1994 - 07/1996	1
87286-33020	SXV15..WG	10/1993 - 08/1994	1
87050A - RADIATOR ASSY, AIR CONDITIONER
87050-33180	SXV15,VCV15	07/1992 - 09/1993	1
87050-33200	SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ	08/1994 - 07/1996	1
87050-33200	SXV15..WG 2.2G OR 3.0G ﾊﾟﾂｹ-ｼﾞ	10/1993 - 08/1994	1
87050-33350	SXV15..WG	09/1993 - 07/1996	1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-22110	SXV15,VCV15	06/1995 - 07/1996	1
87103-33010	SXV15,VCV15	07/1992 - 06/1995	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-33010	SXV15,VCV15	07/1992 - 06/1995	1
87106A - SERVO SUB-ASSY, DAMPER
87106-33010	SXV15,VCV15 VENT/DEF	07/1992 - 09/1993	1
87106-33010	SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ,VENT/DEF	08/1994 - 07/1996	1
87106-33090	SXV15..WG 2.2G OR 3.0G ﾊﾟﾂｹ-ｼﾞ,FRESH/RECIRCU	10/1993 - 08/1994	1
87106-33100	SXV15,VCV15 ｴｱﾐｯｸｽ	07/1992 - 09/1993	1
87106-33010	SXV15..WG	09/1993 - 07/1996	1
87106-33090	SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ,FRESH/RECIRCU	08/1994 - 07/1996	1
87106-33010	SXV15..WG 2.2G OR 3.0G ﾊﾟﾂｹ-ｼﾞ,VENT/DEF	10/1993 - 08/1994	1
87106-33100	SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ,ｴｱﾐｯｸｽ	08/1994 - 07/1996	1
87106-33100	SXV15..WG 2.2G OR 3.0G ﾊﾟﾂｹ-ｼﾞ,ｴｱﾐｯｸｽ	10/1993 - 08/1994	1
87106A - SERVO SUB-ASSY, DAMPER
87106-33010	SXV15,VCV15 VENT/DEF	07/1992 - 09/1993	1
87106-33010	SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ,VENT/DEF	08/1994 - 07/1996	1
87106-33090	SXV15..WG 2.2G OR 3.0G ﾊﾟﾂｹ-ｼﾞ,FRESH/RECIRCU	10/1993 - 08/1994	1
87106-33100	SXV15,VCV15 ｴｱﾐｯｸｽ	07/1992 - 09/1993	1
87106-33010	SXV15..WG	09/1993 - 07/1996	1
87106-33090	SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ,FRESH/RECIRCU	08/1994 - 07/1996	1
87106-33010	SXV15..WG 2.2G OR 3.0G ﾊﾟﾂｹ-ｼﾞ,VENT/DEF	10/1993 - 08/1994	1
87106-33100	SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ,ｴｱﾐｯｸｽ	08/1994 - 07/1996	1
87106-33100	SXV15..WG 2.2G OR 3.0G ﾊﾟﾂｹ-ｼﾞ,ｴｱﾐｯｸｽ	10/1993 - 08/1994	1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-33090	SXV15,VCV15	07/1992 - 09/1993	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-33010	SXV15,VCV15	07/1992 - 06/1995	1
87107-33030	SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ	06/1995 - 07/1996	1
87107-33010	SXV15..WG	06/1995 - 07/1996	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-33020	SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ	08/1994 - 07/1996	1
87130-33020	SXV15,VCV15	07/1992 - 09/1993	1
87130-33020	SXV15..WG 2.2G OR 3.0G ﾊﾟﾂｹ-ｼﾞ	10/1993 - 08/1994	1
87130-33010	SXV15..WG	09/1993 - 07/1996	1
87138 - RESISTOR, HEATER BLOWER
87138-50010	SXV15,VCV15	07/1992 - 09/1993	1
87138-33010	SXV15..WG	09/1993 - 07/1996	1
87138-50010	SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ	08/1994 - 07/1996	1
87237A - COVER, HEATER PIPING
87237-33010	SXV15,VCV15	07/1992 - 07/1996	1
88326B - PLATE, COVER
88326-06010	SXV15,VCV15	07/1992 - 07/1996	1
88539U - HOSE, COOLER DRAIN
88539-33010	SXV15,VCV15	07/1992 - 06/1994	1
88539-33020	SXV15,VCV15	06/1994 - 07/1996	1
88630M - RELAY ASSY, COOLER
88630-28040	SXV15..WG	08/1994 - 07/1996	1
88630-28040	SXV15,VCV15	07/1992 - 09/1993	1
88630-28040	SXV15..WG	10/1993 - 08/1994	1
88650D - AMPLIFIER ASSY
88650-06020	SXV15..WG	10/1993 - 07/1996	1
88655B - SWITCH, WATER TEMPERATURE
88790-33010	SXV15,VCV15	07/1992 - 09/1993	1
88790-33010	SXV15..WG	10/1993 - 08/1994	1
88790-33010	SXV15..WG	08/1994 - 07/1996	1
88750A - TRANSISTOR ASSY, BLOWER RESISTOR
88750-33010	SXV15..WG	10/1993 - 08/1994	1
88750-33010	SXV15,VCV15	07/1992 - 09/1993	1
88750-33010	SXV15..WG	08/1994 - 07/1996	1
88891Y - COVER, COOLER,NO.1
88891-33011	SXV15,VCV15	02/1996 - 07/1996	1
88891-33010	SXV15,VCV15	07/1992 - 02/1996	1
Common parts
90119-06042
90119-06092
90179-06054
90179-06191
90480-26004
Linked diagrams
8714
8715

SXV15W-CWPGK (1992)

(9207-9608)
