SXV15W-CWPGK (1992)
Toyota Scepter (Wg,Cp)
Production
Dec 1992
-
Jul 1996
Engine
5SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9207-9607)

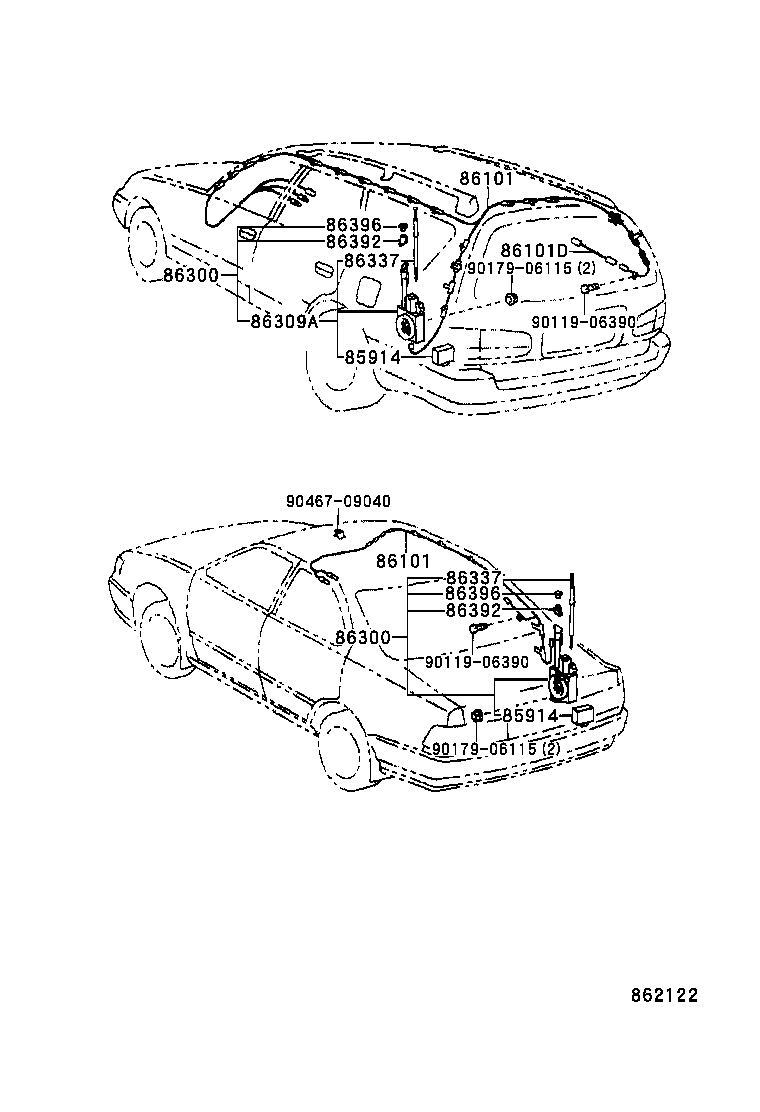

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85914 - RELAY, MOTOR ANTENNA CONTROL | ||||
| 85914-06020 |
SXV15,VCV15..WG |
1 | ||
| 85914 - RELAY, MOTOR ANTENNA CONTROL | ||||
| 85914-06020 |
SXV15,VCV15..WG |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-06080 |
SXV15,VCV15 |
1 | ||
| 86101-06080 |
SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 86101-06050 |
SXV15..WG |
1 | ||
| 86101-06060 |
SXV15..WG ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ |
1 | ||
| 86101-06060 |
SXV15..WG |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-06080 |
SXV15,VCV15 |
1 | ||
| 86101-06080 |
SXV15..WG 2.2G ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 86101-06050 |
SXV15..WG |
1 | ||
| 86101-06060 |
SXV15..WG ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ |
1 | ||
| 86101-06060 |
SXV15..WG |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-06130 |
SXV15,VCV15..WG |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-06051 |
SXV15,VCV15..WG |
1 | ||
| 86300-06050 |
SXV15,VCV15..WG |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-06051 |
SXV15,VCV15..WG |
1 | ||
| 86300-06050 |
SXV15,VCV15..WG |
1 | ||
| 86309A - POLE SUB-ASSY, MOTOR ANTENNA | ||||
| 86309-06031 |
SXV15,VCV15..WG |
1 | ||
| 86337 - ROD & PIPE, SEALED W/CABLE | ||||
| 86337-06030 |
SXV15,VCV15..WG |
1 | ||
| 86337 - ROD & PIPE, SEALED W/CABLE | ||||
| 86337-06030 |
SXV15,VCV15..WG |
1 | ||
| 86392 - ORNAMENT, ANTENNA | ||||
| 86392-06040 |
SXV15,VCV15..WG |
1 | ||
| 86392 - ORNAMENT, ANTENNA | ||||
| 86392-06040 |
SXV15,VCV15..WG |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-06010 |
SXV15,VCV15 |
1 | ||
| 86396-06010 |
SXV15 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-06010 |
SXV15,VCV15 |
1 | ||
| 86396-06010 |
SXV15 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06115 | ||||
| 90467-09040 | ||||
