VCV10-FEPGK (1992)

Toyota Scepter (Sed)

Production Nov 1992 - Aug 1996
Engine 3VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

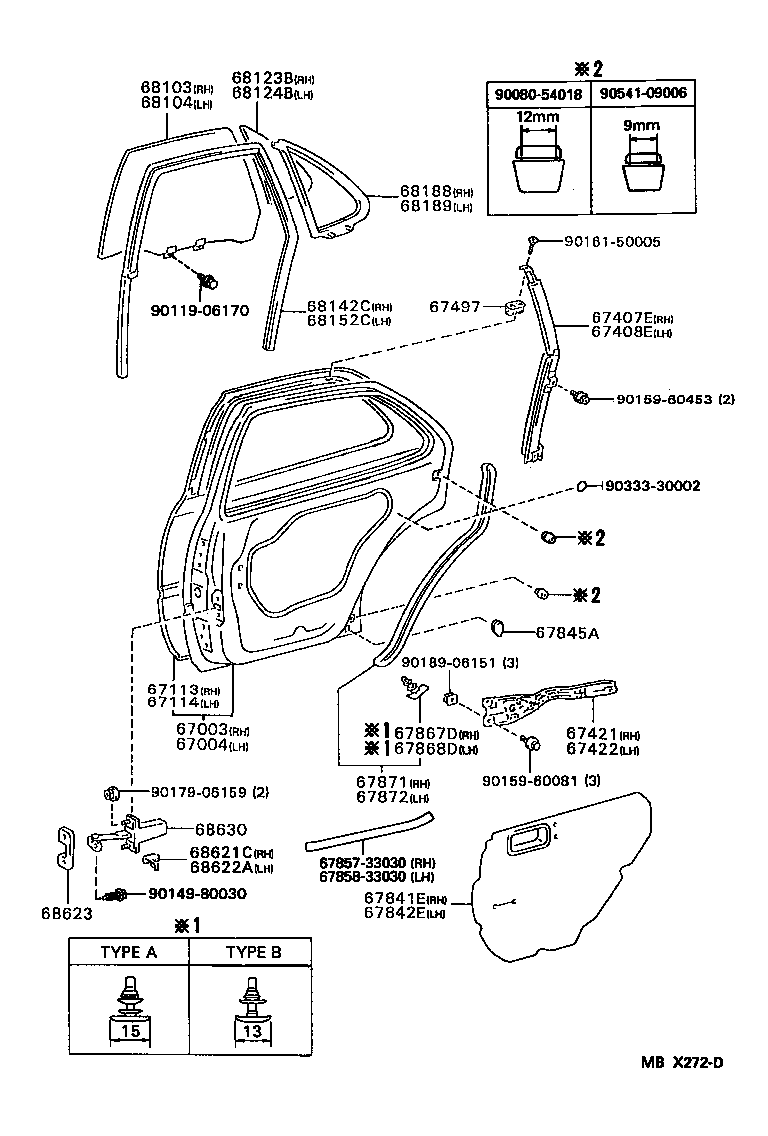

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67407E 67408E 67421 67422 67497 67841E 67842E 67845A 6785733030 6785833030 67867D 67868D 67871 67872 68103 68104 68123B 68124B 68142C 68152C 68188 68189 68621C 68622A 68623 68630 9008054018 9011906170 9014980030 9015960081 9015960453 9016150005 9017906159 9018906151 9033330002 9054109006
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-33011

SXV10,VCV10

 1
67003-33010

SXV10,VCV10

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-33010

SXV10,VCV10

 1
67004-33011

SXV10,VCV10

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-32090

SXV10,VCV10

 1
67113-32091

SXV10,VCV10

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-32091

SXV10,VCV10

 1
67114-32090

SXV10,VCV10

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-32060

SXV10,VCV10

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-32060

SXV10,VCV10

 1
67421 - FRAME, REAR DOOR WINDOW, FRONT UPPER RH
67421-32050

SXV10,VCV10

 1
67422 - FRAME, REAR DOOR WINDOW, FRONT UPPER LH
67422-32050

SXV10,VCV10

 1
67497 - BRACKET, REAR DOOR FRAME
67497-33020

SXV10,VCV10

 2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-32100

SXV10,VCV10

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-32070

SXV10,VCV10

 1
67845A - SUB-SHEET, REAR DOOR SERVICE HOLE
67845-32010

SXV10,VCV10

 1
67845-32010

SXV10,VCV10

 4
67845-32010

SXV10,VCV10

 3
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

SXV10,VCV10

ﾀｲﾌﾟ A

 7
67868-30050

SXV10,VCV10

ﾀｲﾌﾟ B

 1
67868-22020

SXV10,VCV10

ﾀｲﾌﾟ A

 7
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

SXV10,VCV10

ﾀｲﾌﾟ A

 7
67868-22020

SXV10,VCV10

ﾀｲﾌﾟ A

 7
67868-30050

SXV10,VCV10

ﾀｲﾌﾟ B

 1
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-32090

SXV10,VCV10

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-32090

SXV10,VCV10

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-32120

SXV10,VCV10

*TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
68103-32110

SXV10,VCV10

*TT,厚さ=3.5,ﾌﾞﾙｰ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-32120

SXV10,VCV10

*TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
68104-32110

SXV10,VCV10

*TT,厚さ=3.5,ﾌﾞﾙｰ

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-32020

SXV10,VCV10

*TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
68123-32010

SXV10,VCV10

*TT,厚さ=3.5,ﾌﾞﾙｰ

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-32020

SXV10,VCV10

*TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
68124-32010

SXV10,VCV10

*TT,厚さ=3.5,ﾌﾞﾙｰ

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-32060

SXV10,VCV10

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-32020

SXV10,VCV10

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-32010

SXV10,VCV10

 1
68188-33010

SXV10,VCV10

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-33010

SXV10,VCV10

 1
68189-32010

SXV10,VCV10

 1
68621C - COVER, REAR DOOR CHECK, RH
68621-32010

SXV10,VCV10

 1
68622A - COVER, REAR DOOR CHECK, LH
68622-32010

SXV10,VCV10

 1
68623 - COVER, DOOR CHECK, RH
68623-32010

SXV10,VCV10

 2
68630 - CHECK ASSY, REAR DOOR
68640-32040

SXV10,VCV10

左側

 1
68630-33011

SXV10,VCV10

右側

 1
68640-33011

SXV10,VCV10

左側

 1
68630-32050

SXV10,VCV10

右側

 1
Common parts
67857-33030
67858-33030
90080-54018
90119-06170
90149-80030
90159-60081
90159-60453
90161-50005
90179-06159
90189-06151
90333-30002
90541-09006
