J210E-GQPF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission E4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1308)

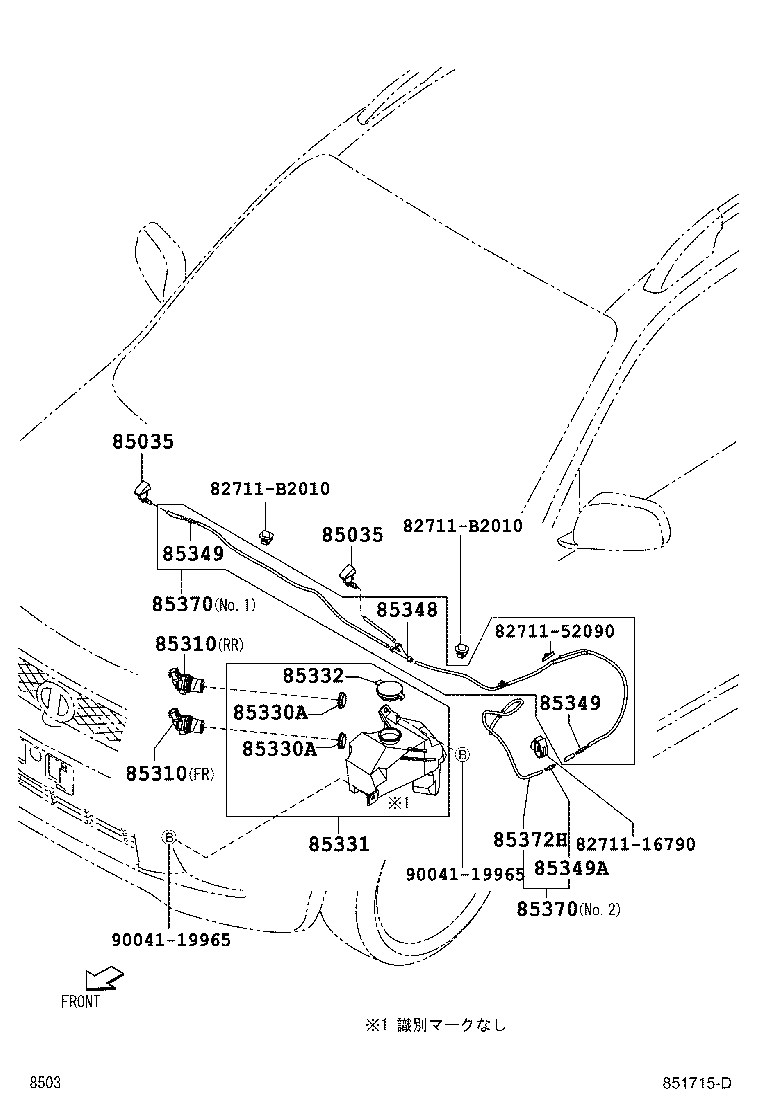

Click highlighted areas on diagram

diagram 8271116790 8271152090 82711B2010 82711B2010 85035 85035 85310 85310 85330A 85330A 85331 85332 85348 85349 85349 85349A 85370 85370 85372H 9004119965 9004119965
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-B4010

J200,210

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-B4010

J200,210

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-97502

J200,210

ﾌﾛﾝﾄ

 1
85310-97503

J200,210

ﾘﾔ

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-97502

J200,210

ﾌﾛﾝﾄ

 1
85310-97503

J200,210

ﾘﾔ

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85373-97202

J200,210

 2
85330A - BUSH, WINDSHIELD WASHER JAR
85373-97202

J200,210

 2
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85315-B4010

J200,210

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-87401

J200,210

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-87201

J200,210

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-87201

J200,210

 2
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-87201

J200,210

 2
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-87201

J200,210

 1
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-B4010

J200,210

NO.1

 1
85370-B4030

J200,210

NO.2

 1
85370 - HOSE ASSY, WINDSHIELD WASHER
85370-B4010

J200,210

NO.1

 1
85370-B4030

J200,210

NO.2

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85343-97401

J200,210

*H,L=590

 1
Common parts
82711-16790
82711-52090
82711-B2010
90041-19965
