J210E-GQPF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
E4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-1605)E4AT

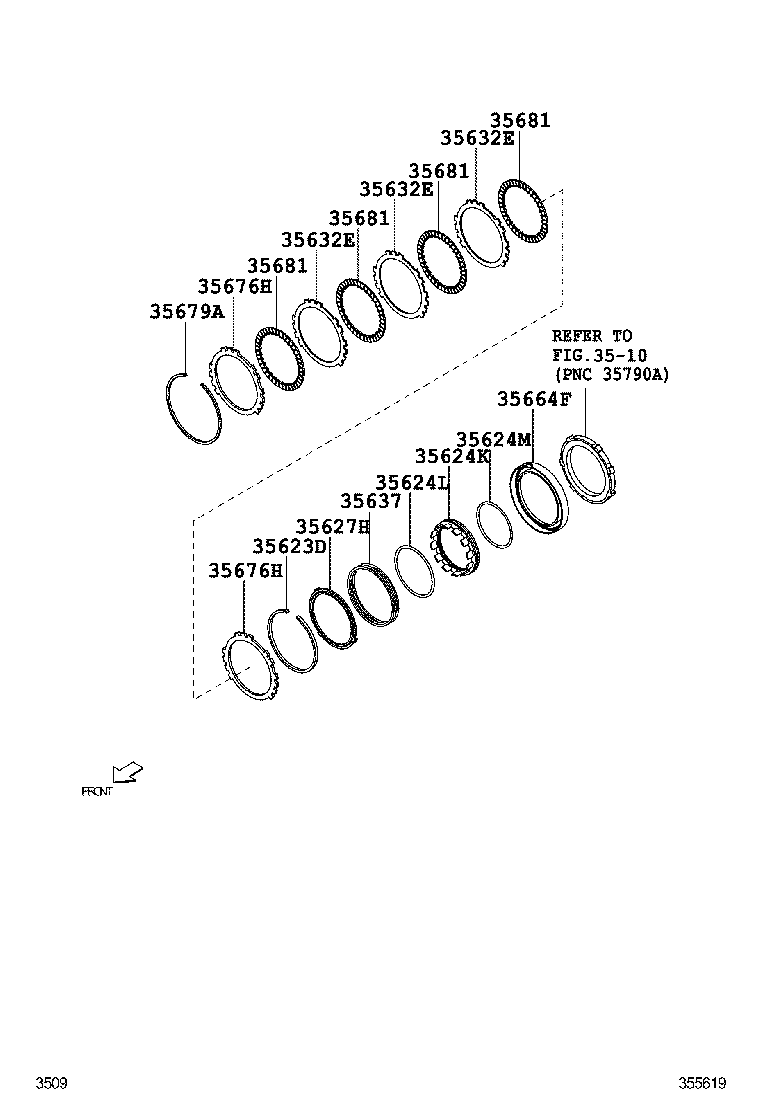

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35623D - RING, SHAFT SNAP (FOR BRAKE) | ||||
| 90045-21185 |
J200,210..E4AT |
1 | ||
| 35624K - BRAKE PISTON, 2ND & 4TH | ||||
| 35624-97206 |
J200,210..E4AT |
1 | ||
| 35624L - RING, O (FOR 2ND & 4TH BRAKE PISTON, NO.1) | ||||
| 90043-01296 |
J200,210..E4AT |
1 | ||
| 35624M - RING, O (FOR 2ND & 4TH BRAKE PISTON, NO.2) | ||||
| 90043-01295 |
J200,210..E4AT |
1 | ||
| 35627H - BRAKE SEAT, 2ND & 4TH | ||||
| 35627-97202 |
J200,210..E4AT |
1 | ||
| 35632E - PLATE, BRAKE | ||||
| 35632-97201 |
J200,210..E4AT |
3 | ||
| 35632E - PLATE, BRAKE | ||||
| 35632-97201 |
J200,210..E4AT |
3 | ||
| 35632E - PLATE, BRAKE | ||||
| 35632-97201 |
J200,210..E4AT |
3 | ||
| 35637 - SPRING, 2ND & 4TH BRAKE PISTON RETURN | ||||
| 35637-97201 |
J200,210..E4AT |
1 | ||
| 35664F - CYLINDER, 2ND & 4TH BRAKE | ||||
| 35664-97205 |
J200,210..E4AT |
1 | ||
| 35676H - FLANGE, BRAKE, NO.1 | ||||
| 35676-97202 |
J200,210..E4AT |
2 | ||
| 35676H - FLANGE, BRAKE, NO.1 | ||||
| 35676-97202 |
J200,210..E4AT |
2 | ||
| 35679A - RING, HOLE SNAP(FOR BRAKE FLANGE) | ||||
| 90045-21179 |
J200,210..E4AT 厚さ=2.25 |
1 | ||
| 90045-21178 |
J200,210..E4AT 厚さ=2.0 |
1 | ||
| 90045-21177 |
J200,210..E4AT 厚さ=1.75 |
1 | ||
| 90045-21176 |
J200,210..E4AT T=1.50 |
1 | ||
| 35681 - DISC, BRAKE, NO.1 | ||||
| 35681-97201 |
J200,210..E4AT |
4 | ||
| 35681 - DISC, BRAKE, NO.1 | ||||
| 35681-97201 |
J200,210..E4AT |
4 | ||
| 35681 - DISC, BRAKE, NO.1 | ||||
| 35681-97201 |
J200,210..E4AT |
4 | ||
| 35681 - DISC, BRAKE, NO.1 | ||||
| 35681-97201 |
J200,210..E4AT |
4 | ||
| Linked diagrams | ||||
| 3510 | ||||
