J210E-GQPF (2008)

Toyota Rush

Production Nov 2008 - May 2016
Engine 3SZVE
Transmission E4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

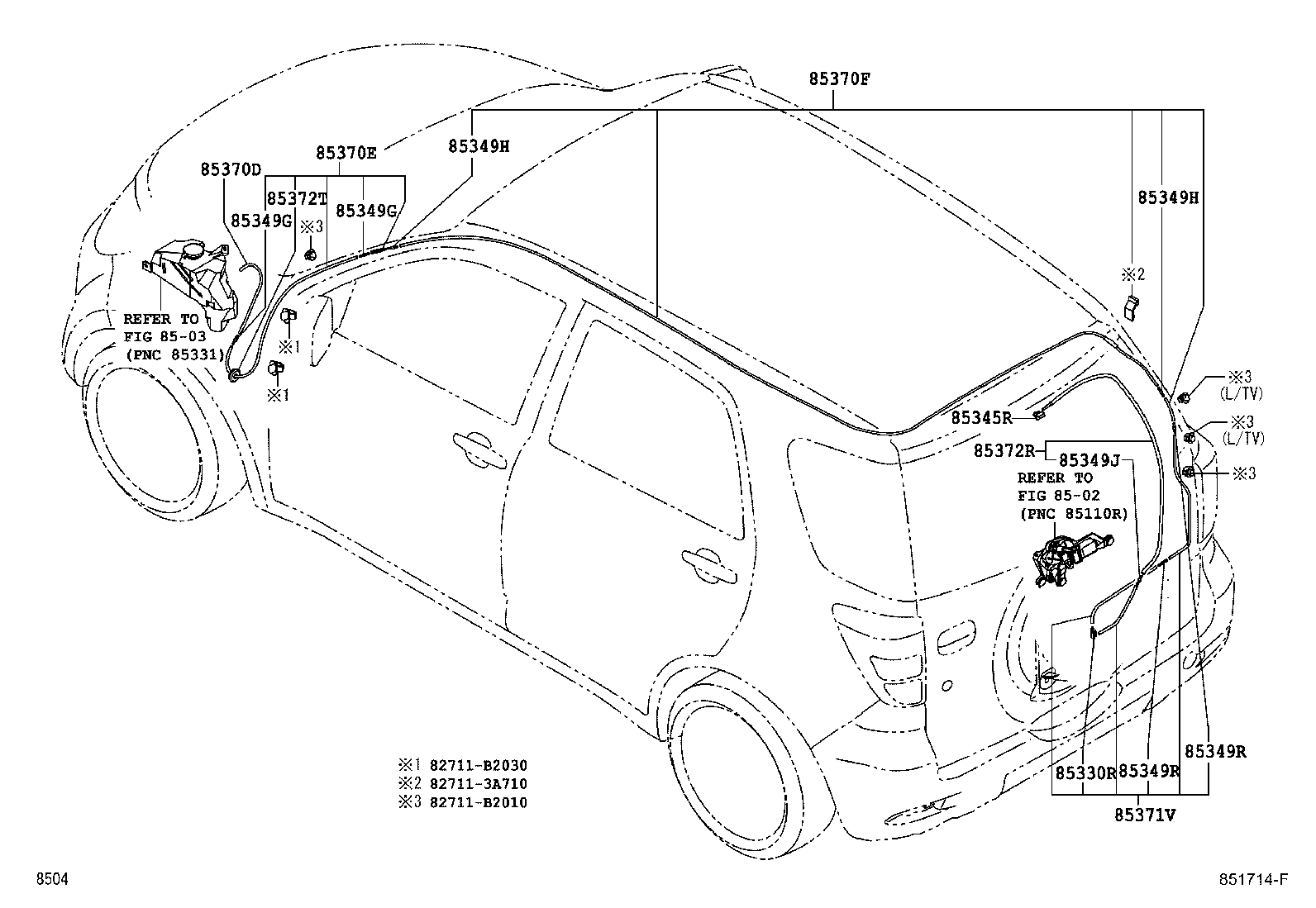

Click highlighted areas on diagram

diagram 827113A710 82711B2010 82711B2030 8502 8503 85330R 85345R 85349G 85349G 85349H 85349H 85349J 85349R 85349R 85370D 85370E 85370F 85371V 85372R 85372T
Part # Description Qty Price
85330R - JAR ASSY, REAR WASHER
85355-97203

J210

 1
85355-97203

J200,210

 1
85345R - NOZZLE, REAR WASHER
85391-B4010

J200,210

 1
85391-B4010

J210

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-87201

J200,210

 2
85349-87201

J210

 2
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-87201

J200,210

 2
85349-87201

J210

 2
85349H - JOINT, REAR WASHER HOSE, NO.3
85349-87201

J200,210

 2
85349-87201

J210

 2
85349H - JOINT, REAR WASHER HOSE, NO.3
85349-87201

J200,210

 2
85349-87201

J210

 2
85349J - JOINT, REAR WASHER HOSE, NO.4
85349-87201

J200,210

 1
85349-87201

J210

 1
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-87201

J200,210

 2
85349-87201

J210

 2
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-87201

J200,210

 2
85349-87201

J210

 2
85370D - HOSE ASSY, REAR WASHER, NO.1
85370-B4050

J200,210

 1
85370-B4050

J210

 1
85370E - HOSE ASSY, REAR WASHER, NO.2
85370-B4060

J200,210

 1
85370-B4060

J210

 1
85370F - HOSE ASSY, REAR WASHER, NO.3
85370-B4070

J200,210

 1
85370-B4070

J210

 1
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
85370-B4080

J200,210

HDDﾅﾋﾞ(Gﾌﾞｯｸ)SP16CM*4

 1
85370-B4080

J200,210

 1
85370-B4080

J210

 1
85370-B4080

J200,210

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ(Gﾌﾞｯｸ)SP16CM*4

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85370-B4090

J200,210

 1
85370-B4090

J200,210

HDDﾅﾋﾞ(Gﾌﾞｯｸ)SP16CM*4

 1
85370-B4090

J210

 1
85370-B4090

J200,210

ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ(Gﾌﾞｯｸ)SP16CM*4

 1
85372T - GROMMET, WASHER
90044-80126

J210

 1
90044-80126

J200,210

 1
Common parts
82711-3A710
82711-B2010
82711-B2030
Linked diagrams
8502
8503
