J210E-GQPF (2008)
Toyota Rush
(0601-1605)

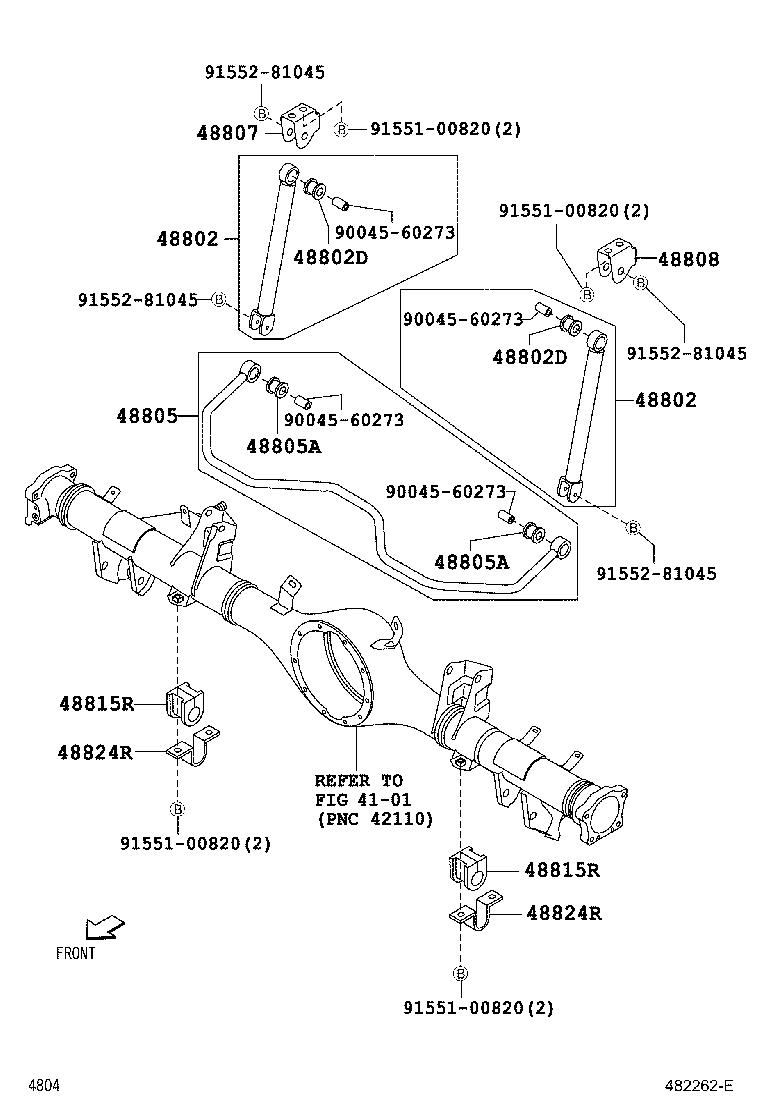

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
2 | ||
| 48802-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
2 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
2 | ||
| 48802-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90043-89156 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
2 | ||
| 90043-89156 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90043-89156 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
2 | ||
| 90043-89156 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
1 | ||
| 48805-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 48849-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
2 | ||
| 48849-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
2 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 48849-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
2 | ||
| 48849-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
2 | ||
| 48807 - BRACKET, REAR STABILIZER BAR, RH | ||||
| 48809-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
1 | ||
| 48809-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
1 | ||
| 48808 - BRACKET, REAR STABILIZER BAR, LH | ||||
| 48809-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
1 | ||
| 48809-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-B4040 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
2 | ||
| 48815-B4040 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
2 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-B4040 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
2 | ||
| 48815-B4040 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-B4030 |
J200,210 |
2 | ||
| 48824-B4030 |
J210 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-B4030 |
J200,210 |
2 | ||
| 48824-B4030 |
J210 |
2 | ||
| Common parts | ||||
| 90045-60273 | ||||
| 91551-00820 | ||||
| 91552-81045 | ||||
| Linked diagrams | ||||
| 4101 | ||||
(0601-1605)

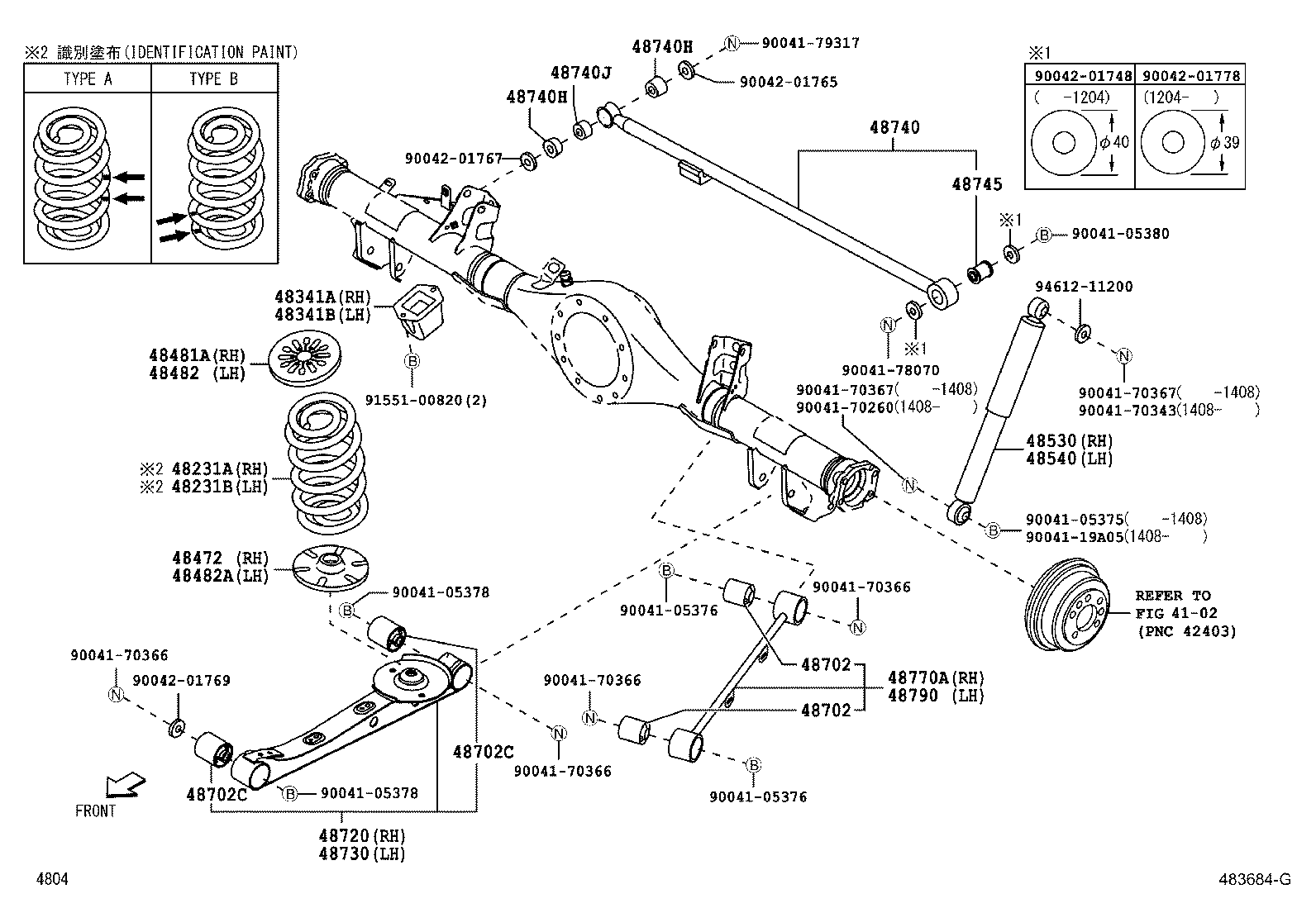

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-B4010 |
J210 |
1 | ||
| 48231-B4030 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
1 | ||
| 48231-B4020 |
J210..G L ﾊﾟｯｹｰｼﾞ(A),ﾀｲﾌﾟ A |
1 | ||
| 48231-B4011 |
J210 ﾀｲﾌﾟ B |
1 | ||
| 48231-B4040 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
1 | ||
| 48231-B4010 |
J210 ﾀｲﾌﾟ A |
1 | ||
| 48231-B4020 |
J210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 48231-B4021 |
J210..G L ﾊﾟｯｹｰｼﾞ(A),ﾀｲﾌﾟ B |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-B4010 |
J210 |
1 | ||
| 48231-B4020 |
J210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 48231-B4040 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
1 | ||
| 48231-B4010 |
J210 ﾀｲﾌﾟ A |
1 | ||
| 48231-B4030 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
1 | ||
| 48231-B4021 |
J210..G L ﾊﾟｯｹｰｼﾞ(A),ﾀｲﾌﾟ B |
1 | ||
| 48231-B4011 |
J210 ﾀｲﾌﾟ B |
1 | ||
| 48231-B4020 |
J210..G L ﾊﾟｯｹｰｼﾞ(A),ﾀｲﾌﾟ A |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-B4020 |
J210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 48341-B4010 |
J210 |
1 | ||
| 48341-B4010 |
J210 |
1 | ||
| 48341-B4020 |
J210..G L ﾊﾟｯｹｰｼﾞ(A) |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-B4020 |
J210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 48341-B4020 |
J210..G L ﾊﾟｯｹｰｼﾞ(A) |
1 | ||
| 48341-B4010 |
J210 |
1 | ||
| 48341-B4010 |
J210 |
1 | ||
| 48472 - SEAT, REAR SPRING, LOWER | ||||
| 48482-B4020 |
J210 右側 |
1 | ||
| 48482-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
1 | ||
| 48482-B4020 |
J200,210 |
1 | ||
| 48482-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
1 | ||
| 48481A - SEAT, REAR COIL SPRING, UPPER RH | ||||
| 48481-B4010 |
J200,210 |
1 | ||
| 48481-B4010 |
J210 |
1 | ||
| 48482 - SEAT, REAR SPRING, UPPER LH | ||||
| 48481-B4010 |
J200,210 |
1 | ||
| 48481-B4010 |
J210 |
1 | ||
| 48482A - SEAT, REAR SPRING, LOWER | ||||
| 48482-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
1 | ||
| 48482-B4010 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
1 | ||
| 48482-B4020 |
J200,210 |
1 | ||
| 48482-B4020 |
J210 左側 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-B4030 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
1 | ||
| 48531-B4010 |
J210 |
1 | ||
| 48531-B4021 |
J210..G L ﾊﾟｯｹｰｼﾞ(A) |
1 | ||
| 48531-B4024 |
J210..G L ﾊﾟｯｹｰｼﾞ(A) |
1 | ||
| 48531-B4040 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
1 | ||
| 48531-B4020 |
J210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 48531-B4014 |
J210 |
1 | ||
| 48531-B4022 |
J210..G L ﾊﾟｯｹｰｼﾞ(A) |
1 | ||
| 48531-B4011 |
J210 |
1 | ||
| 48531-B4012 |
J210 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-B4040 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ(W/RRｽﾀﾋﾞ)LOW |
1 | ||
| 48531-B4021 |
J210..G L ﾊﾟｯｹｰｼﾞ(A) |
1 | ||
| 48531-B4030 |
J210 ｻｽﾍﾟﾝｼｮﾝ−D−OPT ECｻｽ’W/RRｽﾀﾋﾞ)STD |
1 | ||
| 48531-B4020 |
J210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 48531-B4022 |
J210..G L ﾊﾟｯｹｰｼﾞ(A) |
1 | ||
| 48531-B4010 |
J210 |
1 | ||
| 48531-B4012 |
J210 |
1 | ||
| 48531-B4011 |
J210 |
1 | ||
| 48531-B4014 |
J210 |
1 | ||
| 48531-B4024 |
J210..G L ﾊﾟｯｹｰｼﾞ(A) |
1 | ||
| 48702 - BUSH SUB-ASSY, UPPER CONTROL ARM | ||||
| 48702-B4010 |
J200,210 |
4 | ||
| 48702-B4010 |
J210 |
4 | ||
| 48702 - BUSH SUB-ASSY, UPPER CONTROL ARM | ||||
| 48702-B4010 |
J200,210 |
4 | ||
| 48702-B4010 |
J210 |
4 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48704-B4010 |
J210 |
4 | ||
| 48704-B4010 |
J200,210 |
4 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48704-B4010 |
J210 |
4 | ||
| 48704-B4010 |
J200,210 |
4 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-B4010 |
J210 |
1 | ||
| 48720-B4010 |
J200,210 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-B4010 |
J200,210 |
1 | ||
| 48720-B4010 |
J210 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-B4010 |
J200,210 |
1 | ||
| 48740-B4020 |
J200,210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 48740-B4030 |
J210 |
1 | ||
| 48740-B4050 |
J210..G L ﾊﾟｯｹｰｼﾞ(A)&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90043-85149 |
J210 |
2 | ||
| 90043-85149 |
J200,210 |
2 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90043-85149 |
J210 |
2 | ||
| 90043-85149 |
J200,210 |
2 | ||
| 48740J - BUSH, NO.2(FOR REAR LATERAL CONTROL ROD) | ||||
| 90043-86103 |
J200,210 |
1 | ||
| 90043-86103 |
J210 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 48706-B4010 |
J200,210 |
1 | ||
| 48706-B4010 |
J210 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48710-B4010 |
J200,210 |
1 | ||
| 48710-B4010 |
J210 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48710-B4010 |
J210 |
1 | ||
| 48710-B4010 |
J200,210 |
1 | ||
| Common parts | ||||
| 90041-05375 | ||||
| 90041-05376 | ||||
| 90041-05378 | ||||
| 90041-05380 | ||||
| 90041-19A05 | ||||
| 90041-70260 | ||||
| 90041-70343 | ||||
| 90041-70366 | ||||
| 90041-70367 | ||||
| 90041-78070 | ||||
| 90041-79317 | ||||
| 90042-01748 | ||||
| 90042-01765 | ||||
| 90042-01767 | ||||
| 90042-01769 | ||||
| 90042-01778 | ||||
| 91551-00820 | ||||
| 94612-11200 | ||||
| Linked diagrams | ||||
| 4102 | ||||
