J210E-GQGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission E4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

Click highlighted areas on diagram

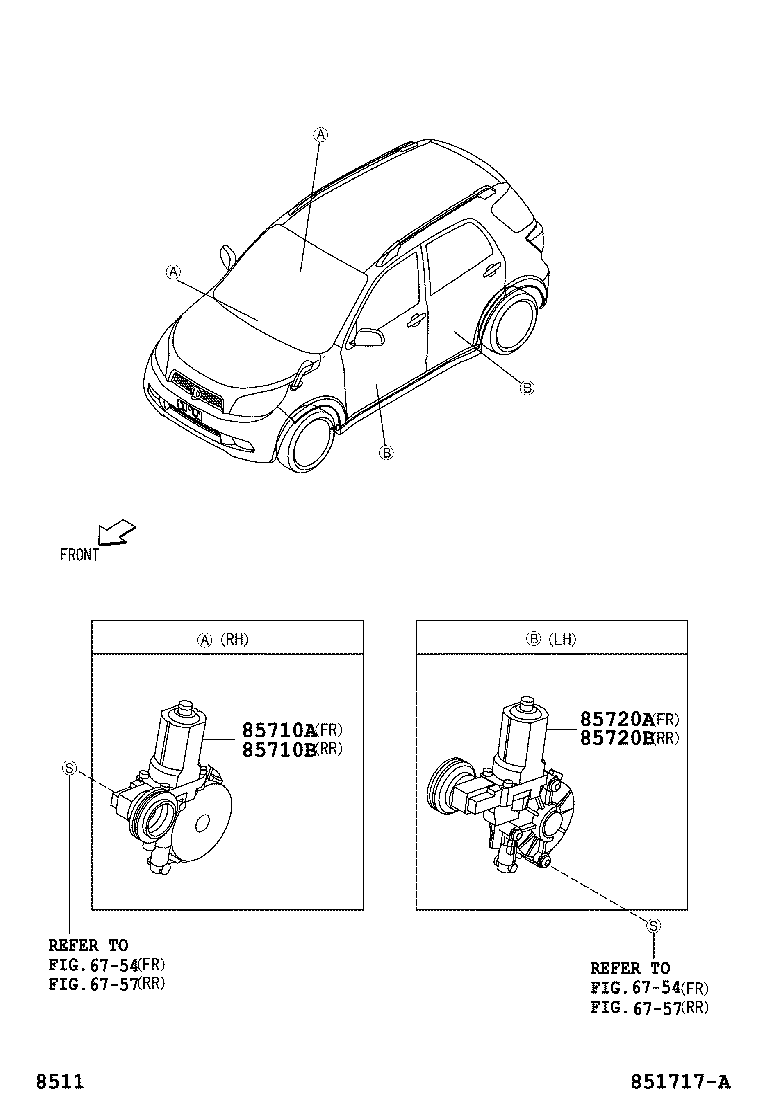

diagram 6754 6754 6757 6757 85710A 85710B 85720A 85720B
Part # Description Qty Price
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-B2030

J200,210

 1
85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
85710-B2040

J200,210

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-B2030

J200,210

 1
85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
85720-B2030

J200,210

 1
Linked diagrams
6754
6757
