J210E-GQGF (2008)

Toyota Rush

Production Nov 2008 - May 2016
Engine 3SZVE
Transmission E4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)E4AT

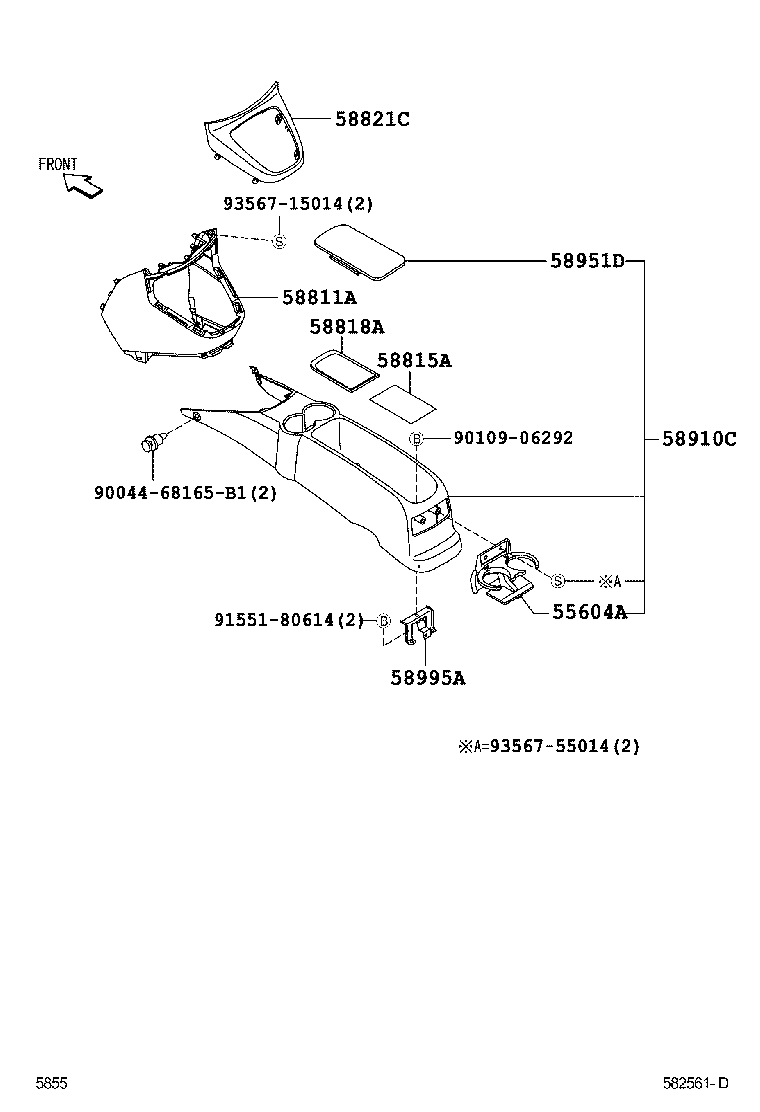

Click highlighted areas on diagram

diagram 55604A 58811A 58815A 58818A 58821C 58910C 58951D 58995A 9004468165B1 9010906292 9155180614 9356715014 9356755014
Part # Description Qty Price
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-B4010B0

J210..E4AT

DK.GRAY,TRIM1#

 1
55604-B4010B0

J200,210..E4AT

DK.GRAY,TRIM1#

 1
58811A - BOX, CONSOLE, FRONT
58811-B4010B0

J200,210..E4AT

DK.GRAY,TRIM1#

 1
58811-B4010B0

J210..E4AT

DK.GRAY,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-B4010

J200,210..E4AT

 1
58815-B4010

J210..E4AT

 1
58818A - COVER, CONSOLE BOX, FR
58818-B4010

J200,210..E4AT

 1
58818-B4010

J210..E4AT

 1
58821C - PANEL, CONSOLE, UPPER
58821-B4010

J200,210..E4AT

 1
58821-B4011B1

J210..E4AT

GRAY,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-B4010B0

J210..E4AT

DK.GRAY,TRIM1#

 1
58910-B4010B0

J200,210..E4AT

DK.GRAY,TRIM1#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-B4010B0

J210..E4AT

DK.GRAY,TRIM1#

 1
58951-B4010B0

J200,210..E4AT

DK.GRAY,TRIM1#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-B4030

J200,210..E4AT

 1
58995-B4030

J210..E4AT

 1
Common parts
90044-68165B1
90109-06292
91551-80614
93567-15014
93567-55014
