J210E-GMPF (2008)

Toyota Rush

Production Nov 2008 - Feb 2013
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

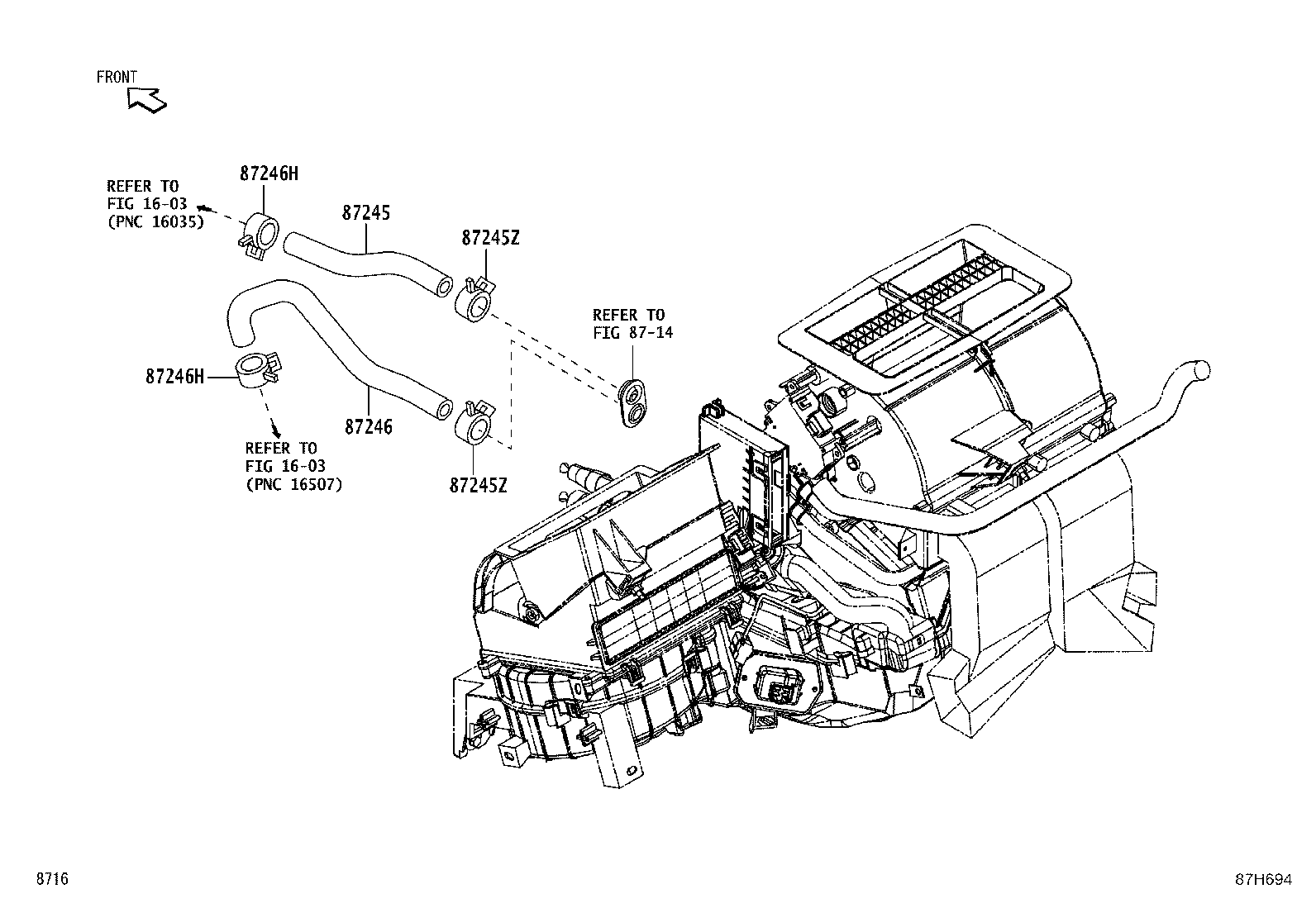

Click highlighted areas on diagram

diagram 1603 1603 8714 87245 87245Z 87245Z 87246 87246H 87246H
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-B4010

J200,210

 1
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
88718-97209

J200,210

 2
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
88718-97209

J200,210

 2
87246 - HOSE, HEATER WATER, OUTLET
87246-B4010

J200,210

 1
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90044-67485

J200,210

 2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90044-67485

J200,210

 2
Linked diagrams
1603
8714
