J210E-GMPF (2008)
Toyota Rush

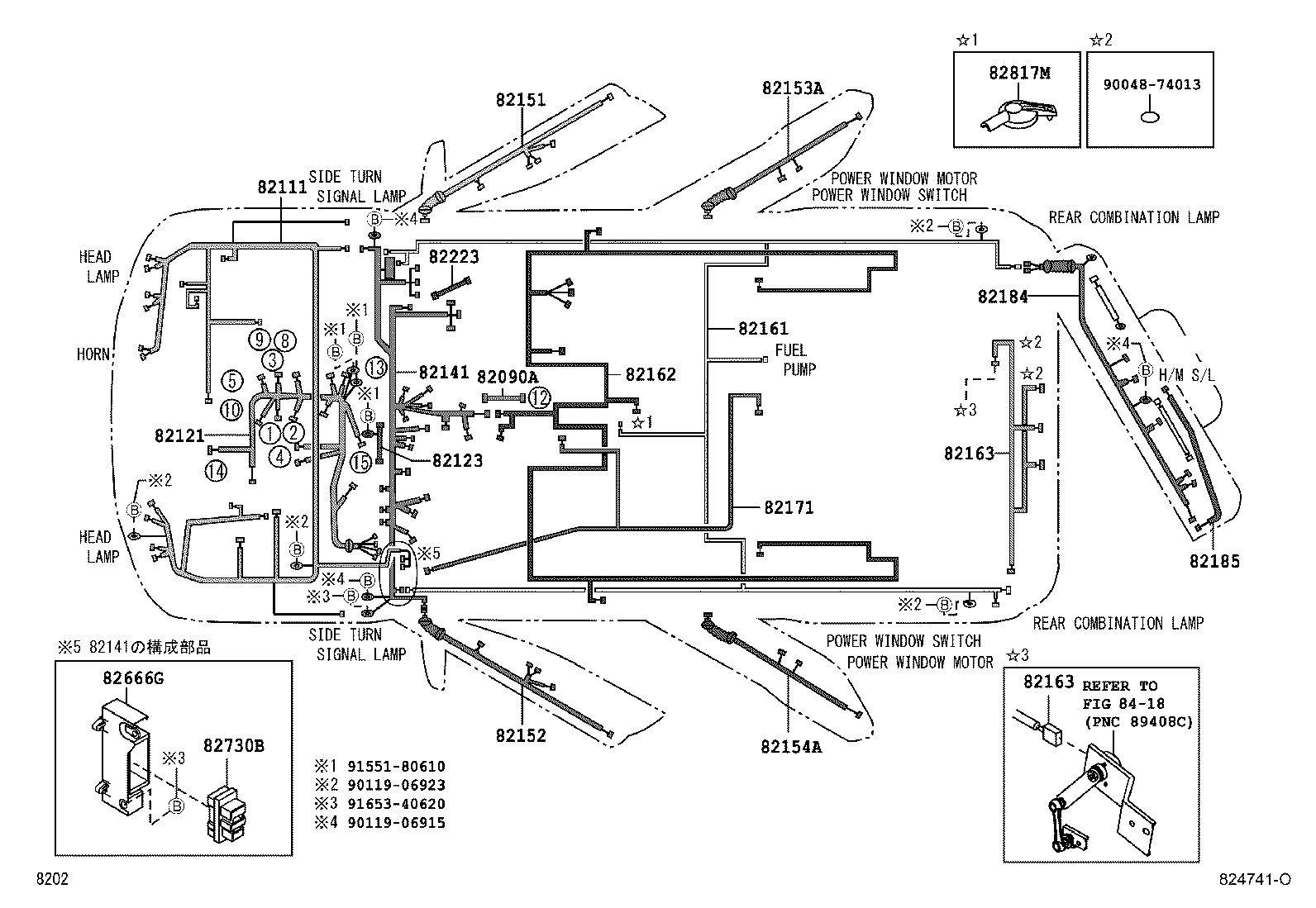

ILLUST NO. 1 OF 3(0601-1605)
ﾜｲﾔﾘﾝｸﾞﾊｰﾈｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82090A - WIRE ASSY, EXTENSION | ||||
| 82090-B4010 |
J210..5F VSC&#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82090-B4010 |
J210..5F 有り(ｼｰﾄ ﾋｰﾀｰ)&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82090-B4010 |
J210..5F SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82090-B4010 |
J210..G..5F ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82090-B4010 |
J210..5F VSC&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82090-B4010 |
J210..G..5F VSC&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82090-B4010 |
J210..5F #−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82090-B4010 |
J210..5F VSC&有り(ｼｰﾄ ﾋｰﾀｰ)&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82090-B4010 |
J210..G..5F VSC&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&有り(ｼｰﾄ ﾋｰﾀｰ)&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82090-B4010 |
J210..G..5F ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&有り(ｼｰﾄ ﾋｰﾀｰ)&SRSｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-B4030 |
J210..5F VSC |
1 | ||
| 82111-B4020 |
J210..5F ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 82111-B4010 |
J210..5F |
1 | ||
| 82111-B4510 |
J210..5F 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4520 |
J210..G..5F L ﾊﾟｯｹｰｼﾞ(A)&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4530 |
J210..5F VSC,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4040 |
J210..5F VSC&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 82111-B4521 |
J210..G..5F L ﾊﾟｯｹｰｼﾞ(A)&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4511 |
J210..5F 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4540 |
J210..G..5F L ﾊﾟｯｹｰｼﾞ(A)&VSC&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4541 |
J210..G..5F L ﾊﾟｯｹｰｼﾞ(A)&VSC&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4531 |
J210..G..5F VSC,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-B4010 |
J200,210 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82121-B4090 |
J200,210 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-B4120 |
J210..G..5F VSC |
1 | ||
| 82141-B4100 |
J210..G..5F |
1 | ||
| 82141-B4680 |
J210..G..5F VSC&4ｽﾋﾟ−ｶのみ 16CM*4,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4680 |
J210..G..5F VSC,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4720 |
J210..G..5F VSC&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4720 |
J210..G..5F VSC&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&4ｽﾋﾟ−ｶのみ 16CM*4,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4700 |
J210..G..5F ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&4ｽﾋﾟ−ｶのみ 16CM*4,品番宴xﾙ有り |
1 | ||
| 82141-B4681 |
J210..G..5F VSC,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4G00 |
J210..G..5F 4ｽﾋﾟ−ｶのみ 16CM*4,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4F90 |
J210..G..5F ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4721 |
J210..G..5F VSC&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&AM/FM CD(ﾌﾗｯｼｭ)SP16CM*4,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4681 |
J210..G..5F VSC&AM/FM CD(ﾌﾗｯｼｭ)SP16CM*4,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4F91 |
J210..G..5F ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&AM/FM CD(ﾌﾗｯｼｭ)SP16CM*4,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4G01 |
J210..G..5F 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4F30 |
J210..G..5F 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4F31 |
J210..G..5F AM/FM CD(ﾌﾗｯｼｭ)SP16CM*4,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4721 |
J210..G..5F VSC&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82141-B4701 |
J210..G..5F ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-B4020 |
J200,210..G |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-B4010 |
J200,210 |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-B4010 |
J200,210 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-B4010 |
J200,210 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-B4070 |
J200,210 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ 有り |
1 | ||
| 82161-B4070 |
J200,210..G ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ 有り |
1 | ||
| 82161-B4020 |
J200,210..G |
1 | ||
| 82161-B4070 |
J200,210 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り(ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 82161-B4070 |
J200,210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り(ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-B4170 |
J210..5F VSC |
1 | ||
| 82162-B4240 |
J210..5F #−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4180 |
J210..G..5F |
1 | ||
| 82162-B4250 |
J210..5F VSC&#−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4170 |
J210..5F VSC&有り(ｼｰﾄ ﾋｰﾀｰ) |
1 | ||
| 82162-B4250 |
J210..G..5F VSC&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4240 |
J210..G..5F ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&有り(ｼｰﾄ ﾋｰﾀｰ)&SRSｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4180 |
J210..5F 有り(ｼｰﾄ ﾋｰﾀｰ) |
1 | ||
| 82162-B4240 |
J210..5F SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4250 |
J210..G..5F VSC&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&有り(ｼｰﾄ ﾋｰﾀｰ)&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4170 |
J210..G..5F VSC&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ |
1 | ||
| 82162-B4240 |
J210..5F 有り(ｼｰﾄ ﾋｰﾀｰ)&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4170 |
J210..G..5F VSC&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&有り(ｼｰﾄ ﾋｰﾀｰ) |
1 | ||
| 82162-B4161 |
J210..5F |
1 | ||
| 82162-B4250 |
J210..5F VSC&有り(ｼｰﾄ ﾋｰﾀｰ)&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4240 |
J210..G..5F ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4430 |
J210..G..5F ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4180 |
J210..G..5F ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ |
1 | ||
| 82162-B4440 |
J210..G..5F VSC&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4430 |
J210..5F SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4440 |
J210..G..5F VSC&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82162-B4180 |
J210..G..5F ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ ｼｽﾃﾑ&有り(ｼｰﾄ ﾋｰﾀｰ) |
1 | ||
| 82162-B4170 |
J210..G..5F VSC |
1 | ||
| 82162-B4250 |
J210..5F VSC&SRS ｴｱﾊﾞｯｸﾞ−有り(D+P+ｻｲﾄﾞ+ｶｰﾃﾝ) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-B4030 |
J200,210..G ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 82163-B4010 |
J200,210 |
1 | ||
| 82163-B4030 |
J200,210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り(ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 82163-B4030 |
J200,210..G ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ 有り |
1 | ||
| 82163-B4030 |
J200,210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-B4030 |
J200,210..G ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 82163-B4010 |
J200,210 |
1 | ||
| 82163-B4030 |
J200,210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り(ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 82163-B4030 |
J200,210..G ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID&ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ 有り |
1 | ||
| 82163-B4030 |
J200,210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-B4010 |
J200,210 |
1 | ||
| 82171-B4030 |
J200,210..G |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-B4030 |
J200,210..G HDDﾅﾋﾞ(Gﾌﾞｯｸ)SP16CM*4 |
1 | ||
| 82184-B4040 |
J200,210..G |
1 | ||
| 82184-B4030 |
J200,210..G ｵｰﾃﾞｨｵ−HDDﾅﾋﾞ(Gﾌﾞｯｸ)SP16CM*4 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-B4020 |
J200,210..G |
1 | ||
| 82185-B4020 |
J200,210..G |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-B4010 |
J210..5F |
1 | ||
| 82223-B4010 |
J210..5F |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-B4010 |
J200,210 |
1 | ||
| 82730B - BLOCK ASSY, PASSENGER SIDE JUNCTION | ||||
| 82730-B4010 |
J200,210 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-B4010 |
J200,210 |
1 | ||
| Common parts | ||||
| 90048-74013 | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| 91551-80610 | ||||
| 91653-40620 | ||||
| Linked diagrams | ||||
| 8418 | ||||

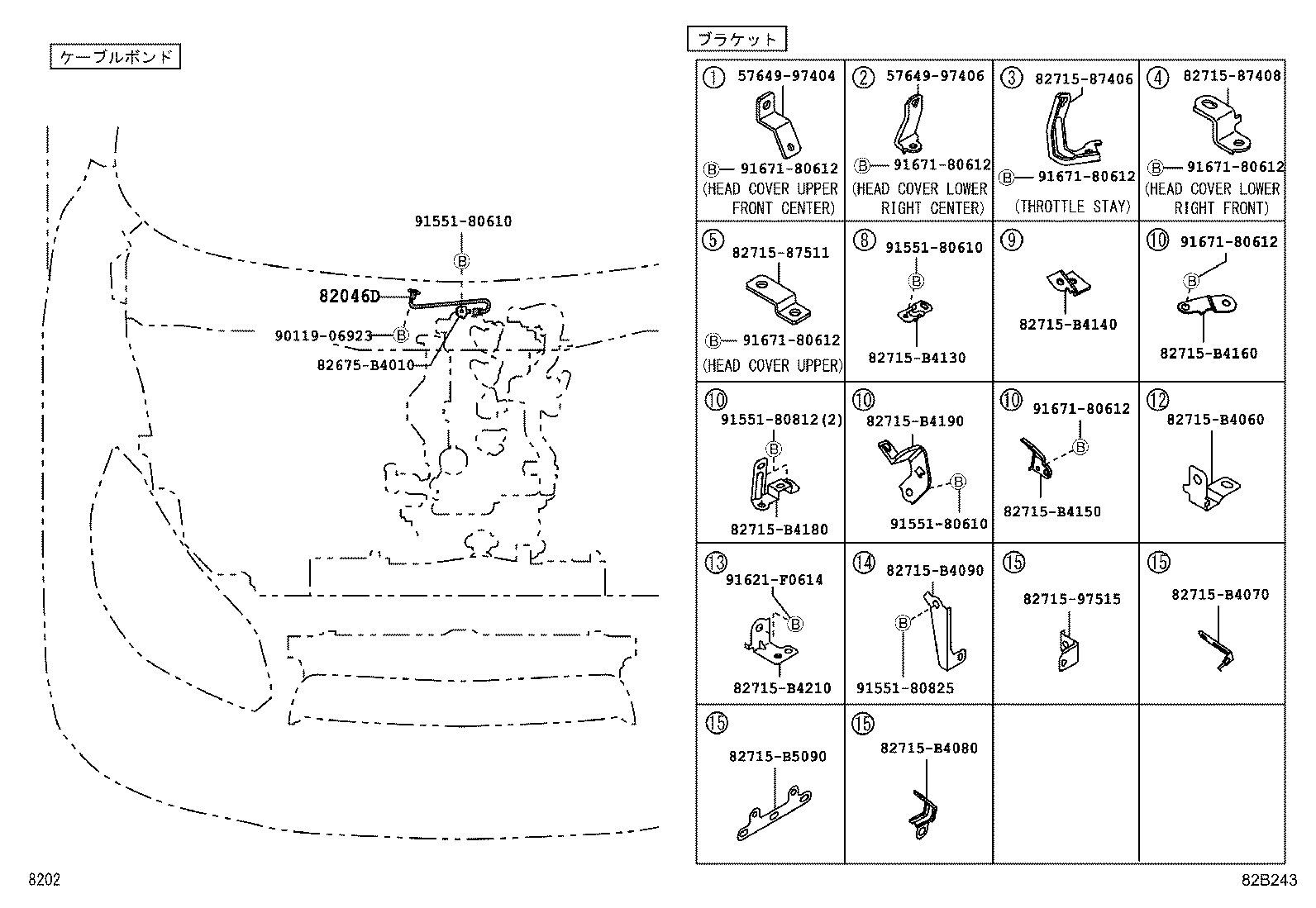

ILLUST NO. 2 OF 3(0601-1605)
ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ&ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046D - WIRE, BODY GROUND | ||||
| 82046-B4010 |
J200,210 |
1 | ||
| 82046-B4010 |
J200,210 |
1 | ||
| Common parts | ||||
| 57649-97404 | ||||
| 57649-97406 | ||||
| 82675-B4010 | ||||
| 82715-87406 | ||||
| 82715-87408 | ||||
| 82715-87511 | ||||
| 82715-97515 | ||||
| 82715-B4060 | ||||
| 82715-B4070 | ||||
| 82715-B4080 | ||||
| 82715-B4090 | ||||
| 82715-B4130 | ||||
| 82715-B4140 | ||||
| 82715-B4150 | ||||
| 82715-B4160 | ||||
| 82715-B4180 | ||||
| 82715-B4190 | ||||
| 82715-B4210 | ||||
| 82715-B5090 | ||||
| 90119-06923 | ||||
| 91551-80610 | ||||
| 91551-80812 | ||||
| 91551-80825 | ||||
| 91621-F0614 | ||||
| 91671-80612 | ||||

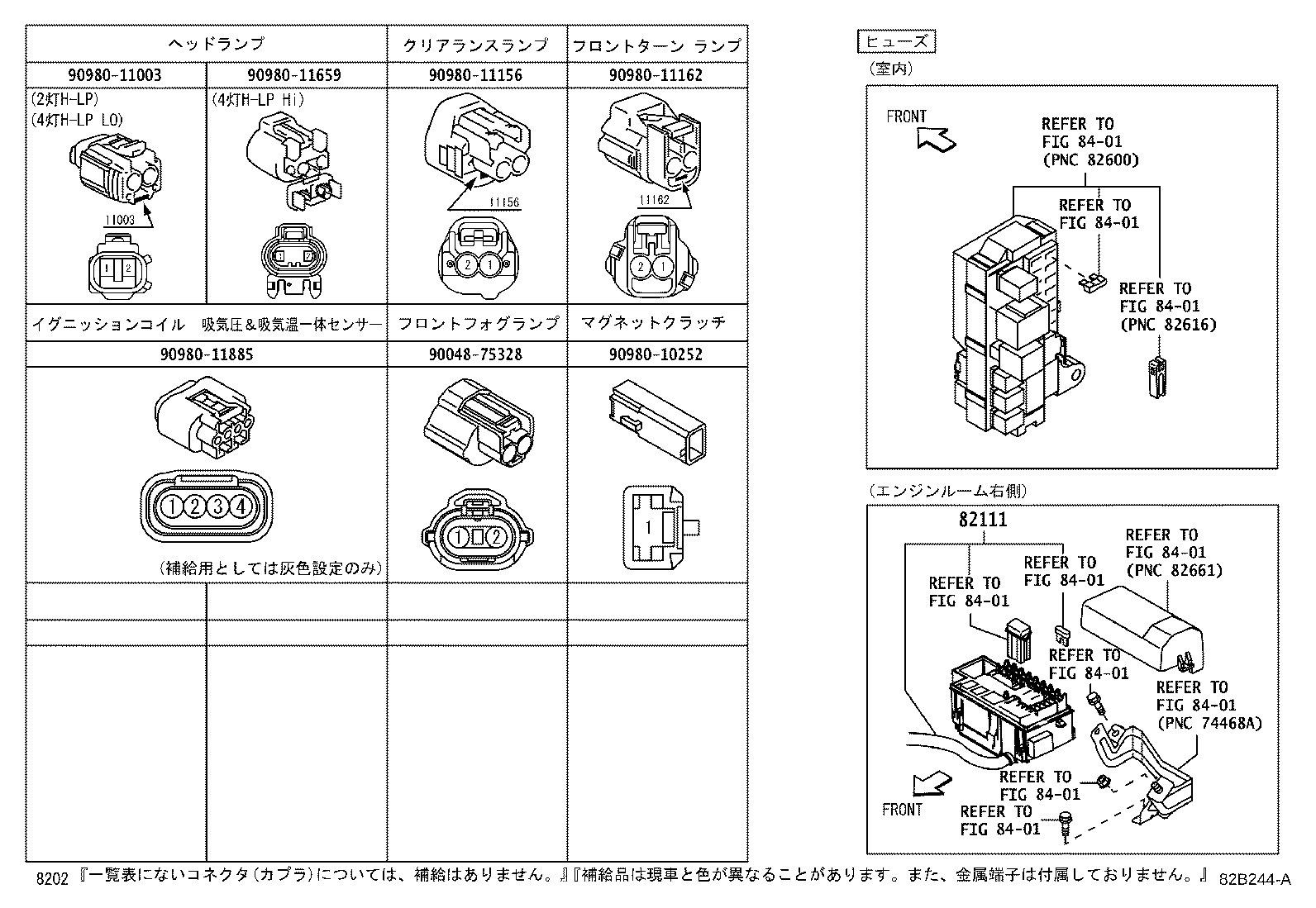

ILLUST NO. 3 OF 3(0601-1605)
ｺﾈｸﾀ&ﾋｭｰｽﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-B4030 |
J210..5F VSC |
1 | ||
| 82111-B4020 |
J210..5F ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 82111-B4010 |
J210..5F |
1 | ||
| 82111-B4510 |
J210..5F 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4520 |
J210..G..5F L ﾊﾟｯｹｰｼﾞ(A)&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4530 |
J210..5F VSC,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4040 |
J210..5F VSC&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| 82111-B4521 |
J210..G..5F L ﾊﾟｯｹｰｼﾞ(A)&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4511 |
J210..5F 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4540 |
J210..G..5F L ﾊﾟｯｹｰｼﾞ(A)&VSC&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4541 |
J210..G..5F L ﾊﾟｯｹｰｼﾞ(A)&VSC&ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B4531 |
J210..G..5F VSC,品番ﾗﾍﾞﾙ有り |
1 | ||
| Common parts | ||||
| 90048-75328 | ||||
| 90980-10252 | ||||
| 90980-11003 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11659 | ||||
| 90980-11885 | ||||
| Linked diagrams | ||||
| 8401 | ||||
