J210E-GMPF (2008)

Toyota Rush

Production Nov 2008 - Feb 2013
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

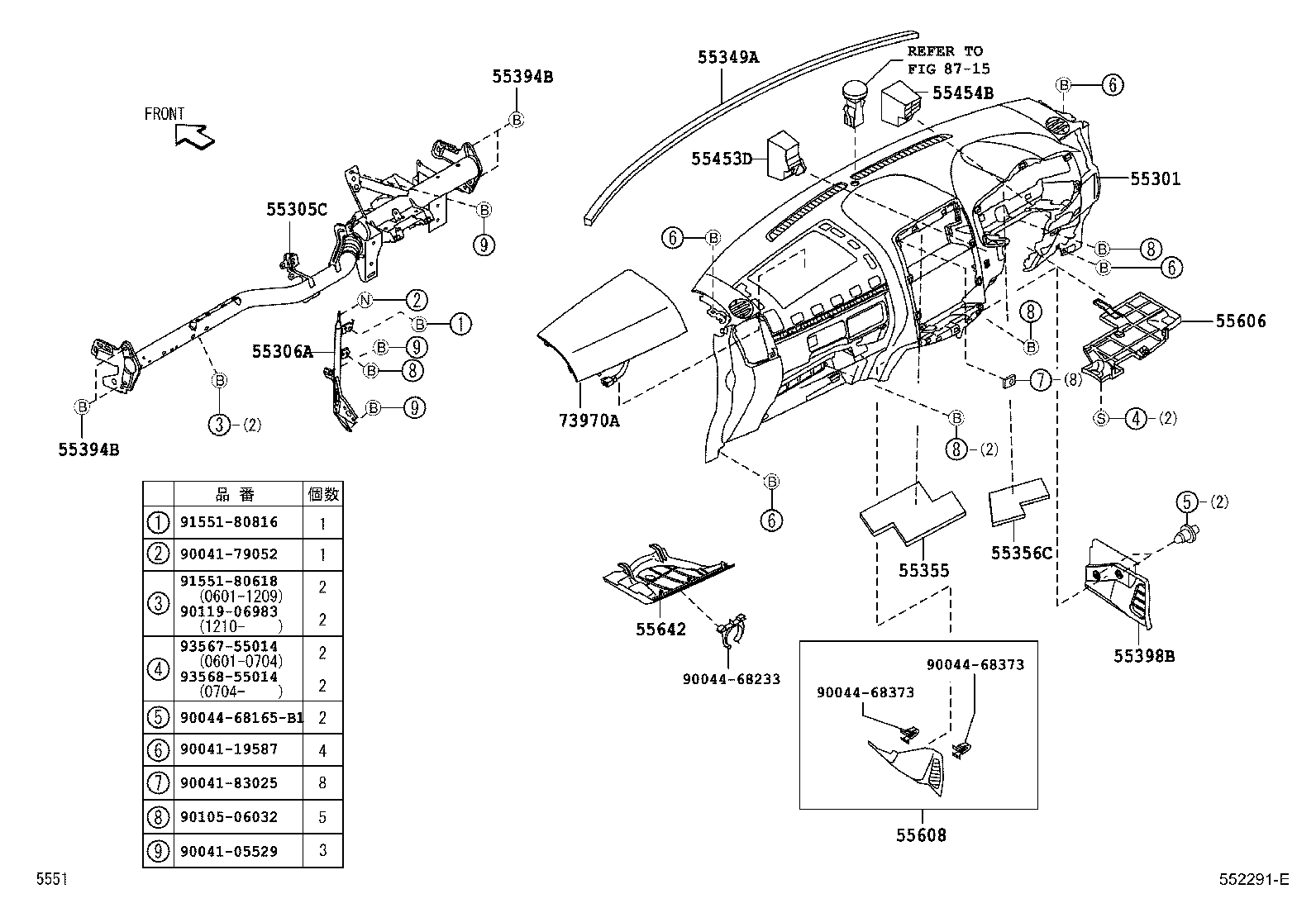

Click highlighted areas on diagram

diagram 55301 55305C 55306A 55349A 55355 55356C 55394B 55394B 55398B 55453D 55454B 55606 55608 55642 73970A 8715 9004105529 9004119587 9004179052 9004183025 9004468165B1 9004468233 9004468373 9004468373 9010506032 9011906983 9155180618 9155180816 9356755014 9356855014
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL
55305-B4030

J210..5F

 1
55305-B4030

J210..5F

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-B4030

J210..5F

 1
55306-B4030

J210..5F

 1
55349A - CUSHION, INSTRUMENT PANEL
55349-B4010

J200,210

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-B4010

J200,210

粘着加工有り

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-B4010

J200,210

粘着加工有り

 1
55394B - BOLT, INSTRUMENT PANEL
55394-B2010

J200,210

 4
55394B - BOLT, INSTRUMENT PANEL
55394-B2010

J200,210

 4
55398B - COVER, INSTRUMENT PANEL BRACE, INNER NO.3
55398-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55453D - PAD, INSTRUMENT PANEL SAFETY, NO.1
55453-B4010

J200,210

 1
55454B - PAD, INSTRUMENT PANEL SAFETY, NO.2
55454-B4010

J200,210

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55641-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3
55646-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
55642 - COVER, INSTRUMENT PANEL UNDER, NO.2
55642-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-B4010B0

J200,210

DK.GRAY,TRIM1#

 1
Common parts
90041-05529
90041-19587
90041-79052
90041-83025
90044-68165B1
90044-68233
90044-68373
90105-06032
90119-06983
91551-80618
91551-80816
93567-55014
93568-55014
Linked diagrams
8715
