J210E-GMPF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

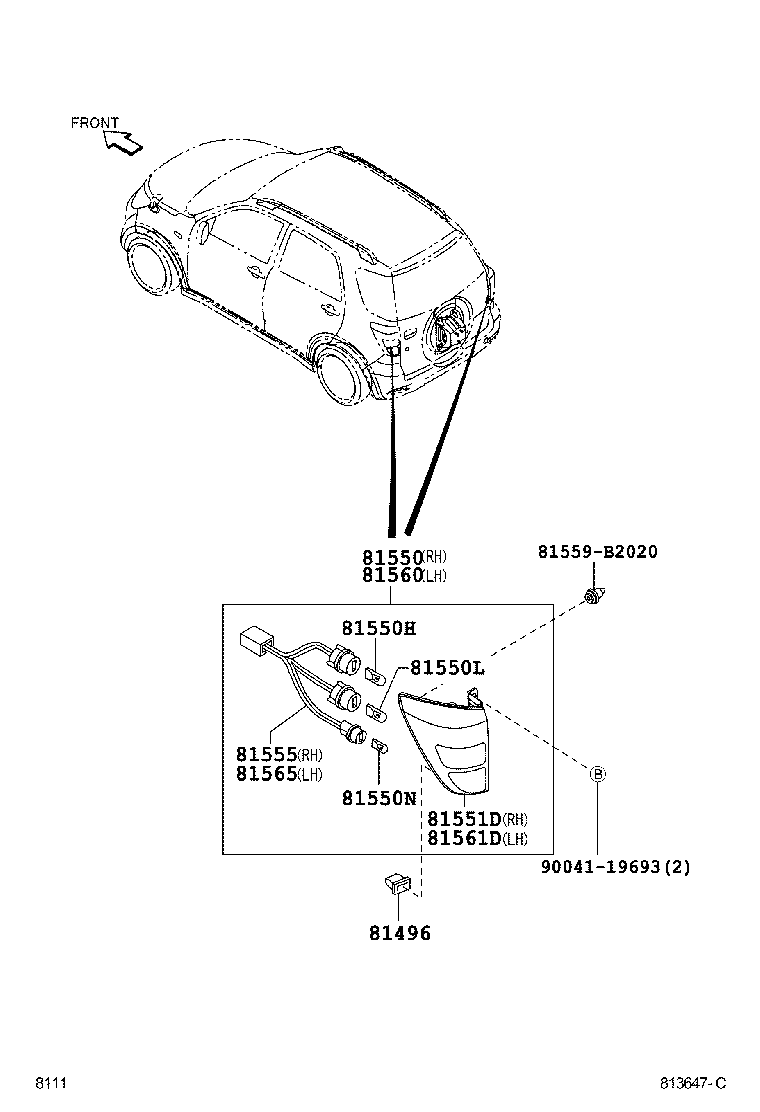

Click highlighted areas on diagram

diagram 81496 81550 81550H 81550L 81550N 81551D 81555 81559B2020 81560 81561D 81565 9004119693
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-B4010

J200,210

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-B4020

J200,210

ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り(ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ)

 1
81550-B4010

J200,210

 1
81550H - BULB, TAIL & STOP LAMP
90049-51130

J200,210

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90049-51143

J200,210

 2
81550N - BULB, BACK UP LAMP
90981-11059

J200,210

ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り(ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ),左側

 1
90981-11059

J200,210

 2
90049-51131

J200,210

ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り(ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ),右側

 1
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-B4010

J200,210

 1
81551-B4020

J200,210

ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り(ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ)

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-B4010

J200,210

 1
81555-B4020

J200,210

ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り(ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ)

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-B4010

J200,210

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-B4010

J200,210

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-B4010

J200,210

 1
Common parts
81559-B2020
90041-19693
