J210E-GMPF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-0811)

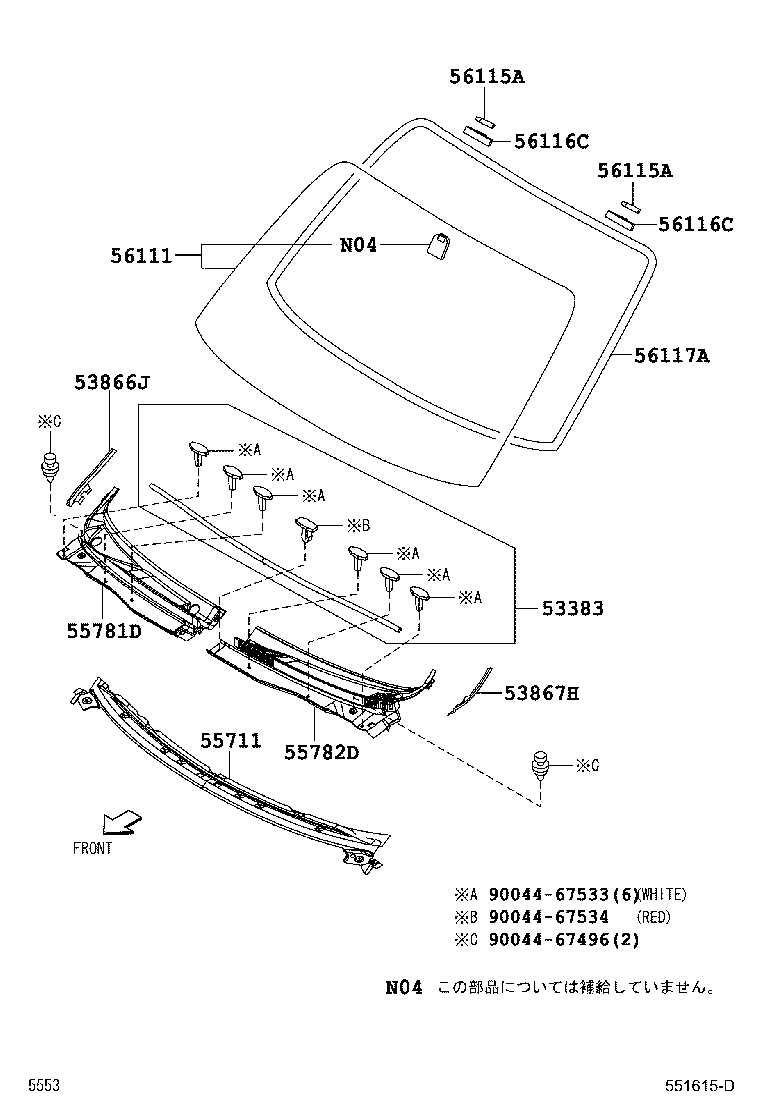

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-B4010 |
J200,210 |
1 | ||
| 53866J - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53868-B4010 |
J200,210 |
1 | ||
| 53867H - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53869-B4010 |
J200,210 |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55711-B4010 |
J200,210 |
1 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55781-B4010 |
J200,210 |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-B4030 |
J200,210 寒冷地仕様 |
1 | ||
| 55782-B4010 |
J200,210 |
1 | ||
| 55782-B4030 |
J200,210 寒冷地 ｽﾍﾟｼｬﾙ |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-B4010 |
J200,210 *LAM,T=4.56,ｸﾞﾘｰﾝ,ｲﾝﾅｰﾐﾗｰ取付ﾍﾞｰｽ部含む |
1 | ||
| 56101-B4020 |
J200,210 *LAM,T=4.56,ｸﾞﾘｰﾝ,寒冷地 ｽﾍﾟｼｬﾙ,ｲﾝﾅｰﾐﾗｰ取付ﾍﾞｰｽ部含む |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-B5020 |
J200,210 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-B5020 |
J200,210 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-97401 |
J200,210 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-97401 |
J200,210 |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-B4010 |
J200,210 長さ=3795 |
1 | ||
| Common parts | ||||
| 90044-67496 | ||||
| 90044-67533 | ||||
| 90044-67534 | ||||
(0601-1605)

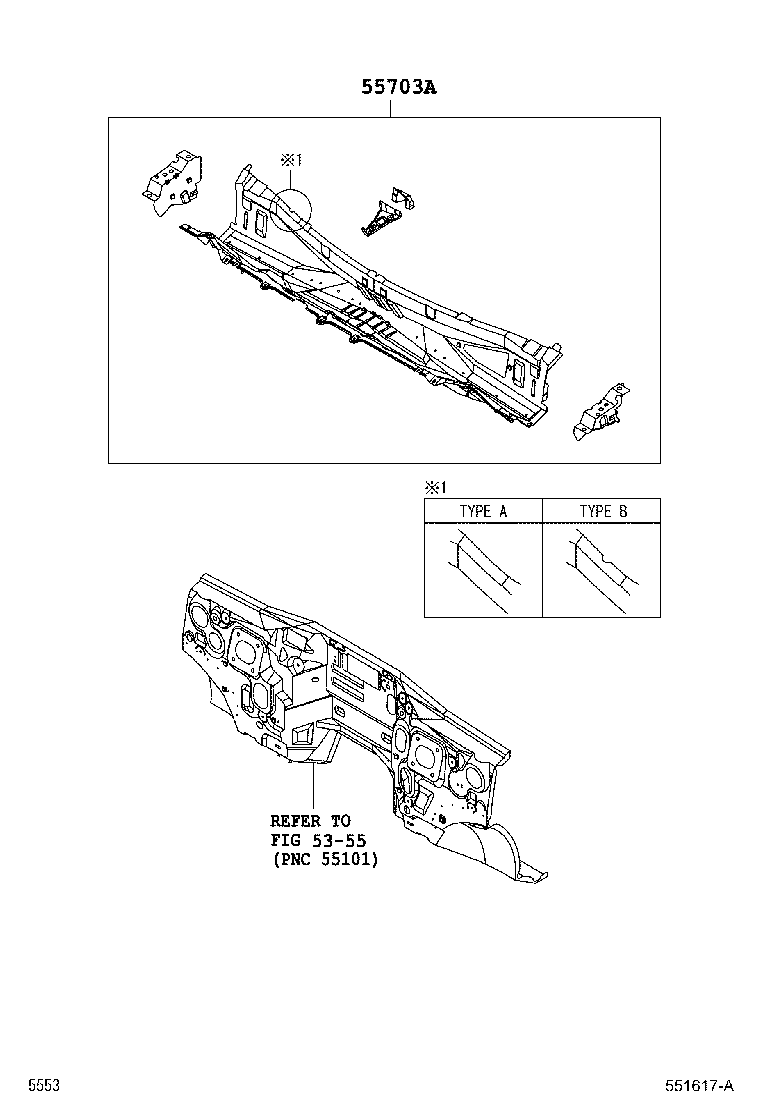

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55703A - PANEL SUB-ASSY, COWL TOP, INNER | ||||
| 55703-B4021 |
J200,210 |
1 | ||
| Linked diagrams | ||||
| 5355 | ||||
