J210E-GMPF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0811)5F

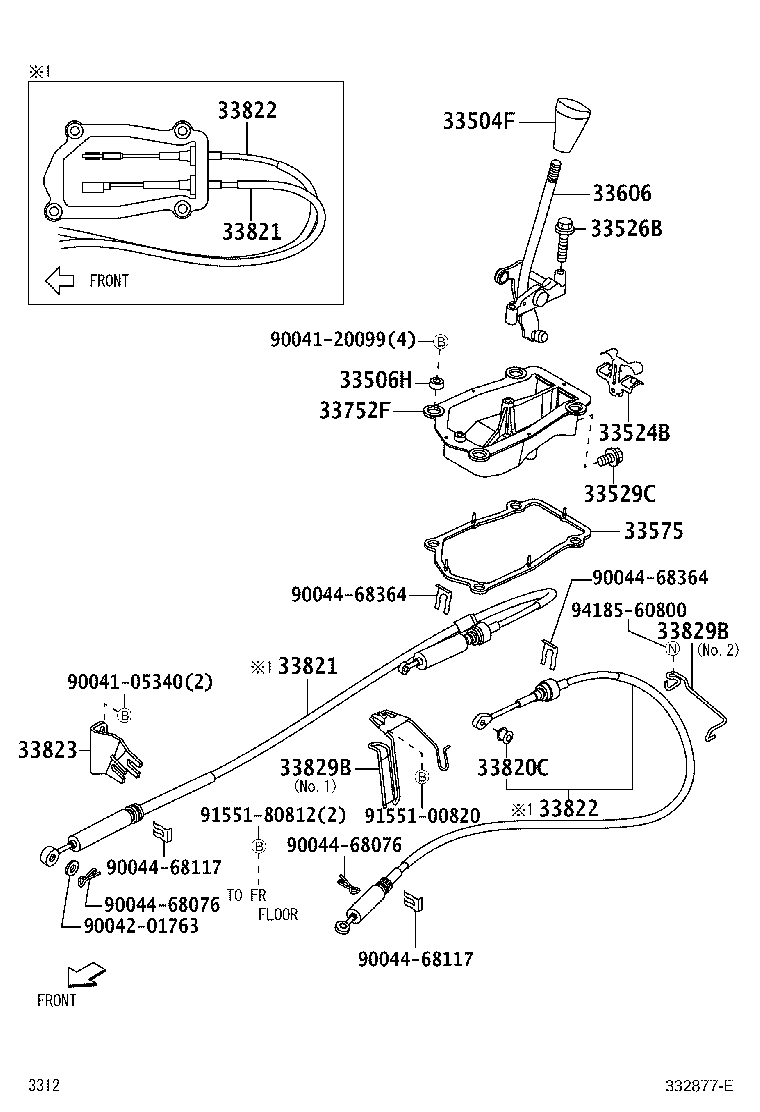

Click highlighted areas on diagram

diagram 33504F 33506H 33524B 33526B 33529C 33575 33606 33752F 33820C 33821 33821 33822 33822 33823 33829B 33829B 9004105340 9004120099 9004201763 9004468076 9004468076 9004468117 9004468117 9004468364 9004468364 9155100820 9155180812 9418560800
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-13061B2

J210..G..5F

DK.GRAY,TRIM1#

 1
33506H - BUSH (FOR SHIFT LEVER RETAINER)
33546-BZ020

J210..5F

ID = 19.2

 3
33546-BZ010

J210..5F

ID = 8.2

 1
33524B - BRACKET, CONTROL CABLE
33524-B4010

J210..5F

 1
33526B - BOLT, SHIFT LEVER HOUSING SET
33526-BZ010

J210..5F

 2
33529C - BOLT, SHIFT LEVER
33529-BZ010

J210..5F

 1
33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33575-BZ010

J210..5F

 1
33606 - LEVER SUB-ASSY, WIRE PULL
33606-B4010

J210..5F

 1
33606-B4011

J210..5F

 1
33752F - SUPPORT, CONTROL LINK (FOR FLOOR SHIFT)
33752-BZ010

J210..5F

 1
33820C - BUSH (FOR TRANSMISSION CONTROL CABLE)
33835-B1010

J200,210

 2
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-B4010

J210..5F

ｼﾌﾄ ｹｰﾌﾞﾙ

 1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33820-B4010

J210..5F

ｼﾌﾄ ｹｰﾌﾞﾙ

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33830-B4010

J210..5F

ｾﾚｸﾄ ｹｰﾌﾞﾙ

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33830-B4010

J210..5F

ｾﾚｸﾄ ｹｰﾌﾞﾙ

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-B4020

J210..5F

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-B4030

J210..5F

NO.2

 1
33829-B4010

J210..5F

NO.1

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-B4030

J210..5F

NO.2

 1
33829-B4010

J210..5F

NO.1

 1
Common parts
90041-05340
90041-20099
90042-01763
90044-68076
90044-68117
90044-68364
91551-00820
91551-80812
94185-60800
