J210E-GMPF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

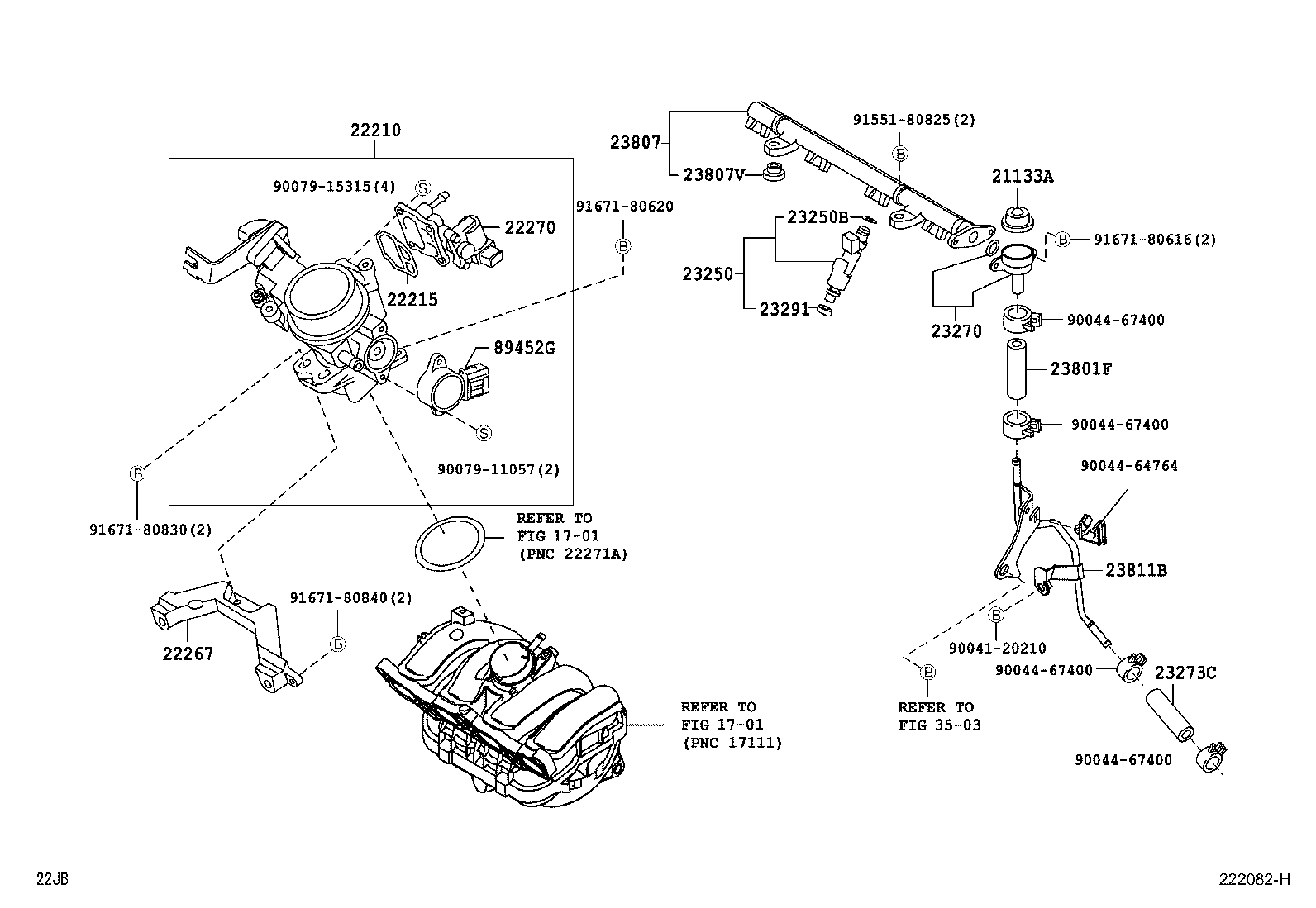

(0601-1605)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21133A - COVER, DUST | ||||
| 21133-B0010 |
3SZVE..J200,210 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-B1030 |
3SZVE..J210..5F |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-97401 |
3SZVE..J200,210 |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-B1020 |
3SZVE..J200,210 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-97401 |
3SZVE..J200,210 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-B9040 |
3SZVE..J200,210 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90043-01136 |
3SZVE..J200,210 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-97501 |
3SZVE..J200,210 |
1 | ||
| 23273C - HOSE, FUEL, NO.2 | ||||
| 23273-B1010 |
3SZVE..J200,210 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-87701 |
3SZVE..J200,210 |
4 | ||
| 23291-87701 |
3SZVE..J200,210 |
4 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 23271-B1050 |
3SZVE..J200,210 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-97403 |
3SZVE..J200,210 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23845-97401 |
3SZVE..J200,210 |
2 | ||
| 23811B - PIPE, FUEL, NO.1 | ||||
| 23811-B1010 |
3SZVE..J200,210 |
1 | ||
| 89452G - SENSOR, THROTTLE POSITION | ||||
| 89452-97401 |
J200,210 |
1 | ||
| Common parts | ||||
| 90041-20210 | ||||
| 90044-64764 | ||||
| 90044-67400 | ||||
| 90079-11057 | ||||
| 90079-15315 | ||||
| 91551-80825 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91671-80830 | ||||
| 91671-80840 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 3503 | ||||

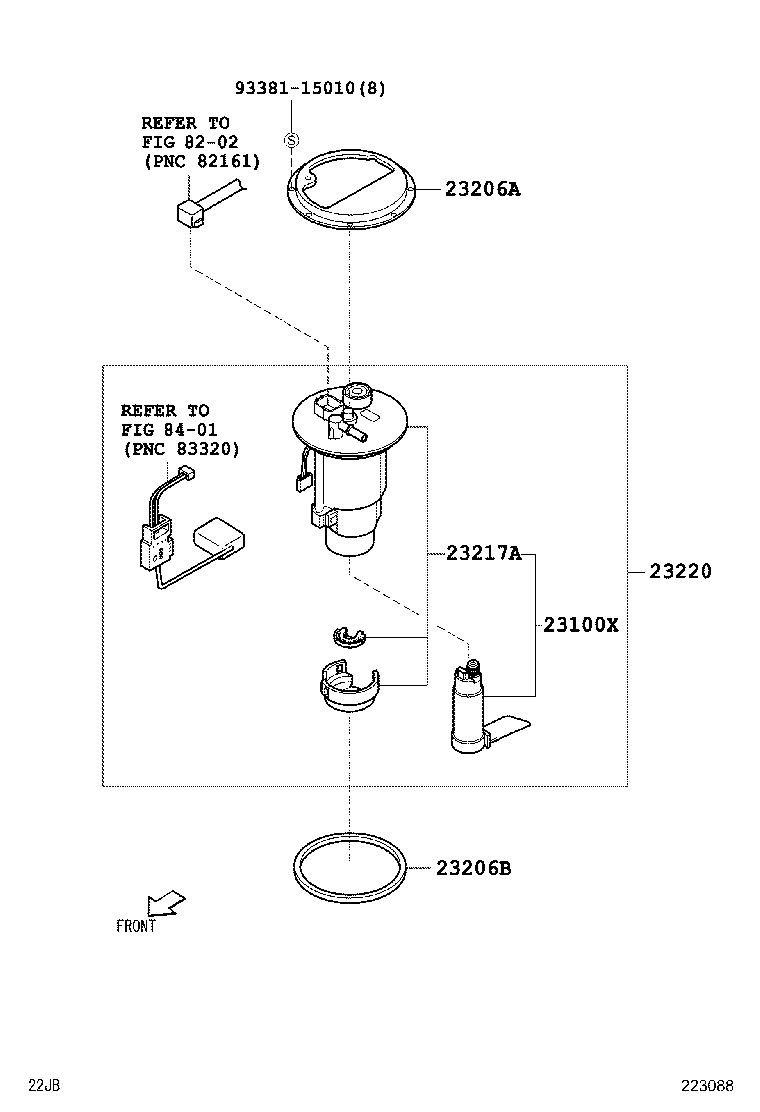

(0601-1605)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23100-B1020 |
3SZVE..J200,210 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23265-87401 |
3SZVE..J200,210 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 23232-87401 |
3SZVE..J200,210 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23908-B1020 |
3SZVE..J200,210 |
1 | ||
| 23220 - PUMP ASSY, FUEL W/FILTER | ||||
| 23210-B1040 |
3SZVE..J200,210 |
1 | ||
| Common parts | ||||
| 93381-15010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
