J210E-GMPF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

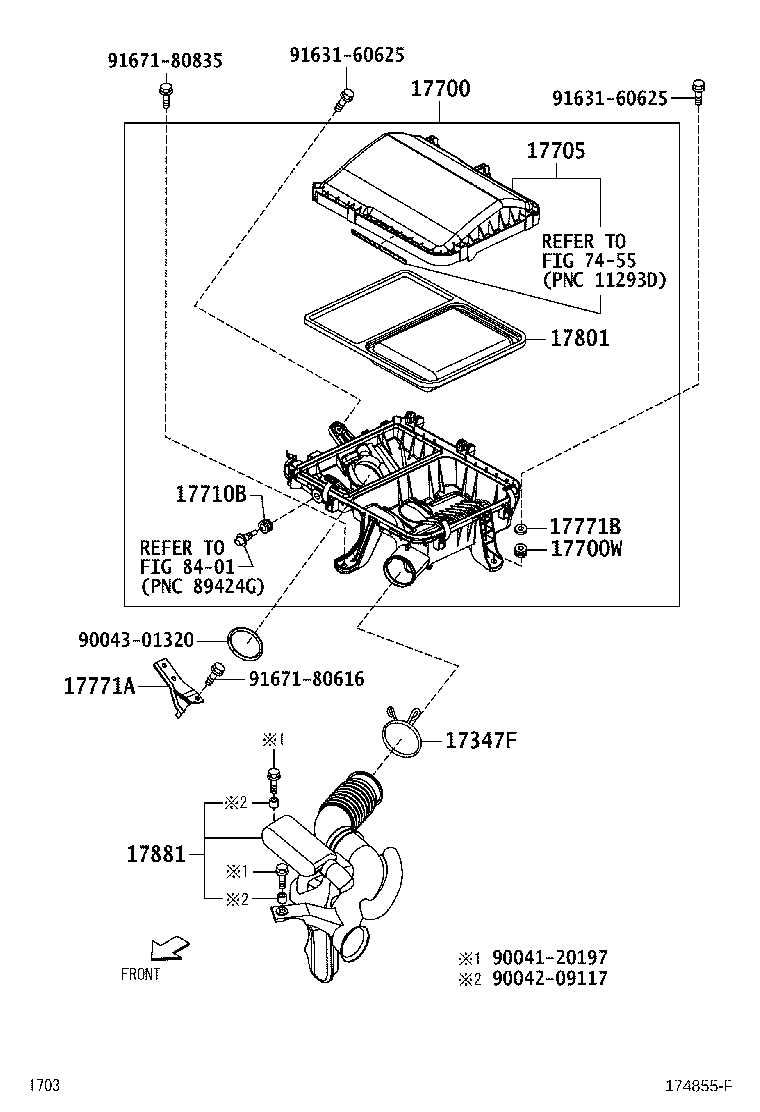

Click highlighted areas on diagram

diagram 17347F 17700 17700W 17705 17710B 17771A 17771B 17801 17881 7455 8401 9004120197 9004209117 9004301320 9163160625 9163160625 9167180616 9167180835
Part # Description Qty Price
17347F - CLAMP OR CLIP(FOR AIR HOSE)
90044-66020

3SZVE..J200,210

 1
17700 - CLEANER ASSY, AIR
17700-B1040

3SZVE..J200,210

 1
17700W - SPACER(FOR AIR CLEANER)
90042-09117

3SZVE..J200,210

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17735-B1020

3SZVE..J200,210

 1
17710B - GROMMET
90044-80530

3SZVE..J200,210

 1
17771A - BRACKET, AIR CLEANER
17771-B1010

3SZVE..J200,210

 1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90044-80392

3SZVE..J200,210

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-B1010

3SZVE..J200,210

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-B1040

3SZVE..J200,210

 1
Common parts
90041-20197
90042-09117
90043-01320
91631-60625
91671-80616
91671-80835
Linked diagrams
7455
8401
