J210E-GMPF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-1605)

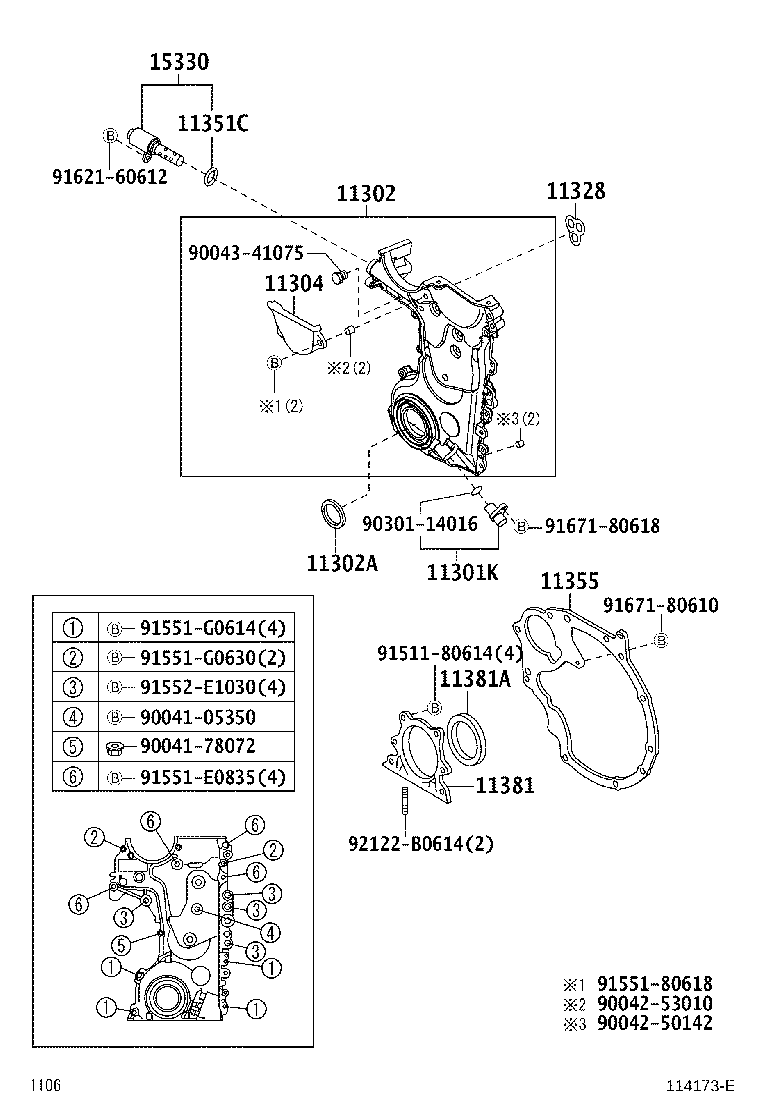

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301K - SENSOR, CRANK POSITION | ||||
| 19311-97401 |
3SZVE..J200,210 |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-B1060 |
3SZVE..J200,210 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-35040 |
3SZVE..J200,210 |
1 | ||
| 11304 - COVER, TIMING CHAIN OR BELT, NO.2 | ||||
| 11322-97401 |
3SZVE..J200,210 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-B1010 |
3SZVE..J200,210 |
1 | ||
| 11328-97401 |
3SZVE..J200,210 |
1 | ||
| 11351C - RING, O | ||||
| 90043-01262 |
3SZVE..J200,210 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-97403 |
3SZVE..J200,210 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-97402 |
3SZVE..J200,210 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90043-11364 |
3SZVE..J200,210 |
1 | ||
| 90043-11402 |
3SZVE..J200,210 |
1 | ||
| 15330 - VALVE ASSY, CAM TIMING OIL CONTROL | ||||
| 15330-B1020 |
3SZVE..J200,210 |
1 | ||
| 15330-97402 |
3SZVE..J200,210 |
1 | ||
| Common parts | ||||
| 90041-05350 | ||||
| 90041-78072 | ||||
| 90042-50142 | ||||
| 90042-53010 | ||||
| 90043-41075 | ||||
| 90301-14016 | ||||
| 91511-80614 | ||||
| 91551-80618 | ||||
| 91551-E0835 | ||||
| 91551-G0614 | ||||
| 91551-G0630 | ||||
| 91552-E1030 | ||||
| 91621-60612 | ||||
| 91671-80610 | ||||
| 91671-80618 | ||||
| 92122-B0614 | ||||
