J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

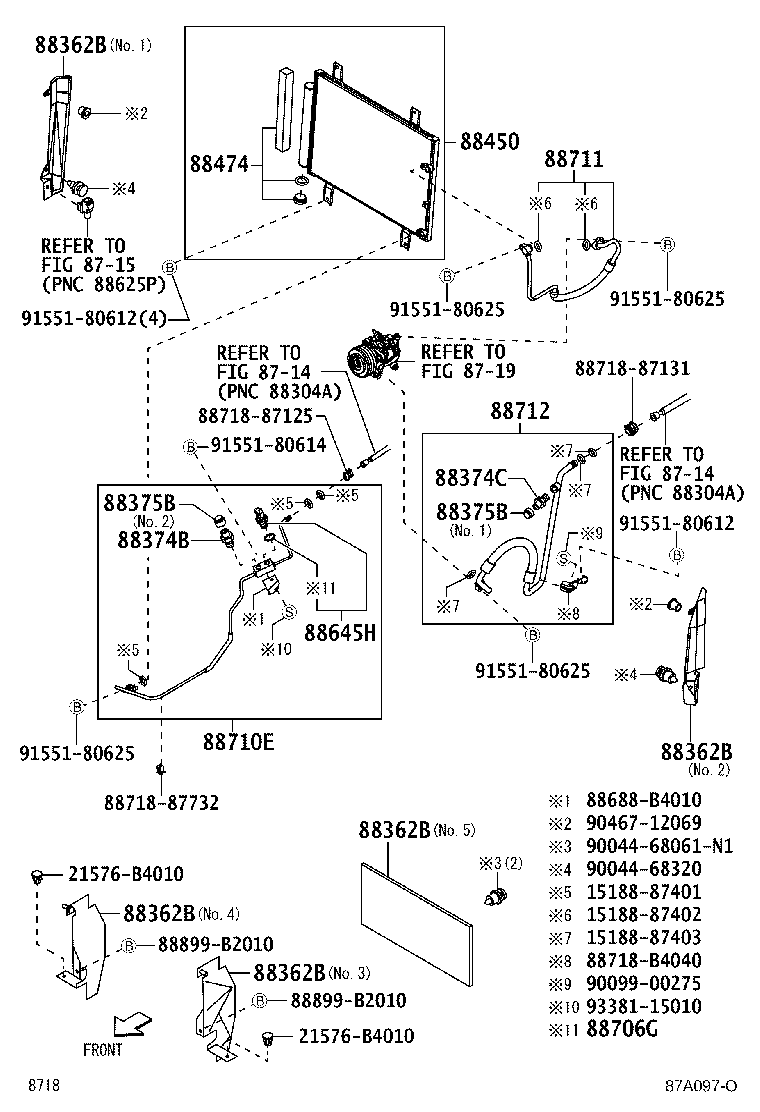

Click highlighted areas on diagram

diagram 1518887401 1518887402 1518887403 21576B4010 21576B4010 8714 8714 8715 8719 88362B 88362B 88362B 88362B 88362B 88374B 88374C 88375B 88375B 88450 88474 88645H 88688B4010 88706G 88710E 88711 88712 8871887125 8871887131 8871887732 88718B4040 88899B2010 88899B2010 9004468061N1 9004468320 9009900275 9046712069 9155180612 9155180612 9155180614 9155180625 9155180625 9155180625 9155180625 9338115010
Part # Description Qty Price
88362B - PLATE, SEAL
88362-B4060

J200,210

NO.3

 1
88362-B4050

J200,210

NO.4

 1
88362-B4070

J200,210

NO.5

 1
88362-B4020

J200,210

NO.1

 1
88362-B4100

J200,210

NO.5

 1
88362-B4051

J200,210

NO.4

 1
88362-B4061

J200,210

NO.3

 1
88362-B4010

J200,210

NO.2

 1
88362B - PLATE, SEAL
88362-B4060

J200,210

NO.3

 1
88362-B4050

J200,210

NO.4

 1
88362-B4070

J200,210

NO.5

 1
88362-B4020

J200,210

NO.1

 1
88362-B4100

J200,210

NO.5

 1
88362-B4051

J200,210

NO.4

 1
88362-B4061

J200,210

NO.3

 1
88362-B4010

J200,210

NO.2

 1
88362B - PLATE, SEAL
88362-B4060

J200,210

NO.3

 1
88362-B4050

J200,210

NO.4

 1
88362-B4070

J200,210

NO.5

 1
88362-B4020

J200,210

NO.1

 1
88362-B4100

J200,210

NO.5

 1
88362-B4051

J200,210

NO.4

 1
88362-B4061

J200,210

NO.3

 1
88362-B4010

J200,210

NO.2

 1
88362B - PLATE, SEAL
88362-B4060

J200,210

NO.3

 1
88362-B4050

J200,210

NO.4

 1
88362-B4070

J200,210

NO.5

 1
88362-B4020

J200,210

NO.1

 1
88362-B4100

J200,210

NO.5

 1
88362-B4051

J200,210

NO.4

 1
88362-B4061

J200,210

NO.3

 1
88362-B4010

J200,210

NO.2

 1
88362B - PLATE, SEAL
88362-B4050

J200,210

NO.4

 1
88362-B4060

J200,210

NO.3

 1
88362-B4070

J200,210

NO.5

 1
88362-B4020

J200,210

NO.1

 1
88362-B4100

J200,210

NO.5

 1
88362-B4051

J200,210

NO.4

 1
88362-B4061

J200,210

NO.3

 1
88362-B4010

J200,210

NO.2

 1
88374B - VALVE, SERVICE, NO.1
88374-87601

J200,210

 1
88374C - VALVE, SERVICE, NO.2
88374-87601

J200,210

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-87603

J200,210

NO.2

 1
88375-87601

J200,210

NO.1

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-87603

J200,210

NO.2

 1
88375-87601

J200,210

NO.1

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-B4020

J200,210

 1
88474 - DRYER, COOLER
88474-B4010

J200,210

ｷｬｯﾌﾟ+Oﾘﾝｸﾞｾｯﾄ

 1
88645H - SWITCH, PRESSURE NO.1
88645-87602

J200,210

 1
88706G - RING, O(FOR LIQUID TUBE)
15188-B5090

J200,210

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-B4030

J200,210

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-B4010

J200,210

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-B4010

J200,210

 1
Common parts
15188-87401
15188-87402
15188-87403
21576-B4010
88688-B4010
88718-87125
88718-87131
88718-87732
88718-B4040
88899-B2010
90044-68061N1
90044-68320
90099-00275
90467-12069
91551-80612
91551-80614
91551-80625
93381-15010
Linked diagrams
8714
8715
8719
