J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

Click highlighted areas on diagram

ｴｱﾀﾞｸﾄ

diagram 55086A 55873D 55950G 55975A 87201 9004119184 9356715014 9356715014
Part # Description Qty Price

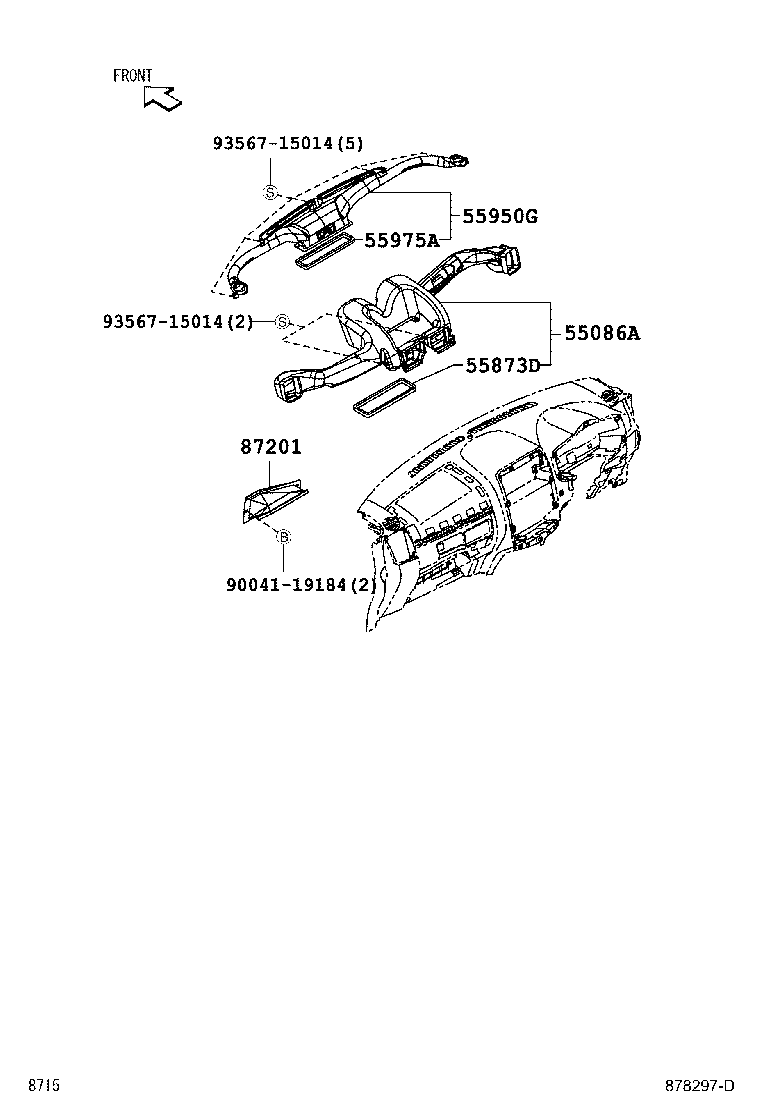

55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-B4010

J200,210..X

 1
55086-B4030

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
55086-B4030

J200,210..G

 1
55873D - SEAL, AIR DUCT, CENTER
55873-B4010

J200,210

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-B4010

J200,210

 1
55975A - SEAL, DEFROSTER NOZZLE, NO.1
55975-B4010

J200,210

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87220-B4010

J200,210

 1
Common parts
90041-19184
93567-15014

(0601-1605)

Click highlighted areas on diagram

ｾﾝｻ

diagram 8202 827111E360 88051 88482B4010 88625H 88625P 88625Q 9004159365 9004159365 9356715014
Part # Description Qty Price

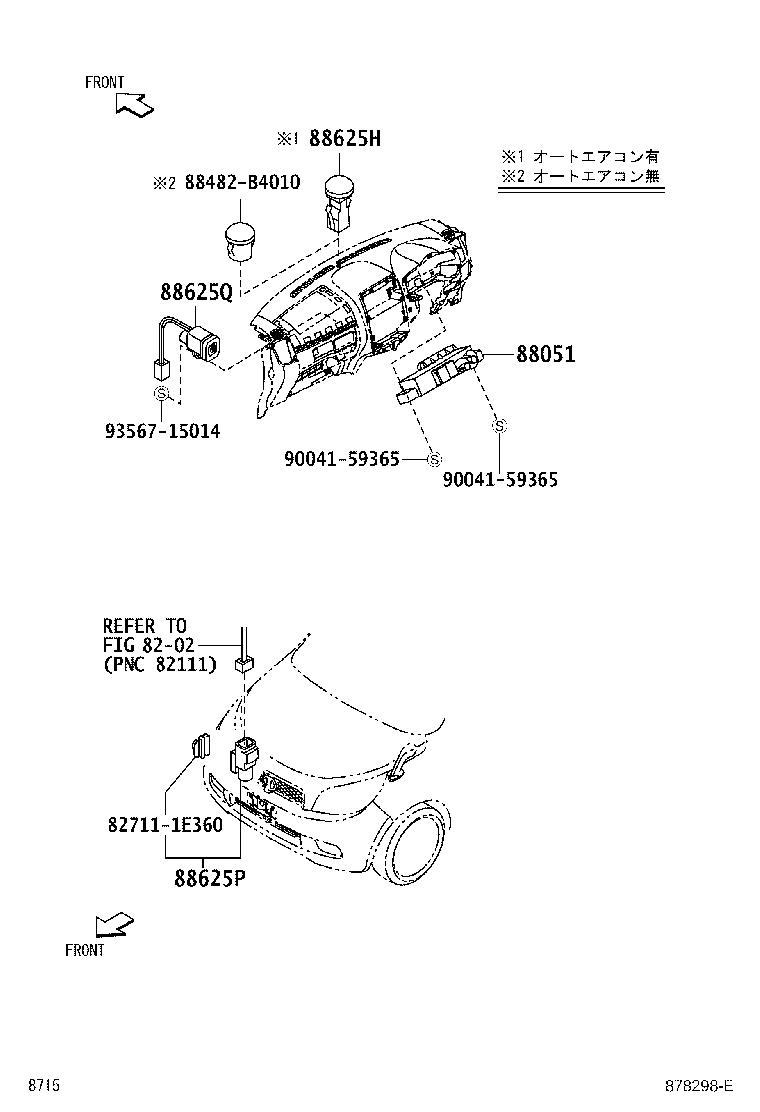

88051 - GENERATOR SUB-ASSY, ION
88051-B1010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
88051-B1010

J200,210..G

 1
88051-B2010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
88051-B2010

J200,210..G

 1
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031

J200,210..G

 1
88625-47031

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-22131

J200,210

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88790-B4010

J200,210..G

 1
88790-B4010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
Common parts
82711-1E360
88482-B4010
90041-59365
93567-15014
Linked diagrams
8202

(0601-1605)

Click highlighted areas on diagram

ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ

diagram 5551 55900B 55900B 55901D 55902B 55903A 55906A 55908A 55909A 55910B 55910B 55910B 55910R 55911A 84010G 84010G 84010G 9354013012
Part # Description Qty Price

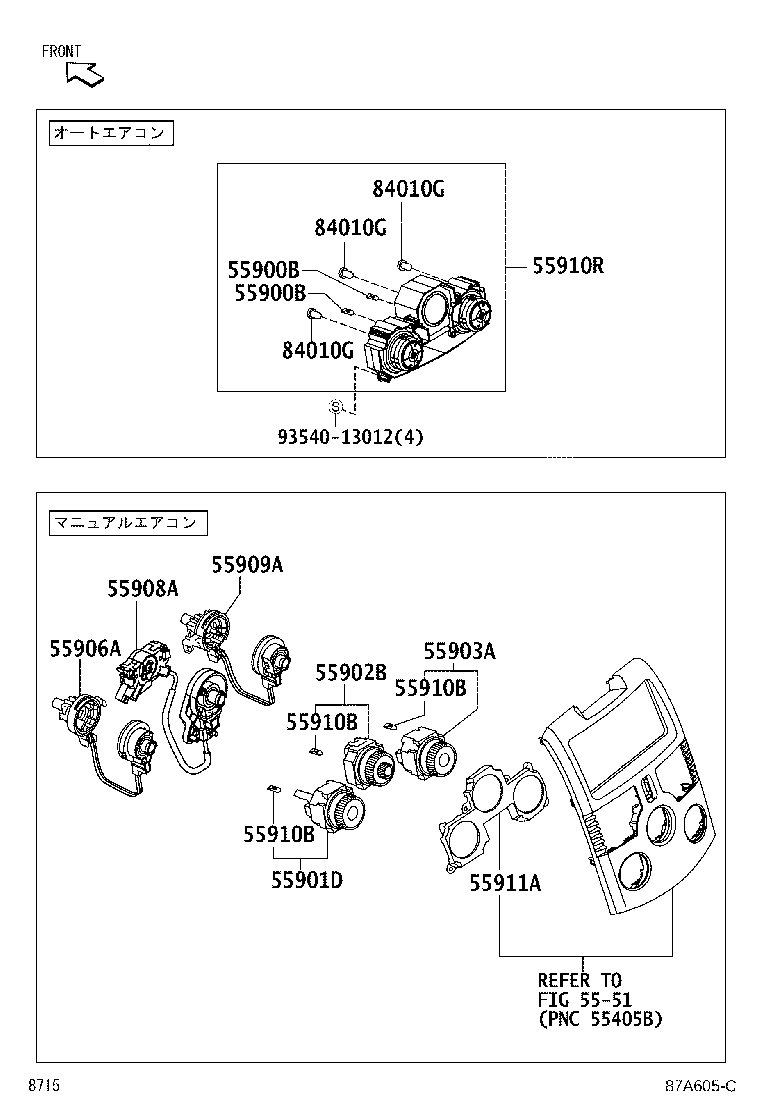

55900B - BULB, AIR CONDITIONER CONTROL
84999-B4030

J200,210..G

ｸﾘｱ

 2
84999-B4030

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ｸﾘｱ

 2
55900B - BULB, AIR CONDITIONER CONTROL
84999-B4030

J200,210..G

ｸﾘｱ

 2
84999-B4030

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ｸﾘｱ

 2
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-B4030

J200,210..X

ﾓｰﾄﾞ

 1
55902B - CONTROL SUB-ASSY, HEATER
55902-B4010

J200,210..X

内外気

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-B4010

J200,210..X

ﾘﾔ ﾃﾞﾌｫｶﾞﾂｷ,ｴｱﾐｯｸｽ

 1
55903-B4010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ﾘﾔ ﾃﾞﾌｫｶﾞﾂｷ,ｴｱﾐｯｸｽ

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-B4010

J200,210..X

ﾓｰﾄﾞ

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-B4010

J200,210..X

内外気

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-B4010

J200,210..X

ｴｱﾐｯｸｽ

 1
55910B - BULB, HEATER CONTROL
90010-01112

J200,210..X

ｲｴﾛｰｷｬｯﾌﾟ付

 3
90010-01112

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ｲｴﾛｰｷｬｯﾌﾟ付

 3
55910B - BULB, HEATER CONTROL
90010-01112

J200,210..X

ｲｴﾛｰｷｬｯﾌﾟ付

 3
90010-01112

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ｲｴﾛｰｷｬｯﾌﾟ付

 3
55910B - BULB, HEATER CONTROL
90010-01112

J200,210..X

ｲｴﾛｰｷｬｯﾌﾟ付

 3
90010-01112

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ｲｴﾛｰｷｬｯﾌﾟ付

 3
55910R - CONTROL ASSY, HEATER
55910-B4010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
55910-B4010

J200,210..G

 1
55911A - BASE, HEATER CONTROL
55911-B4010

J200,210..X

 1
55911-B4010

J200,210..X

 1
84010G - BULB, INTEGRATION CONTROL & PANEL
9004C-81009

J200,210..X

#,ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),液晶照明用 ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 1
9004C-81009

J200,210..G

#,液晶照明用 ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 1
9004C-81010

J200,210..X

#,ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),温度&ﾌﾞﾛﾜｰ ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 2
9004C-81010

J200,210..G

#,温度&ﾌﾞﾛﾜｰ ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 2
84010G - BULB, INTEGRATION CONTROL & PANEL
9004C-81009

J200,210..X

#,ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),液晶照明用 ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 1
9004C-81009

J200,210..G

#,液晶照明用 ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 1
9004C-81010

J200,210..X

#,ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),温度&ﾌﾞﾛﾜｰ ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 2
9004C-81010

J200,210..G

#,温度&ﾌﾞﾛﾜｰ ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 2
84010G - BULB, INTEGRATION CONTROL & PANEL
9004C-81009

J200,210..X

#,ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),液晶照明用 ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 1
9004C-81009

J200,210..G

#,液晶照明用 ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 1
9004C-81010

J200,210..X

#,ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),温度&ﾌﾞﾛﾜｰ ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 2
9004C-81010

J200,210..G

#,温度&ﾌﾞﾛﾜｰ ｸﾞﾘｰﾝｷｬｯﾌﾟ付

 2
Common parts
93540-13012
Linked diagrams
5551
