J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

Click highlighted areas on diagram

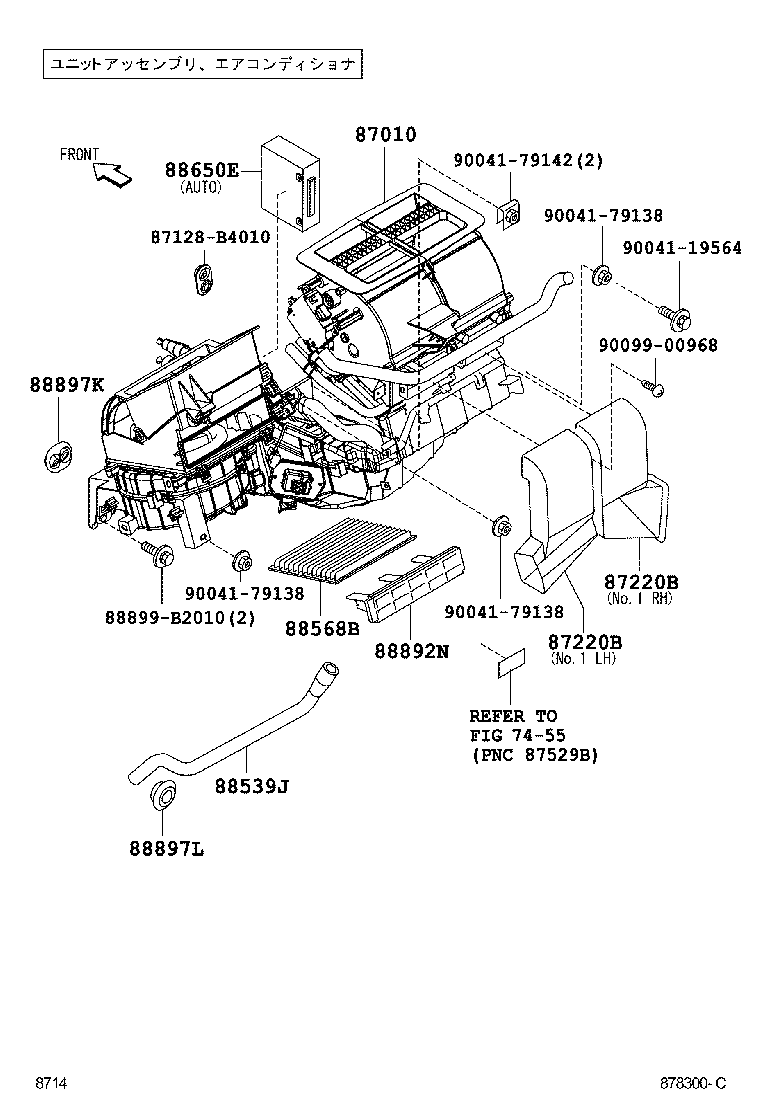

ﾕﾆｯﾄ ｱｯｾﾝﾌﾞﾘ, ｴｱ ｺﾝﾃﾞｨｼｮﾅ

diagram 7455 87010 87128B4010 87220B 87220B 88539J 88568B 88650E 88892N 88897K 88897L 88899B2010 9004119564 9004179138 9004179138 9004179138 9004179142 9009900968
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-B4020

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
87010-B4020

J200,210..G

 1
87010-B4050

J200,210..X

 1
87220B - DUCT ASSY, AIR
88430-B4030

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),NO.2

 1
87230-B4010

J200,210

NO.1 左側

 1
87220-B4030

J200,210

NO.1 右側

 1
88430-B4030

J200,210..G

NO.2

 1
87220B - DUCT ASSY, AIR
88430-B4030

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),NO.2

 1
87230-B4010

J200,210

NO.1 左側

 1
87220-B4030

J200,210

NO.1 右側

 1
88430-B4030

J200,210..G

NO.2

 1
88539J - HOSE, DRAIN COOLER
88539-B4010

J200,210

 1
88568B - FILTER, AIR
88568-B4010

J200,210

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-B4011

J200,210..G

 1
88650-B4010

J200,210..G

 1
88650-B4011

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
88650-B4010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
88892N - COVER, COOLER, NO.2
88892-B4010

J200,210

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-B4040

J200,210

 1
88897L - GROMMET (FOR DRAIN HOSE)
88897-87210

J200,210

 1
Common parts
87128-B4010
88899-B2010
90041-19564
90041-79138
90041-79142
90099-00968
Linked diagrams
7455

(0601-1605)

Click highlighted areas on diagram

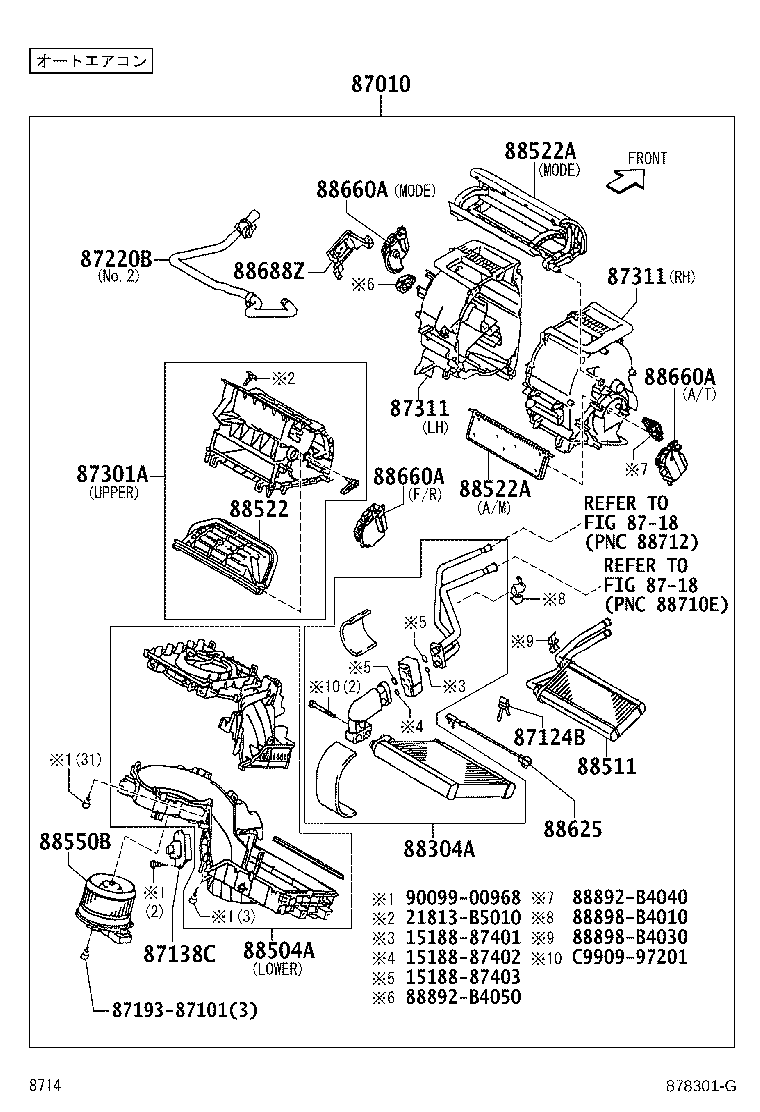

ｵｰﾄｴｱｺﾝ

diagram 1518887401 1518887402 1518887403 21813B5010 87010 87124B 87138C 8718 8718 8719387101 87220B 87301A 87311 87311 88304A 88504A 88511 88522 88522A 88522A 88550B 88625 88660A 88660A 88660A 88688Z 88892B4040 88892B4050 88898B4010 88898B4030 9009900968 C990997201
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-B4020

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
87010-B4020

J200,210..G

 1
87010-B4050

J200,210..X

 1
87124B - CLAMP, HEATER
87126-B1010

J200,210

 1
87138C - RESISTOR, BLOWER
87138-97206

J200,210..X

 1
87138-B4010

J200,210..G

 1
87138-B4010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
87220B - DUCT ASSY, AIR
88430-B4030

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),NO.2

 1
87230-B4010

J200,210

NO.1 左側

 1
87220-B4030

J200,210

NO.1 右側

 1
88430-B4030

J200,210..G

NO.2

 1
87301A - CASE SUB-ASSY, HEATER
87303-B4050

J200,210..G

上側

 1
87303-B4010

J200,210..X

上側

 1
87303-B4050

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),上側

 1
87311 - CASE, HEATER, NO.1
87311-B4020

J200,210..X

右側

 1
87311-B4060

J200,210..G

右側

 1
87311-B4060

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),右側

 1
87311-B4050

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),左側

 1
87311-B4010

J200,210..X

左側

 1
87311-B4050

J200,210..G

左側

 1
87311 - CASE, HEATER, NO.1
87311-B4020

J200,210..X

右側

 1
87311-B4060

J200,210..G

右側

 1
87311-B4060

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),右側

 1
87311-B4050

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),左側

 1
87311-B4010

J200,210..X

左側

 1
87311-B4050

J200,210..G

左側

 1
88304A - COOLER, EVAPORATOR
88304-B4030

J200,210

 1
88304-B4010

J200,210

 1
88504A - CASE SUB-ASSY, BLOWER
87303-B4020

J200,210

下側

 1
88511 - CORE, EVAPORATOR
88511-B4010

J200,210

 1
88522 - DOOR, COOLING UNIT
88522-97503

J200,210

 1
88522A - DOOR, COOLING UNIT NO.2
88522-B4010

J200,210

A/M

 1
88522-B4020

J200,210

ﾓｰﾄﾞ

 1
88522A - DOOR, COOLING UNIT NO.2
88522-B4010

J200,210

A/M

 1
88522-B4020

J200,210

ﾓｰﾄﾞ

 1
88550B - MOTOR ASSY, BLOWER
88550-B1020

J200,210

 1
88625 - THERMISTOR, COOLER, NO.1
88625-97502

J200,210

 1
88660A - SERVO ASSY, AIR CONDITIONER, NO.1
88660-B4030

J200,210..G

ﾓｰﾄﾞ

 1
88660-B4030

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ﾓｰﾄﾞ

 1
88660-B4010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),内気/外気

 1
88660-B4020

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ｴｱﾐｯｸｽ

 1
88660-B4010

J200,210..G

内気/外気

 1
88660-B4020

J200,210..G

ｴｱﾐｯｸｽ

 1
88660A - SERVO ASSY, AIR CONDITIONER, NO.1
88660-B4030

J200,210..G

ﾓｰﾄﾞ

 1
88660-B4030

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ﾓｰﾄﾞ

 1
88660-B4010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),内気/外気

 1
88660-B4020

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ｴｱﾐｯｸｽ

 1
88660-B4010

J200,210..G

内気/外気

 1
88660-B4020

J200,210..G

ｴｱﾐｯｸｽ

 1
88660A - SERVO ASSY, AIR CONDITIONER, NO.1
88660-B4030

J200,210..G

ﾓｰﾄﾞ

 1
88660-B4030

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ﾓｰﾄﾞ

 1
88660-B4010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),内気/外気

 1
88660-B4020

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),ｴｱﾐｯｸｽ

 1
88660-B4010

J200,210..G

内気/外気

 1
88660-B4020

J200,210..G

ｴｱﾐｯｸｽ

 1
88688Z - BRACKET
88665-B4010

J200,210..G

 1
88665-B4010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
Common parts
15188-87401
15188-87402
15188-87403
21813-B5010
87193-87101
88892-B4040
88892-B4050
88898-B4010
88898-B4030
90099-00968
C9909-97201
Linked diagrams
8718

(0601-1605)

Click highlighted areas on diagram

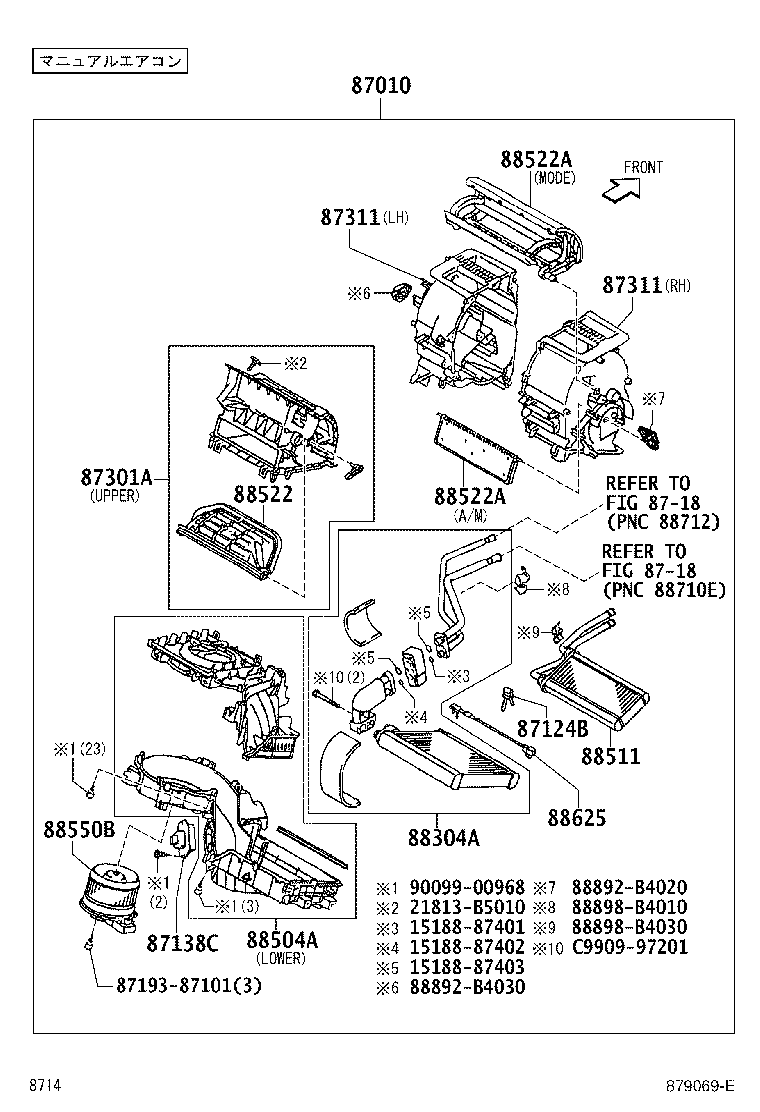

ﾏﾆｭｱﾙｴｱｺﾝ

diagram 1518887401 1518887402 1518887403 21813B5010 87010 87124B 87138C 8718 8718 8719387101 87301A 87311 87311 88304A 88504A 88511 88522 88522A 88522A 88550B 88625 88892B4020 88892B4030 88898B4010 88898B4030 9009900968 C990997201
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-B4020

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
87010-B4020

J200,210..G

 1
87010-B4050

J200,210..X

 1
87124B - CLAMP, HEATER
87126-B1010

J200,210

 1
87138C - RESISTOR, BLOWER
87138-97206

J200,210..X

 1
87138-B4010

J200,210..G

 1
87138-B4010

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ)

 1
87301A - CASE SUB-ASSY, HEATER
87303-B4050

J200,210..G

上側

 1
87303-B4010

J200,210..X

上側

 1
87303-B4050

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),上側

 1
87311 - CASE, HEATER, NO.1
87311-B4020

J200,210..X

右側

 1
87311-B4060

J200,210..G

右側

 1
87311-B4060

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),右側

 1
87311-B4050

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),左側

 1
87311-B4010

J200,210..X

左側

 1
87311-B4050

J200,210..G

左側

 1
87311 - CASE, HEATER, NO.1
87311-B4020

J200,210..X

右側

 1
87311-B4060

J200,210..G

右側

 1
87311-B4060

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),右側

 1
87311-B4050

J200,210..X

ｵｰﾄｴｱｺﾝ+ﾌﾟﾗｽﾞﾏ(ﾊｲﾊﾟﾜｰ),左側

 1
87311-B4010

J200,210..X

左側

 1
87311-B4050

J200,210..G

左側

 1
88304A - COOLER, EVAPORATOR
88304-B4010

J200,210

 1
88304-B4030

J200,210

 1
88504A - CASE SUB-ASSY, BLOWER
87303-B4020

J200,210

下側

 1
88511 - CORE, EVAPORATOR
88511-B4010

J200,210

 1
88522 - DOOR, COOLING UNIT
88522-97503

J200,210

 1
88522A - DOOR, COOLING UNIT NO.2
88522-B4010

J200,210

A/M

 1
88522-B4020

J200,210

ﾓｰﾄﾞ

 1
88522A - DOOR, COOLING UNIT NO.2
88522-B4010

J200,210

A/M

 1
88522-B4020

J200,210

ﾓｰﾄﾞ

 1
88550B - MOTOR ASSY, BLOWER
88550-B1020

J200,210

 1
88625 - THERMISTOR, COOLER, NO.1
88625-97502

J200,210

 1
Common parts
15188-87401
15188-87402
15188-87403
21813-B5010
87193-87101
88892-B4020
88892-B4030
88898-B4010
88898-B4030
90099-00968
C9909-97201
Linked diagrams
8718
