J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

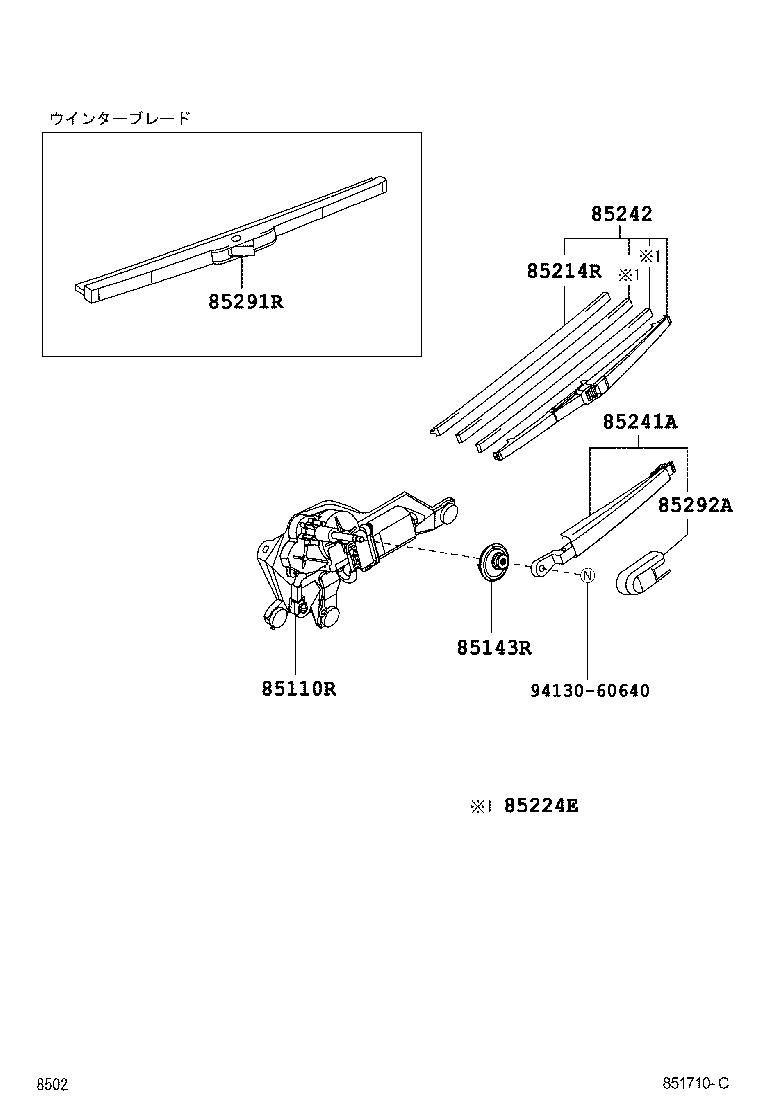

Click highlighted areas on diagram

diagram 85110R 85143R 85214R 85224E 85241A 85242 85291R 85292A 9413060640
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-B4020

J200,210..G

 1
85130-B4010

J200,210..X

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-42030

J200,210

 1
85214R - RUBBER, REAR WIPER
85243-97401

J200,210

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-42040

J200,210

 2
85241A - ARM, REAR WIPER
85241-97205

J200,210

 1
85242 - BLADE, RR WIPER
85242-97401

J200,210

 1
85291R - BLADE,REAR WIPER, WINTER
85291-97403

J200,210

ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−ｳｲﾝﾀｰﾌﾞﾚｰﾄﾞ

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-28030

J200,210

 1
Common parts
94130-60640
