J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

Click highlighted areas on diagram

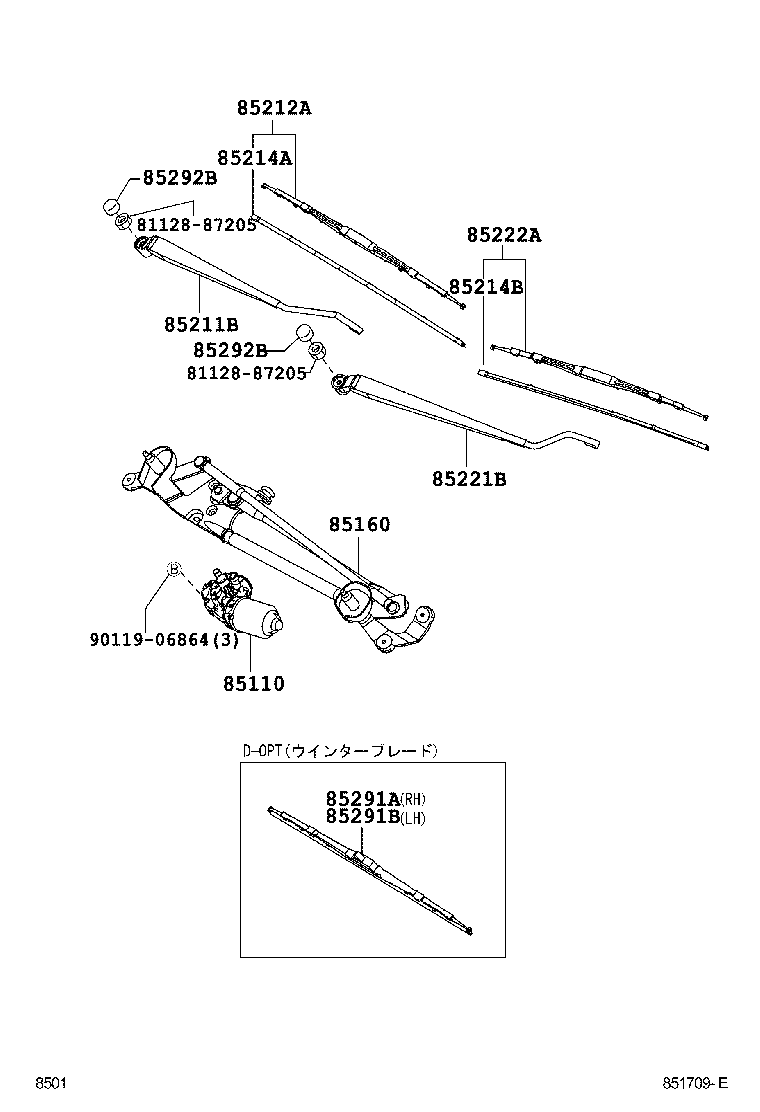

diagram 8112887205 8112887205 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291B 85292B 85292B 9011906864
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-B4010

J200,210

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-B4010

J200,210

 1
85211B - ARM, FRONT WIPER, RH
85211-B4010

J200,210

 1
85212A - BLADE, FR WIPER, RH
85212-B4010

J200,210

 1
85214A - RUBBER, WIPER, RH
85214-B2030

J200,210

 1
85214B - RUBBER, WIPER, LH
85214-B2150

J200,210

 1
85221B - ARM, FRONT WIPER, LH
85221-B4010

J200,210

 1
85222A - BLADE, FR WIPER, LH
85212-B2080

J200,210

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-97402

J200,210

ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−ｳｲﾝﾀｰﾌﾞﾚｰﾄﾞ

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-97207

J200,210

ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−ｳｲﾝﾀｰﾌﾞﾚｰﾄﾞ

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-12020

J200,210

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-12020

J200,210

 2
Common parts
81128-87205
90119-06864
