J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

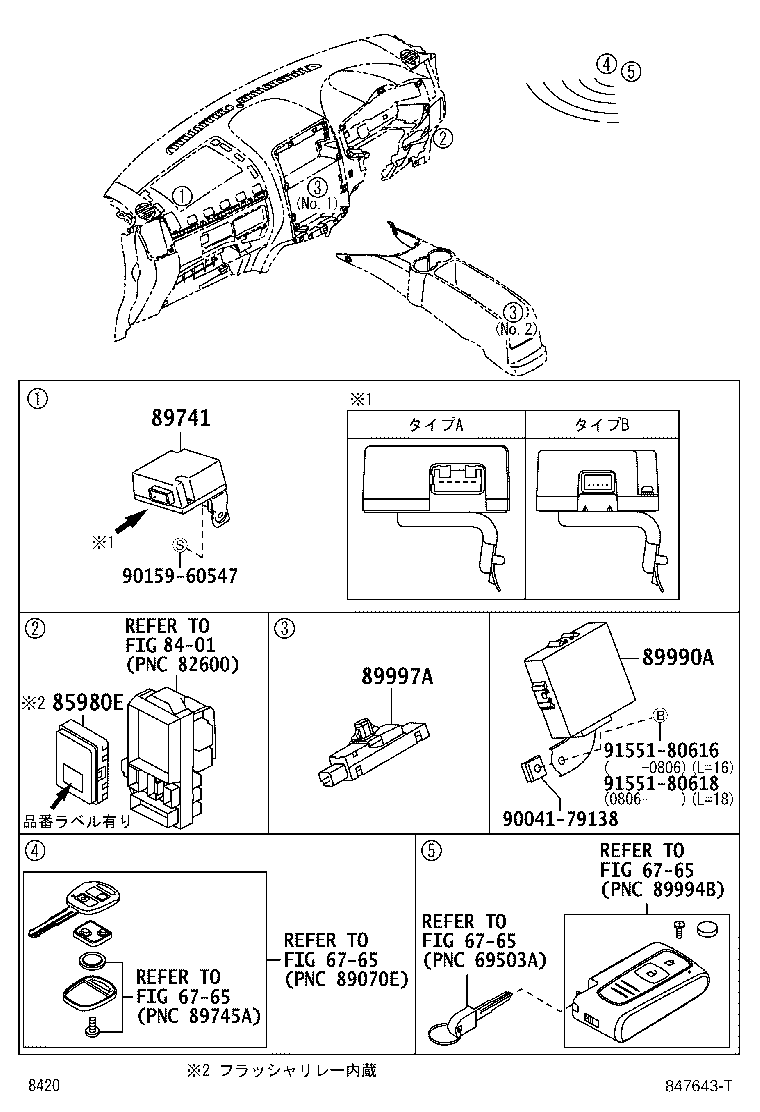

Click highlighted areas on diagram

diagram 6765 6765 6765 6765 8401 85980E 89741 89990A 89997A 9004179138 9015960547 9155180616 9155180618
Part # Description Qty Price
85980E - RELAY ASSY, DOOR CONTROL
85980-B4010

J200,210

 1
89741 - RECEIVER, DOOR CONTROL
89741-B4040

J200,210..G

G−LIMITED *(H)&#−ｷｰﾚｽ,ﾀｲﾌﾟ B

 1
89741-B4010

J200,210..X

ﾀｲﾌﾟ A

 1
89741-B4020

J200,210..X

#−ｷｰﾌﾘｰ

 1
89741-B4020

J200,210..G

 1
89741-B4040

J200,210..X

ﾀｲﾌﾟ B

 1
89990A - COMPUTER ASSY, SMART KEY
89990-B4010

J200,210..X

#−ｷｰﾌﾘｰ

 1
89990-B4010

J200,210..G

 1
89997A - ANTENNA, ELECTRICAL KEY, NO.2
89997-B4010

J200,210..G

NO.1

 1
89997-B4020

J200,210..G

NO.2

 1
89997-B4020

J200,210..X

#−ｷｰﾌﾘｰ,NO.2

 1
89997-B4010

J200,210..X

#−ｷｰﾌﾘｰ,NO.1

 1
Common parts
90041-79138
90159-60547
91551-80616
91551-80618
Linked diagrams
6765
8401
