J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)J210

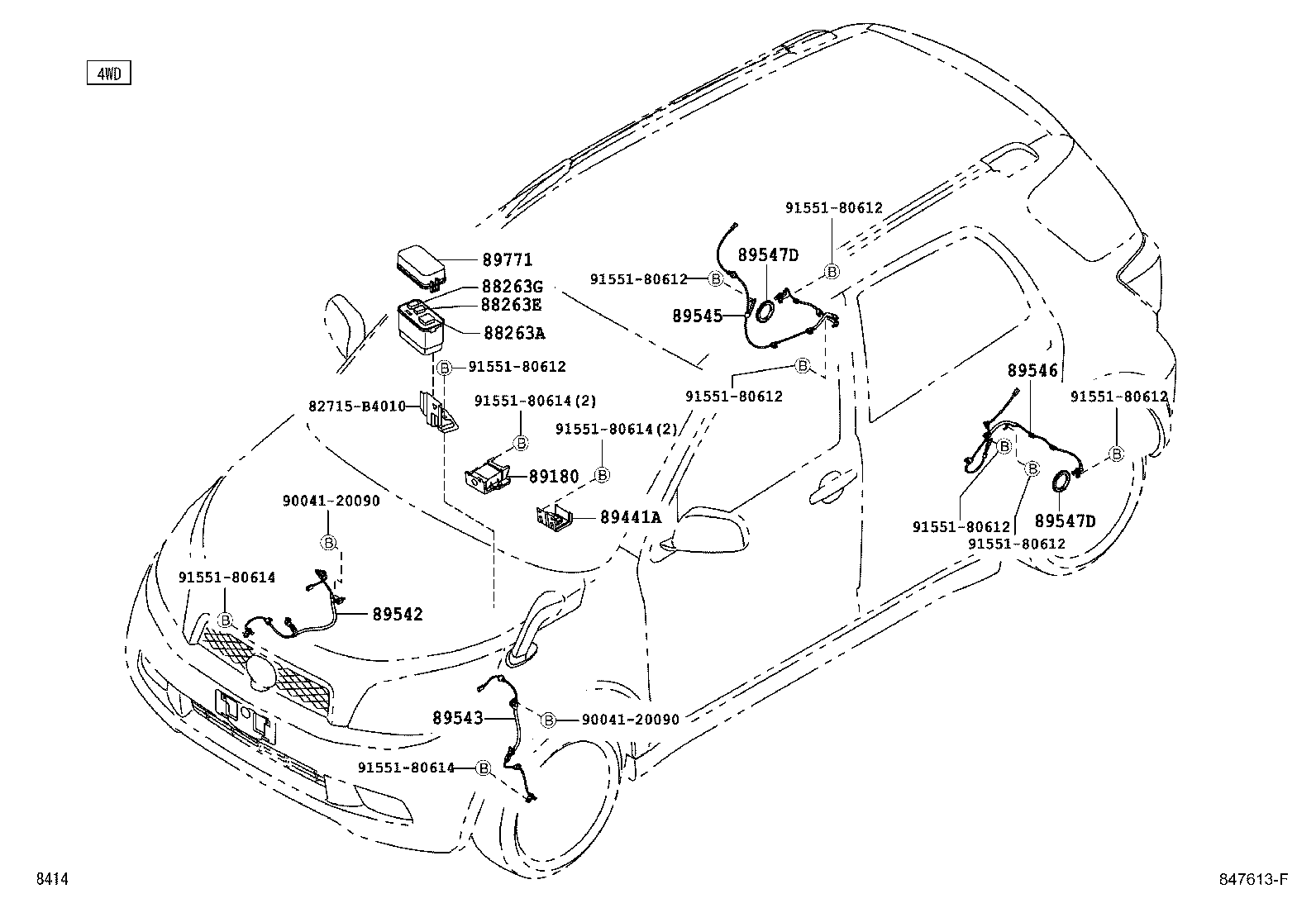

Click highlighted areas on diagram

4WD

diagram 82715B4010 88263A 88263E 88263G 89180 89441A 89542 89543 89545 89546 89547D 89547D 89771 9004120090 9004120090 9155180612 9155180612 9155180612 9155180612 9155180612 9155180612 9155180612 9155180614 9155180614 9155180614 9155180614
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-21010

J210..5F

VSC

 1
88263E - RELAY, SKID CONTROL NO.2
88263-32070

J210..5F

VSC

 1
89180 - SENSOR ASSY, YAWRATE
89180-B4010

J210..5F

VSC

 1
89441A - SENSOR, DECELERATION
89440-B4010

J210

 1
89542 - SENSOR, SPEED, FRONT RH
89542-B4010

J200,210

 1
89543 - SENSOR, SPEED, FRONT LH
89543-B4010

J200,210

 1
89545 - SENSOR, SPEED, REAR RH
89545-B4010

J200,210

 1
89546 - SENSOR, SPEED, REAR LH
89546-B4010

J200,210

 1
89547D - ROTOR, SKID CONTROL SENSOR
89547-97506

J200,210

 2
89547D - ROTOR, SKID CONTROL SENSOR
89547-97506

J200,210

 2
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-21020

J210..5F

VSC

 1
Common parts
82715-B4010
90041-20090
91551-80612
91551-80614
