J210E-GMGF (2006)

Toyota Rush

Production Jan 2006 - Nov 2008
Engine 3SZVE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1605)

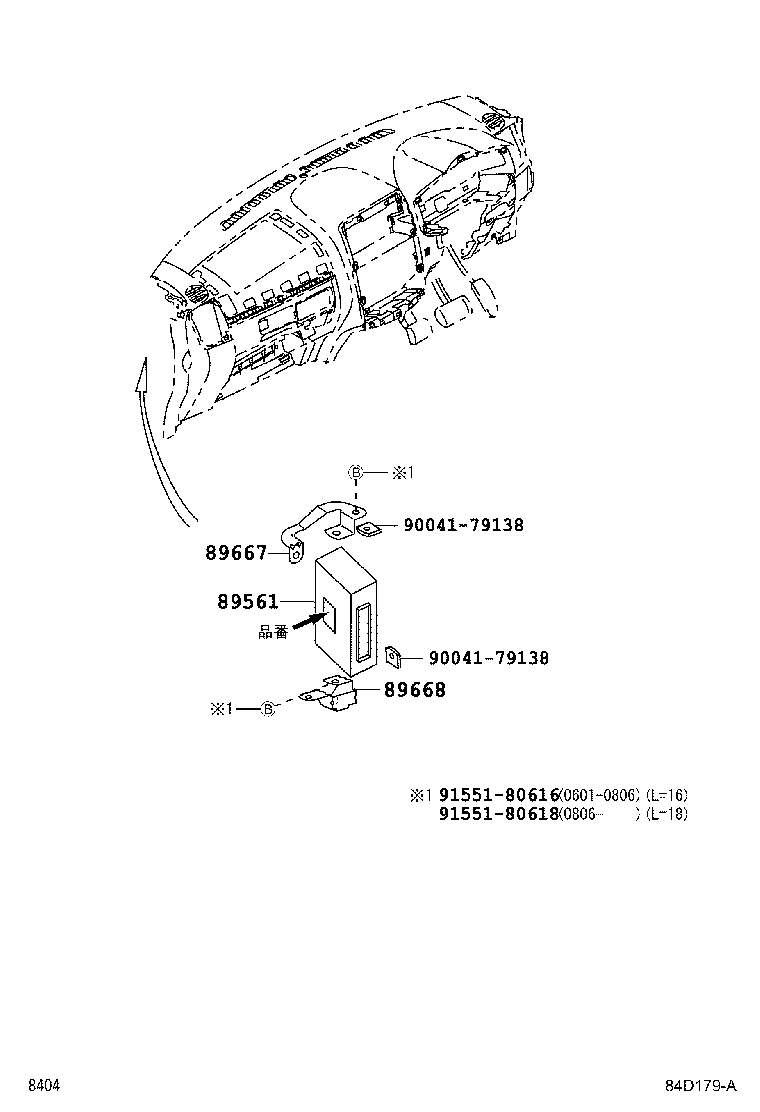

Click highlighted areas on diagram

diagram 89561 89667 89668 9004179138 9004179138 9155180616 9155180618
Part # Description Qty Price
89561 - COMPUTER, FUEL INJECTION
89560-B4050

J210..X..5F

DENSO

 1
89560-B4051

J210..X..5F

DENSO

 1
89560-B4061

J210..X..5F

DENSO,#−ｷｰﾌﾘｰ

 1
89560-B4060

J210..X..5F

DENSO,#−ｷｰﾌﾘｰ

 1
89560-B4060

J210..G..5F

DENSO

 1
89560-B4051

J210..G..5F

DENSO,G−LIMITED *(H)

 1
89560-B4061

J210..G..5F

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-B4010

J200,210

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-B4010

J200,210

 1
Common parts
90041-79138
91551-80616
91551-80618
