J210E-GMGF (2006)
Toyota Rush
(0601-1605)

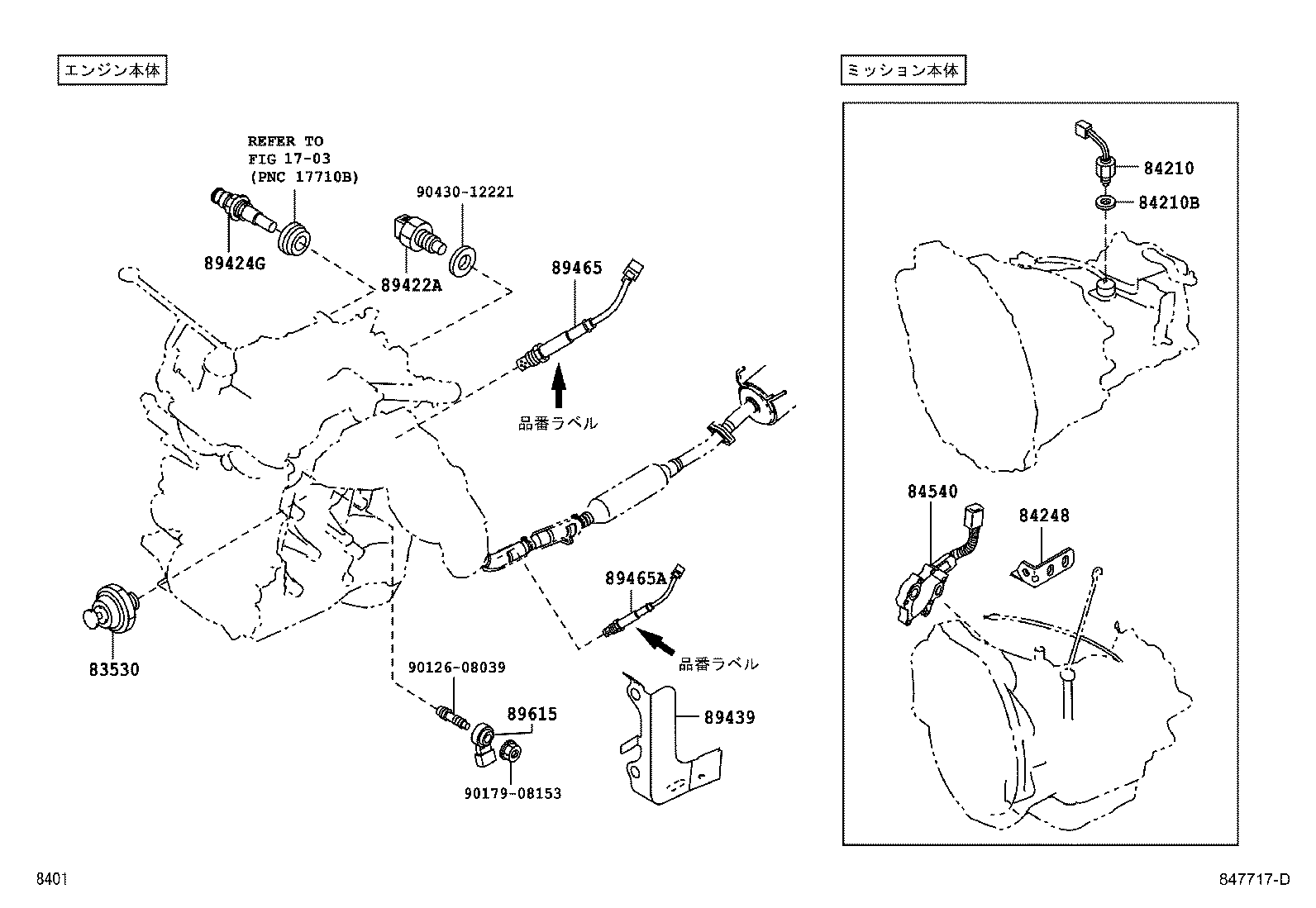

ｴﾝｼﾞﾝ&ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-97401 |
J200,210 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-B5010 |
J210..5F |
1 | ||
| 84210B - GASKET, BACK-UP LAMP SWITCH | ||||
| 90044-30186 |
J210..5F |
1 | ||
| 84248 - CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS | ||||
| 84248-B4010 |
J210..5F |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
J200,210 |
1 | ||
| 89424G - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-87703 |
J200,210 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-B4020 |
J210..5F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-B4030 |
J200,210 品番ﾗﾍﾞﾙ有り |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-B4010 |
J200,210 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
J200,210 |
1 | ||
| Common parts | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 90430-12221 | ||||
| Linked diagrams | ||||
| 1703 | ||||
(0601-1605)

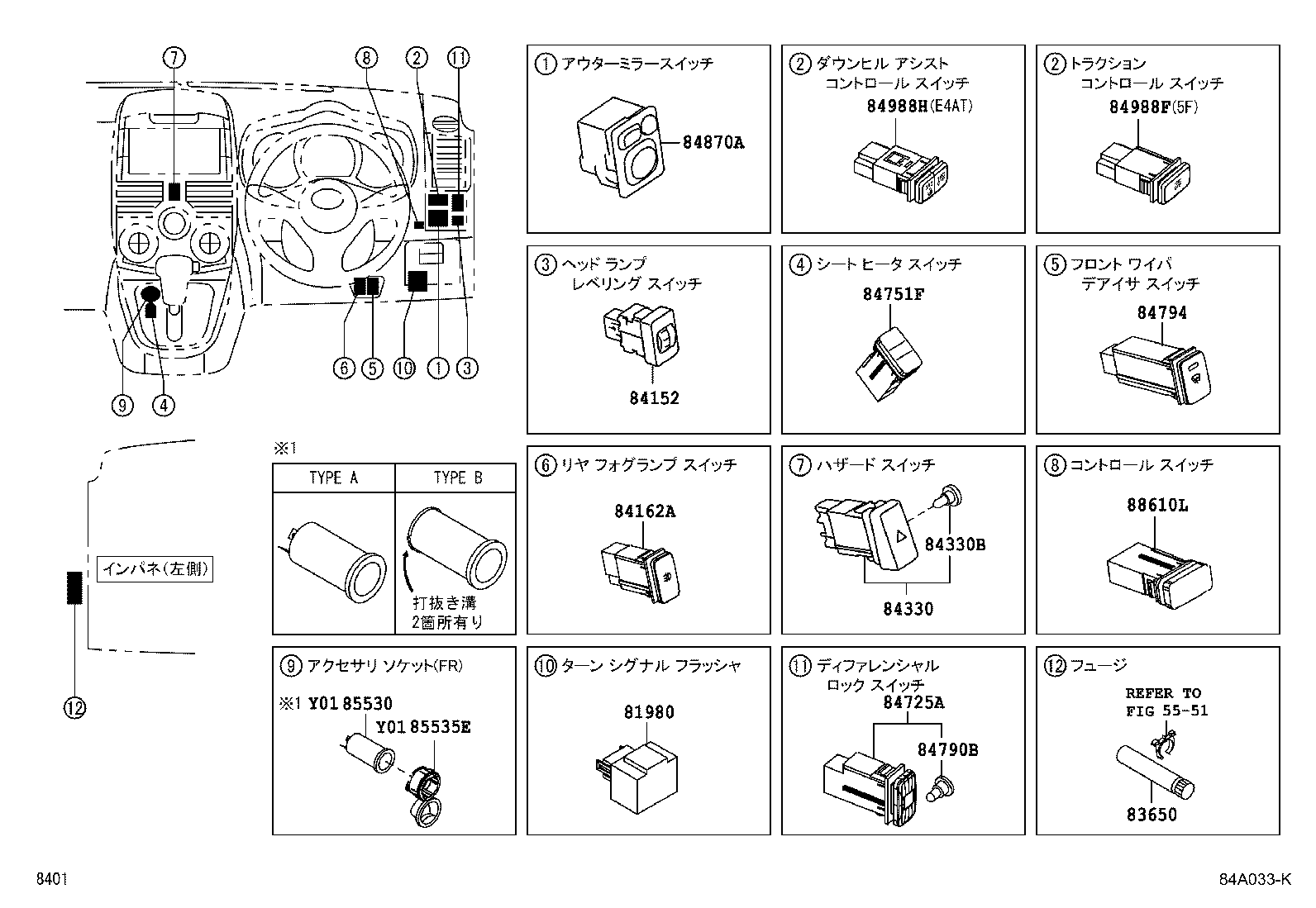

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-97202 |
J200,210 |
1 | ||
| 83650 - FUSEE | ||||
| 90049-86005 |
J200,210 |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-B4010 |
J200,210 |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-B4010 |
J200,210 ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ−有り(ﾘﾔ ﾌｫｸﾞ ﾗﾝﾌﾟ) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-B4010 |
J200,210 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-B5010 |
J200,210 14V 0.91W |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-B4020 |
J210 |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-42040 |
J200,210 寒冷地仕様&ｼｰﾄ ﾋｰﾀｰ 有り |
1 | ||
| 84751-42040 |
J200,210 寒冷地 ｽﾍﾟｼｬﾙ&ｼｰﾄ ﾋｰﾀｰ 有り |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-B5020 |
J210 14V 0.84W |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-B4010 |
J200,210 寒冷地 ｽﾍﾟｼｬﾙ |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-97401 |
J200,210 |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-B4020 |
J210..5F VSC |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
J200,210 |
2 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-68010 |
J200,210 |
2 | ||
| 88610L - SWITCH ASSY,CONTROL | ||||
| 88610-B4010 |
J200,210 |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
(0601-1605)

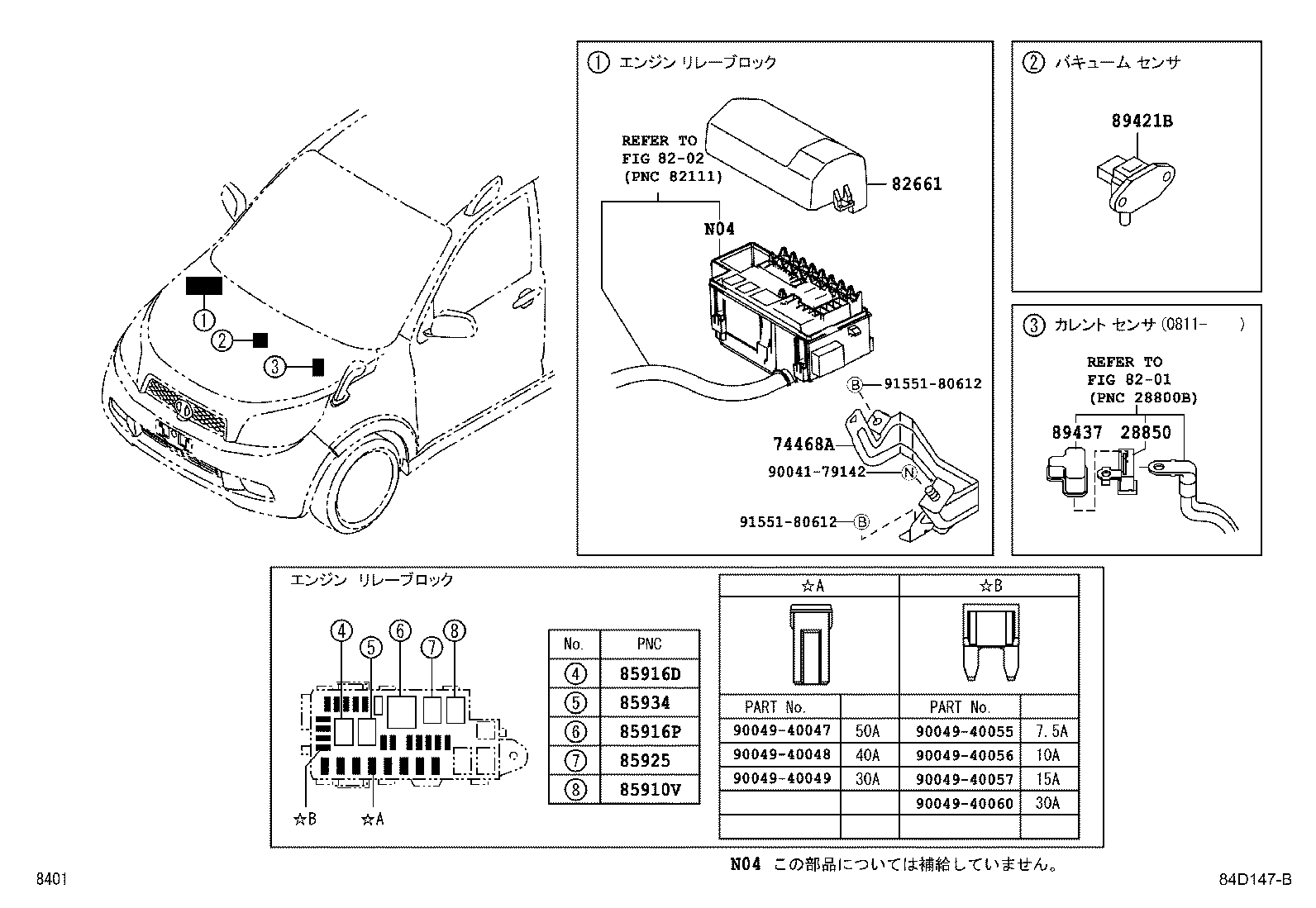

ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74468A - BRACKET, RELAY BLOCK | ||||
| 74468-B4010 |
J200,210 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-B4060 |
J210..5F VSC |
1 | ||
| 82661-B4050 |
J200,210 |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90049-88004 |
J200,210 ｼｰﾄ ﾋｰﾀｰ 有り |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90049-88004 |
J200,210 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90049-87026 |
J200,210 |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90049-88004 |
J200,210 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90049-88004 |
J200,210 |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89421-B1010 |
J200,210 |
1 | ||
| Common parts | ||||
| 90041-79142 | ||||
| 90049-40047 | ||||
| 90049-40048 | ||||
| 90049-40049 | ||||
| 90049-40055 | ||||
| 90049-40056 | ||||
| 90049-40057 | ||||
| 90049-40060 | ||||
| 91551-80612 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8202 | ||||
(0601-1605)

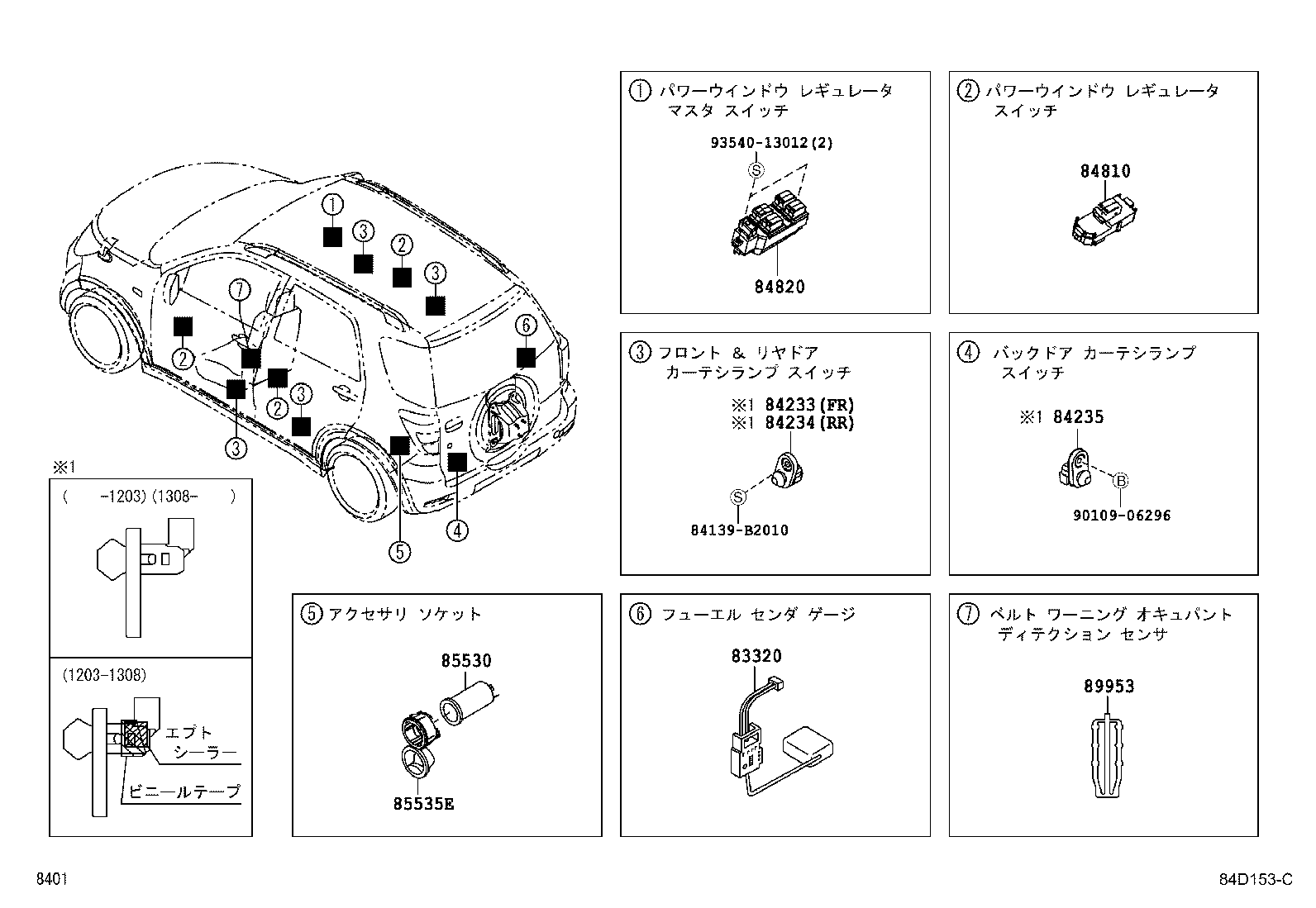

ﾄﾞｱ&ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83301-B4020 |
J200,210 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-97201 |
J200,210 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-97201 |
J200,210 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-97201 |
J200,210 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-B4010 |
J200,210 |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-B4010 |
J200,210 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
J200,210 |
2 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-68010 |
J200,210 |
2 | ||
| 89953 - SENSOR, BELT WARNING OCCUPANT DETECTION | ||||
| 89953-B1010 |
J200,210 |
1 | ||
| Common parts | ||||
| 84139-B2010 | ||||
| 90109-06296 | ||||
| 93540-13012 | ||||
(0601-1605)

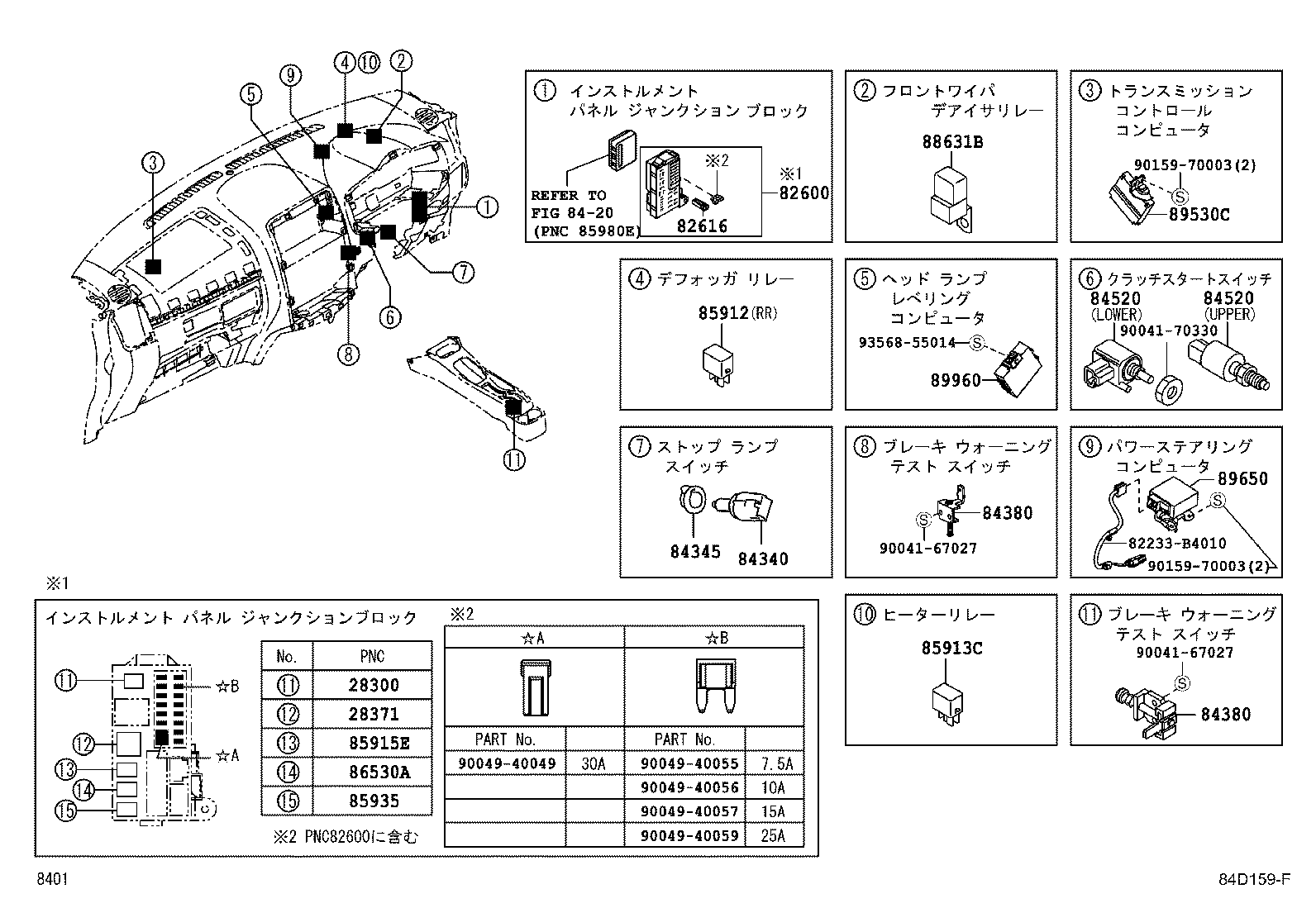

ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90049-88002 |
3SZVE..J200,210 寒冷地仕様 |
1 | ||
| 90049-88004 |
3SZVE..J200,210 |
1 | ||
| 90049-88002 |
3SZVE..J200,210 寒冷地 ｽﾍﾟｼｬﾙ |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90049-88001 |
3SZVE..J200,210 |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-B4010 |
J200,210 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-B2010 |
J200,210 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-B2010 |
J200,210 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-B2010 |
J200,210 |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-87708 |
J210..5F |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-87708 |
J210..5F |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-97202 |
J210..5F 下側 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-97202 |
J210..5F 下側 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90049-88004 |
J200,210 |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90049-88002 |
J200,210 寒冷地 ｽﾍﾟｼｬﾙ |
1 | ||
| 90049-88004 |
J200,210 |
1 | ||
| 90049-88002 |
J200,210 寒冷地仕様 |
1 | ||
| 85915E - RELAY | ||||
| 90049-88002 |
J200,210 寒冷地仕様 |
1 | ||
| 90049-88002 |
J200,210 寒冷地 ｽﾍﾟｼｬﾙ |
1 | ||
| 90049-88004 |
J200,210 |
1 | ||
| 85935 - RELAY, FUEL PUMP | ||||
| 90049-88002 |
J200,210 寒冷地仕様 |
1 | ||
| 90049-88004 |
J200,210 |
1 | ||
| 90049-88002 |
J200,210 寒冷地 ｽﾍﾟｼｬﾙ |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90049-88002 |
J200,210 寒冷地 ｽﾍﾟｼｬﾙ |
1 | ||
| 90049-88004 |
J200,210 |
1 | ||
| 90049-88002 |
J200,210 寒冷地仕様 |
1 | ||
| 88631B - RELAY ASSY | ||||
| 88630-B4020 |
J200,210 寒冷地 ｽﾍﾟｼｬﾙ |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-B4020 |
J210 JTEKT |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-B4010 |
J200,210 ﾍｯﾄﾞ ﾗﾝﾌﾟ−RHD HID |
1 | ||
| Common parts | ||||
| 82233-B4010 | ||||
| 90041-67027 | ||||
| 90041-70330 | ||||
| 90049-40049 | ||||
| 90049-40055 | ||||
| 90049-40056 | ||||
| 90049-40057 | ||||
| 90049-40059 | ||||
| 90159-70003 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8420 | ||||
(0601-1605)

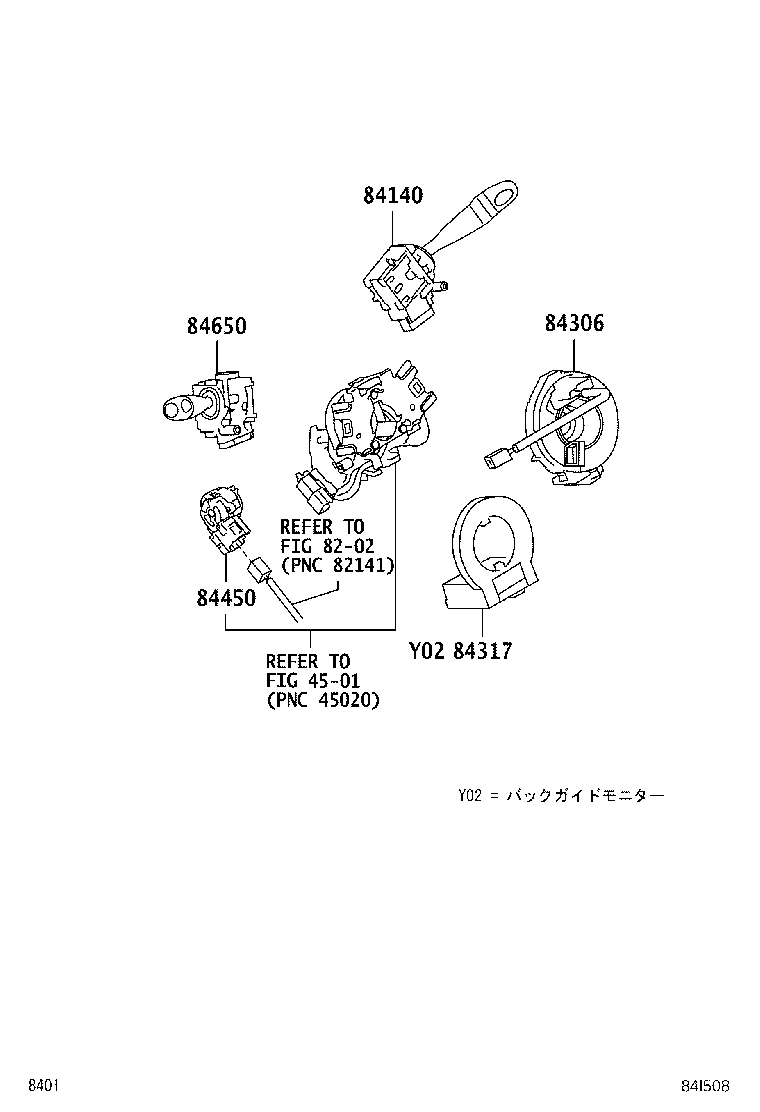

ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-B2020 |
J200,210 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-B2020 |
J210..5F VSC |
1 | ||
| 84306-B2010 |
J200,210 |
1 | ||
| 84317 - SENSOR, STEERING POSITION | ||||
| 84317-B1010 |
J210..5F VSC |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-B2010 |
J200,210 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-B2010 |
J200,210..X |
1 | ||
| 84652-B4010 |
J200,210..G |
1 | ||
| Linked diagrams | ||||
| 4501 | ||||
| 8202 | ||||
