J210E-GMGF (2006)
Toyota Rush
Production
Jan 2006
-
Nov 2008
Engine
3SZVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0601-1605)

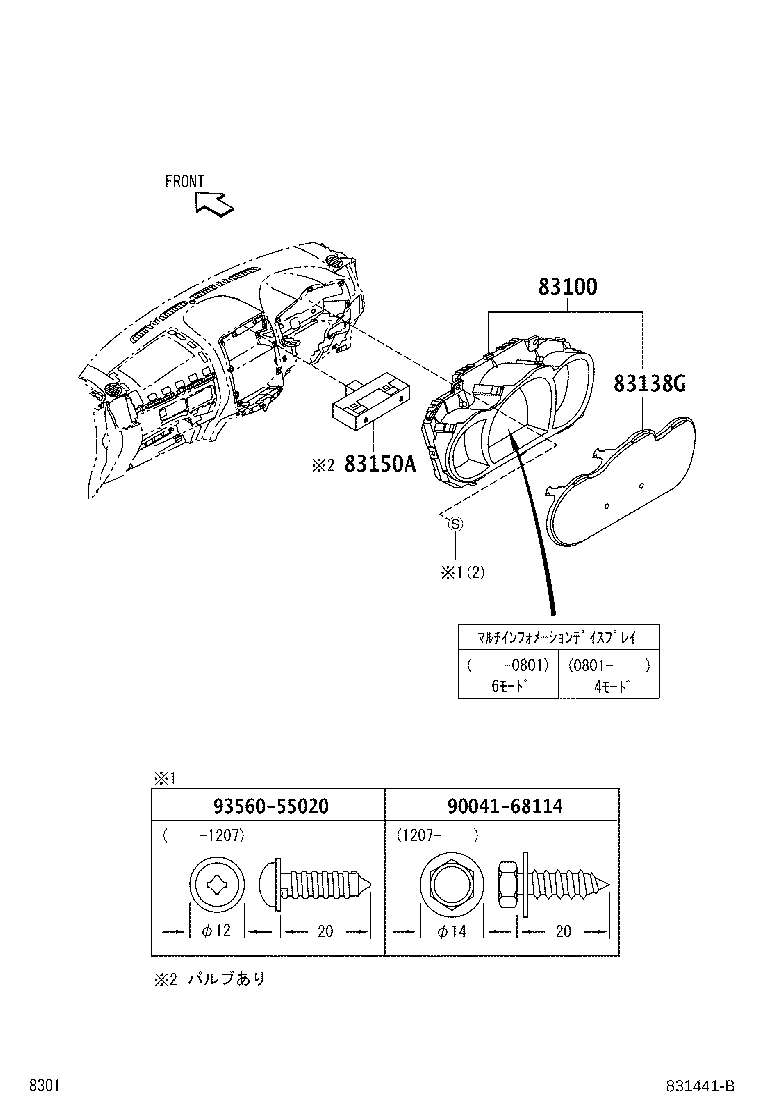

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-B4051 |
J210..5F DENSO,VSC |
1 | ||
| 83800-B4262 |
J210..5F DENSO |
1 | ||
| 83800-B4263 |
J210..5F DENSO |
1 | ||
| 83800-B4052 |
J210..5F DENSO,VSC |
1 | ||
| 83800-B4053 |
J210..5F DENSO,VSC |
1 | ||
| 83800-B4261 |
J210..5F DENSO |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-B4010 |
J200,210 |
1 | ||
| 83150A - INDICATOR ASSY | ||||
| 83150-B4020 |
J200,210 ﾊﾞﾙﾌﾞ付き |
1 | ||
| Common parts | ||||
| 90041-68114 | ||||
| 93560-55020 | ||||
